Description
- Origin: CN(Origin)
- Certification: CE
- Condition: New
- Model Number: 15W
Welcome to our store , friend !

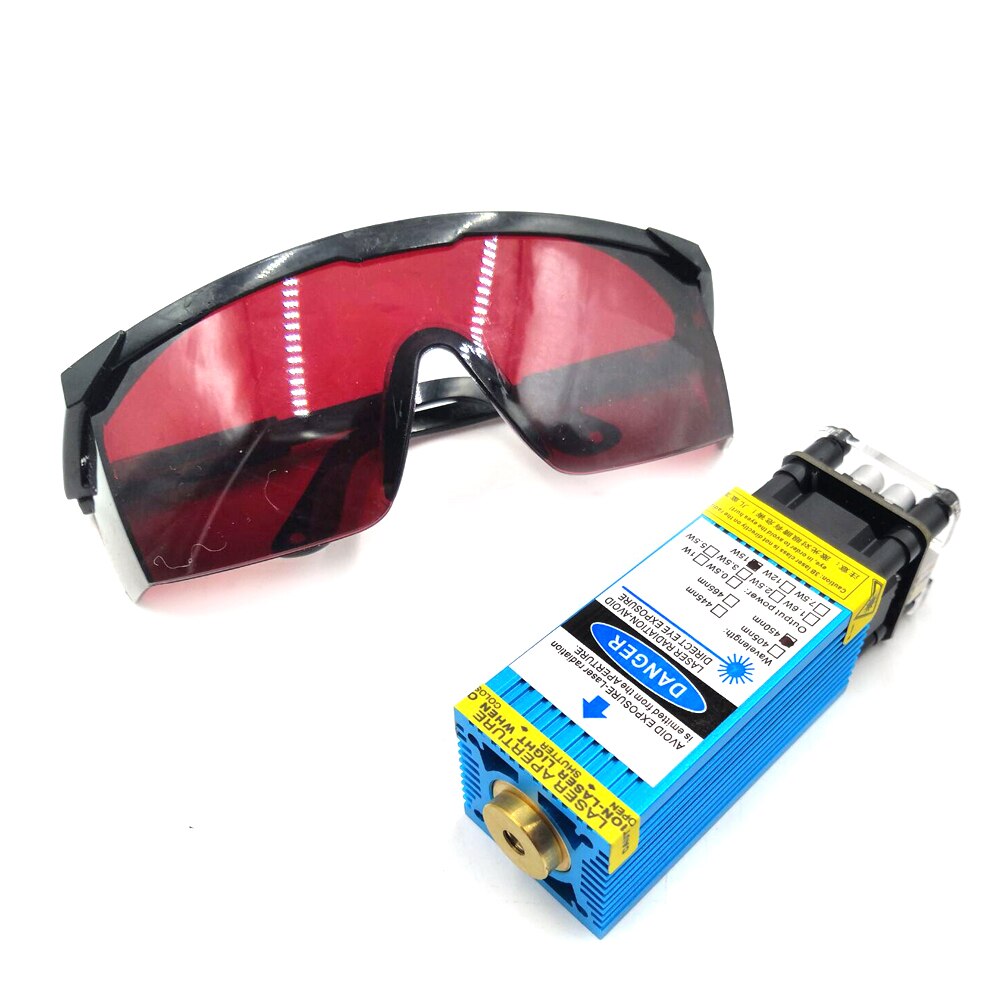

15W 450nm 33mm Fixed Focus Laser Head TTL / PWM Engraving Module Can Engrave On Stainless Steel Carving Engraver
– Made of high quality hard aluminum and BRASS material, the surface is anodized and sandblasted, not easy to rust, very.
Durable!
– One of the most powerful diodes available, upgrade your wood engraver to a Metal marking machine.
. You can mark metal and stone cutting foam wood and other materials easily
– With heat dissipation fan, longer service life.
– Please use the protective glass when using the laser module.
– Do not touch the laser light directly in case it hurts the body and skin.
-Keep children and pets away from the laser module when it is working.
– The laser point cannot be adjusted, please make sure the distance between the bottom of the laser module and the engraving
The material is 16mm (Use the plastic column to make it). Or it will influence the result.
– Please connect it to the controller board carefully! The red wire is 12V +, the black wire is GND-, the yellow wire is
Signal (S). Make sure you know how to connect it, otherwise it may damage the laser module!
– Laser power: pulse 15W average 8W
– Laser wavelength: nm
– Beam shape: 0.1mm spot
– Focal Length: fixed focal length
– Material: aeronautical aluminum, copper
– Prot power input voltage: DC 12V
. PWM Prot input voltage: DC 5V
– Power supply interface: XH2.54 * 3P
– Driving mode: ACC external constant current drive

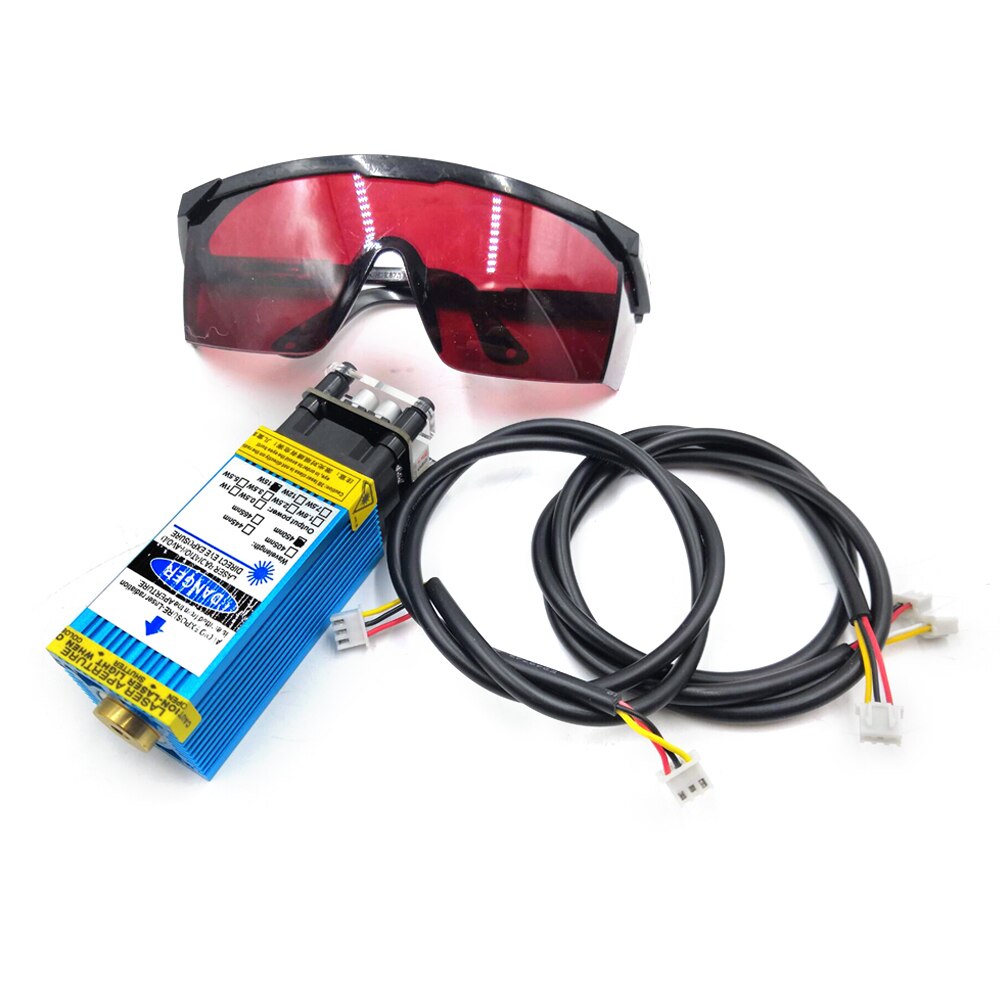

1* Laser
1* 3p-3p Cable
1*3p-2p + 2p
1* Glasses
