Sale!

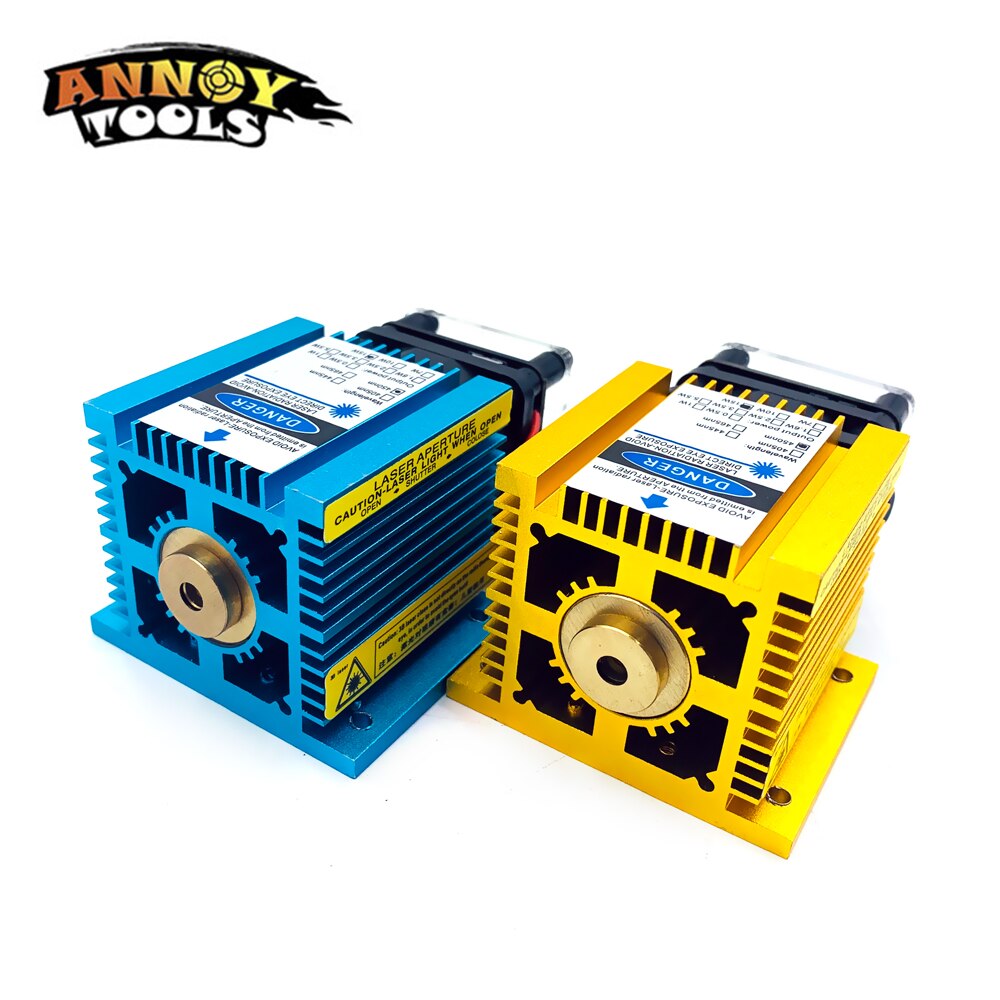

15W 450nm fixed focus laser module 15000mw DIY bule laser head for CNC laser engraving machine laser cutter with TTL/PWM

$199.00$259.00

SKU: 33044808752 Category: Tag:

Description

15W 450nm fixed focus laser module 15000mw DIY bule laser head for CNC laser engraving machine and laser cutter with PWM





description

The laser can engraving on stainless steel but I suggest the stainless steel is better have coating!

HTB1eMuFacrrK1Rjy1zeq6xalFXa9

–Laser module power is relatively large, only for industrial use, to prohibit the exposure of the eye, otherwise it will cause permanent blindness, the consequences at your own risk.

–Do not use in flammable and gas atmospheres to avoid fire and explosion

–Prohibit children from exposure to this laser product.

–Do not open the module to avoid damage.

–Can’t cut MDF 3mm, only the light wood.

–We suggest to engraving on stainless steel and about all the Flammable material(It is better to confirm us before make the order)











parameters





–Laser wavelength: 450 nm (blue viole)

–Spot type: Dotted (adjustable)

–Light power: 15W is 7W,  30W is 10W (It’s said that the laser is 15W, but it has not reach 15w! While I can not fall behind other seller (8W, 10W, 15W) , we write as 15W and 30W!

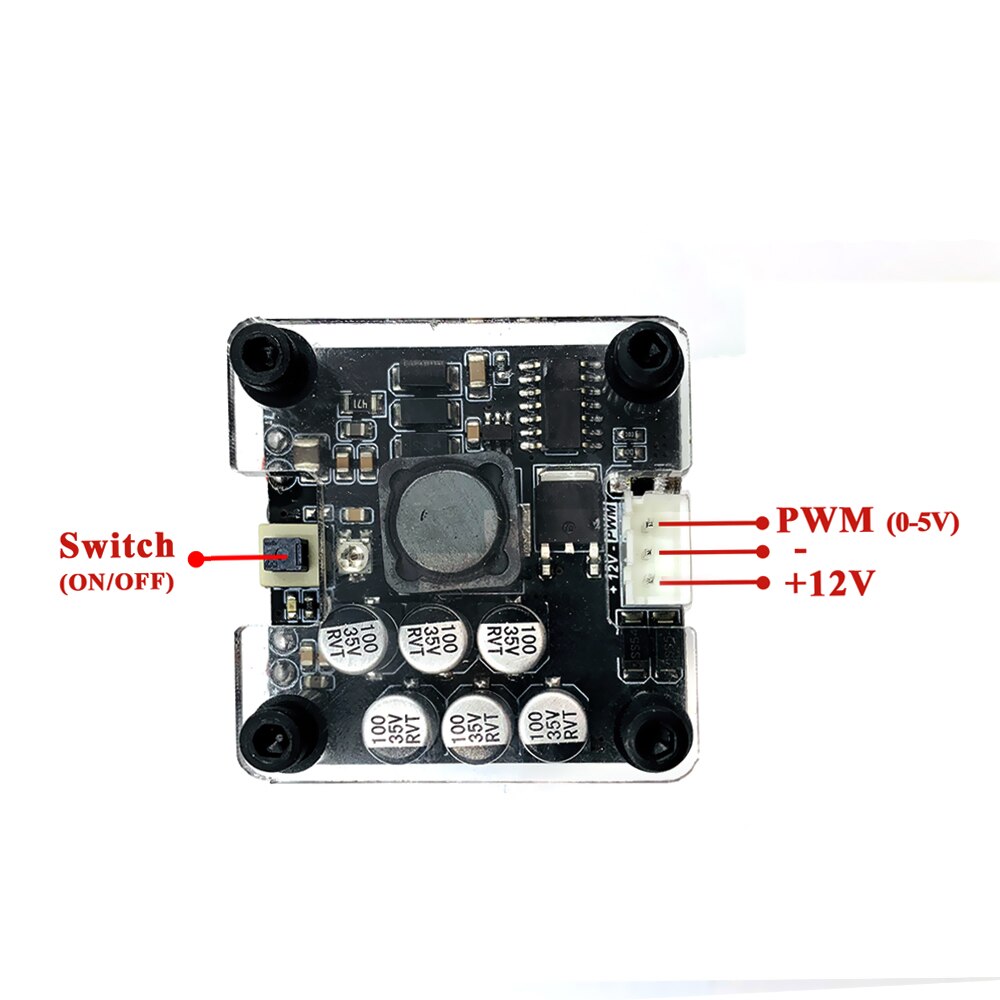

–Drive mode: external ACC constant current drive

–Cooling method: Forced Air Cooling

–Operating voltage: 12V DC

​–power supply: 12V 5A

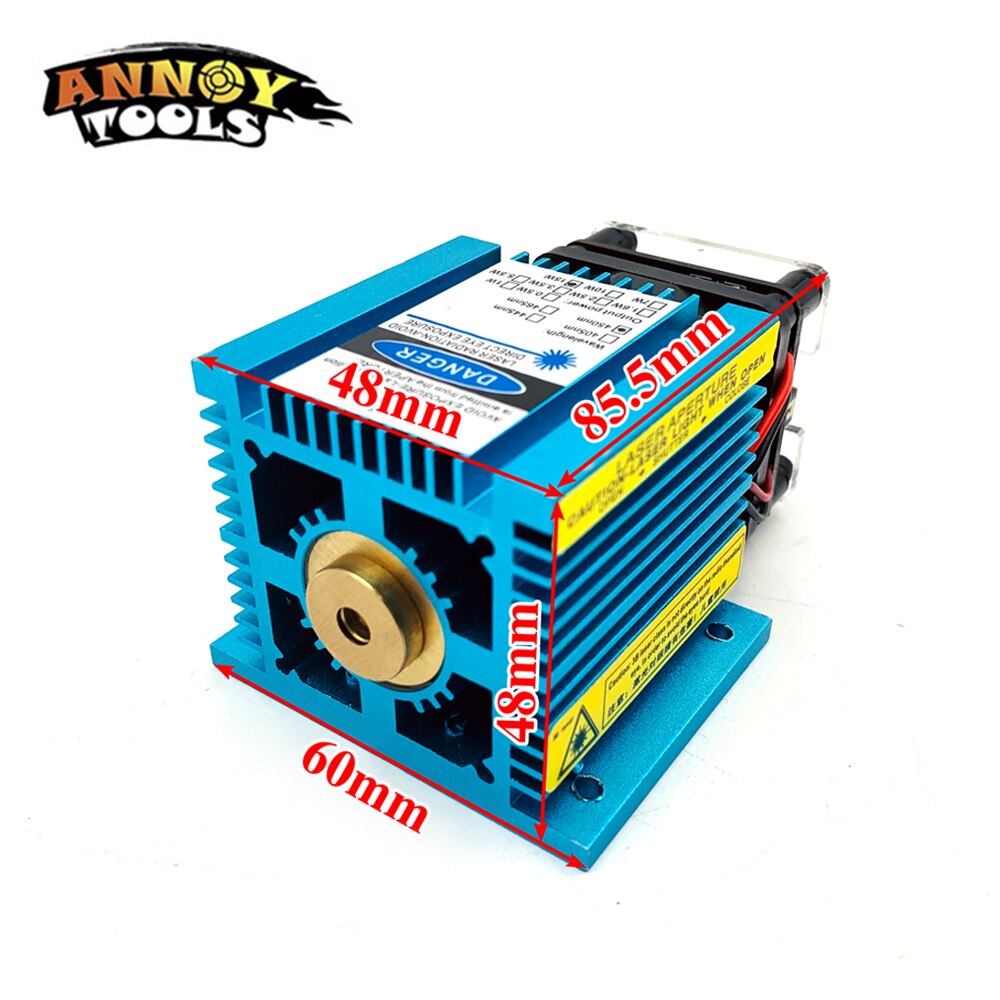

–Shell material: Aluminum, Surface Anodized

–Module material: Copper

–Life Time:8,000hours(Theoretically)

–Working temperature:-40-75Celsius







packinglist



Packing list:

laser  module *1

Protection glasses *1

3pin connect cable*1

2pin connect cable*1

Focusing column*1









product

01

H2fdc9e3588c740ec9571a6c4f05409cbl05



6

03未标题-1.jpg000030W laser

3C37B25FD6ACB44AF3CB2990176DDC84773F2833132A2F0E50255BA004A48C221941DC46F720C2B57830BEAC33A92BBFhow to use Focusing column









effect









HTB1GAU.VSzqK1RjSZPcq6zTepXai2UTB8vjcpMpfFXKJk43Otq6xIPFXaR 拷贝副本
