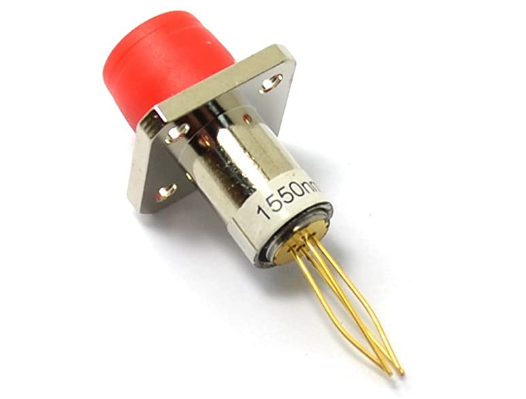

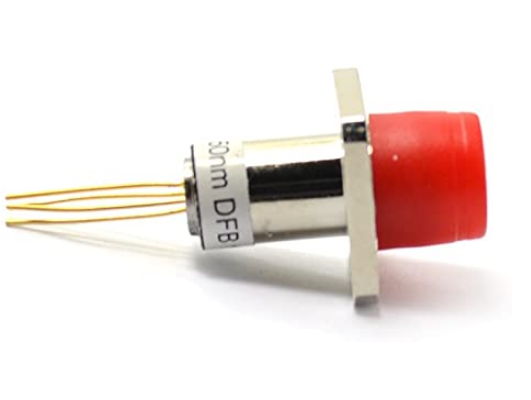

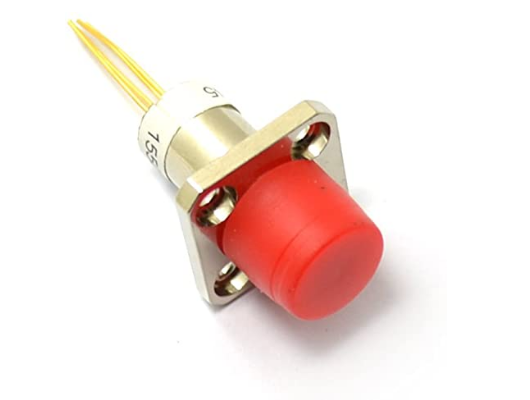

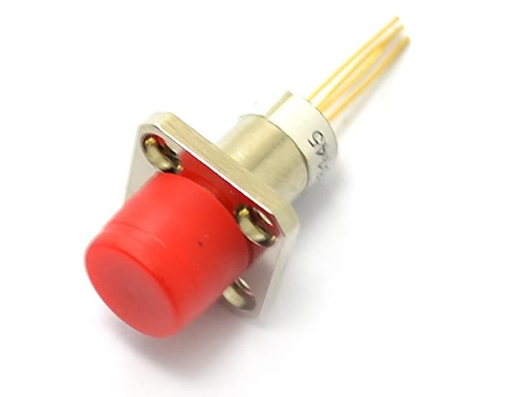

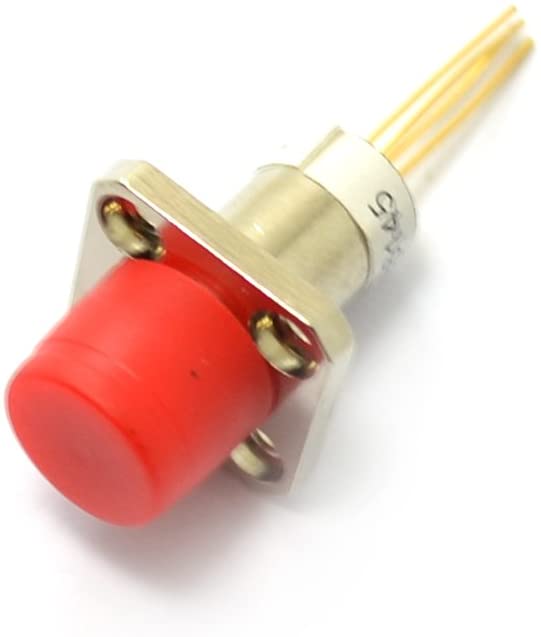

1550nm DFB Laser Diode Fiber Output Power 4mW Fiber Pigtailed FC Connector

$129.00 $99.00

Description

1550nm DFB Single mode coaxial laser diode
Package: coaxial, TO-56 Can, fiber coupling, optical interface optional
Optical output power: 4mW
Threshold current: 10mA
High side mode suppression ratio(typical >35dB)

Model: LSDLD1550

  1. Center wavelength: 1550nm
  2. Optical output power: 4mW
  3. Threshold current: 10mA
  4. Working current: 30mA
  5. Package: coaxial, TO-56 Can, fiber coupling, optical interface optional

Feature:
MQW-DFB,High reliable
Single mode
Good high temperature characteristic
High side mode suppression ratio(typical >35dB)
Built-in monitor PD
Low threshold.operate current
Mental can type hermetic

Note:
If you need any fiber connector or package.Please leave message to the customer service.

Packageļ¼š
1x1550nm DFB laser diode fiber output power 4mW
