Description

1550 nm band Very High Extinction Ratio IQ Modulator MXIQER-LN-30

The MXIQER-LN-30 optical IQ modulator is a high bandwidth, low insertion loss,high extinction ratio Dual Parallel Mach-Zehnder Modulator. Our proprietary Magic Junction confers it an unmatched low insertion loss with high optical extinction ratio, and its X-cut design guarantees high stability and zero chirp in a wide range of operational conditions.The MXIQER modulator is key device in all applications where a combination of high extinction and high bandwidth is required, such as Single Side Band optical signal generation with with high suppression ratio of main carrier.

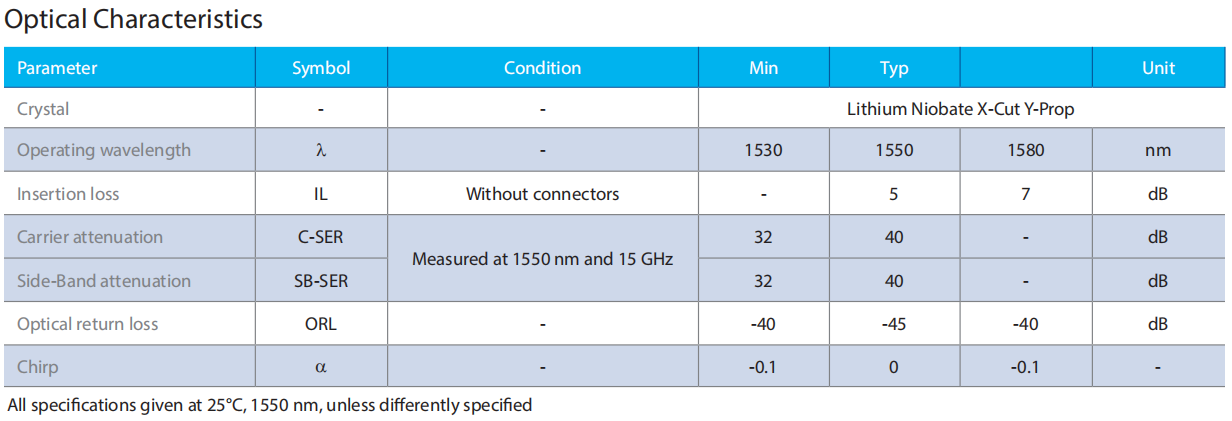

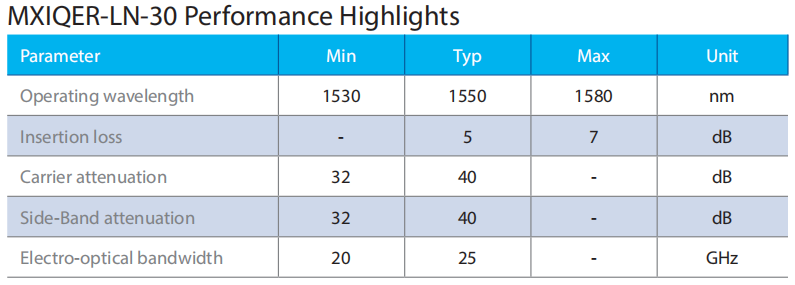

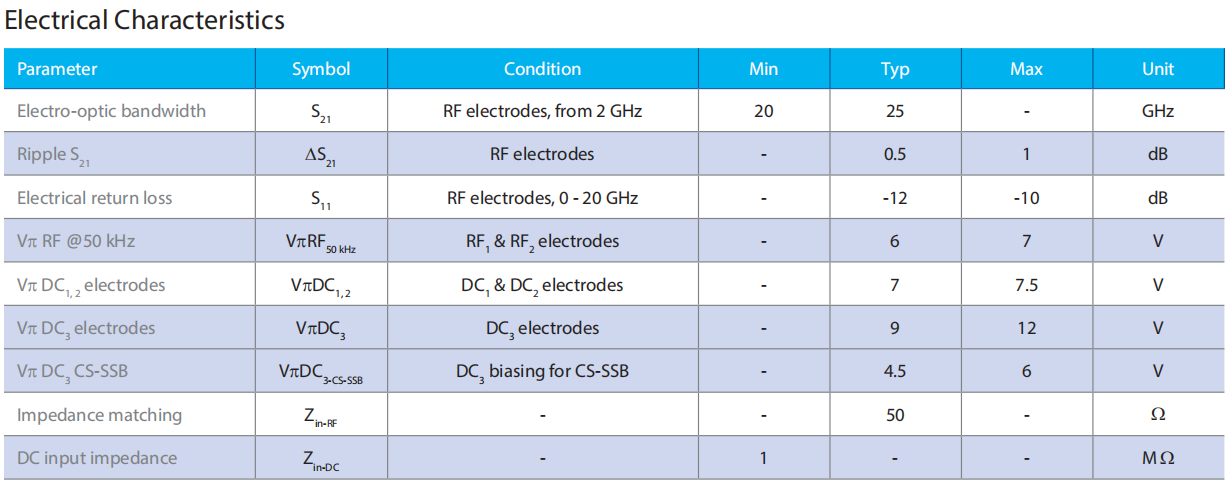

Datasheet for 1550 nm band High Extinction Ratio IQ Modulator

FEATURES
Superior extinction ratio
High bandwidth
X-cut for high stability
Low insertion loss

APPLICATIONS

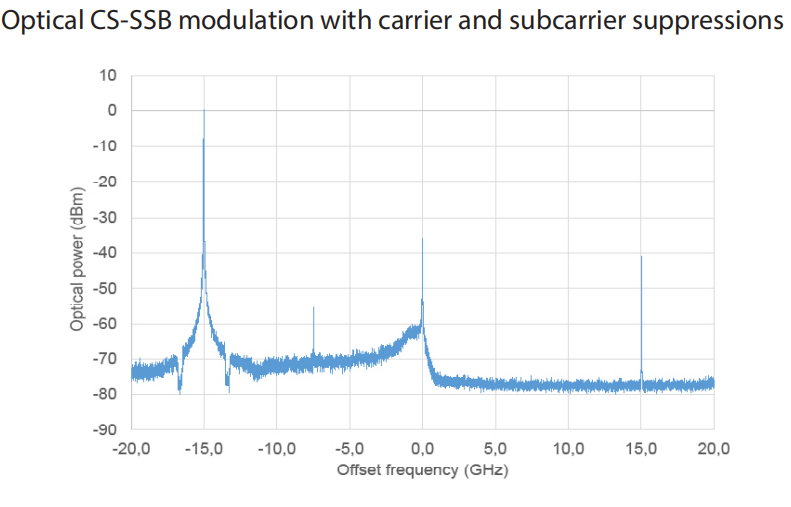

Carrier Suppression Single Side Band
QPSK, QAM, OFDM
RELATED EQUIPMENTS
Analog driver DR-AN
MBC-IQ Automatic Bias Controller
ModBox-QAM, ModBox-CS-SSB
