Description
|
Module properties |
non-isolated. Step-up module |
|
Module size |
65 * 33 * 23.5MM |
|
Input |
IN + input is level. IN-Input Negative |
|
Output |
OUT + output is level. OUT-output negative |
|
Connection |
Terminal |
|
Input voltage |
10-32V |
|
Output voltage |
(1) adjustable (12-35V) default voltage 19V. |
|
Output Current |
6A (MAX) |
|
Input Current |
10A (MAX) (more than 10A, please enhance heat dissipation) |
|
Output power |
natural cooling 100W (MAX), plus the fan 150W (MAX) |
|
Conversion efficiency |
94% (input 16V output 19V 2.5A measured) (reference) |
|
Operating temperature |
Industrial (-40 ? to +85 ?) (ambient temperature exceeds 40 degrees, lower power use, or with fan) |
|
Full load temperature |
45 ? |
|
No-load current |
25mA typical |
|
Short circuit protection |
No |
|
Input reverse polarity protection |
No
|
Package:

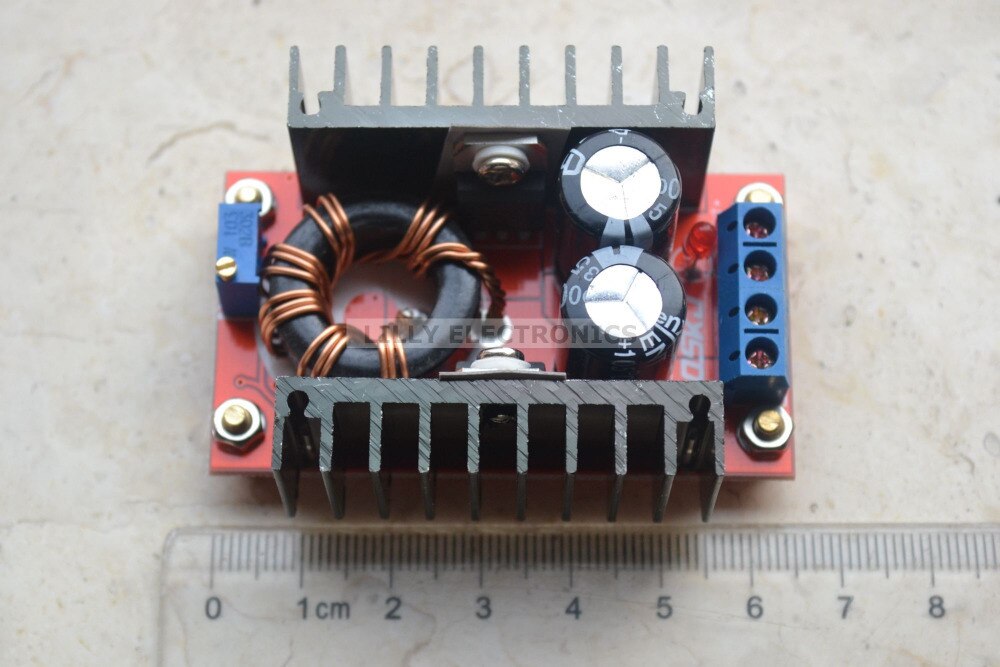

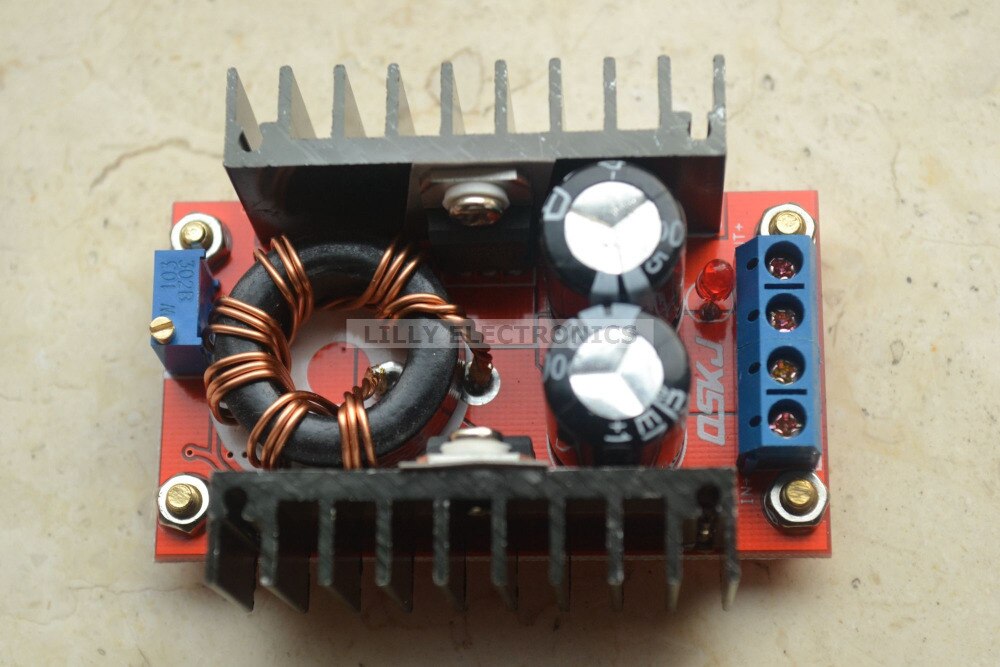

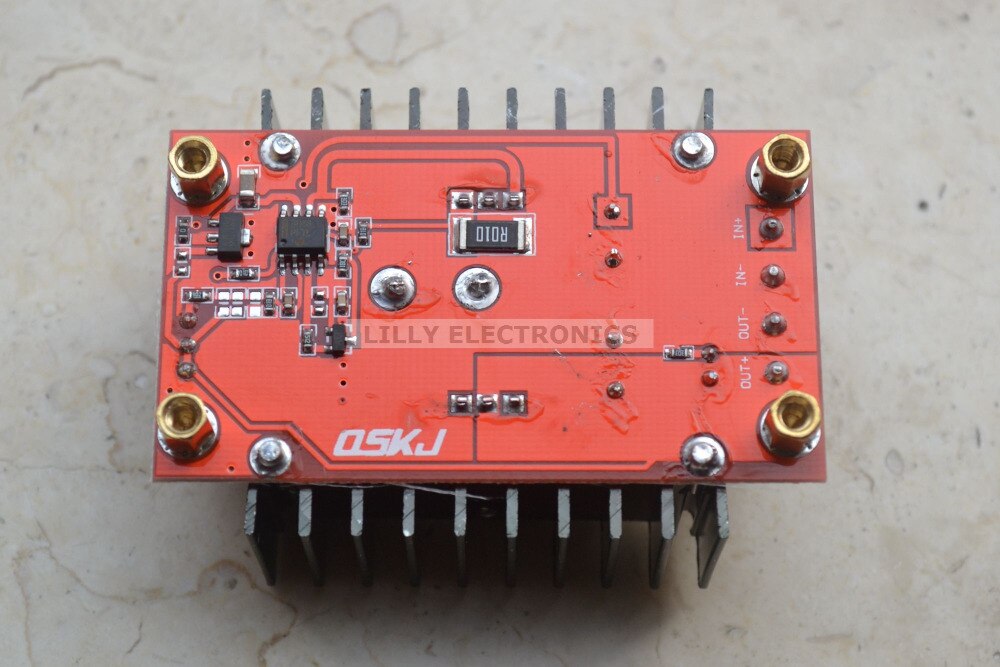

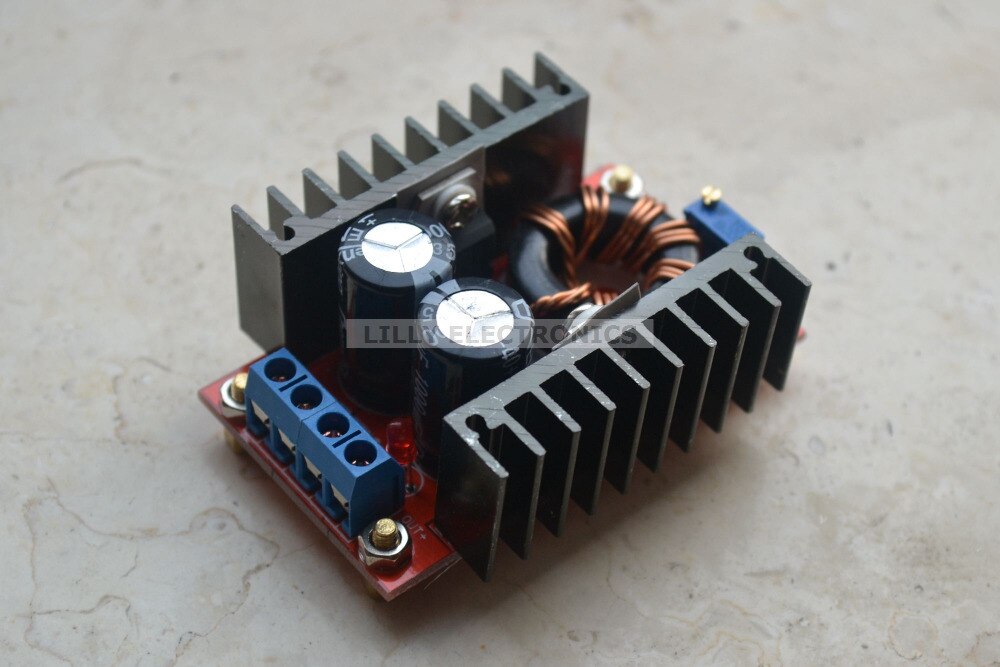

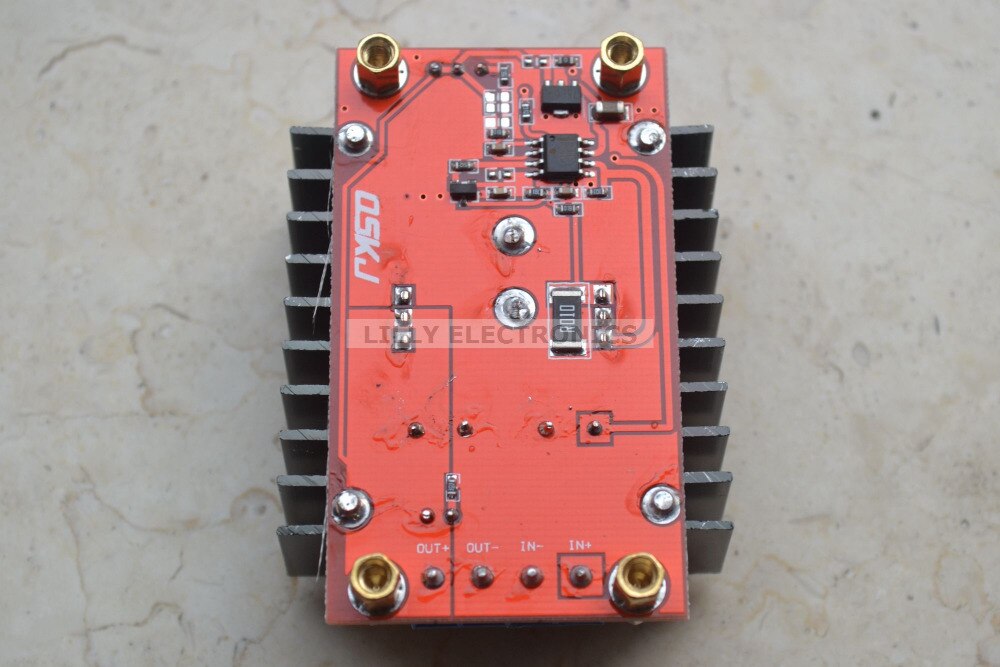

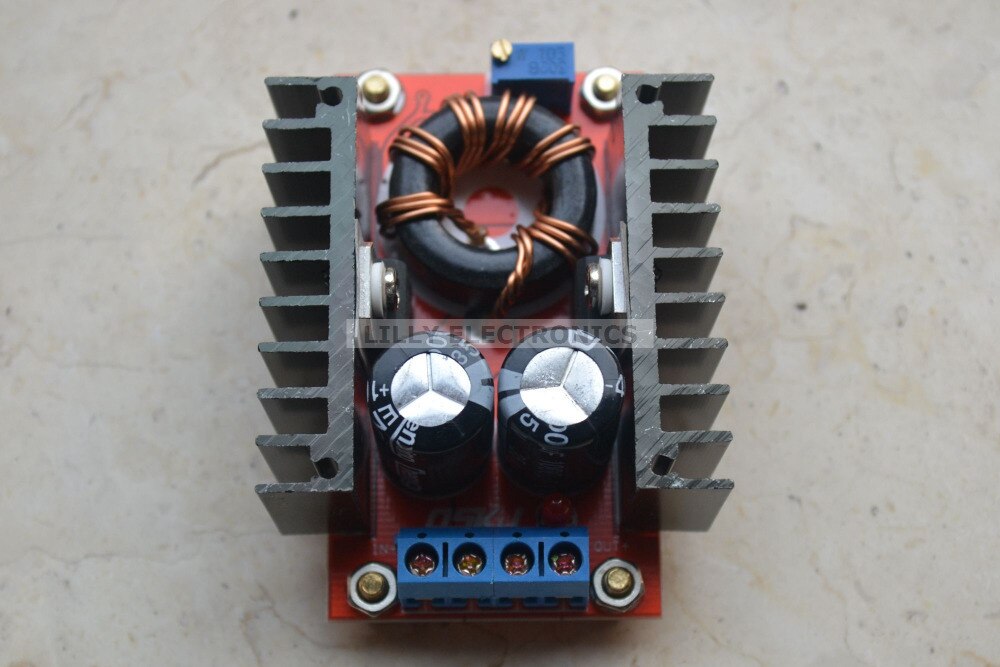

1pc 150W 10-32V to 12-35V DC-DC Boost Converter
