Description

15 parallel line red green blue laser module multi-line parallel laser projector

Name: 15 parallel lines red green blue laser module

Model:  ZLM100PXX650-15-16GD

Output wavelength: 650nm 520nm 450nm

Die power: 100MW

Operating Voltage: DC 2.8V to 5.2V (customizable)

Operating current: <200mA

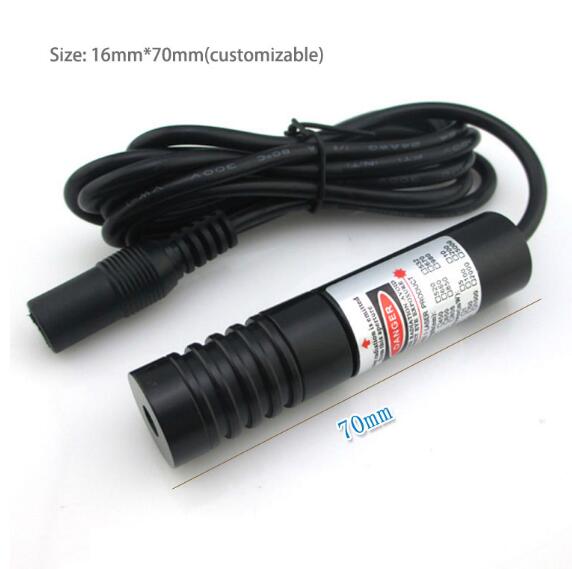

Dimensions: 16*70mm (customizable)

Spot size:
At 50 cm: side length 33.5 cm, side width 28 cm, line spacing 2 cm
At 100 cm: side length 67 cm, side width 56 cm, line spacing 4 cm
The wire is thin and uniform, the collimation and stability are very high, and the installation height can be used from 0 meters to 10 meters

Merit:

1 Ultra-high brightness, both indoor and outdoor
2 The light spots are clear and bright and soft and not dazzling
3. The size of the light spot is adjustable to meet your different requirements
4. The shell is made of aviation aluminum-plated insulating paint, which can not only fully dissipate heat, but also be shockproof, anti-drop and anti-static
5. The imported laser diode directly emits light and has a particularly high stability and can be turned on 24 hours a day
6 Intelligent driver board with imported IC can supply power in 2.8-5.2V ultra-wide range (other voltages can be customized)
7 High temperature resistant and corrosion-resistant DC plug cable is suitable for all-weather and all-environment use
8. Wavelength, power, wire length, working distance, spot effect, etc. can be customized according to customer requirements

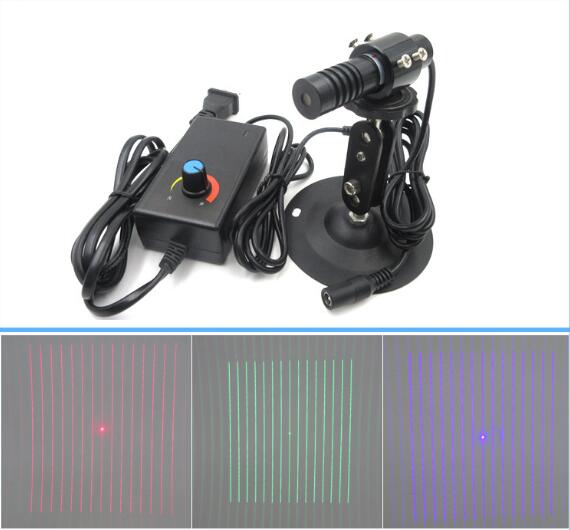

Package includes:
1* laser module;
1* laser bracket;
1* adjustable power supply.
