description of products

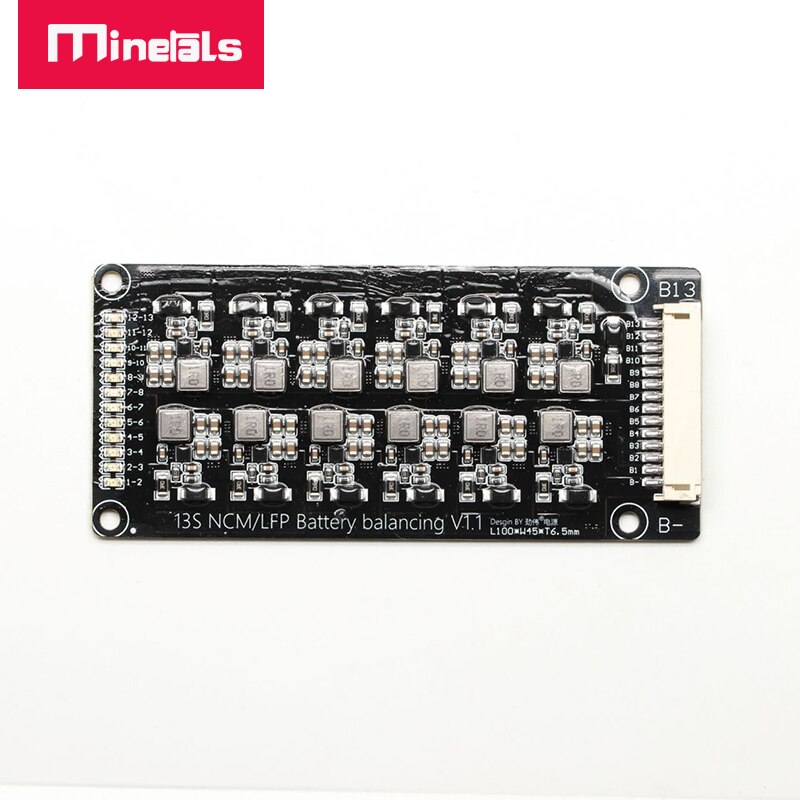

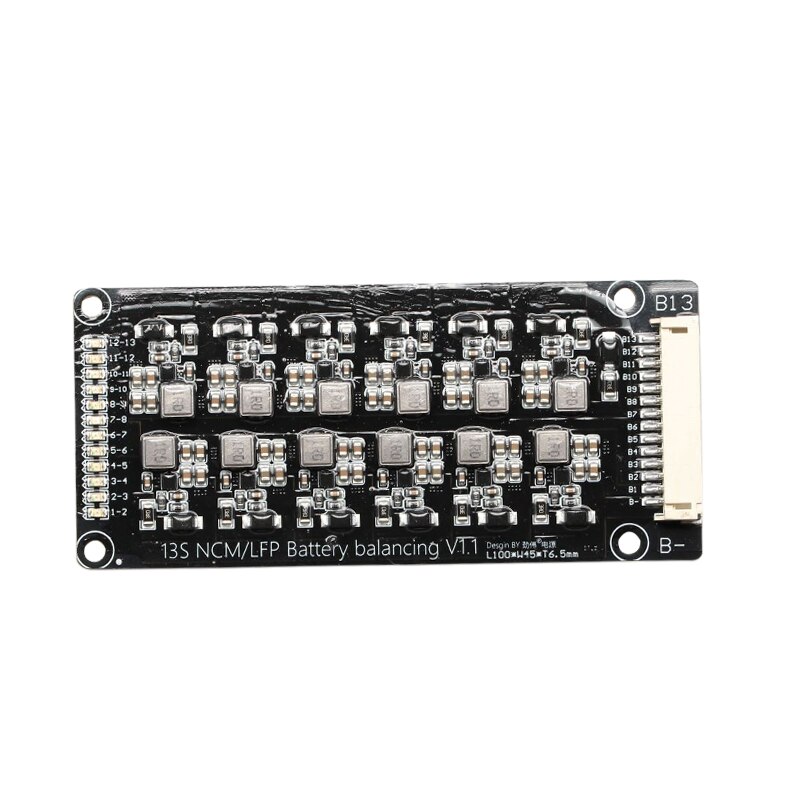

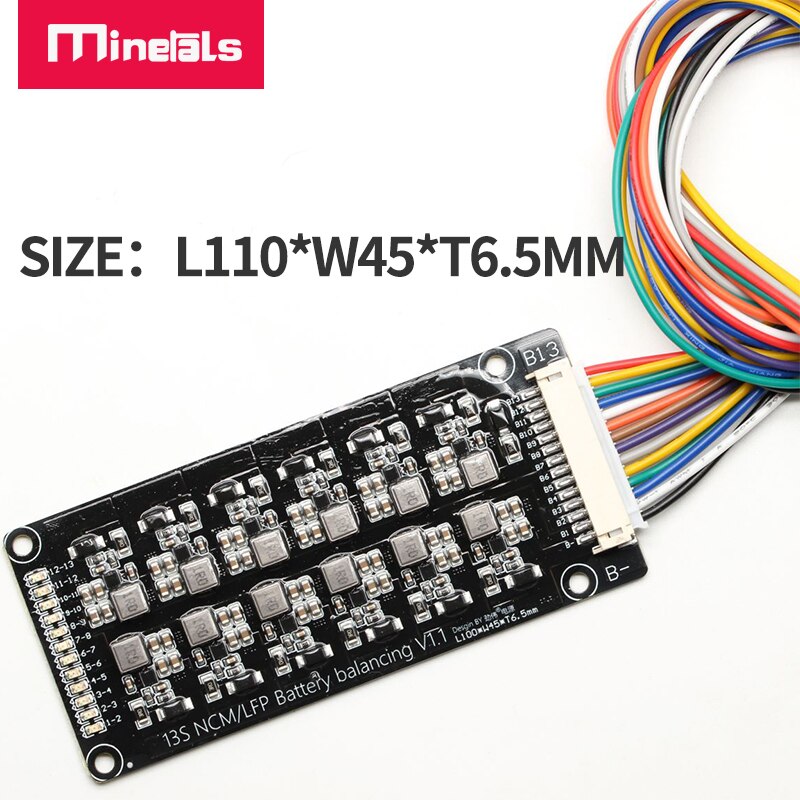

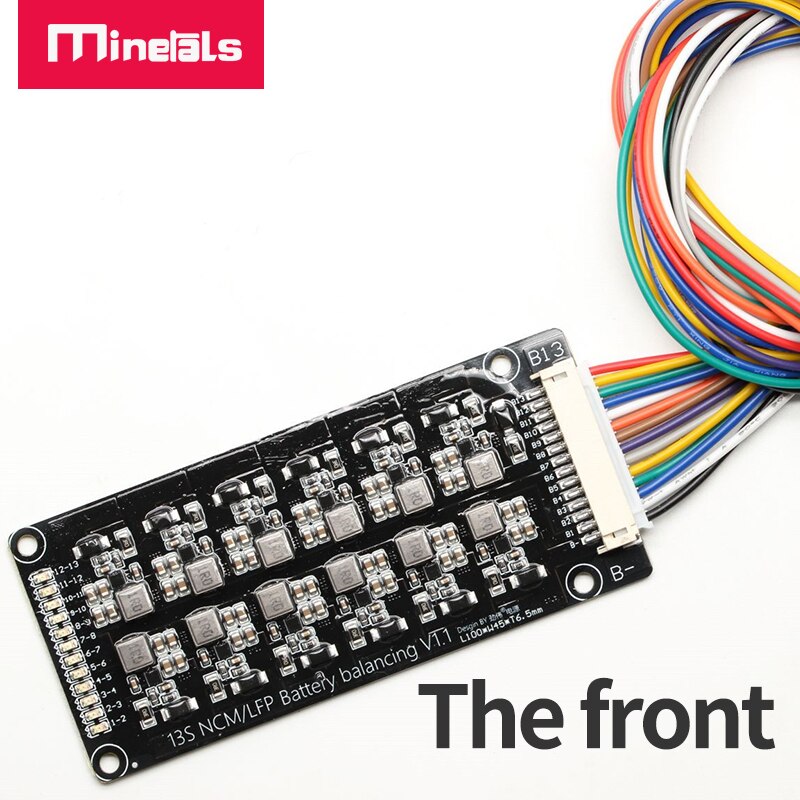

Inductive energy transfer balanced module , large current 1.2a energy transfer battery voltage equalizer, significantly balance the battery voltage, improve the overall efficiency of the battery pack!
Inductance adjacent equalizer module is suitable for under 30AH capacity battery pack, above 30AH please buy the high efficiency capacitor equalizer!
Equalization indicator:
1. When the equalizer light is on, the equalizer work is turned on.
2. Equalizing light is off, equalizing circuit sleep state,
3. Equalizing light flashes, battery drop indication , or circuit failure.
Equalization principle:
This module is adjacent voltage difference equilibrium, if adjacent cell voltage difference is above 0.1 V, chipset will trigger the balanced work. If there is a neighboring voltage difference when charging and discharging on the battery pack, the voltage error of the battery pack will also be turned back to a more ideal value, reducing the battery maintenance cost.
Technical parameters:
The working voltage is 2.0V-4.5V, it’s commonly used on both L-ion and LiFePo4 batteryies, it can to used on the LTO lithium titanate battery.
Equalizing current:
The adjacent voltage difference is above 0.1V (the current is around 0.5-0.7A);
The adjacent voltage difference is more than 0.2V (reaching the maximum equilibrium current 1.2a);
The smaller the voltage difference, the smaller the equalization current.

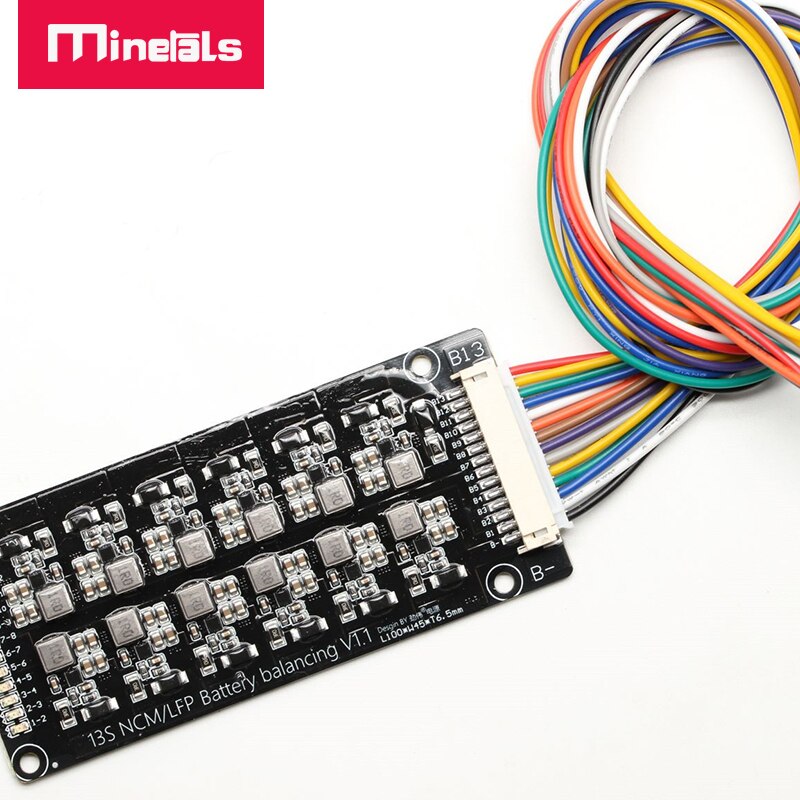

Accessory wire length: 30cm, pure copper 22AWG cable,
High precision energy transfer equalization, exclusive equalization IC!
