Description

DFB 14-pin butterfly test fixture base driver

Origin: Mainland China
Sensor Type: Holzer

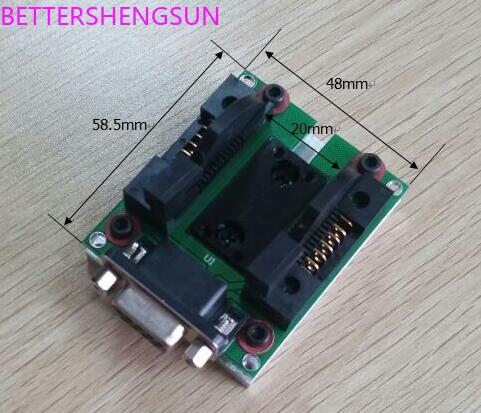

Butterfly laser fixture test base, the volume is 58.5mm * 48mm, as shown in the following figure for details:

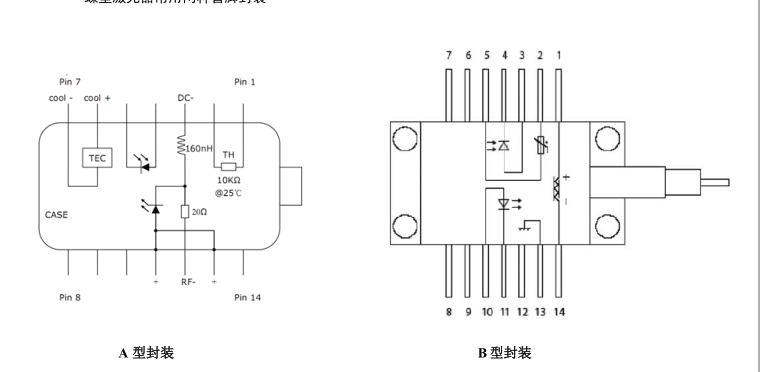

Pin definitions are divided into Type A and Type B. Please refer to the following pin definition diagram to confirm the mode
