Description

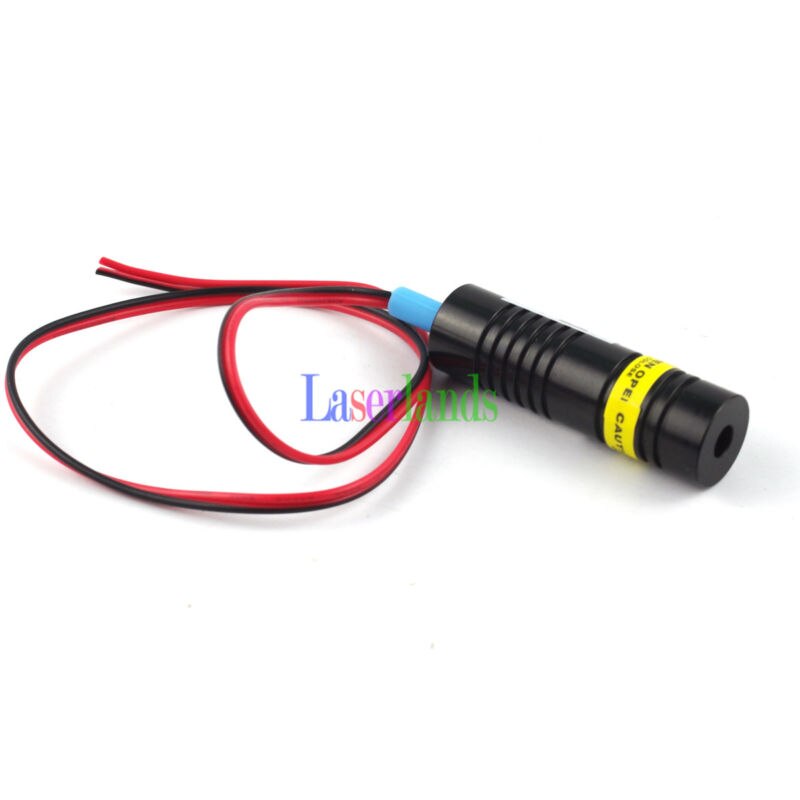

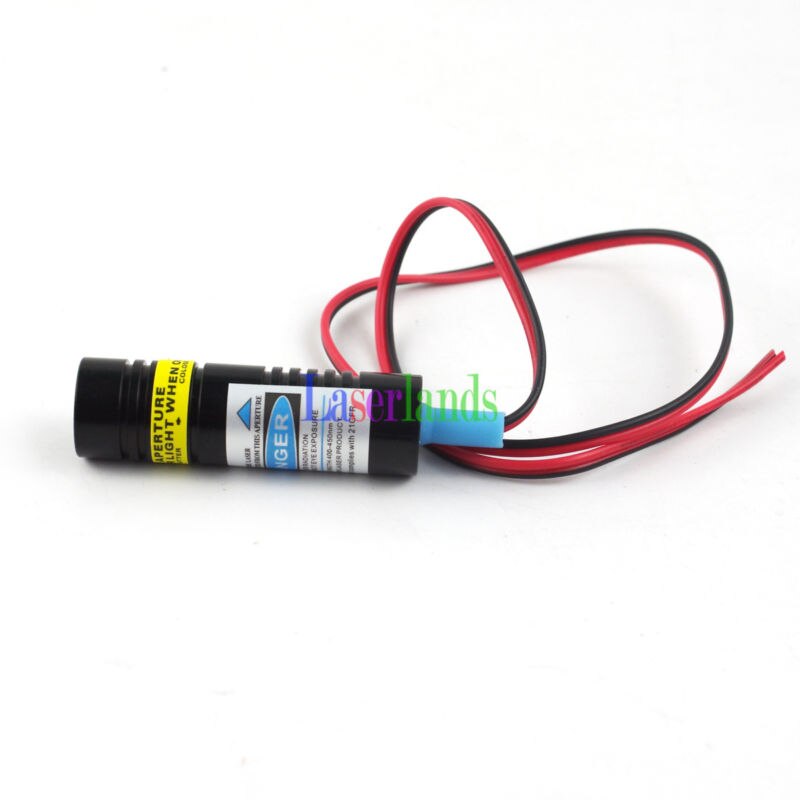

14.5*48mm 50mW 650nm Red Dot Laser Diode Module 5VDC

Operating Voltage  5VDC

Size   14 x 48mm

Output Power   50 mW

Wavelength   650 nm

Radian   Length 1~3m at 1m; Width <2mm at 1m

Working Temperature   -15 ~+35 centigrade

Package   650nm 50mW Red laser diode ellipse dot module

Working Method

The best working method is 30 minuts conntinuously working and 5 minutes resting. Otherwise the laser may be burnt. Please read the using tips on the back of the warranty card. We will not take any responsibility for the incorrect use.



Note:

The modules are tested and the output power are measured by laser power meter before sending out.

Please don’t compare the power of this one with a none-measured laser.

If you doubt the output, please have the laser you recieved checked by laser power meter.

If there is any problem, please feel free to contact us. We will solve the problem asap.
