Description
- Brand Name: Eiechip
- Origin: CN(Origin)
- Condition: New
- Type: Relay
- Model Number: relay module
- Application: Universal
- Operating Temperature: standard
- Supply Voltage: 12V
- Dissipation Power: standard
- is_customized: Yes
- Keyword 1: 12V relay module
- Keyword 2: relay module
- Keyword 3: One-key start-stop self-locking
- Keyword 4: Single button bistable relay module
Reminder: The bottom plate is shipped in green or blue at random!

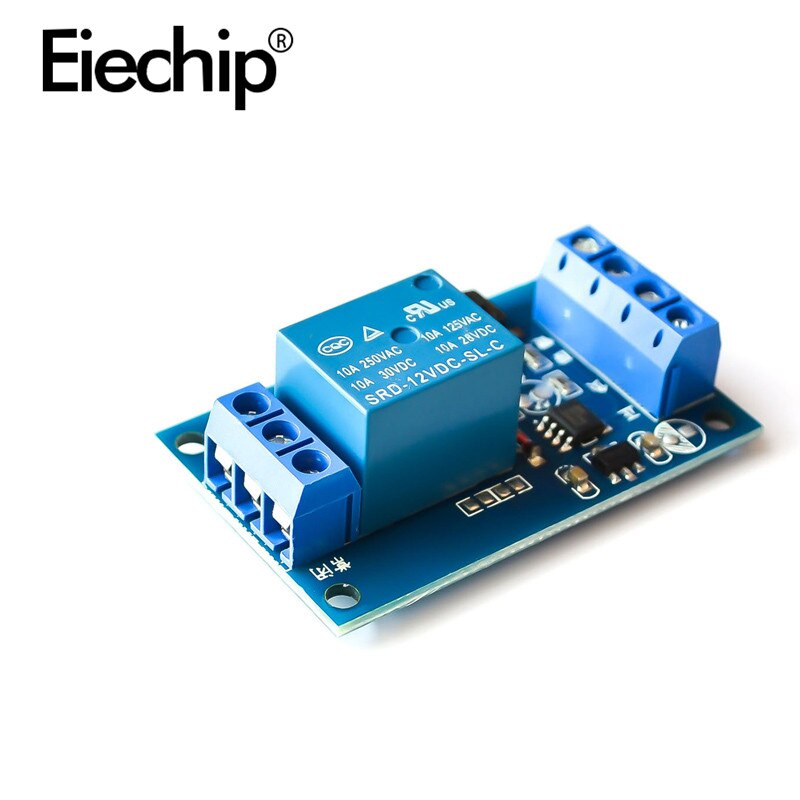

Introduction:
1. Power supply 12V
2. Make the relay module pull on or off by pressing the button on the board, or an external button, press once to pull in, and then press to disconnect, the button is low level trigger. The relay is in the off state when the power is turned on again.
3. The maximum withstand current of the secondary output terminal of the relay is 10A, that is to say, the large working current of the controlled circuit or equipment cannot be greater than 10A. Connect it to the normally open or normally closed end according to your own needs.
4. The welding position of the external pull-in indicator is reserved, and there is also a welded pull-in indicator on the board
5. Module size: length x width x height=52.8mm x 32mm x 18mm
One-button two-stable relay module, the power supply will be burnt when the positive and negative connections are reversed, and there is no power supply reverse protection
Low level control
It is a trigger signal when the signal line touches the ground
