Description

Wavelength: 532nm
Output power: 45-55mW
Laser Shape: Dot
Cooling methods: Fan cooling
Modulation frequency: TTL 0-30K HZ
Working Method: continuous work at 25 degrees C

Working Temperature: 0-25 degrees C
Color: Black
Material: Aluminum
Circuit control: constant control
Reverse polarity protection: Yes, with automatic identification of positive and negative
Operating voltage: DC = 12V
Operating Current: I <350mA
Warm up time: Noe
Operating temperature: -10 degree~ +40 degree
Storage Temperature: -10 degree to +40 degree
Structure: laser diode + lens + cooling Housing
Laser Module Size: 50x30x30mm
Circuit Board size: 71.5x35x20mm

Notes:

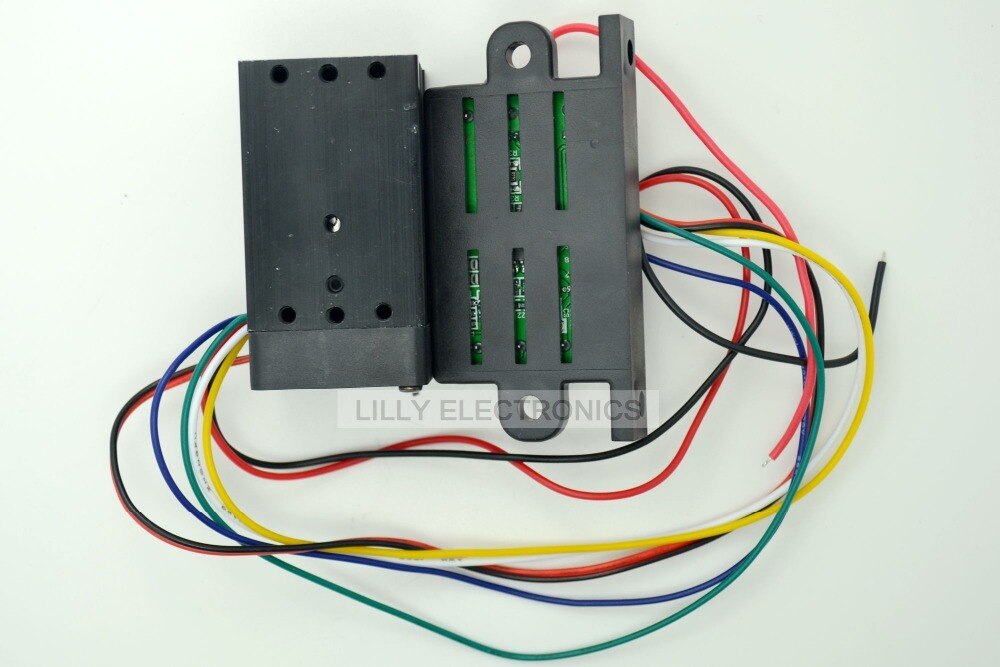

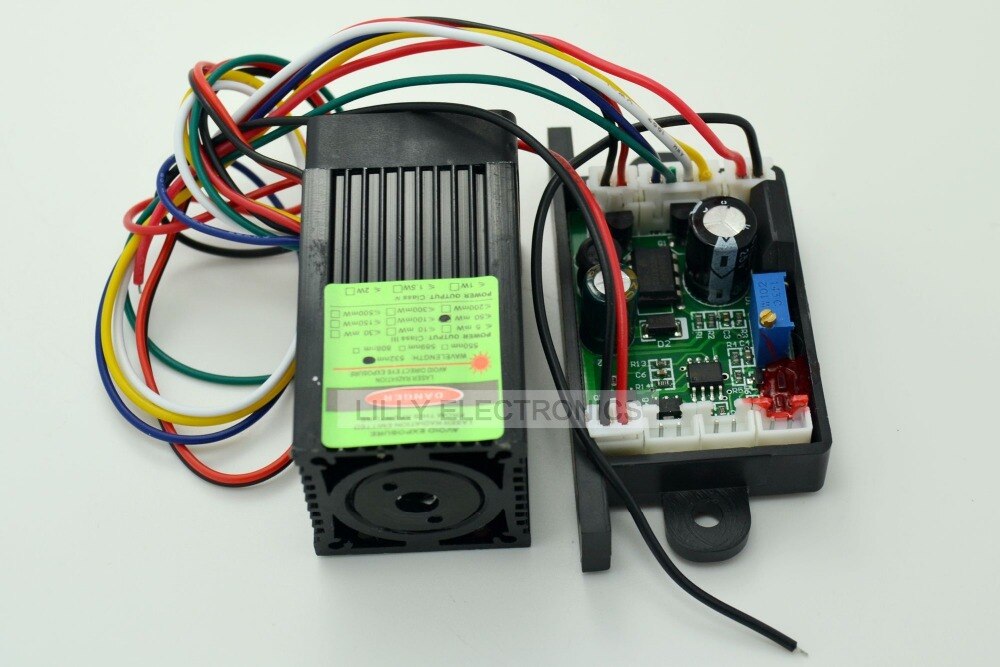

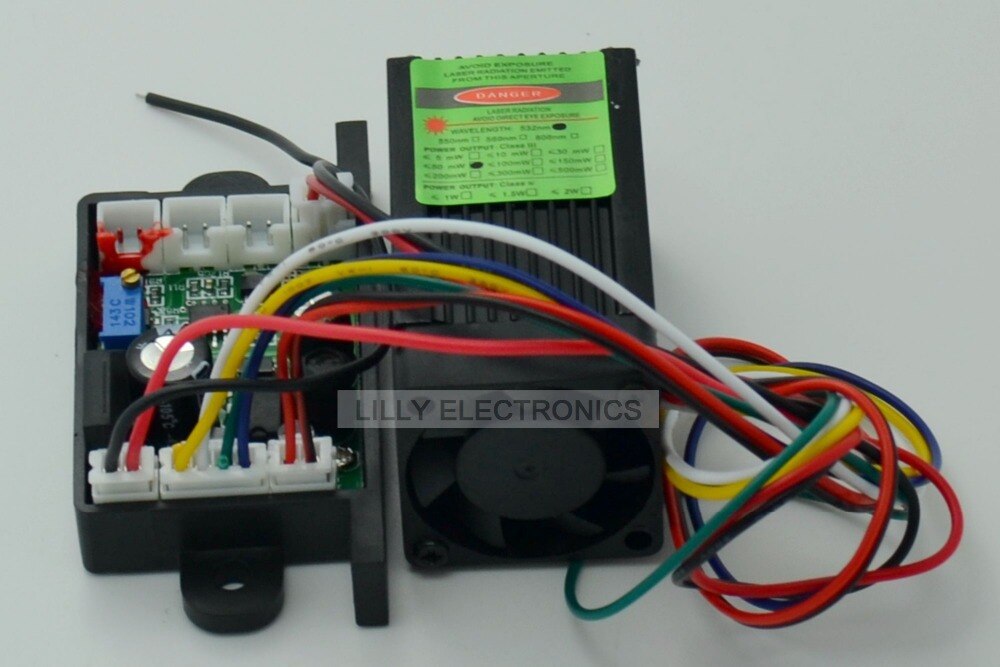

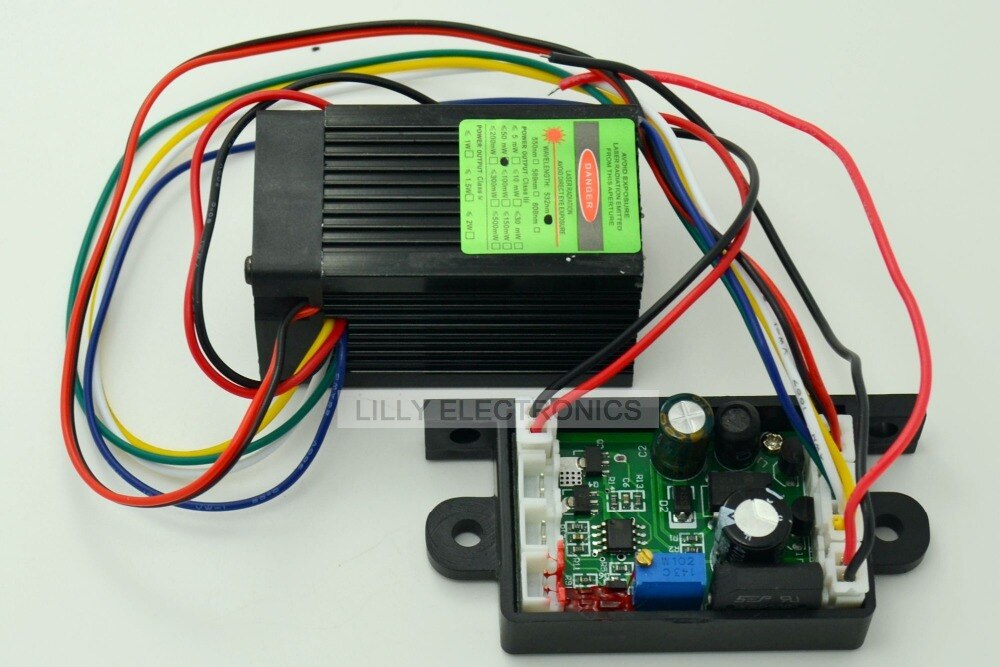

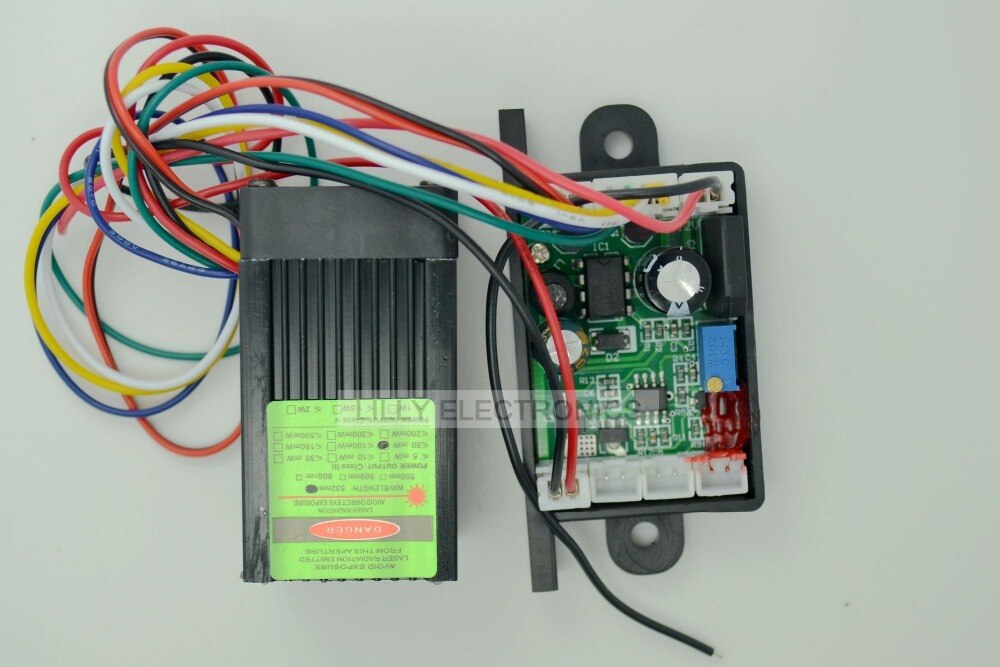

The 532nm 50mw Laser dot module is composed of 2 parts, Laser head (Laser diode+ housing +lens)and its driver circuit board. the laser head brings with fan cooling.
The input voltage is 12V,  an over-specified voltage will lead to damage of circuits and modules, if you have any technical problems, please contact us, thank you!
If you want to use the laser module for 24 hours without stop, you must add additional cooling measurement to let the laser work at temperature within 25 degrees C, otherwise, the heat will accumulate, the diode would get burnt!
Please aviode direct eye exposure to the laser beam, please wear 532nm protection glasses when working on this laser module!

Package:

1 x 12V 532nm 50mw Green Laser Dot Module Fan Cooling TTL 0-30KHZ-
