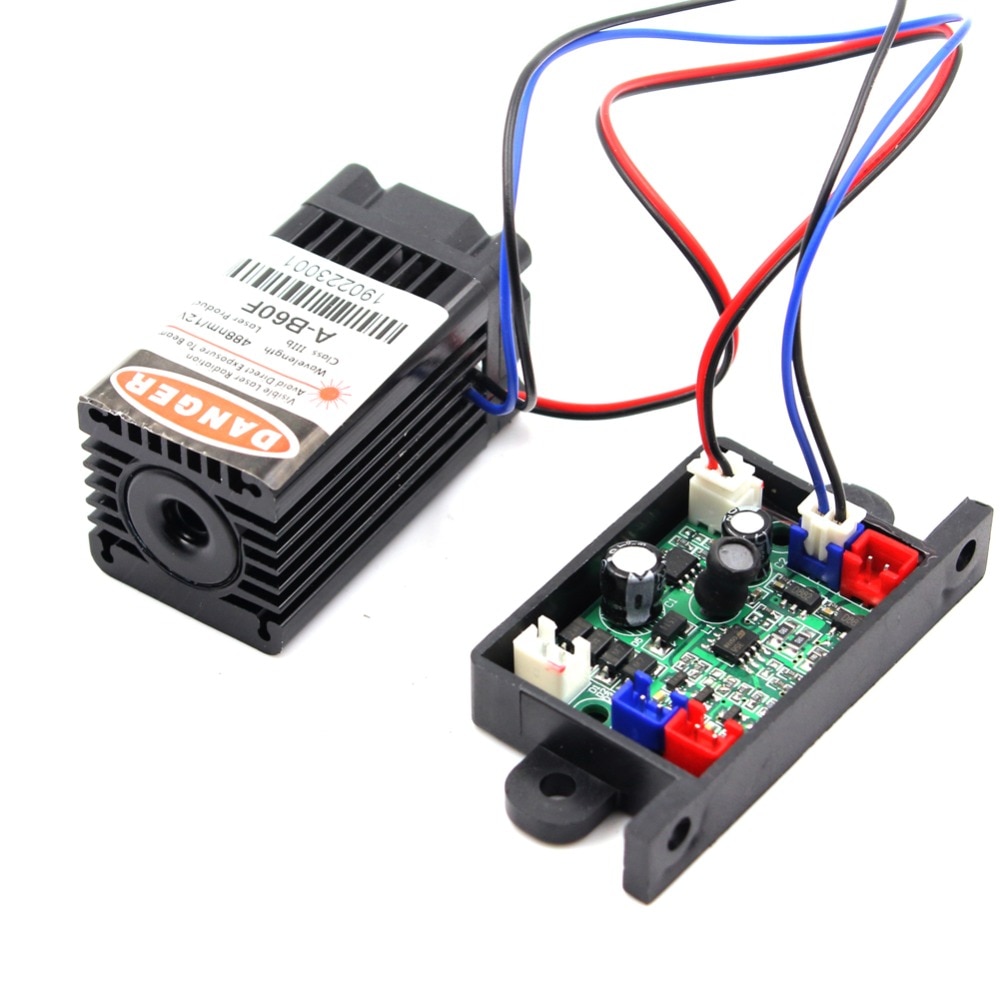

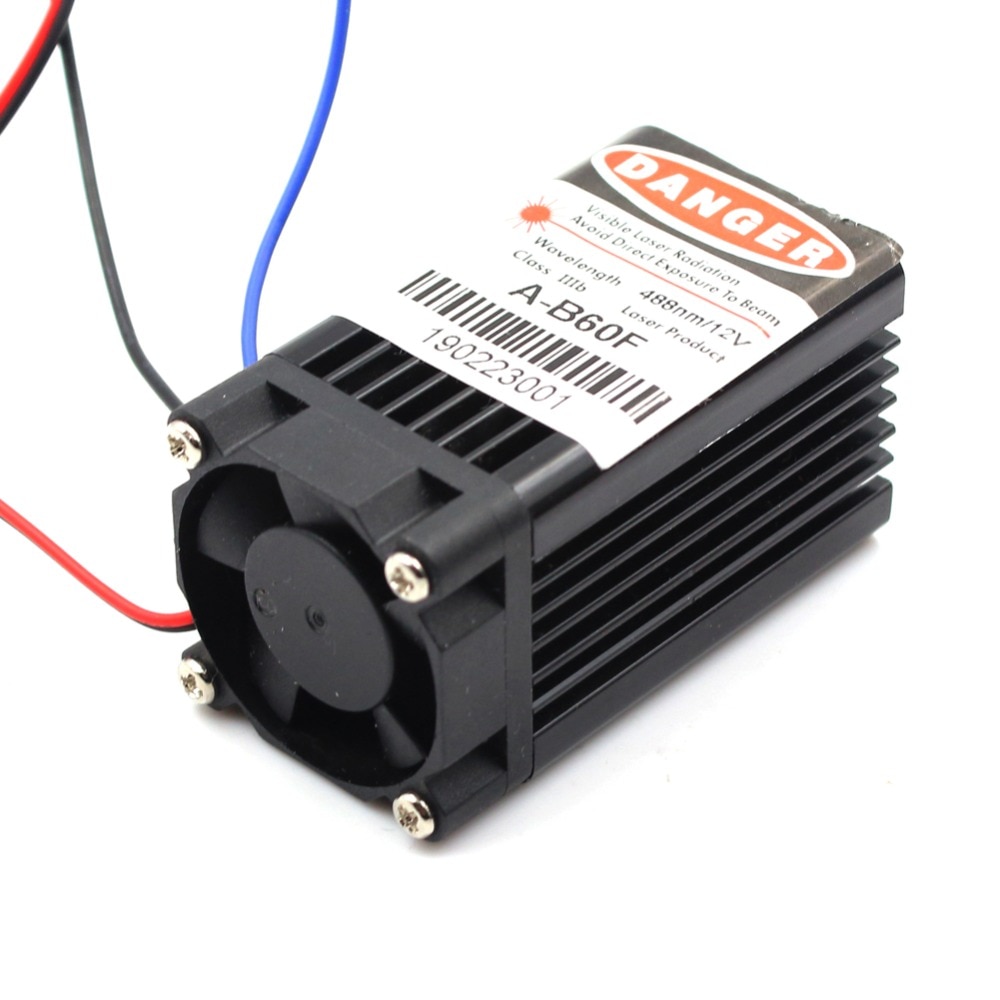

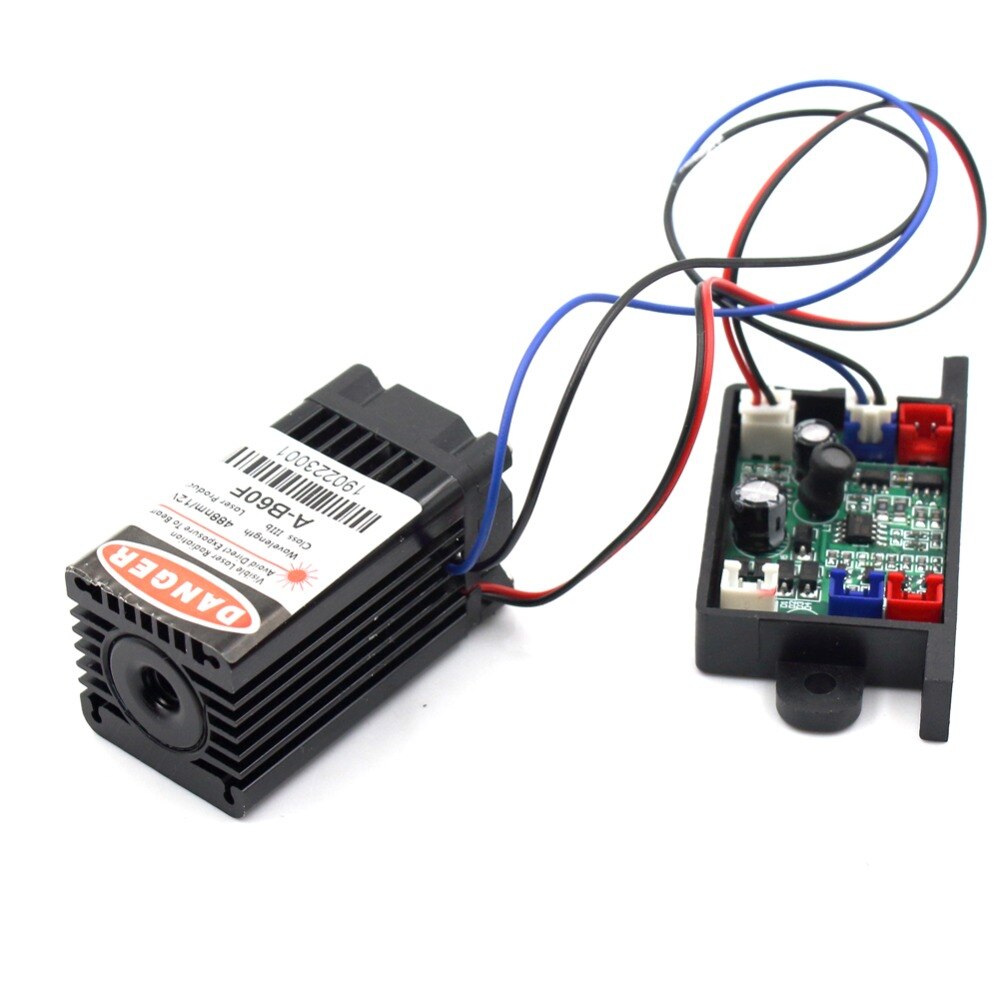

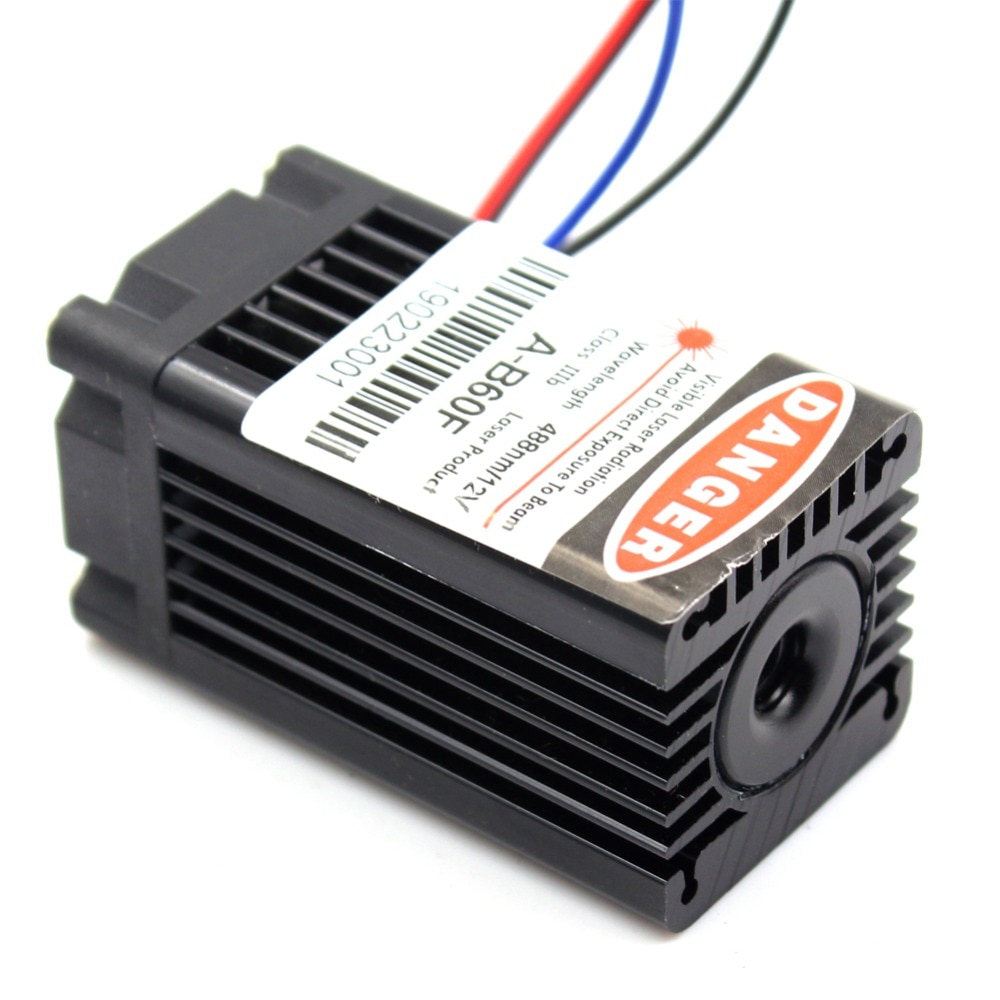

12V 488nm 100mW SKY BLUE laser module Lab laser device escaping room laser with Cooling Fan FREE SHIPPING

$65.75

SKU: 32978445536 Category:

Description

SPECS:

1 Brand: OXLasers
2 Wavelength: 488nm
3  Real Output: 70mW+-5mW

4 spot pattern: round dot
5 divergence angle le1mrad
6 Laser Class Class 3
8 input stability plusmn5%
9 Laser input voltage 7V
10 current 180mA
11 rated power consumption 2.1W
12 Recommended ambient temperature -10~40degC
15 size 30*30*45mm

Working Voltage: 12V DC

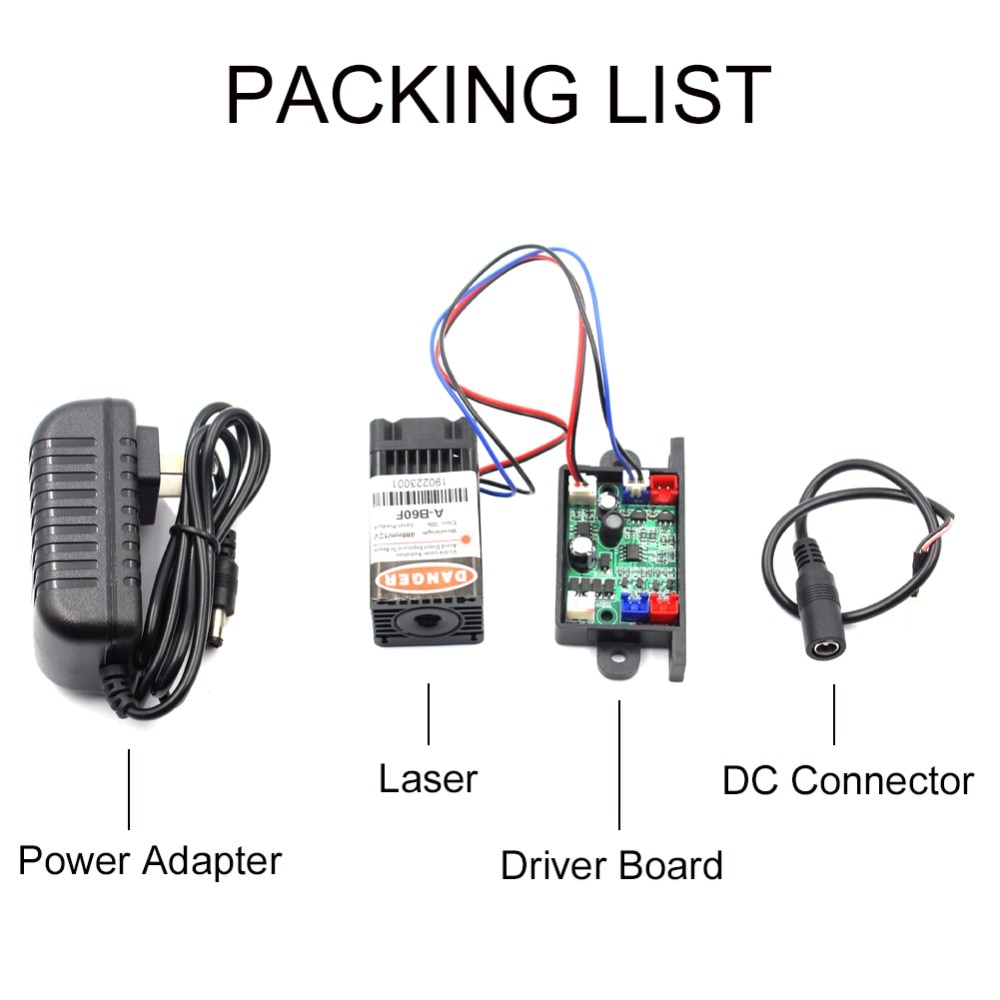

Packing List:

488nm laser*1

Driver Board*1

12V 2A Power Adapter Plug*1

DC-2PIN connect wire*1



IMG_5038IMG_5046IMG_5051IMG_5052IMG_5053IMG_5044DRIVER BOARDPACKING LISTIMG_4932_20190301143926_20190301143940_20190301143946
