Description

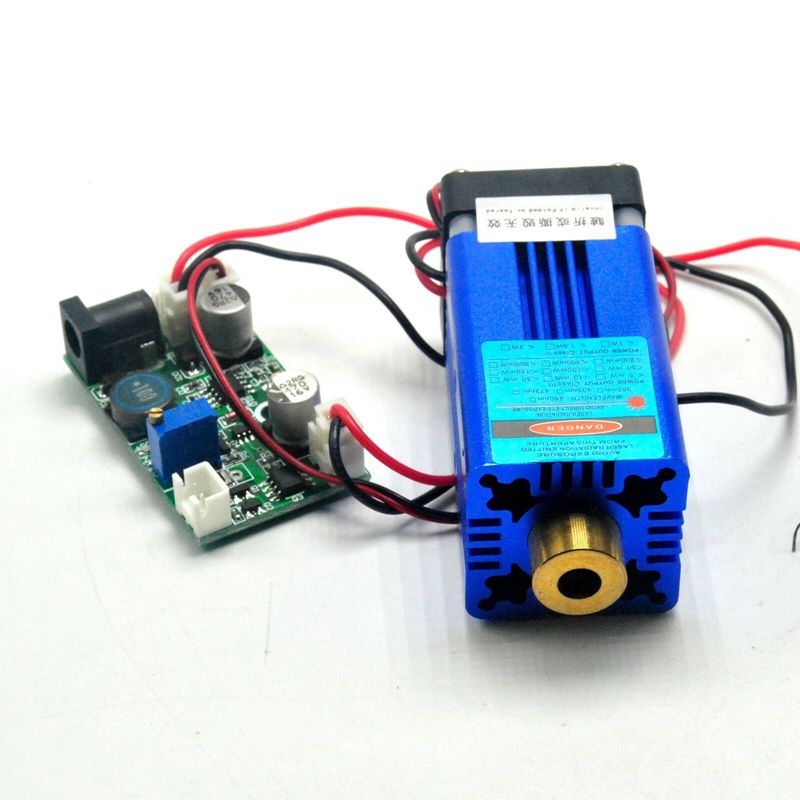

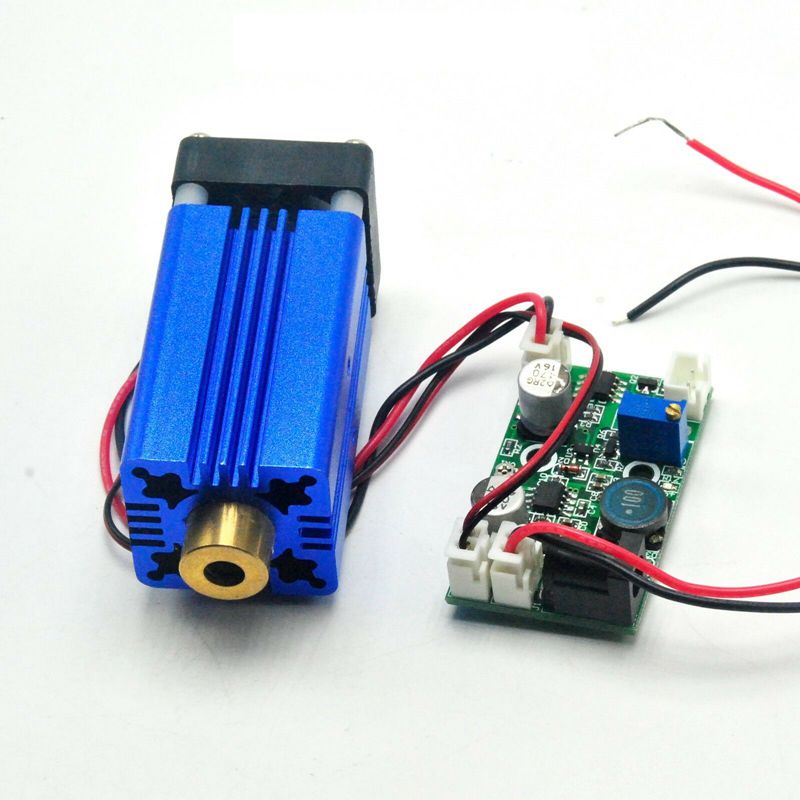

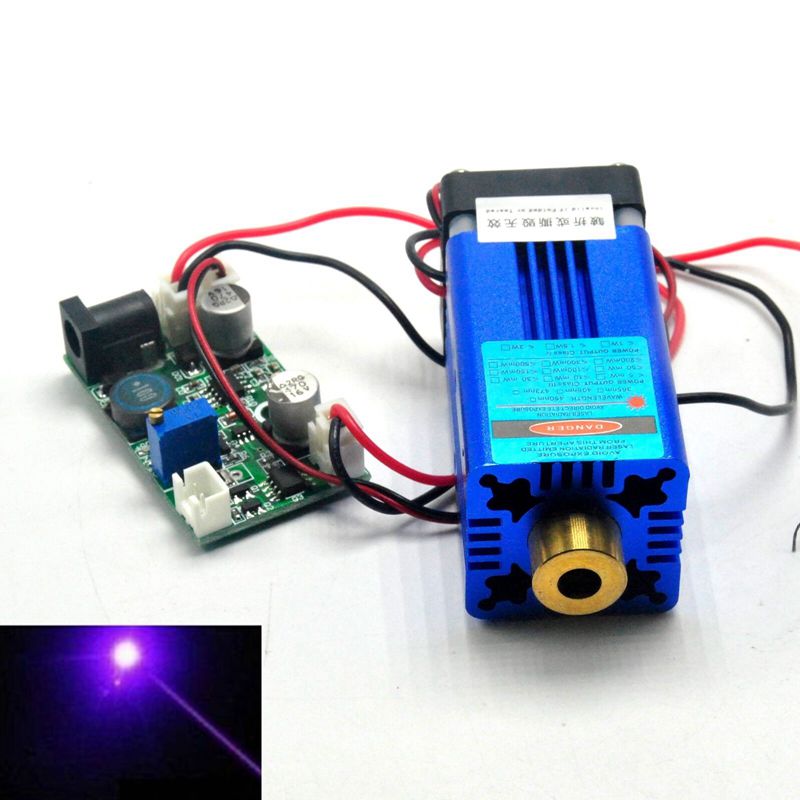

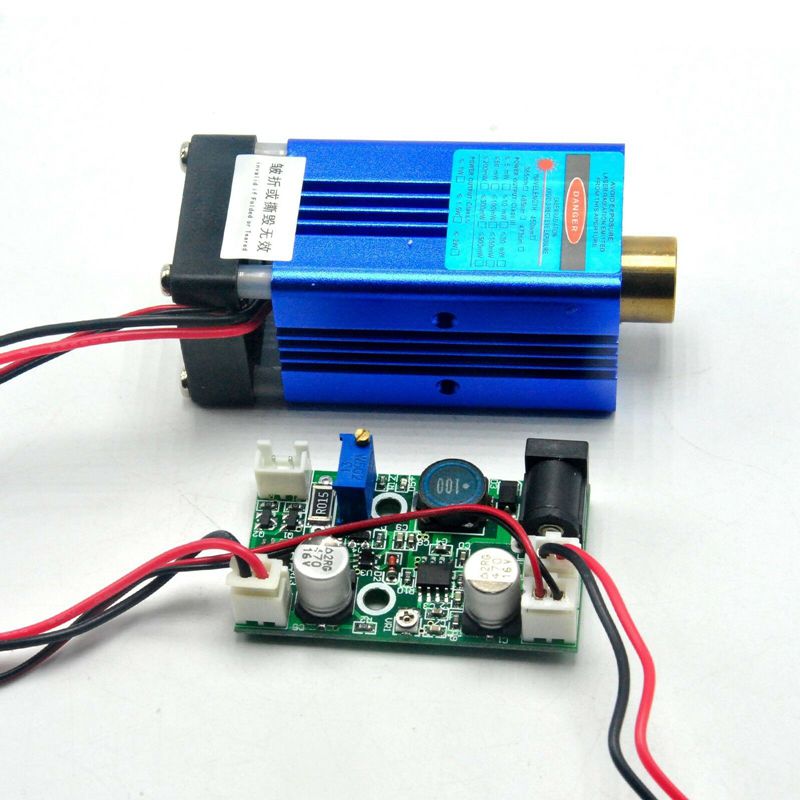

12V 405nm 150mW Violet Blue Laser Dot Module W/ TTL & Fan Cooling Stage Lights

Parameters
Laser head size: 69mmx30mmx30mm
Circuit Board size: 71.5mmx35.5mmx16mm
Wavelength: 405nm
Output power: 150mW
Workind current:<450mA
Laser shape:DOT
Focusable:YES
Cooling method:Fan cooling
Modulation frequency: TTL modulation
Working:Long time working
Finish Color: Aluminum  Blue
Case Material: Aluminum
The circuits control: constant current
Reverse polarity protection: with automatically identify the positive and negative
Operating voltage: DC = 12V
Warm-up time: None
Operating Temperature: -10 ℃ ~ +40 ℃
Storage temperature: -10 ℃ ~ +40 ℃

Features
1. This laser module can work for a long time with cooling fan.But please make sure to keep the laser working under 30℃.
2. Please add a 12VDC power to this laser module. Red wire connects”+” pole; Black wire connects ”-” pole.  If you don’t use TTL, please just leave the blue and white wire.
3. This is a focusable laser module. Please do not take off the lens adjustable part off to avoid dust.
4. Please wear 405nm laser protection goggles to protect your eyes when working on this module.

Package
1pc 12V 405nm 150mW Violet Blue Laser Dot Module W/ TTL & Fan Cooling Stage Lights
