Description

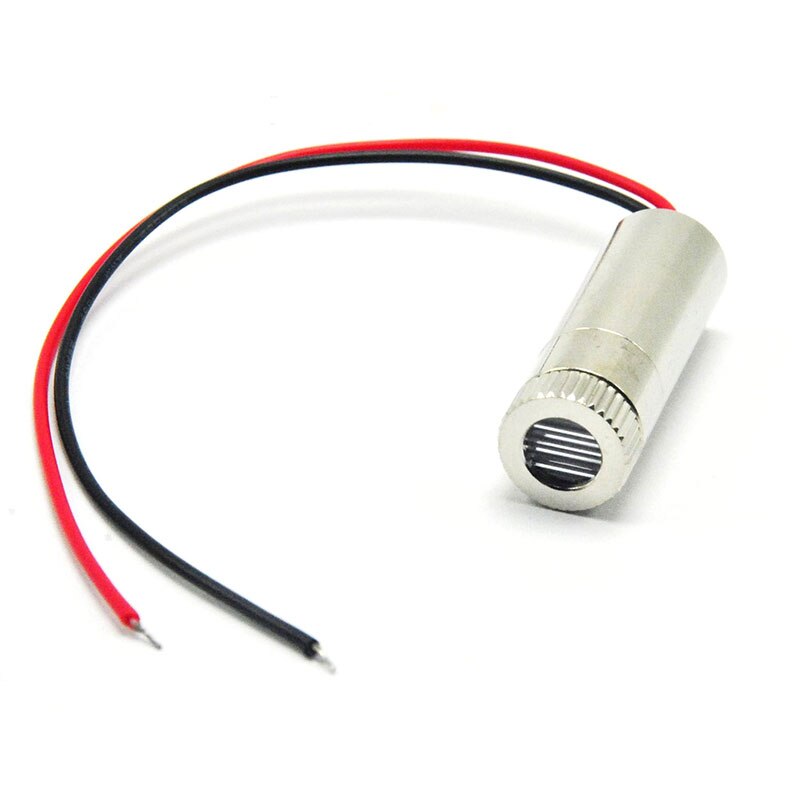

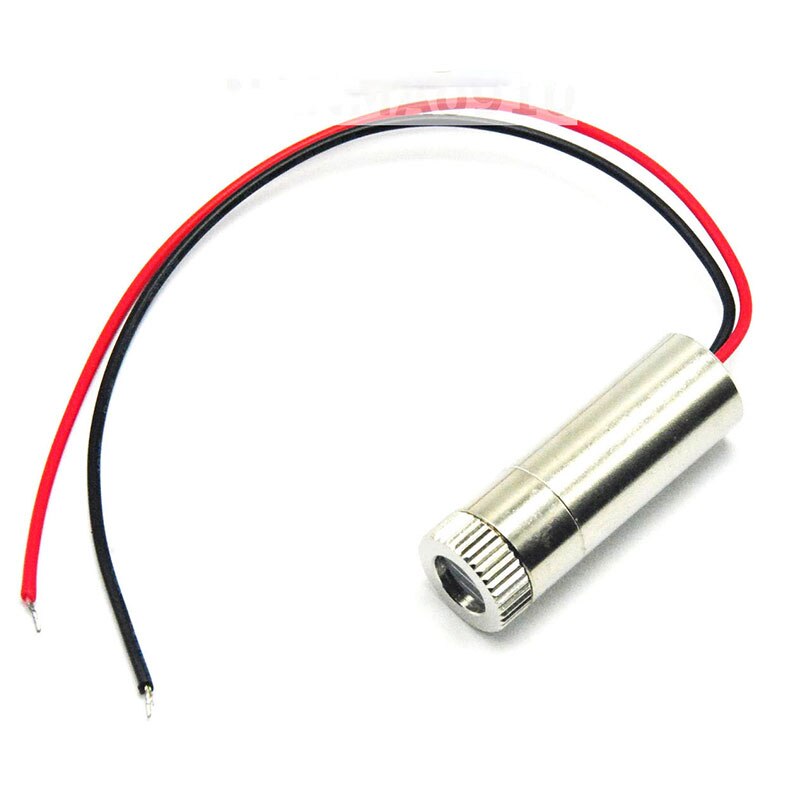

12mm Dia Focusable 20mW 830nm Infrared IR Dot/Line Laser Diode Module 3V-5V

Please note that this is 830nm IR lasers which can only be seen a weak red light.It’s normal.Please make sure you know it before ordering.Thanks!~

Parameters
Wavelength:830nm
Output Power:20mw
Working Voltage:3-5v
Working Current:I<80mA
Working Temperature:＋15 ℃~＋35 ℃
Laser Shape:Dot(rectangular to oval)/Line(120 degrees as default)

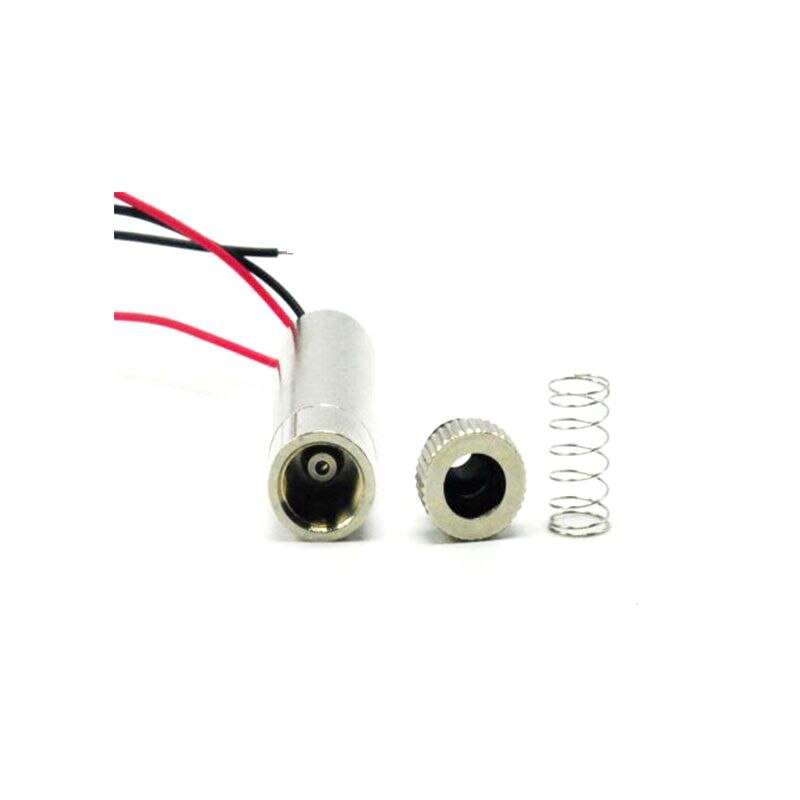

Focusable:Yes
Material:Metal
Circuit control: APC circuit
Dimensions:12x35mm or 12x45mm

Features
1.Two-wire input, the red line is positive, black line is negative.
2.This 830nm laser module with driver built-in is an industrial electronic component and used for Industrial testament, Lab.Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing.
3.Please wear IR laser protection goggles when you work on it.

Package
1pc 12mm Dia Focusable 20mW 830nm Infrared IR Dot/Line Laser Diode Module 3V-5V
