1245 Focusable 100mW 980nm IR Infrared DOT Laser Diode Module AC Adapter optional

$39.00

Clear
SKU: 32664461022 Category:

Description

Focusable 100mW 980nm IR Infrared Laser DOT Diode Module w AC Adapter

This laser module is an industrial electronic component and used for as Industrial test, Lab, DIY. Not a handheld laser.

Note:
The modules are tested and the output power are measured by laser power meter before sending out.
Please don’t compare the power of this one with a none-measured laser.
If you doubt the output, please have the laser you recieved checked by laser power meter.
If there is any problem, please feel free to contact us. We will solve the problem asap.
980nm laser is 99% ir cannot be seen by human bare eyes.
it has 1% red bomb can be seen.
lens: plastic
adapter: we have us and eu standard adapter, but we cannot guarantee it can work for you. we send the adapter out as bonus for free. so that if it cannot work, it has no warranty.

duty cycle: 45 seconds on, 15 seconds off, if you want to prolong the duty cycle, please add heatsink. We have heatsink for sale in our store.






Specification

Model  980MD-100-1245
Output Power 100mw
Working Voltage 5.0VDC
Wavelength  980nm
Working Temperature 15-35 centi-degree
Laser Shape cross
Divergence
Focusable Yes

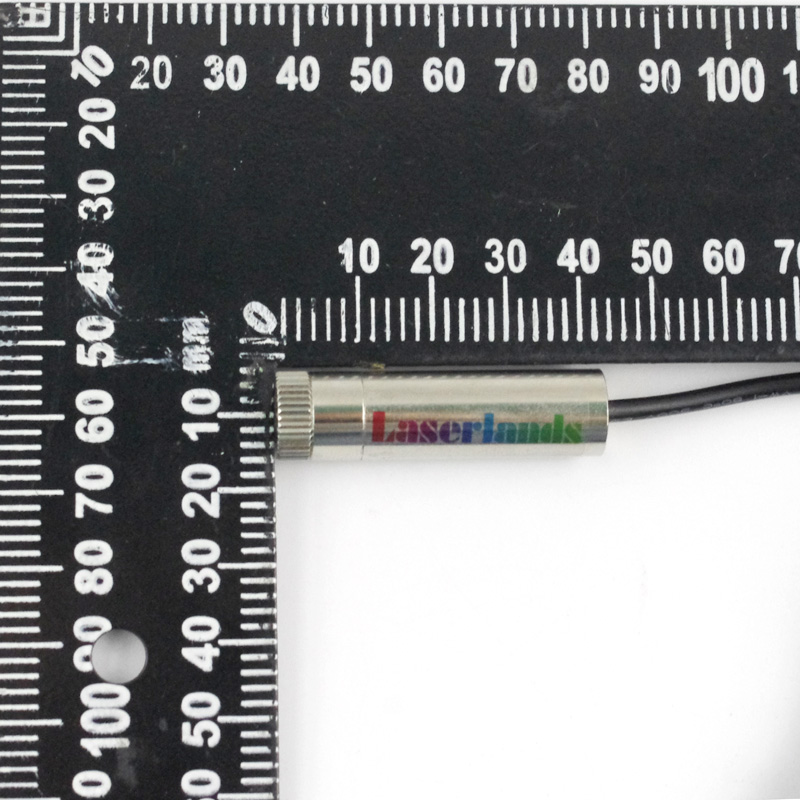

Dimensions ΓΈ12mmX45mm
Electronica Pole dc connection

Working Time(under normal operation)   >5000hours

Package 1 pc 980nm laser module with AC adapter
