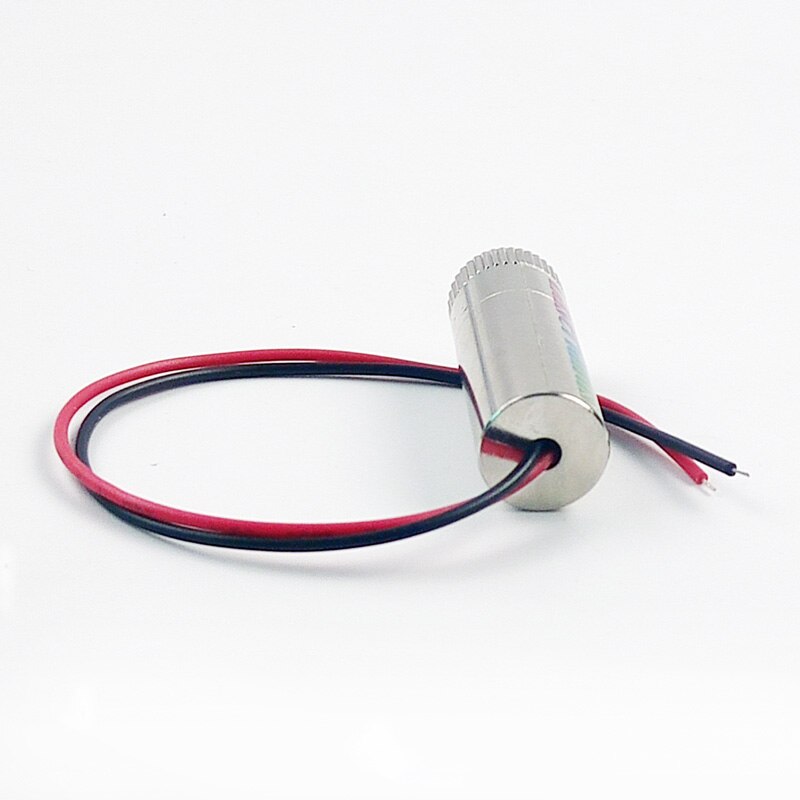

New 780nm 80mW Infrared IR Laser dot/line/cross Diode Module



Specification

Model   780ML(90)-80-1235

Output Power   80mw

Working Current    <350mA

Working Voltage   3-3.6VDC

Wavelength   780nm

Focusable   Yes

Duty Circle  60seconds without heatsink

Electronical Pole   Red wire to “+” and BLK to “-“

Working Temperature    -10 ~40 centi-degree

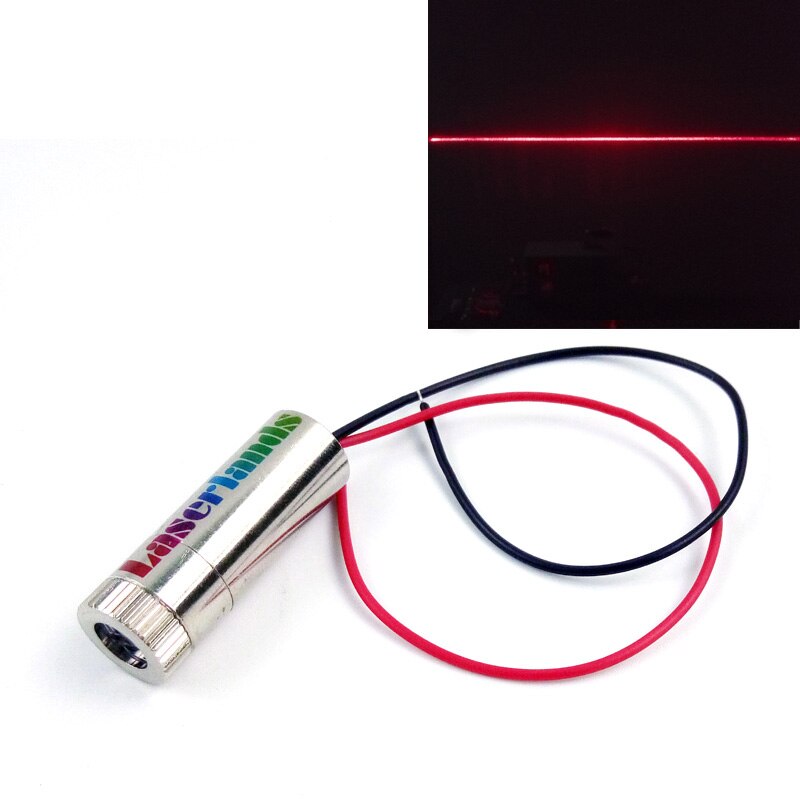

Laser Shape    Line

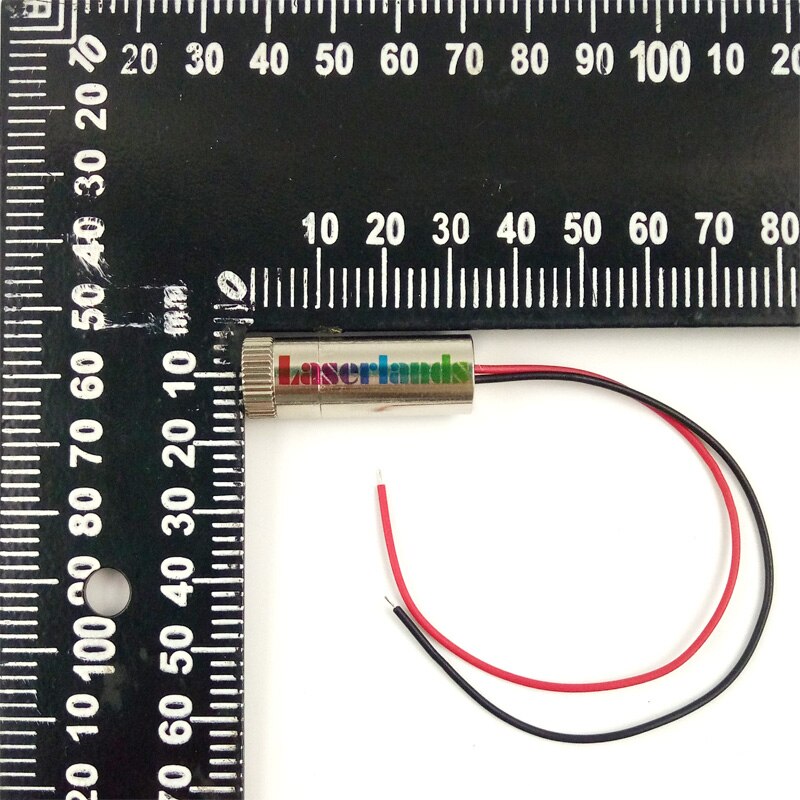

Dimensions    Ø12mmX35mm

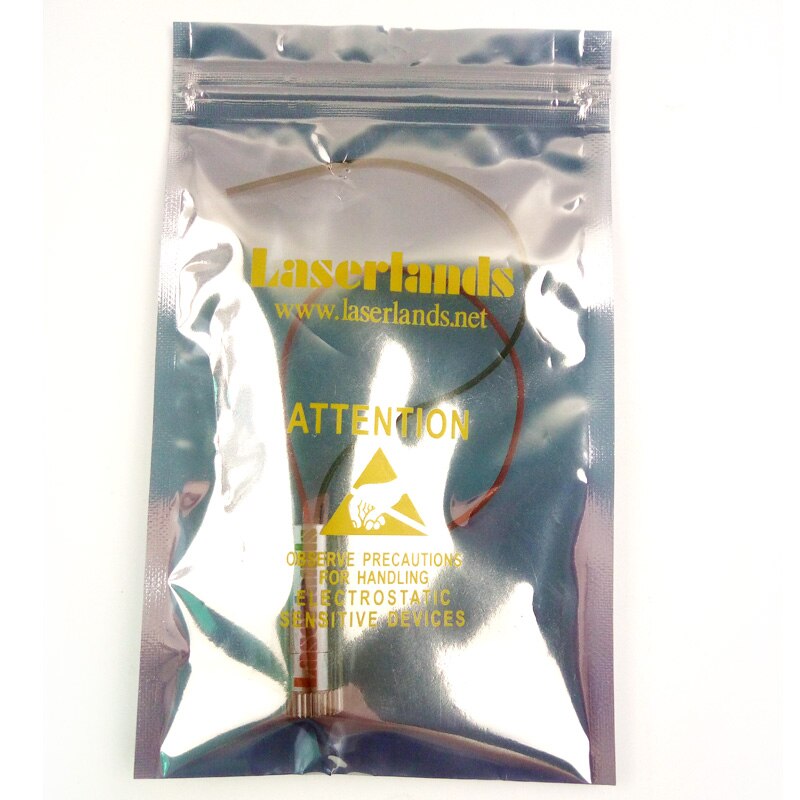

Package   780nm 80mw laser module

Note:
The modules are tested and the output power are measured by laser power meter before sending out.
Please don’t compare the power of this one with a none-measured laser.
If you doubt the output, please have the laser you recieved checked by laser power meter.

If there is any problem, please feel free to contact us. We will solve the problem asap.
