Description
- Brand Name: laserlands
- Certification: None
- Origin: CN(Origin)
- Style: DMX Stage Light
- Model Number: NA
- Occasion: Home Entertainment
- 200000137: 200003832,200003832,200003832

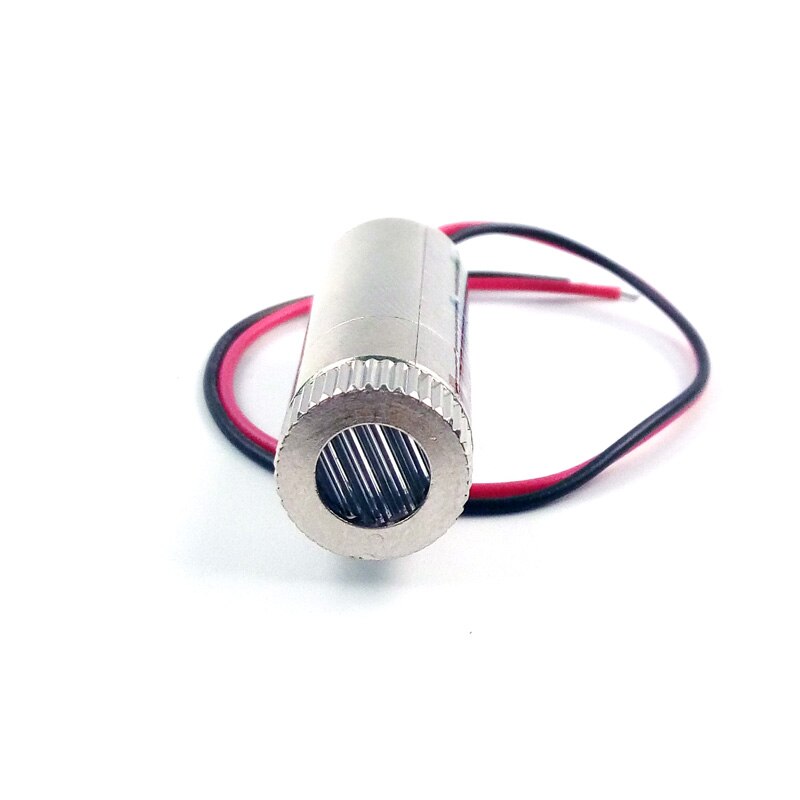

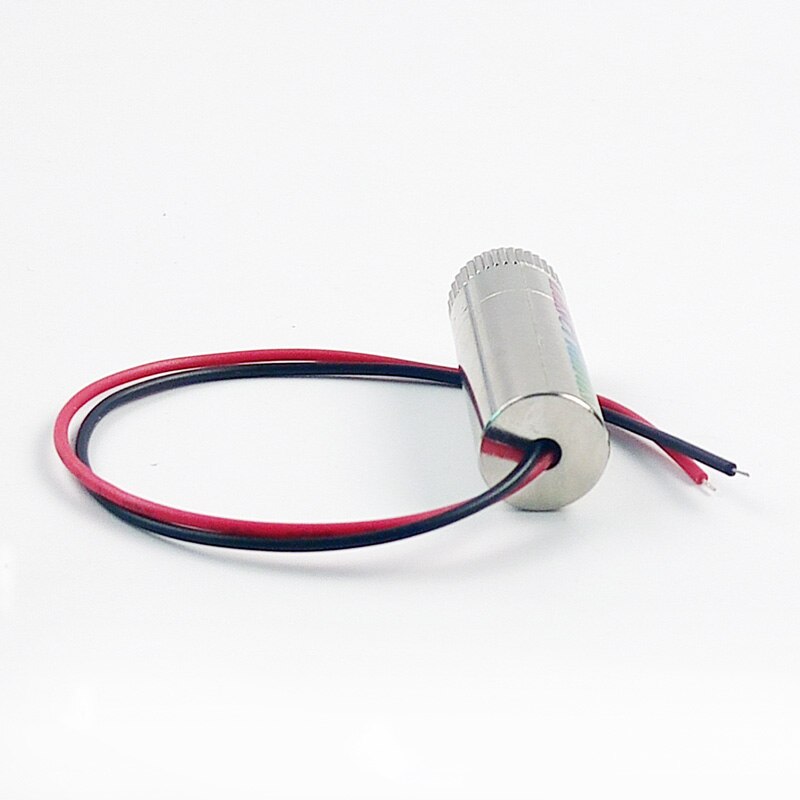

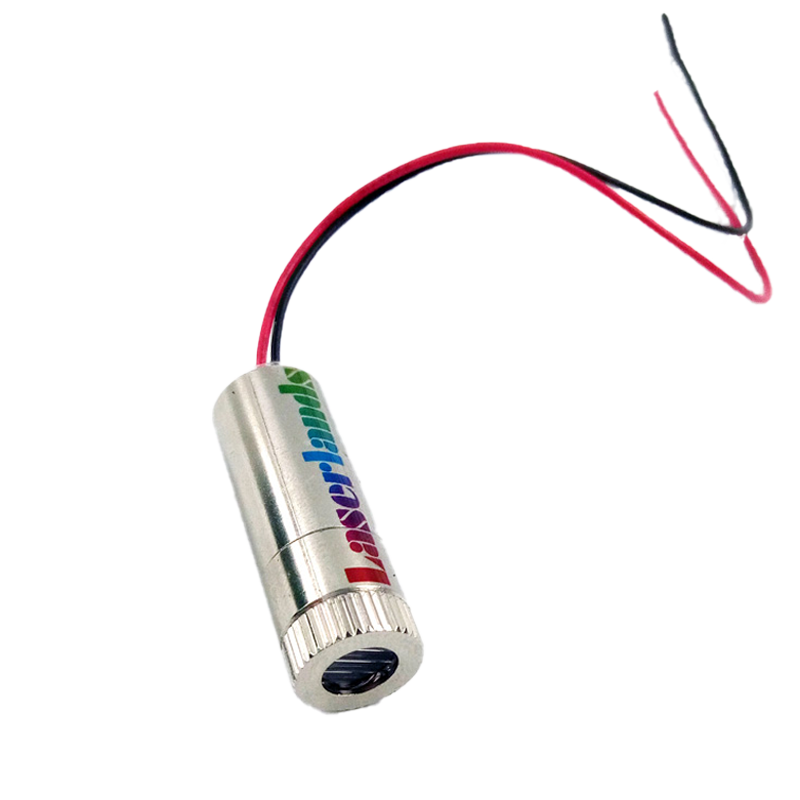

New Infrared 780nm 120mW Laser Diode Module
This 780nm laser module is an industrial electronic component and used for as Industrial testament, Lab, DIY.
The laser module is and precise and sensitive optical instrument. Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray. Be sure the operator has experience in optics DIY or testing.
Note:
The modules are tested and the output power are measured by laser power meter before sending out.
Please don’t compare the power of this one with a none-measured laser.
If you doubt the output, please have the laser you recieved checked by laser power meter.
If there is any problem, please feel free to contact us. We will solve the problem asap.
It is IR laser,the laser light cannot be seen by human bare eyes with only using DDC/infrared camera get it.
|
Specification |
|
|
Size |

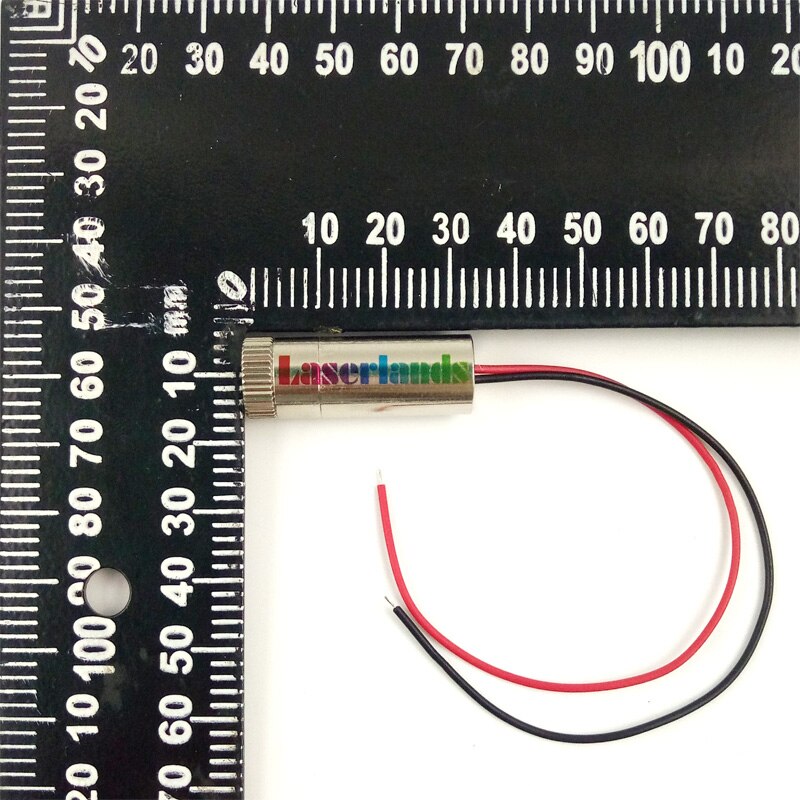

12mm*30mm(not include the length of the lens) |
| Ouptut Power | 120 mW |
|
Operating Voltage |
5VDC |
|
Operating Current |
100mA |
|
Wavelength |
780 nm |
|
Life Span |
>10000 hours |
|
Working Temperature |
-10 ~40 centi-degree |
|
Package |
1 x 780nm 120mW laser module |
