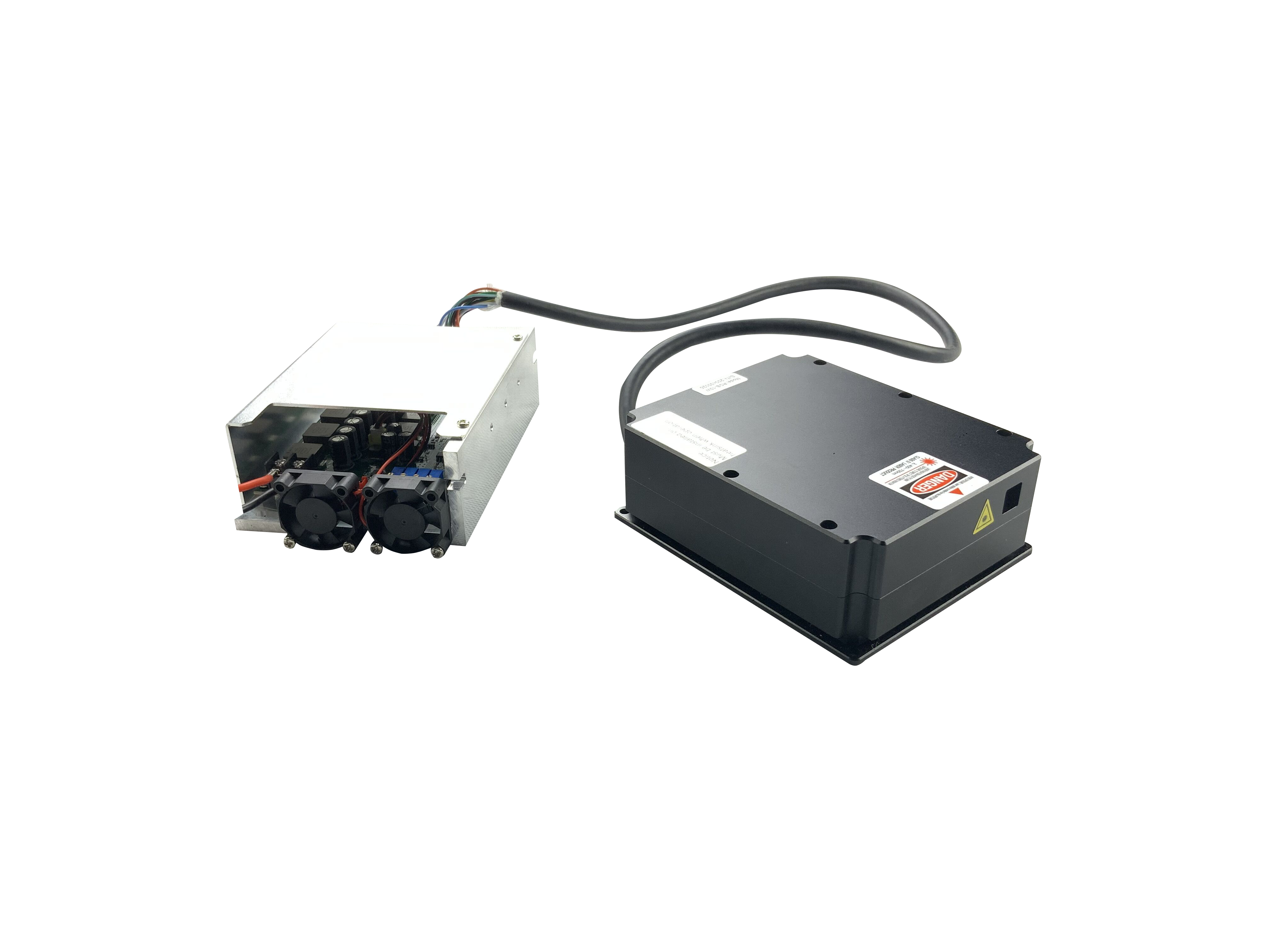

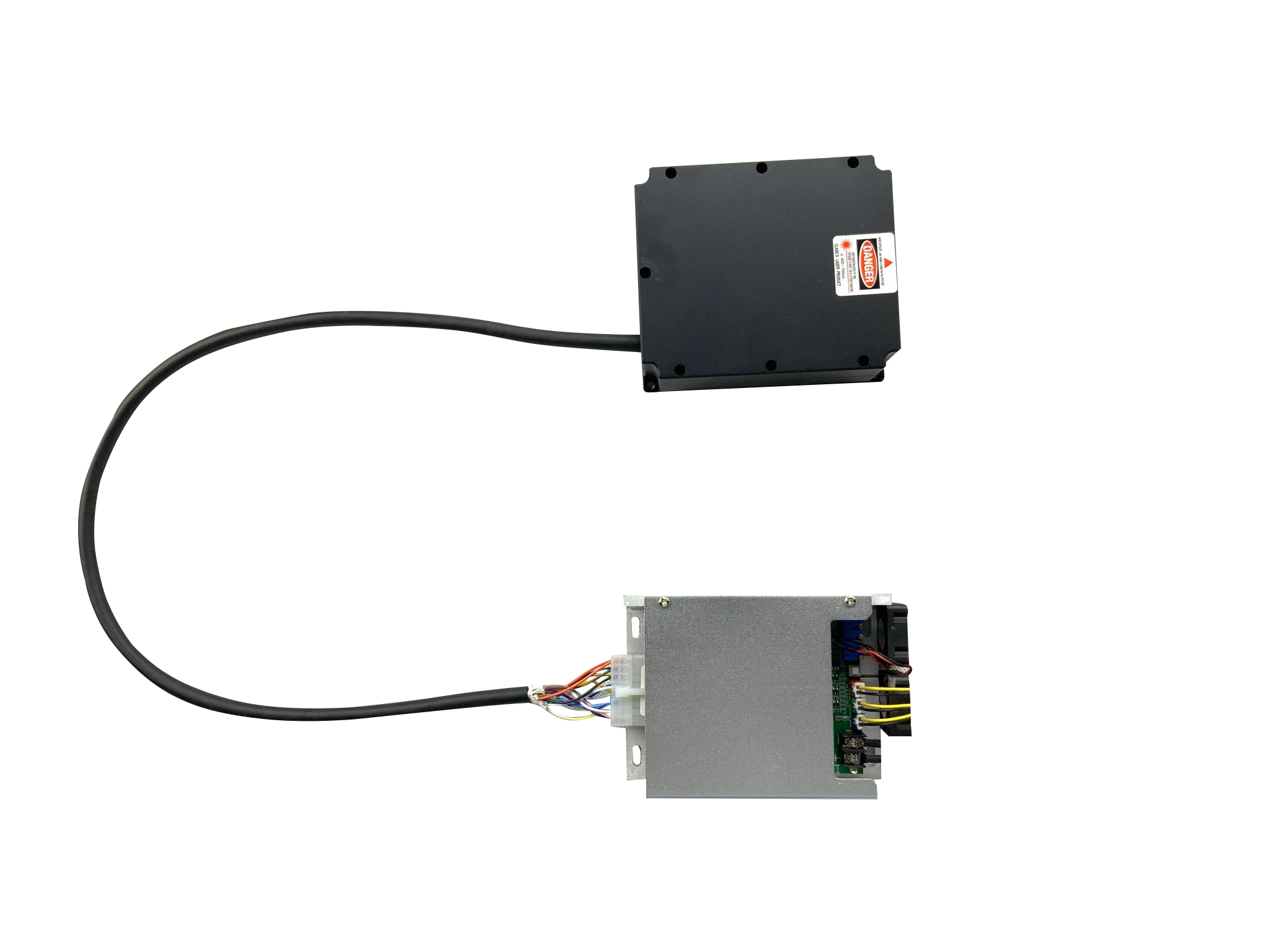

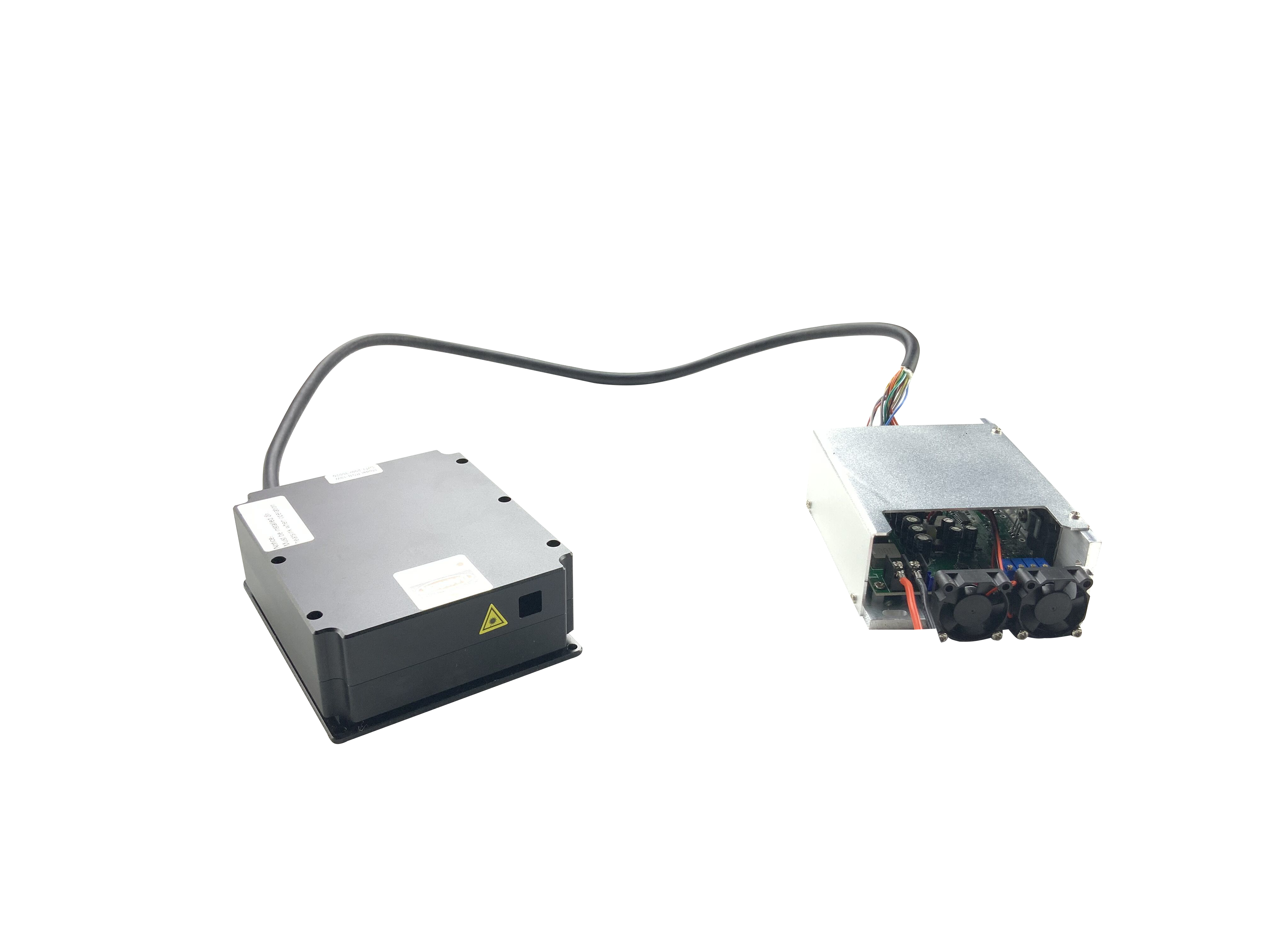

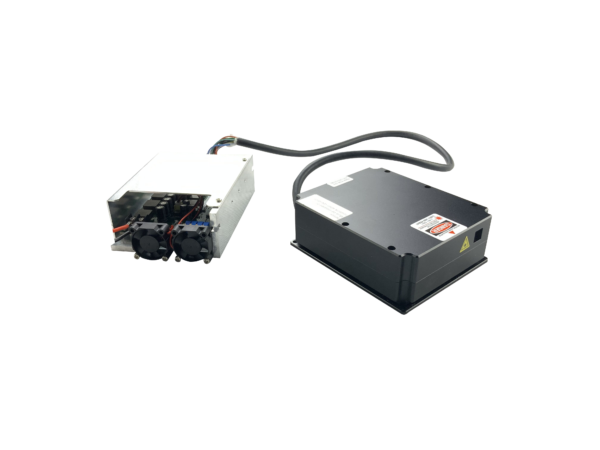

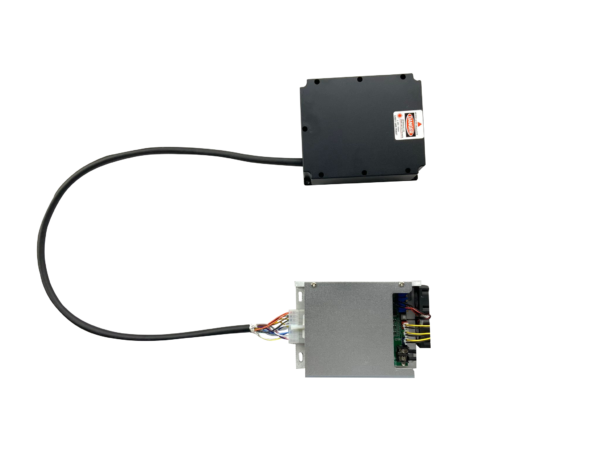

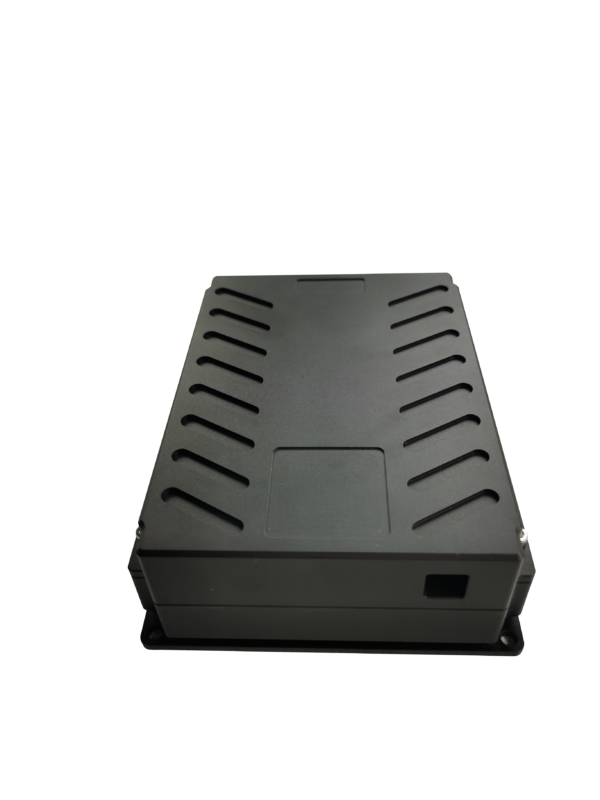

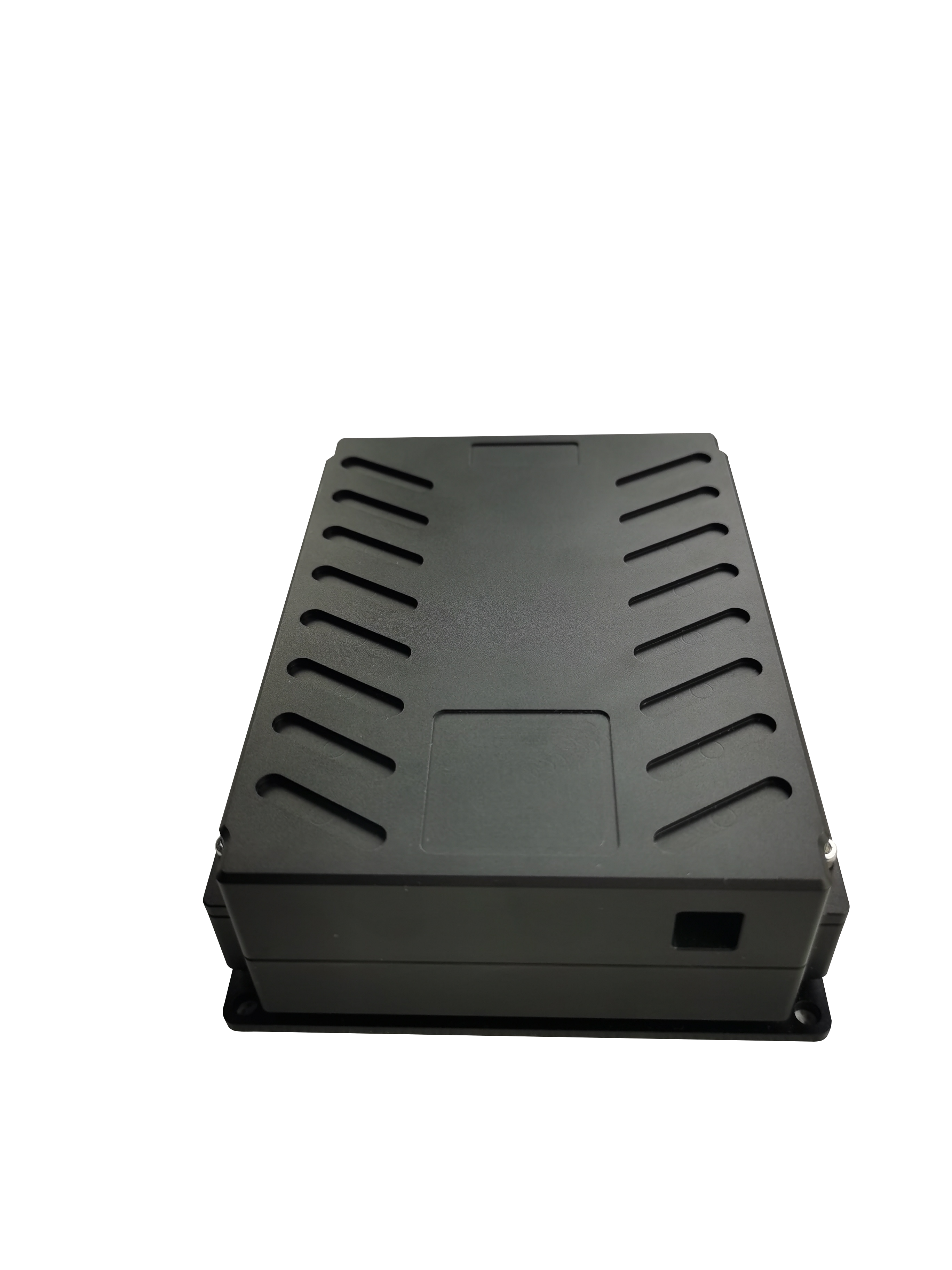

Description
- Brand Name: Starry
- Certification: NONE
- Origin: Mainland China
- Item Type: Stage Lighting Effect
- Style: Mini
- Occasion: Professional Stage & DJ
- Power: 10W
- Model Number: W10000
- Voltage: 90-240V
- Laser Sources: Diodes
- Beam Size@APERTURE: ca. 5mm
- Laser Wavelength: R:638nm G:520nm B:445nm
- Beam Divergence: (7W-10W)<1.0mrad(full angle)
- Device net weigh: 2.16kg
- Modulation: Analog/TTL
- Warranty: 1 year
- Temperature control: TEC cooloing
Technical data:
|
Wavelength(nm) |
638±5 |
520±5 |
445±5 |
||
|
Laser power(mW) |
3000 |
3000 |
4000 |
||
|
Beam feature |
Fiber correction |
||||
|
Power stability (rms, over 4 hours) |
＜1 |
||||
|
Working Mode |
CW |
||||
|
Beam Size@Aperture(1/e2,mm) |
4*6.5 |
||||
|
Divergence（full angle）(mrad) |
1.1 |
||||
|
Modulation |
Analog＞60KHz |
||||
|
Preheating Time (minutes) |
＜1minutes |
||||
|
Working temperature(℃) |
-20℃~40℃ |
||||
|

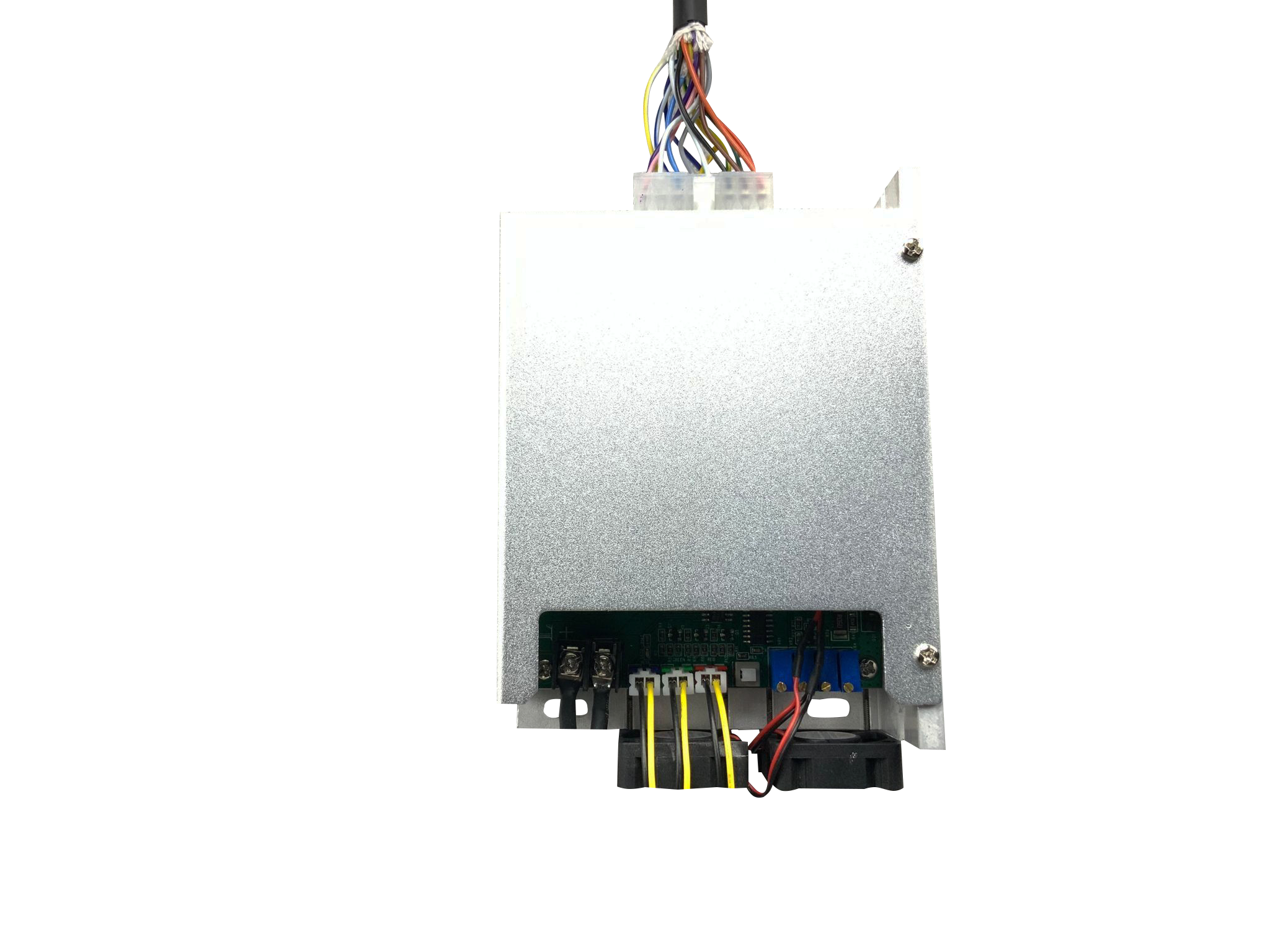

Power supply |
DC 24V 7.2A |
UHP-200-24 |
|||
|
TTLmodulation（0/5V） |
Analog modulation（0~5V） |
＞0.8V(Laser on), ＜0.8V(Laser Off) |
≈0.2V~4.8V |
||
|
Lifetime(hours) |
10000 |
||||
|
Warranty |
1-year |
||||
Notes
1. The laser has potential harm to the human body and the eyes, It is forbidden to use a laser to irradiate others, especially in the eyes.
2. The power supply itself has no key switch, and the power panel and the input line are exposed, When the laser connects or removes the circuit, it must operate under the condition of power off, in order to prevent the electric shock.
3 It is necessary to ensure that the temperature of the shell of the laser head is close to that of the suitable operating temperature before the laser can be turned on, so as to avoid the excessive temperature difference, which may affect the performance of the laser or damage the device.
4. The product shall be used in a dry, clean and non-static environment with a working temperature of 15 – 50 ℃ to avoid high temperature, high humidity, and violent vibration and impact.
5. Do not arbitrarily adjust the potentiometer on the power supply board to avoid the excessive current, circuit board or laser burn.
6. Please do a good job of external heat dissipation measures, as far as possible to maintain the shell heat cooling air path and module cooling air path consistent, lest the temperature is too high, affect or damage the laser.
7. This product power supply for DC-12V does not connect to other power sources, lest damage the laser.
