Sale!

10W Infrared Emitting IR led High Power 940nm COB IR Array Infrared Lamp Invisible IR LED For Computer & Office 10 Chips in One

$17.68

SKU: 32905701367 Category:

Description

  • Brand Name: MS-moto
  • Model Number: SD-DA10WC9
  • Wavelength: 940nm
  • Condition: New
  • Package type: Surface mount
  • Max. Forward Voltage: 1.3-1.6V
  • Max. Reverse Voltage: 5V
  • Max. Forward Current: 7000mA
  • Max. Reverse Current: 3500mA
  • Viewing Angle: 140 degree
  • Chip Size: 40mil
  • Voltage: 1A
  • Power supply: 4-6V
  • LED type: COB

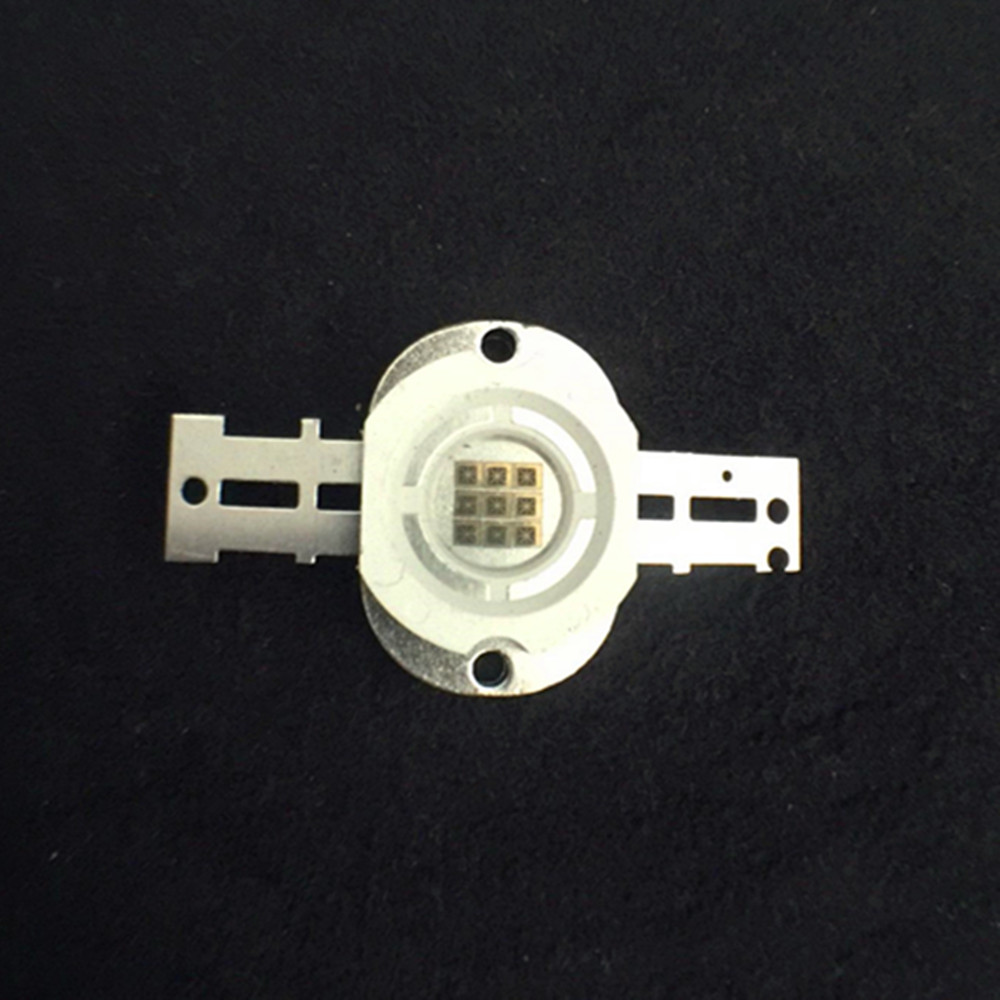

9 chips 10W 940nm COB High Power infrared



Features

High radiant intensity

Peak wavelength:λp=940nm

High reliability



Chip Material: GaAlAs      Lens Color: Water clear    Source Color: Infrared




Electrical   /  Optical  Characteristics  at  TA=25
Parameter Symbol Min. Typ. Max. Unit Test Condition
Luminous Intensity Φ 4000 4500 5000 mw   IF =3500mA
Viewing Angle 2θ1/2   140   deg   IF =3500mA
Domain Wavelength Tc       K   IF =3500mA
Spectral Line Half-Width Δλ   940   nm   IF =3500mA
Forward Voltage VF 1.30  1.40  1.60  V   IF =3500mA
Reverse Current IR     20 μA   VR = 5V
Absolute  Maximum  Ratings  at  TA=25
Parameter Maximum Rating
Power Dissipation 10W
Peak Forward Current 7000mA
(1/10 Duty Cycle, 0.1ms Pulse Width)
Continuous Forward Current 3500MA
Derating Linear From 30 0.8mA/
Reverse Voltage 5V
Operating Temperature Range -20 to + 80
Storage Temperature Range  -30 to + 100
Lead Soldering Temperature 260 for 5 Seconds
[1.6mm(.063″) From Body]

Lifespan:
50000h
Warranty:
3 years

Chip Quantity:9pcs.

Emitted Color: Infrared IR

 Viewing angle: 140 degrees.

 Applied for : IR Camera, remote control



940nm COB infrared 10W



940nm COB IR LED 10W
