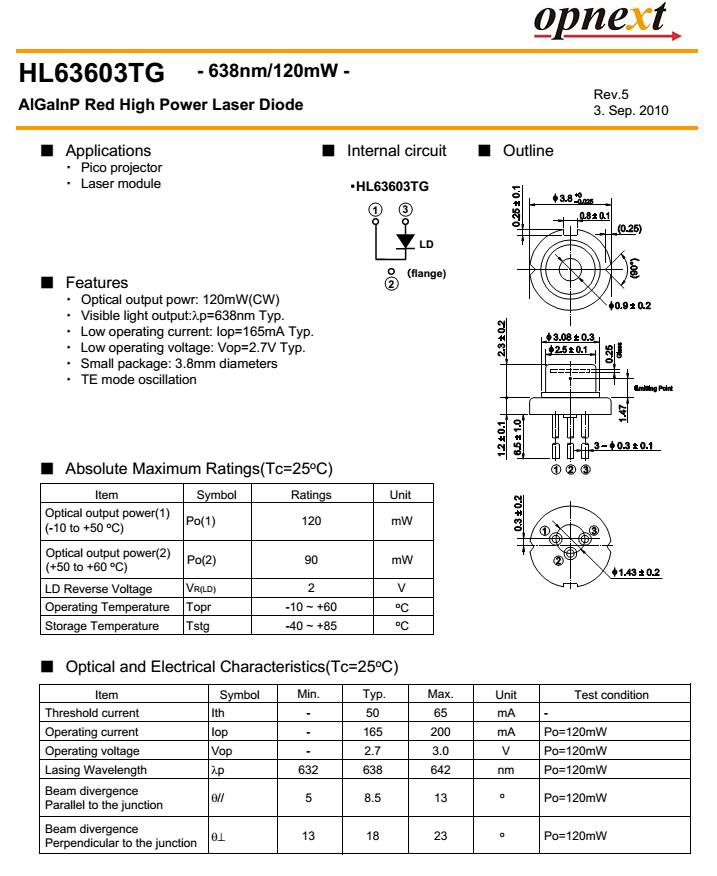

Wavelength: 638 nm

Single transverse mode

Maximum output power: 120 mW

Applications: Laser Module, Pico projector, etc.

High efficiency , stable performance, long life

Optical Data

Tolerance of wavelength: ± 5 nm

Spectral Width (FWHM): <3nm

Wavelength stability coefficient: ~0.3 nm/Degrees

Electrical Data

Operating current: 165-200mA

Threshold current: 50-65mA

Conversion efficiency: 20%

Slope efficiency: 1.1 mW/mA

Operating voltage: 2.7-3.0V

Others

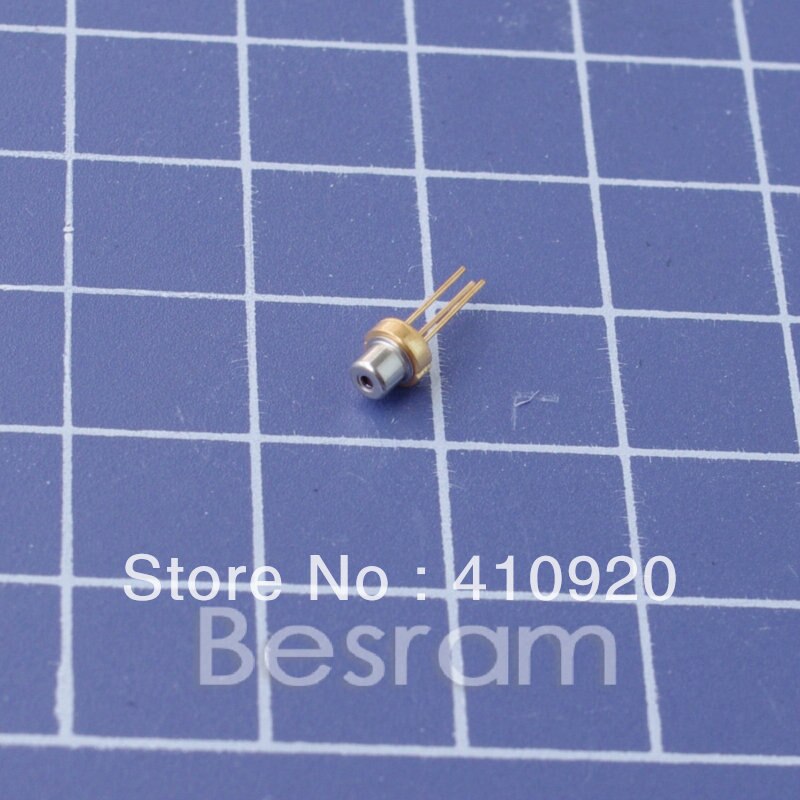

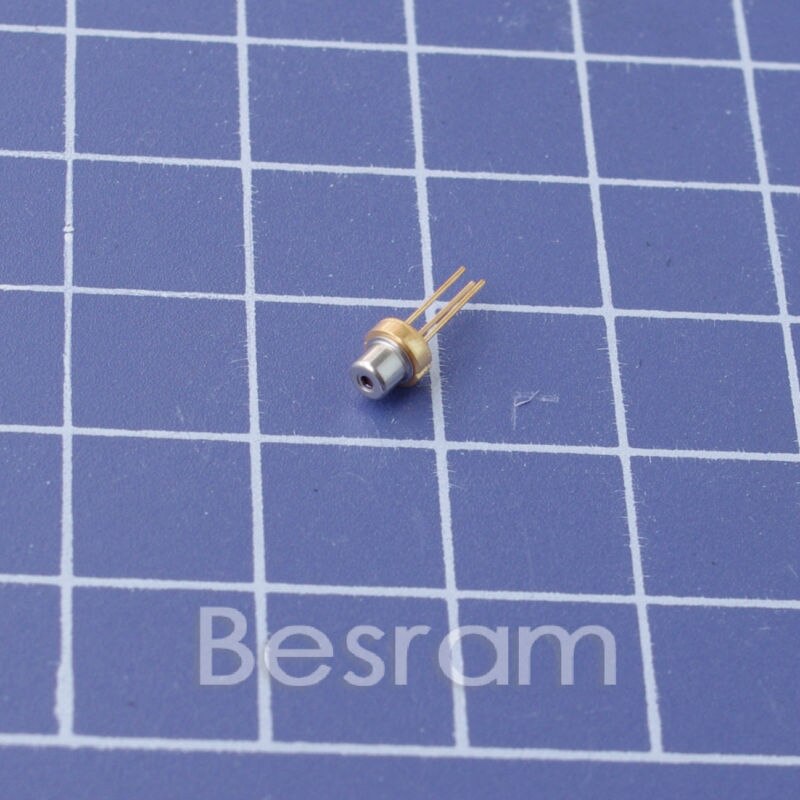

Can Type: TO-38

Operating temperature: -10~+60 Degrees

Storage Temperature: -40~+85 Degrees

Lifetime: >10000h



Note:

This component sensitive to static electricity, anti-static measures do not do not directly touch the laser tube body; the laser tube driver circuit must be qualified to work, different power voltage the same, but different operating current, circuit the need to control the drive current of the tube within the safe range, otherwise it will affect life expectancy.
