Description

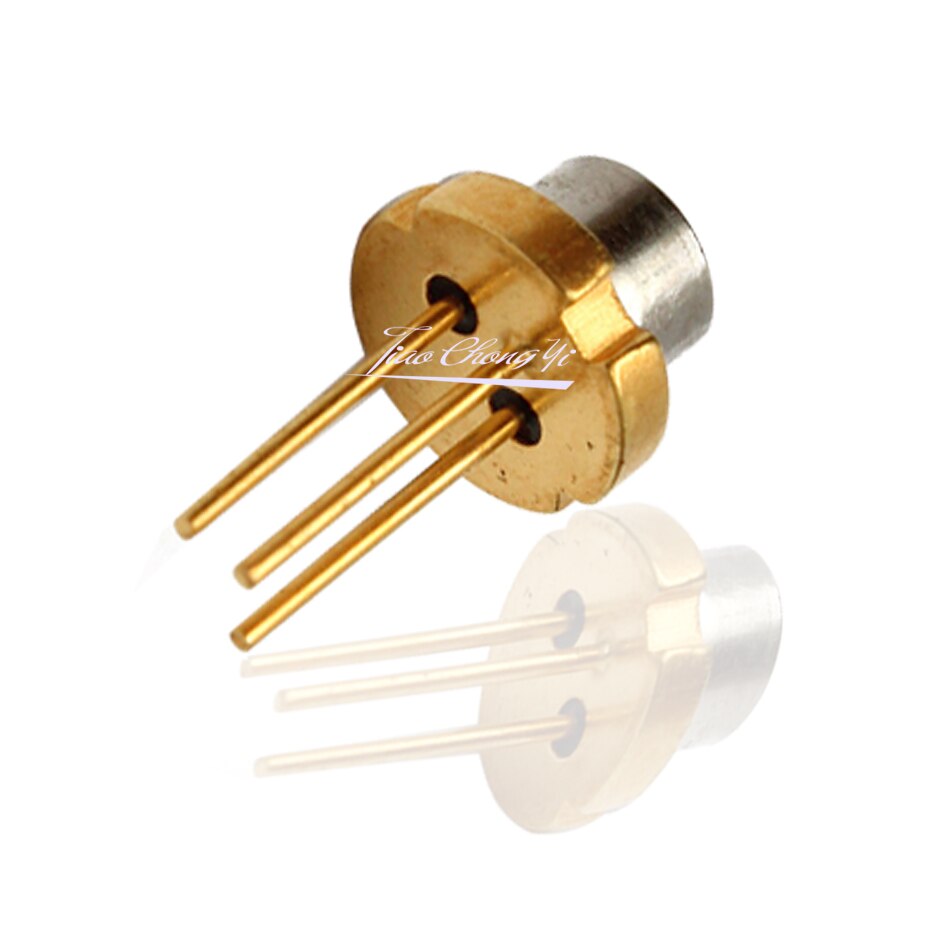

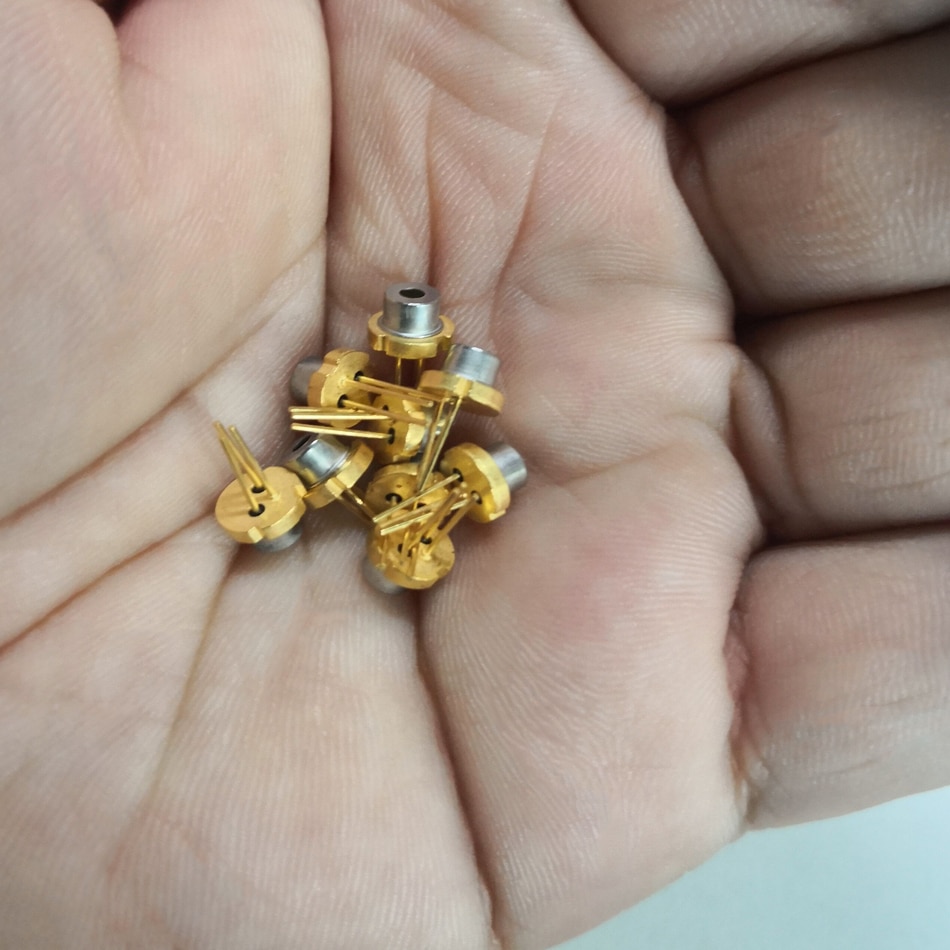

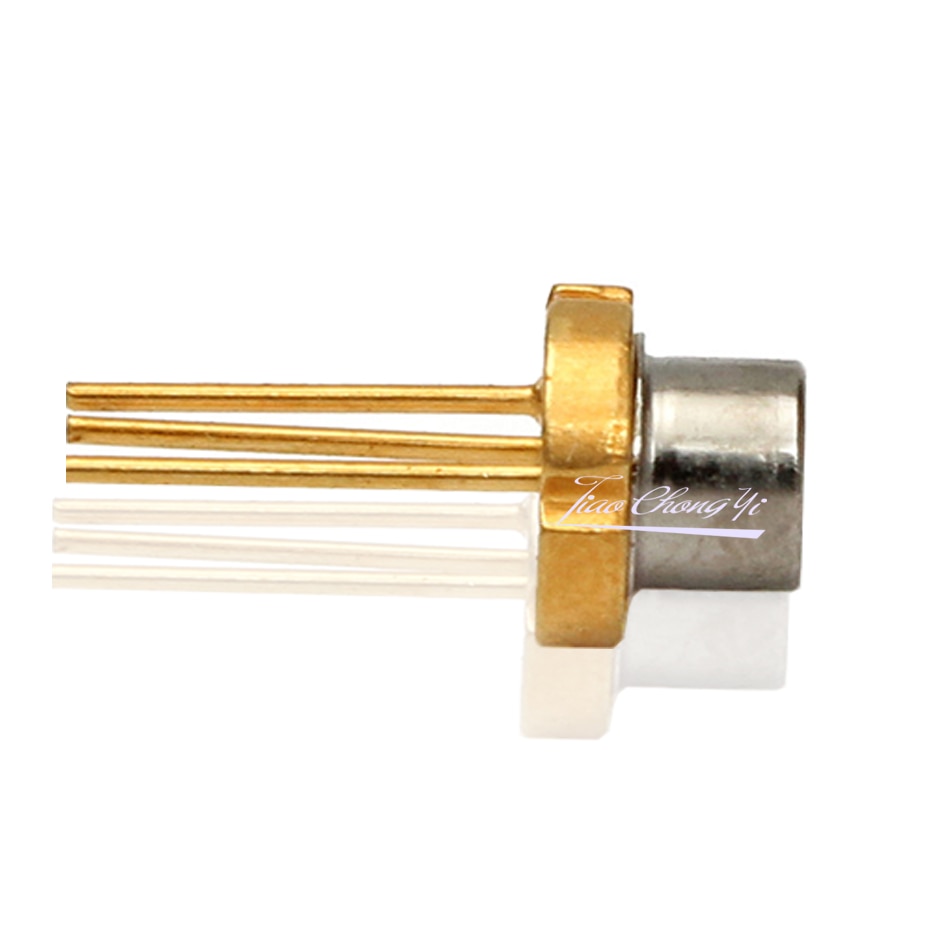

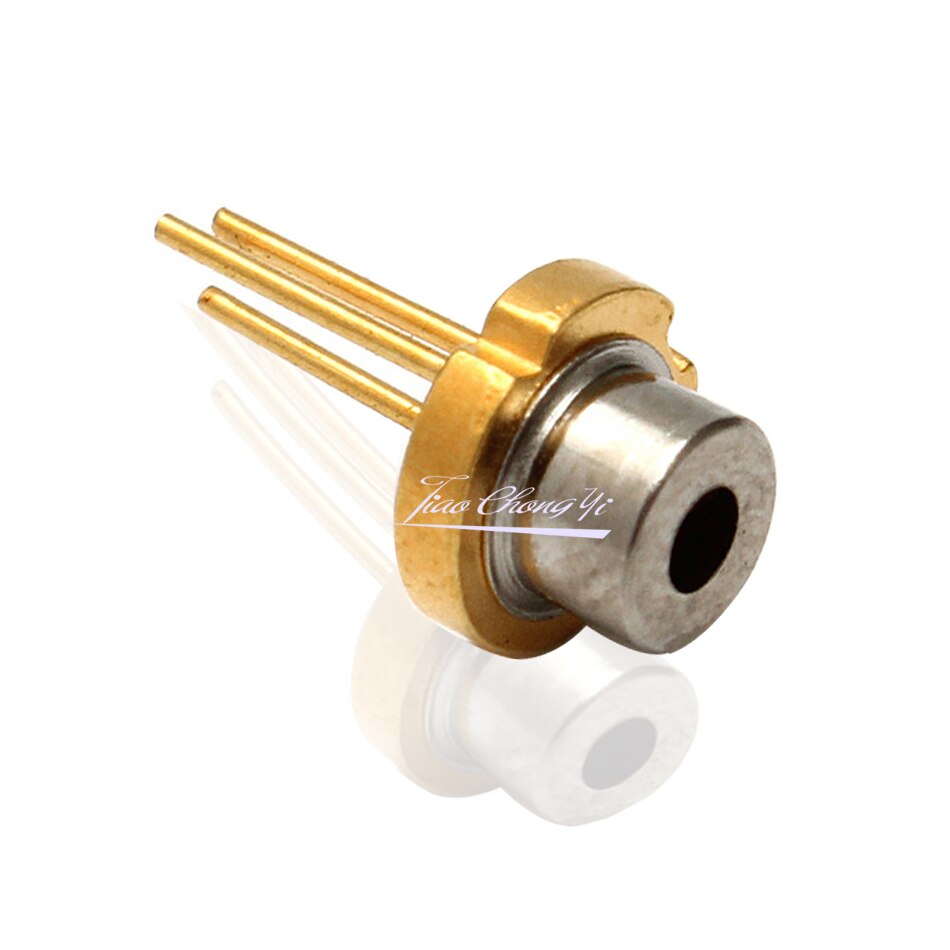

10PCS 0.2W Metal 808nm LED 200mW 1.8-2.0V Infrared IR Laser Diode LD TO-18 / 5.6mm light-emitting diode
0.2W Metal 808nm LED 200mW Infrared IR Laser Diode LD TO-18 / 5.6mm light-emitting diode DIP 10PCS
Material:Metal

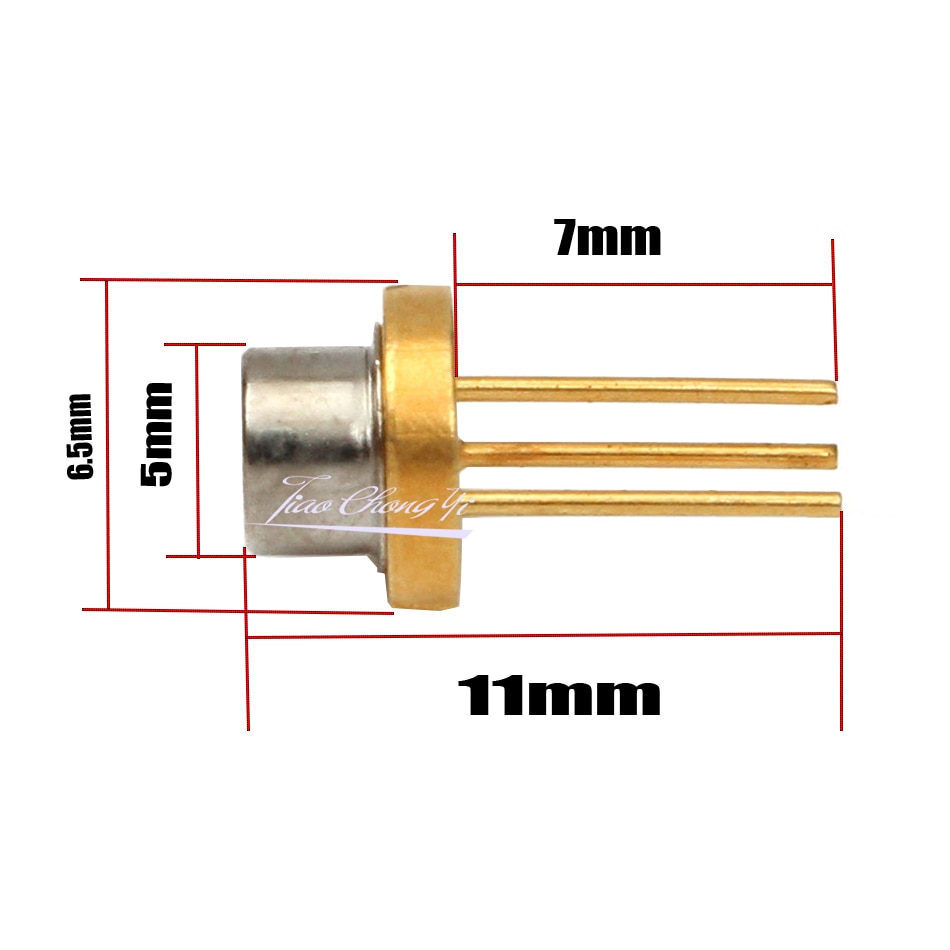

Size: about 1.1cm/0.433″
[Conversion: 1.1cm=0.433 inch, 1inch=2.54 cm]
Wavelength: 808nm
Power Output: CW 500mW
Working Current: I<350mA
Working Voltage: 2.2V
Sealed Size: TO18 (5.6mm)
Lifespan:>10000 hours
Attention:
1.Laser beam is harm for eyes during process please avoid any directly see on the aperture.
2.Please use the suitable LD power driver, instant reverse current can not exceed than 25uA
reverse voltage cannot exceed than 2V,otherwise the LD will be damaged.
3.Please install the LD well before connecting to the power.The initial input voltage should be zero.
4.To increase/ decrease the current gradually for avoiding any current pulse which will damage the LD.
5.Please store or use the LD under dry and air flow ambient.To avoid any situation of condensation which will damage the LD.
6.Working under high temperature will increase the threshold current
and decrease the efficiency conversion,speed up the aging of the LD.
7.The exceed power output will speed up the aging of the LD.
8.To use the LD with enough head dispensing or uner the cooling ambient.
9.Laser diode belongs to electrostatic sensitive components. Should deal with anti-electrostatic method.
To touch the LD directly unless humanbody is well connect with ground. Otherwise the LD will be burned easily.
To wear anti-eletrostatic wrist for band is necessary.
Package Included:
10PCS x 808nm 200mW Laser Diode
