Description

Features:



* 100% brand new and high quality

* Made of high quality material, durable and practical to use

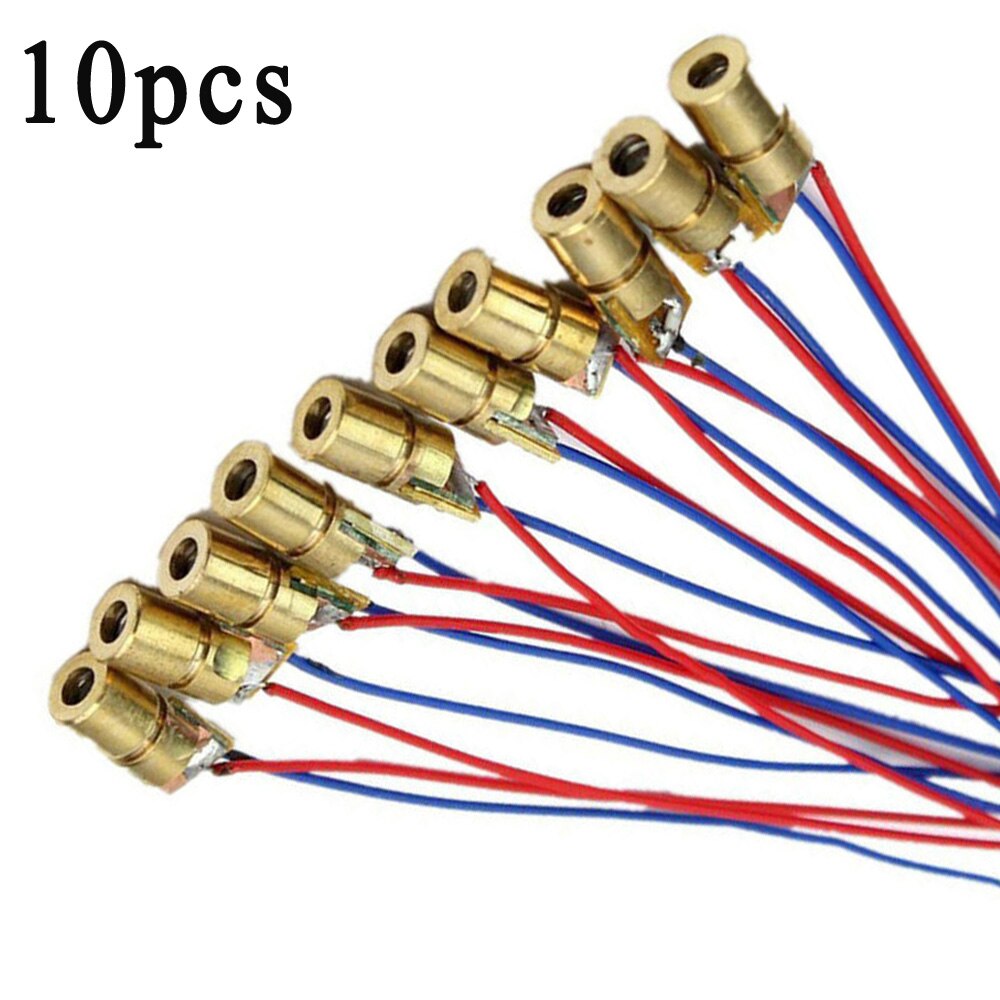

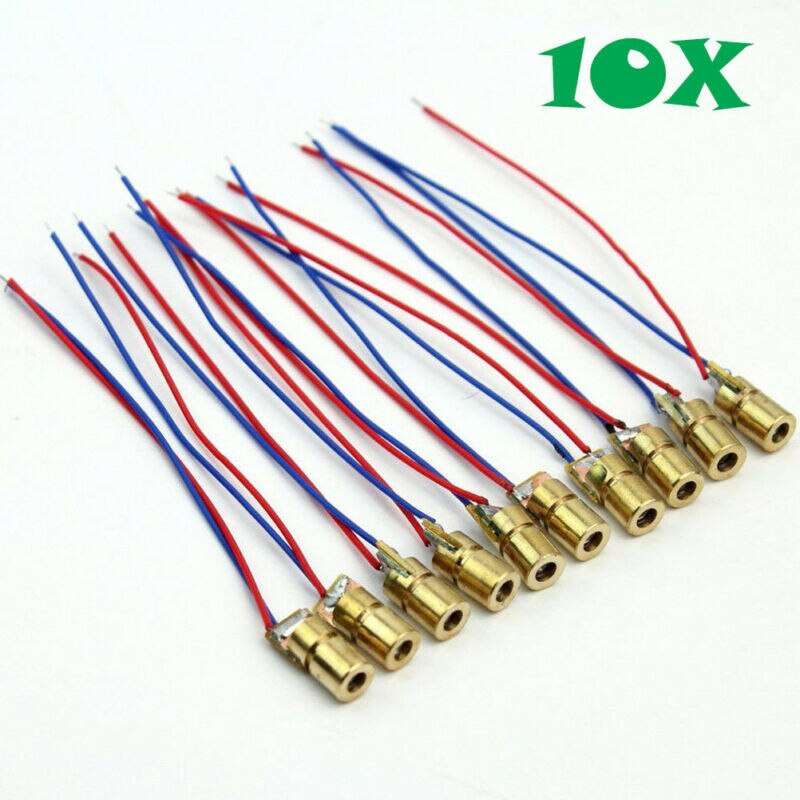

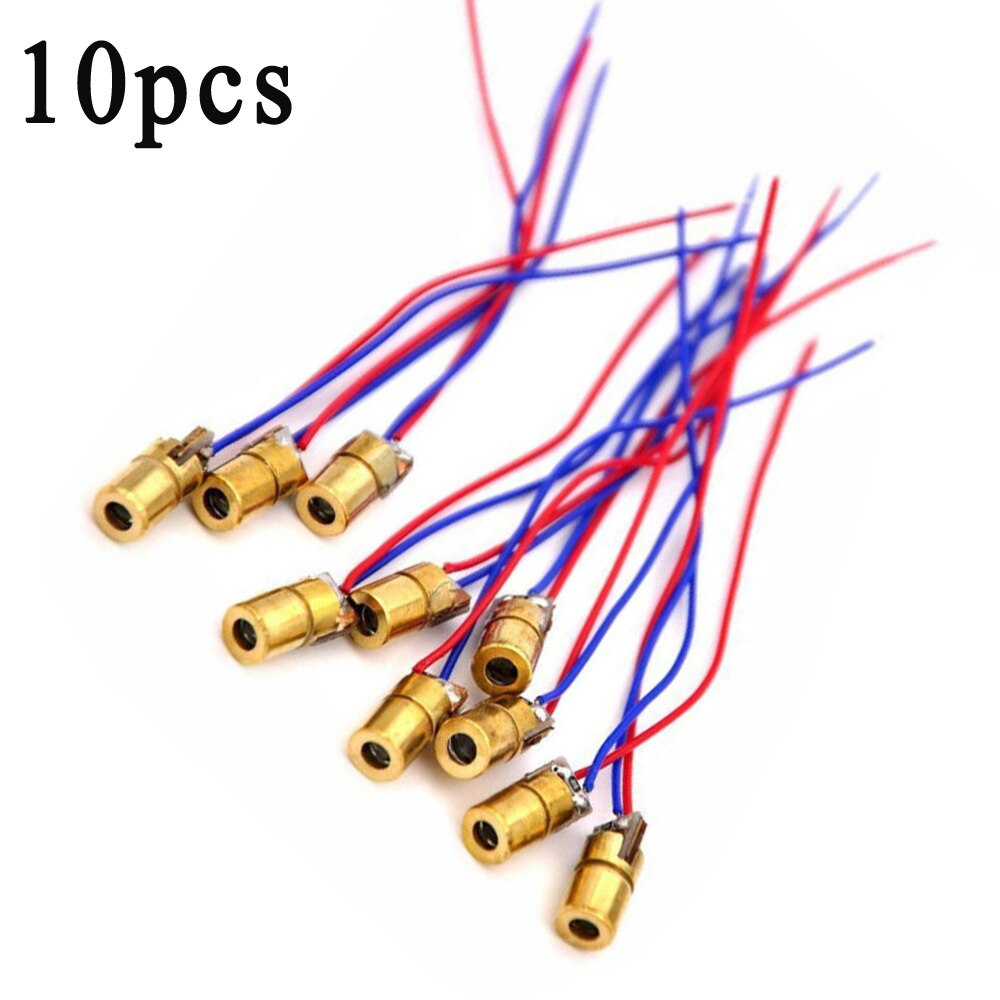

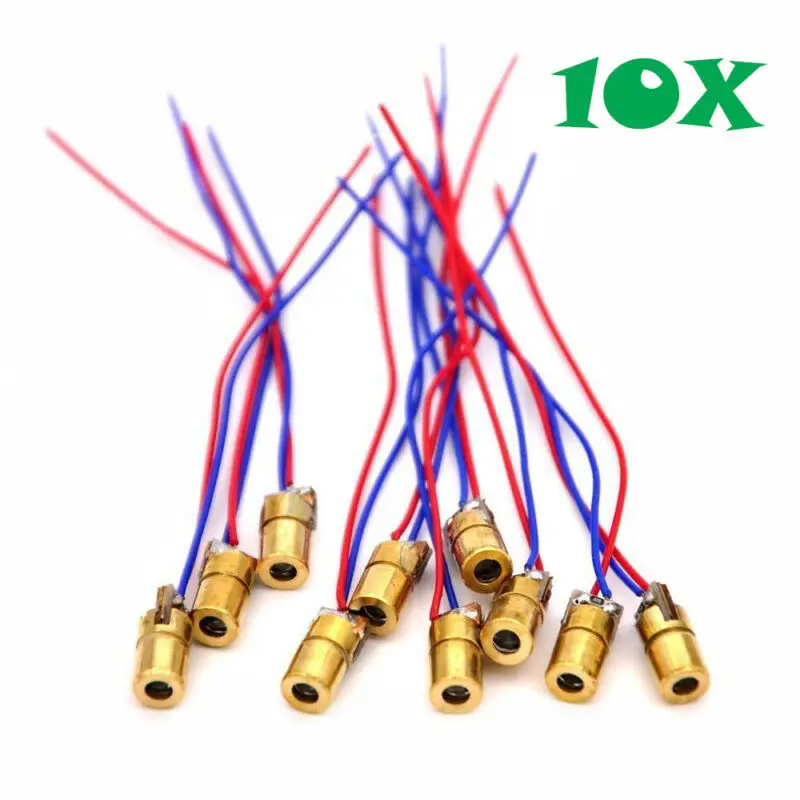

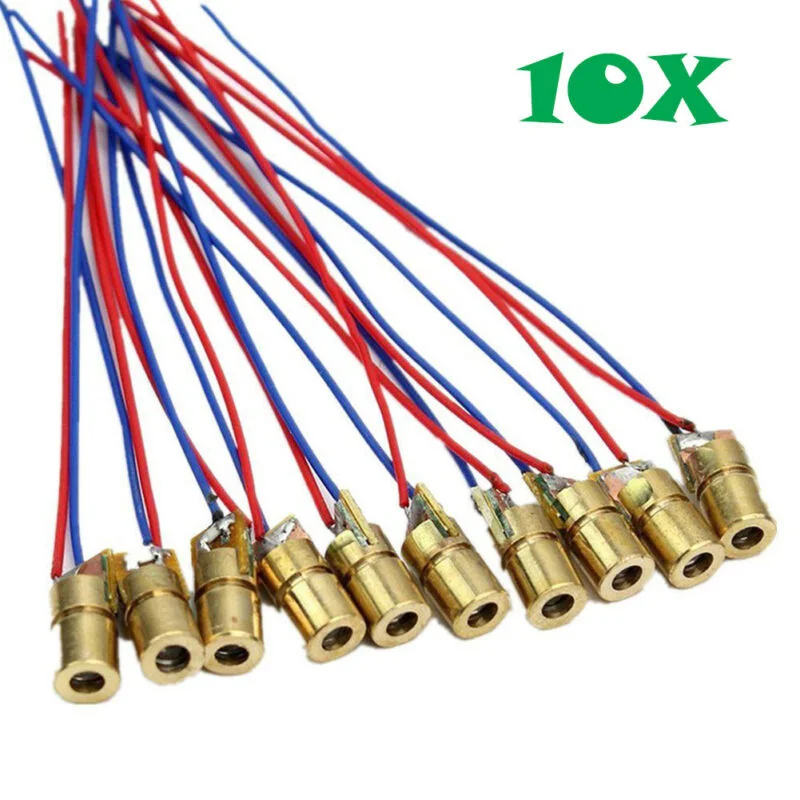

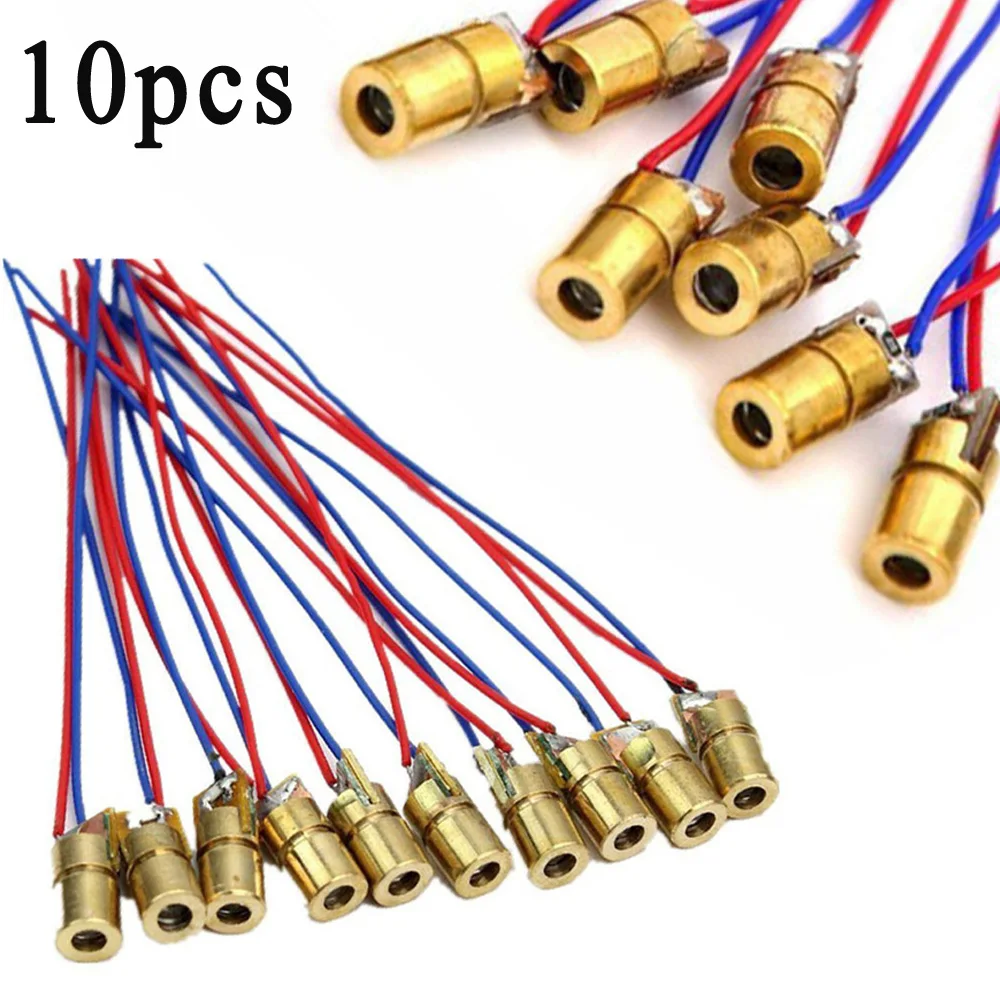

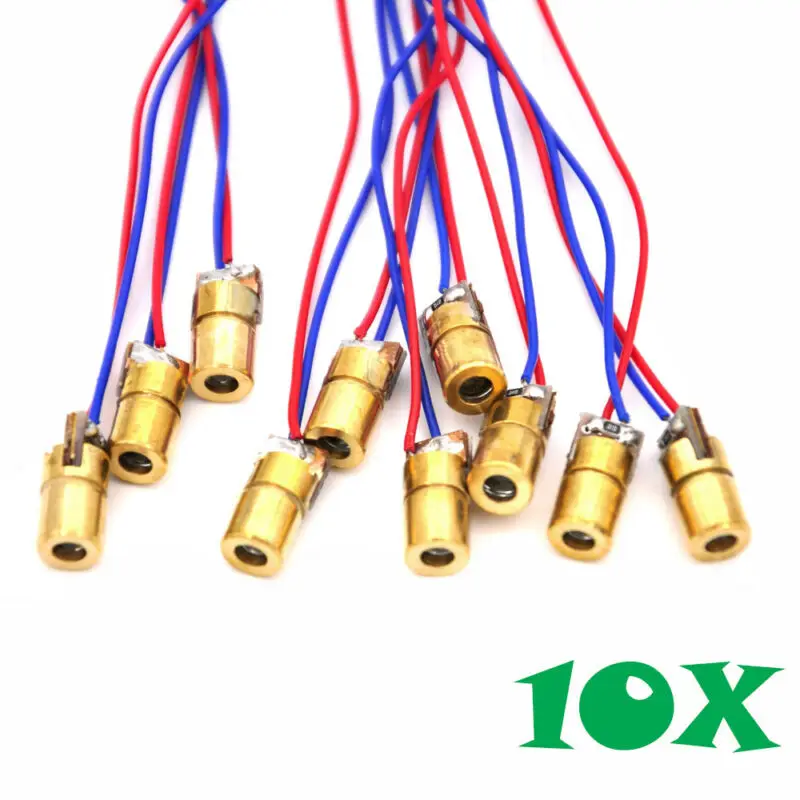

* 10pcs 650nm 6mm 5V 5mW red dot laser diode module with wire

* This red (650nm wavelength) laser diode module can easily be powered by a 5V DC USB power supply or battery and can be used as an indicator for lighting and phototherapy.

* The DC power cord is soldered to a 6mm brass laser diode shell.

* Just connect the power and use!



Specification:



* Dot Mode: Dot, Continuous Output

* Spot Size: φ10mm ~ φ15mm at 15 Meters

* Laser Wavelength: 650nm (red)

* Luminous Power: ~ 5mW

* Power Supply Voltage: 5VDC Max, Usually Produces Laser Output> 3V

* Power Cord Length: ~ 75mm

* Laser Diode Case Size: 6mm x 13.5mm(Approx.)

* Laser Diode Shell Material: Brass

* Working Current: <40mA

* Working Temperature: -36C ~ 65C

* Storage Temperature: -36C ~ 65C

Package Contents:



10*650nm 6mm 5V 5mW Red Dot Laser Diode Module With Wire

Note:



1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.

2.Please allow slight manual measurement deviation for the data.
