Description
1064nm 100MHz 光纤耦合声光调制器
材料：TeO2
波长：常规1060nm, 最小1030nm, 最大1090nm
平均光功率: 5W
超声波声速: 4200 m/s
插入损耗: 1.2-1.5 dB
消光比: 50 dB
回波损耗: 40 dB
上升沿时间: 50ns
频率: 100 MHz
移频: 100 MHz
射频功率: 1.8W
电压驻波比: 1.2 : 1
输入阻抗 : 50 Ω
器件接口: SMA
光纤类型: 10/125 单模
光纤长度 ： 1 m
工作温度 : -30~60

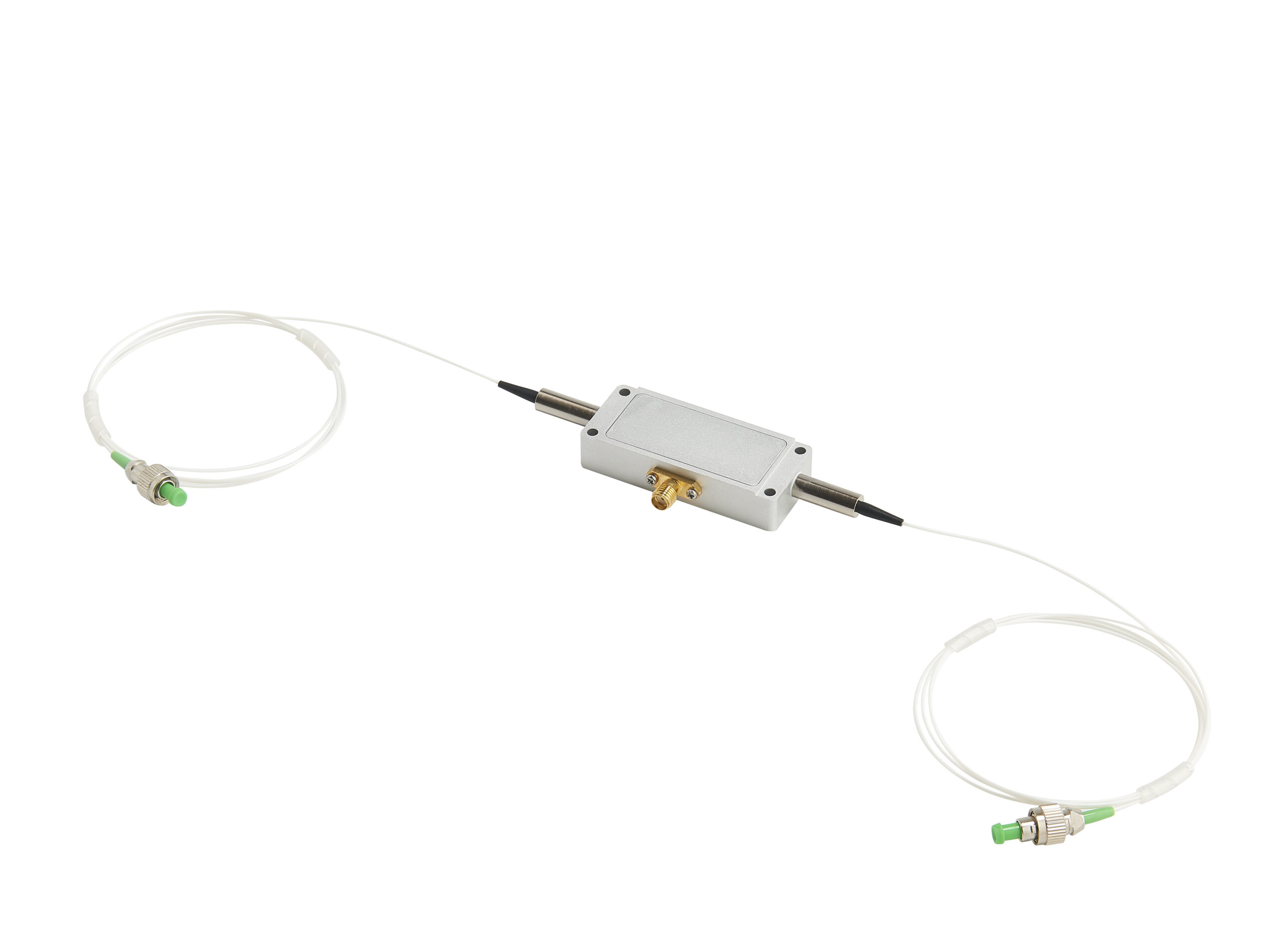

1064nm 100MHz fiber-optic coupled acoustooptic modulator
Mainly used for Q-switched fiber laser, Q-switch
Key performance：Low insertion loss，compact，Stable performance
Material: TeO2
Wavelength: conventional 1060nm, minimum 1030nm, maximum 1090nm
Average optical power: 5W
Ultrasonic sound speed: 4200
Insertion loss: 1.2-1.5 dB
Extinction ratio: 50 dB
Return loss: 40 dB
Rise time: 50ns
Frequency: 100 MHz
Frequency shift: 100 MHz
RF power: 1.8W
Voltage standing wave ratio: 1.2: 1
Input impedance: 50 Ω
Device interface: SMA
Fiber type: 10/125 single mode
Fiber length: 1 m
Working temperature: -30~60
