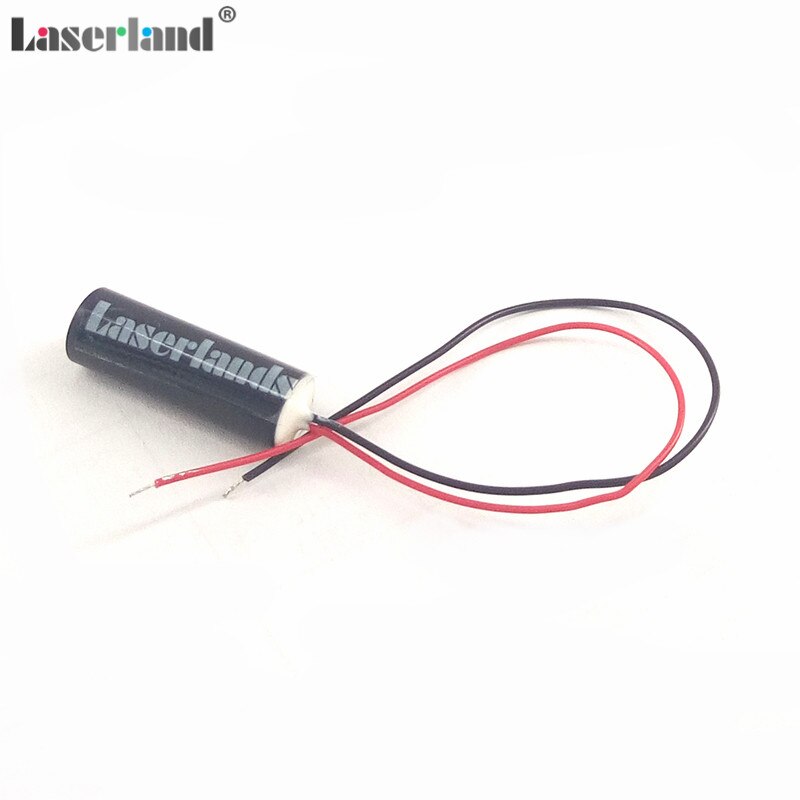

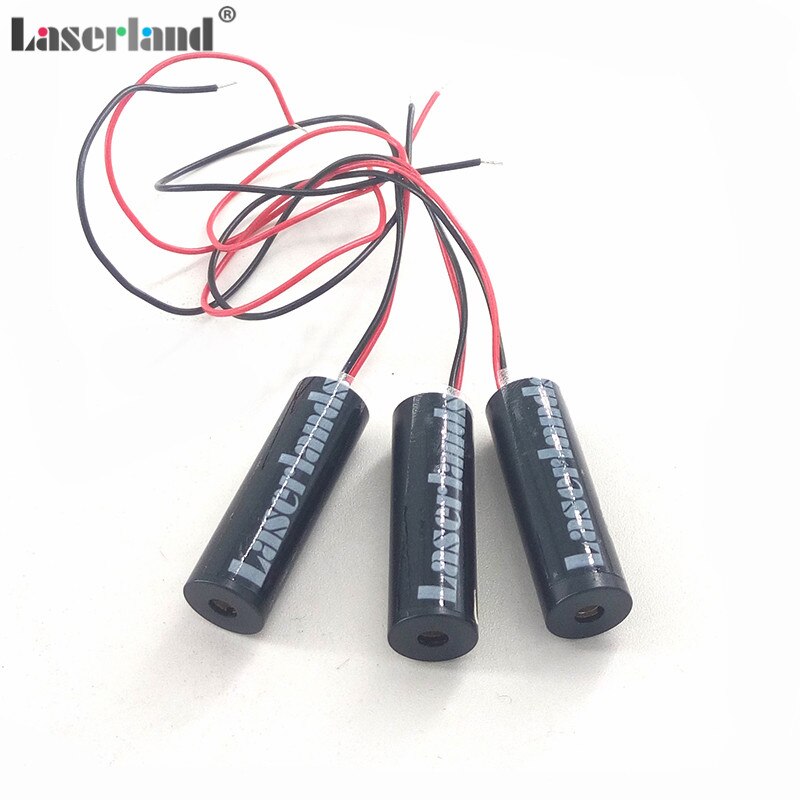

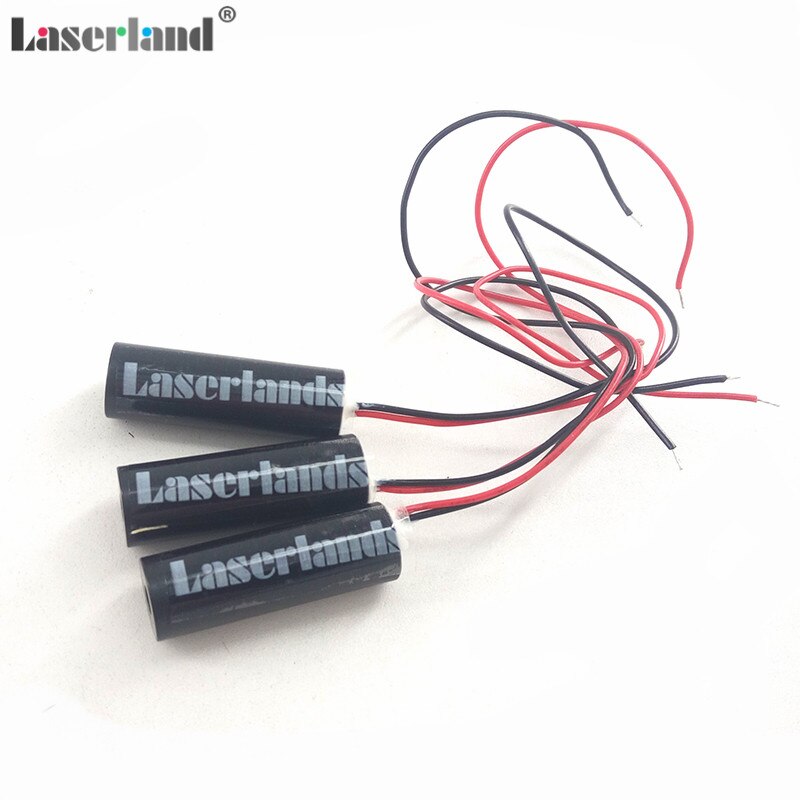

10*30mm 780nm 50mW 100mW 150mW Infrared Dot Line Diode Laser Module





Specifications

Size: 10 × 30mm(we have other size, contact us for it.)

Material: Copper

Surface Treatment / Color: Black

Life: continuous output and life> 5,000 hours

Output wavelength: 780nm / 5nm

Output power: 50mw 100mW 150mW

Range: >200M

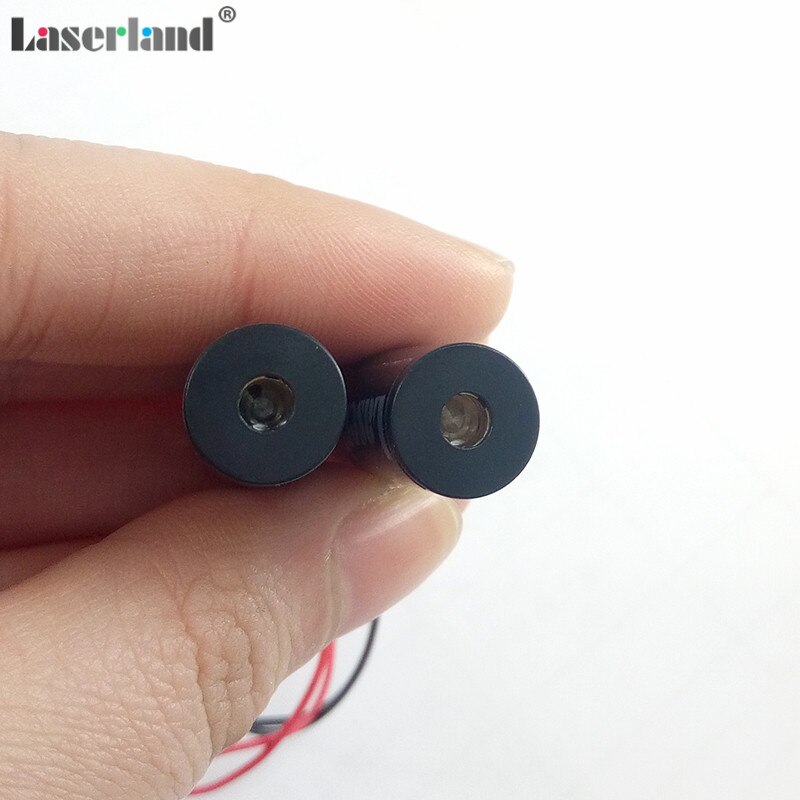

Spot shape / Diameter:Elliptical spot/line/Cross Optional

Circuit control: APC circuit

Operating Voltage: DC 3V

Working Current: <120mA

Conductor: 150MM red and black electronic circuit

Working temperature: -10C ~ +40 C

Storage temperature: -20 C ~ +60 C

Application module:

1 can be used for sight with positioning.

2 can be used for laser testing tools.

3 can be used to locate concentricity.

4 can be used to locate medical equipment, beauty.

5 can be used to produce a signal device.

Note: This is a Infrared laser module, the dot can not be seen by bared eye, you need a camera or a special glasses to see it.

The dot is not perfect circle, it is a elliptical spot.

Need add a heatsink for a longtime use.
