Description

Parameters
wavelength: 532nm
Power: 100mW
Input voltage: DC 12V
Laser Shape: Line
Focusable: Yes
Modulation: TTL
TTL modulation: 0-20KHz
Divergence angle: <1.2mrad
The circuits control: constant current
Fan Cooling
Operating Characteristics: Long time working
Laser Size: 50 (L) *30 (W) *30 (H)
Case Material: Metal
Finish Color: Black
Warm-up time: None
Operating temperature: 0 ~ 40℃
Storage temperature:-20℃ ~ 40 ℃





Features
1.Please keep the lens clean to make the laser beam clear and bright.
2.Before carrying on some laser DIY activities, please read about the technical information first and protect your eyes before laser ray.
3.Be sure the operator has experience in optics DIY or testing.

Package

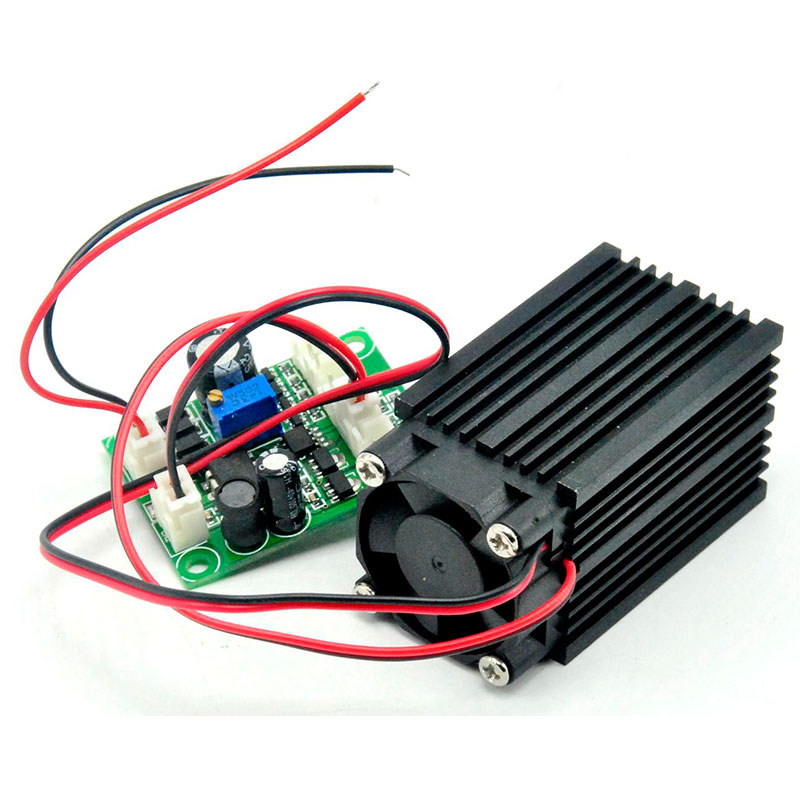

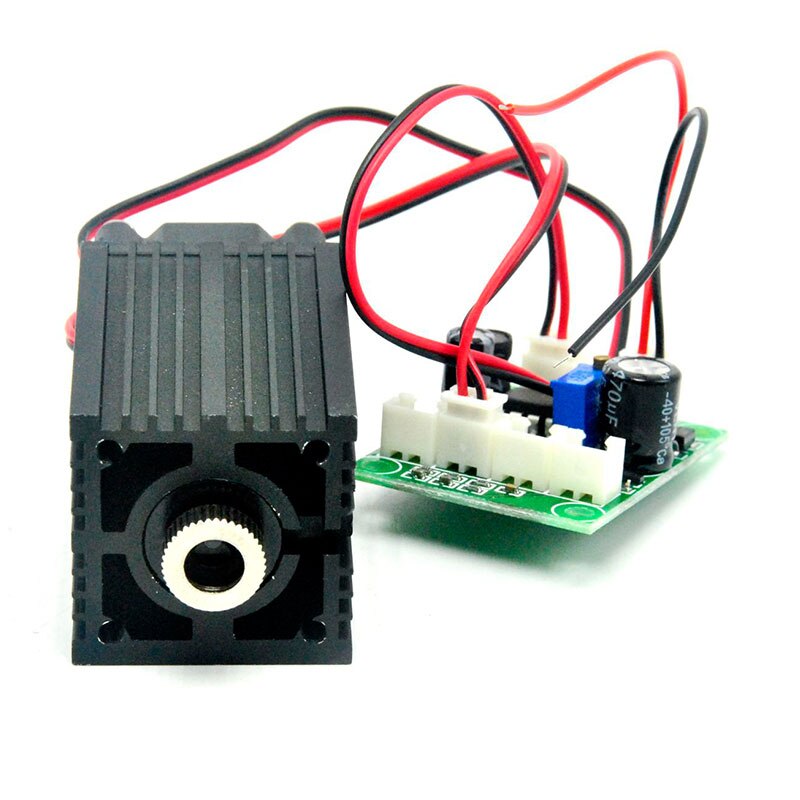

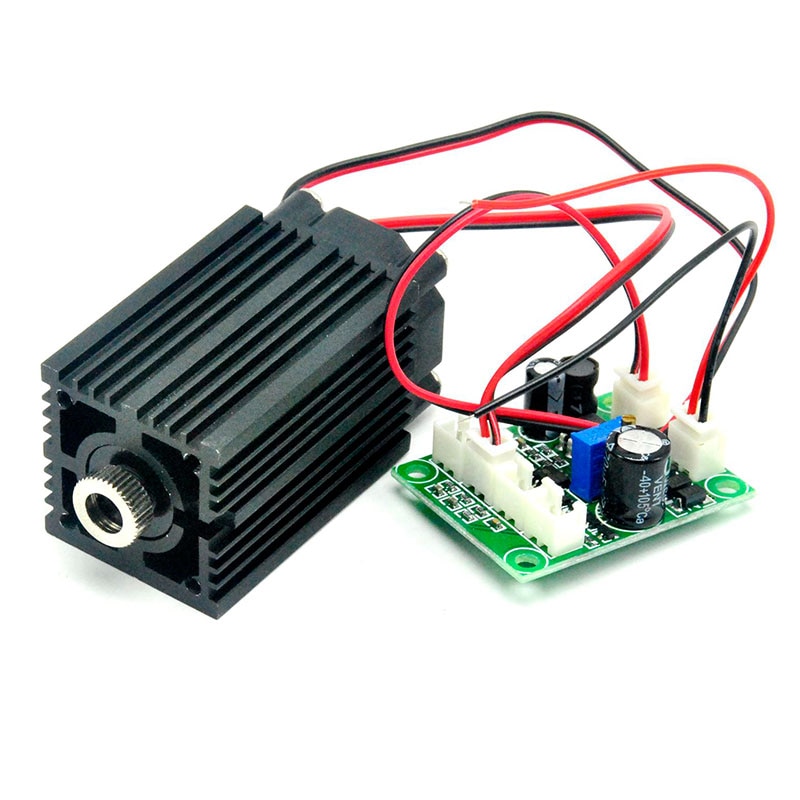

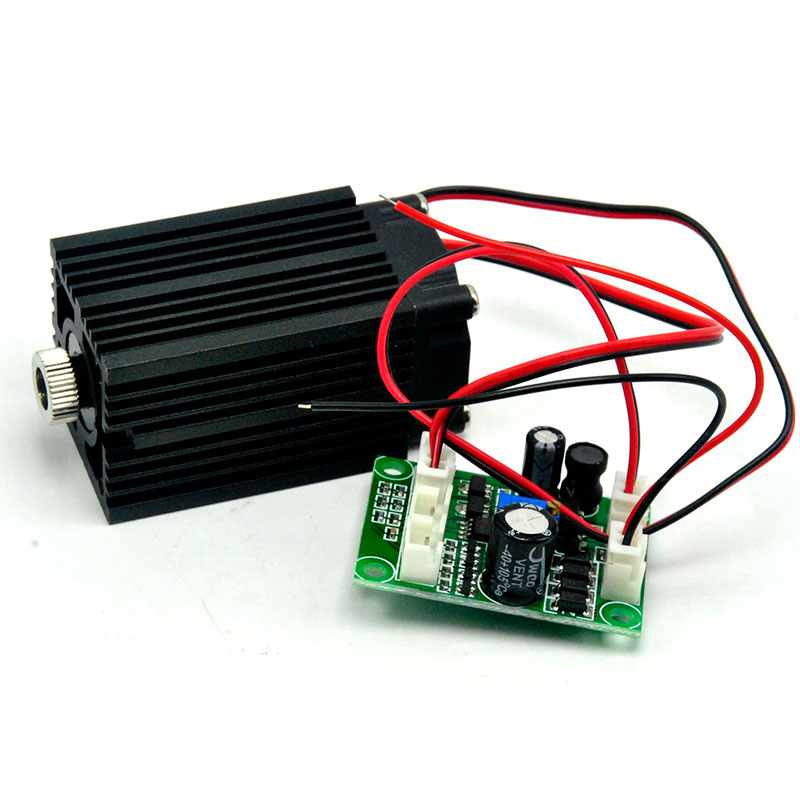

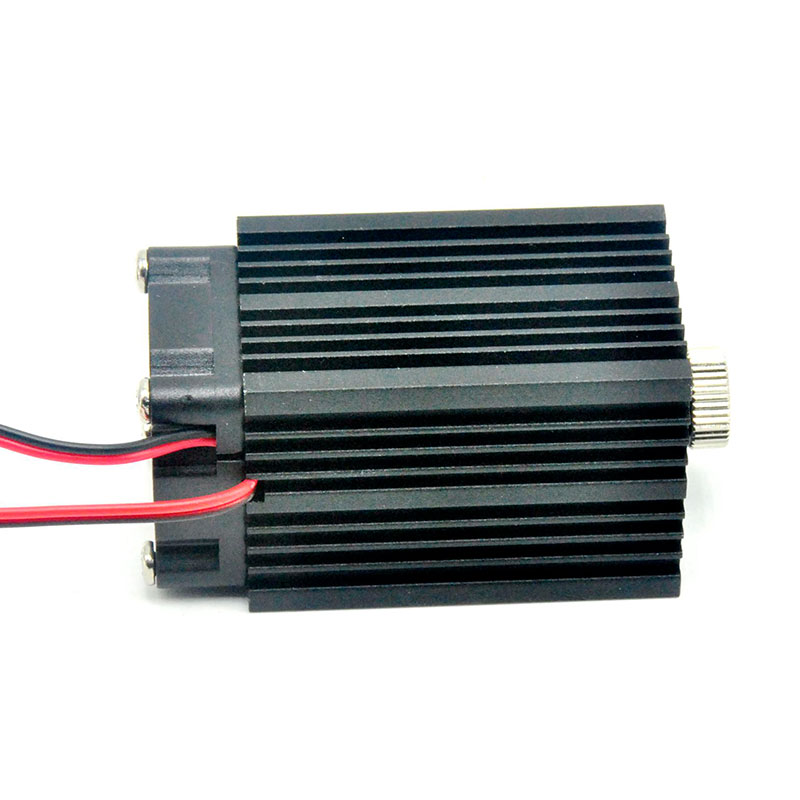

1pc 532nm Green 100mW Line Positioning Laser Diode Module Focusable 12V Driver TTL
