Description



Model No.	LSR532NL
Wavelength	532nm
Spatial Mode	TEM00
Output Power	100mw
Residual IR (946, 1064&808nm)	<0.01%
Operation Mode	CW or Modulation
Modulation	0~30khz Analog or TTL (Optional, please note to us if you need Analog or TTL, we will send Analog as default )
Beam Spot Shape	Circular, aspect ratio<1.1:1
Pointing Stability	<0.05 mrad
Beam Diameter(1/e2)	<2.5 mm
Beam Divergence(full angle)	<1.5 mrad
Power Stability	<±5% per 4 hrs
Temperature Stabilizing	TEC
Warm Up Time	<1 minute
MTTF	10,000 hrs

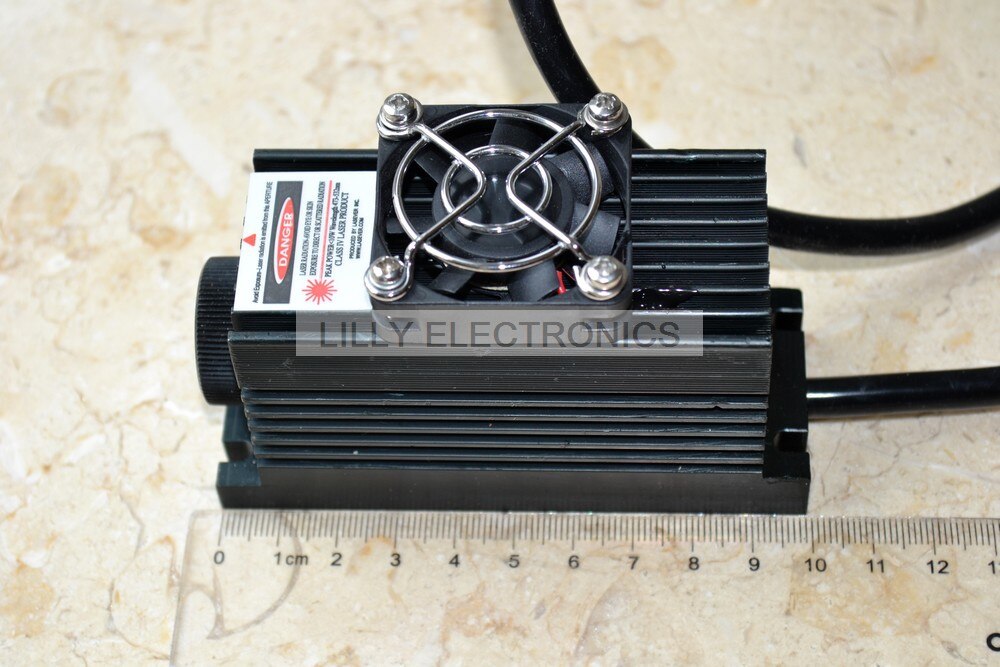

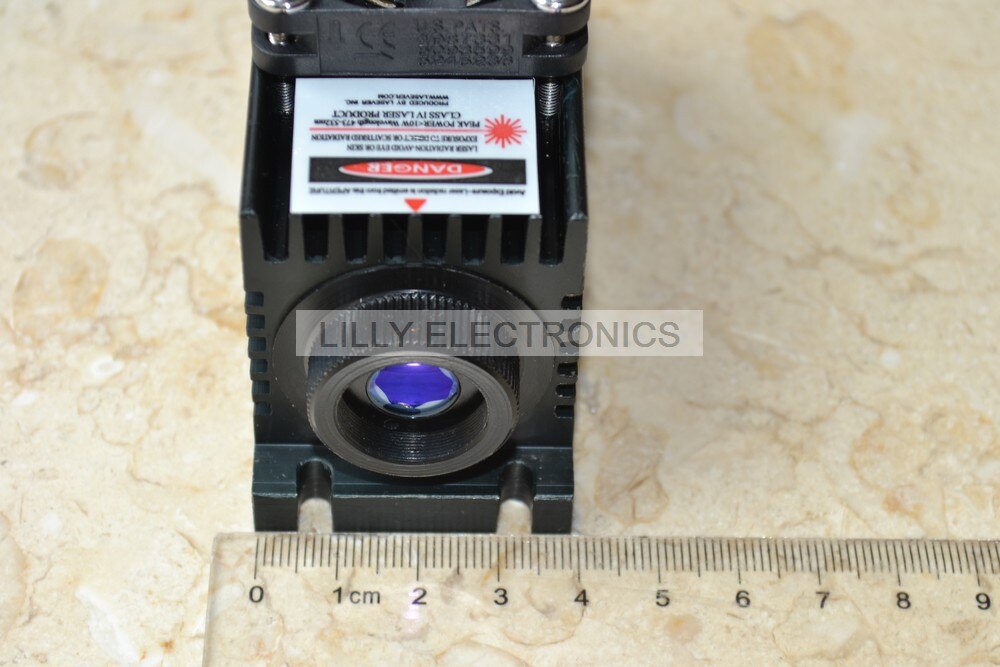

Laser head dimensions	100(L)x40(W)x50(H)mm3 (fan adds height)

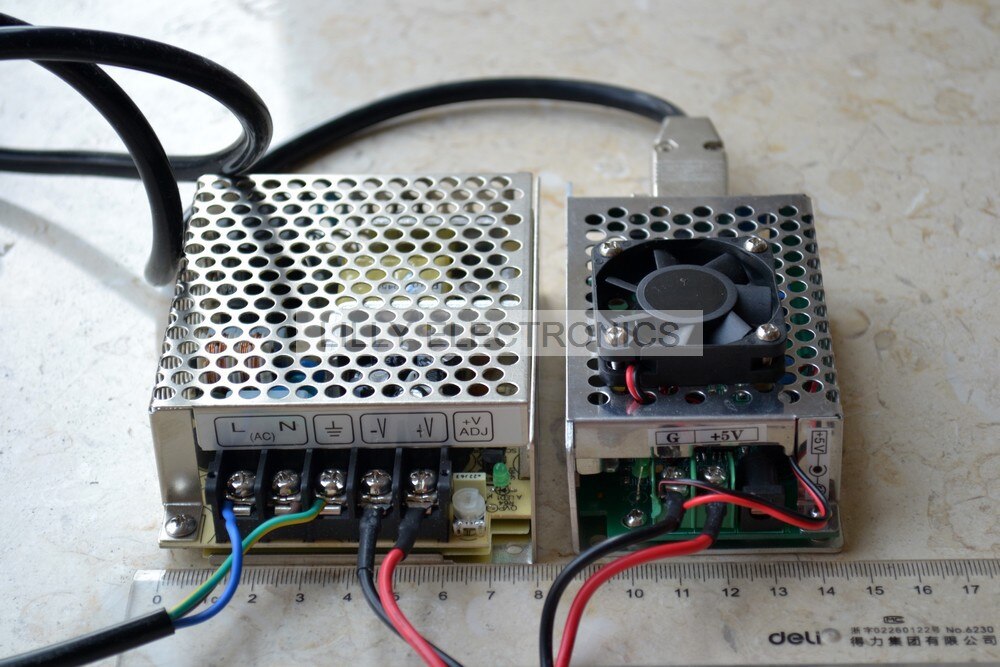

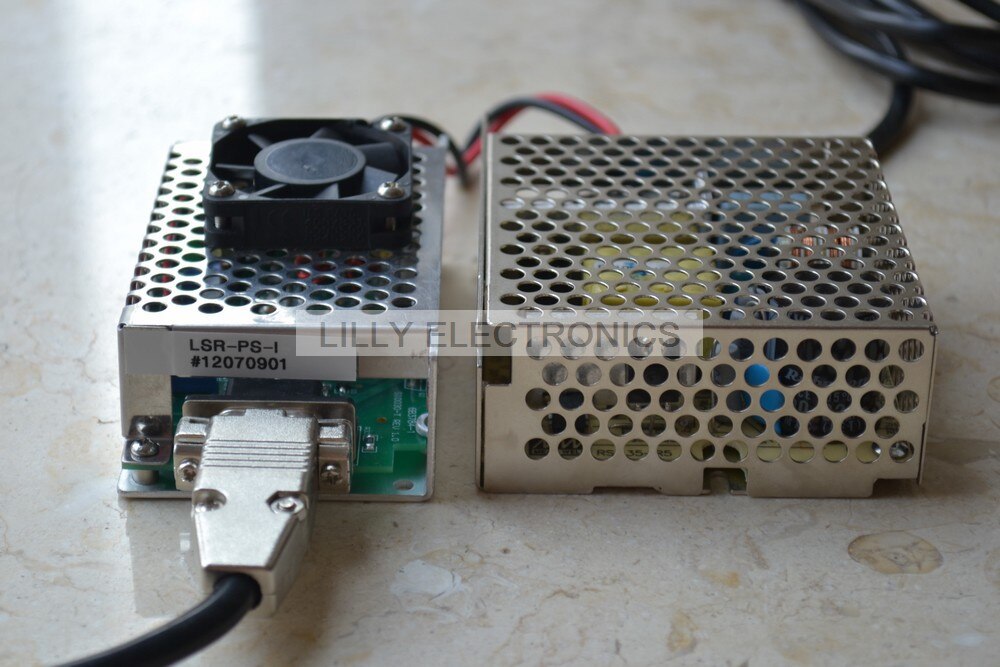

Power Supply (Optional, note to us which type you need, choose B or C type for addtional cost as below. We will ship Power supply A type as default)	A. OEM type LSR-PS-I: 100(L)x58(W)x32(H)mm3 AC/DC PSU: 85~265V 50/60Hz input
	B. Lab type LSR-PS-IIS: 104(W)x128(D)x89(H)mm3  85~265V 50/60Hz input
	C. Lab Adjustable type LSR-PS-IIS: 179(W)x148(D)x56(H)mm3 85~265V 50/60Hz input
Modulation	0~30khz Analog or TTL

B. Lab type power supply LSR-PS-IIS (For additional cost of $35)

C. Lab Adjustable power supply LSR-PS-II (For additional cost of $65)





Pakage:

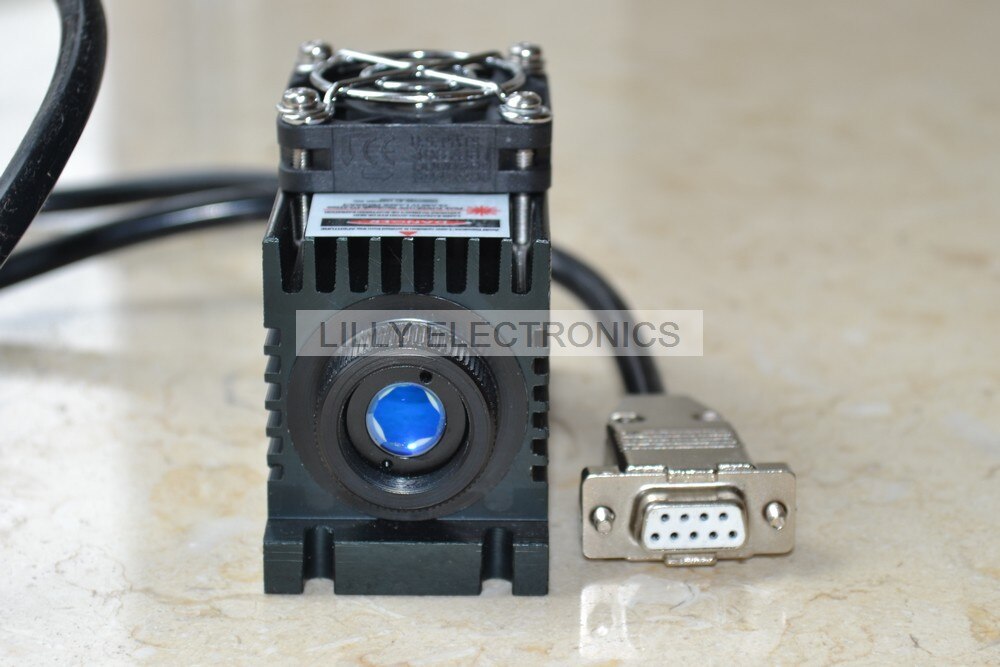

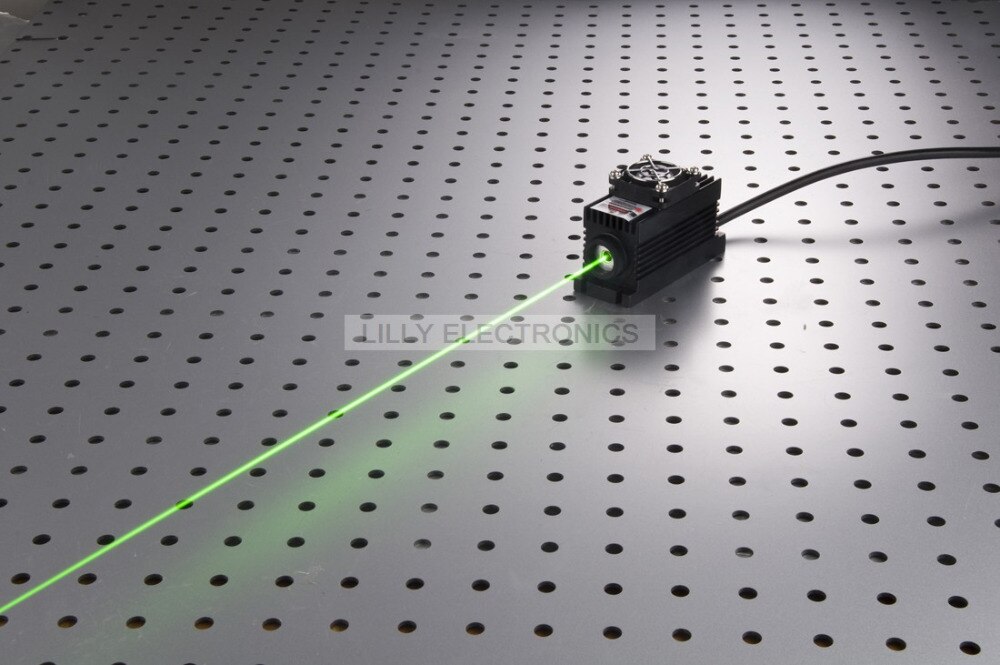

1 X 100mW 532nm Green Laser Dot Module + TTL/Analog 0-30KHZ + TEC Cooling + 85-265V







Shipping & Delivery

We ship to international via China Post Airmail or Hong Kong Post Airmail, and every parcel will be registered with tracking number. We can also ship by UPS/EMS/DHL/FedEx for alternative shipping method for corresponding fees. Please email your postal code for shipping quote. International customers may experience delays by customs or national post providers. Review your duty-free limits. Please let us know before payment if you need split shipment.



Time of Delivery

The time to ship to international via China Post Airmail or Hong Kong Post Airmail quite depends on diffrent desination of the world, it is also subject to change due to the local weather conditions, postal policy and custom checking. Base on the postal Air mail rules and our experience, kindly please be noted that To United States / United Kingdom / Australia, it takes around 10-15 business days; To Canada, it takes around 12-18 business days; To Brazil / South America, it takes around 25-35 days. To Italy / France / Spain / Germany/ Eastern Europe, it takes aournd 15-20 business days.



Returns & Replacements & Repair

We accept returns & replacements within 7 days from the day the customer receive the products, please make first contact within 7 days from receiving the order. Products should be returned in original condition. As a benefit to our customers, we also provide repair within 3 months from the day when this item is shipped out, after repair is done, we will send you the item, but the customer should pay both shipping ways.
