1000W~3000W fiber-coupled direct diode lasers

Description

1000W~3000W fiber-coupled direct diode lasers

Applications
 Cladding
 Welding
 Heat treatment

Optical specification
Output Power: 1000W 2000W 3000W
Wavelength: 915nm or 980nm
Fiber Core[N.A.]: 300μm [NA 0.22] 600μm [NA 0.22] 600μm [NA 0.22]
Fiber length: 5 or 10 m
Fiber Terminal: QBH
Aiming beam: Red
Operation Mode: CW or Modulated
Polarization State” Random
Output Power Instability(25℃):<2%(2hrs)
Output Power Tunability: 10%-100%
Modulation Frequency: 20kHz
Electrical Characteristics
Voltage
Single phase,220± 20V,AC,PE,50 or 60Hz
3 phase,380±30V,AC,PE,50 or 60 Hz
3 phase,380±30V,AC,PE,50 or 60Hz
Power consumption at nom. Power, approx: 3.0 kW 6.0 kW 9.0kW
Interface: BWT software, RS232, AD control
Chiller
Cooling requirements,max:2.5 kW 4.0 kW 5.0kW
Water discharge: 8l/min 12L/min 15l/min
Hydraulic pressure: 0.25MPa
Cooling lines: φ12mm
QBH water discharge: 1.5~2.0L/min
Others
Weight: 40 kg 46 kg 66kg

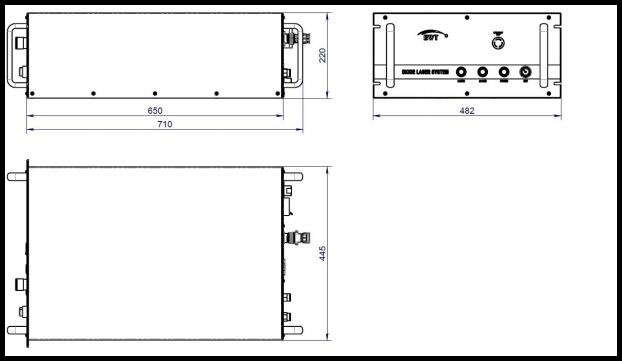

Dimensions: 5U (220 mm), 710mm depth
Temperature: 10 – 45 ℃ operational, 5 – 65 ℃ storage
Humidity max: 75% @ 25℃, non condensing
Protection rating: IP54
Safety class: 4 (EN 60825-01)

Product parameters
