Description
Collimated straight beam
Adjustible focuse
Easy use & maintenance free
Longlife operation
High efficiency
High reliability
Application:
Laser show
Display
Laser Alignment
Scanning Biochemistry
Material Inspection Lidar
Specifications:
|
Model No. |
LSR635NL |
|
Wavelength |
635±5 nm |
|
Spatial Mode |
Multimode |
|
Output Power |
1000mW |
|
Operation Mode |
CW or Modulation |
|
Modulation |
Analog or TTL 0~30Khz (Optional, please note to us which one you need, we will ship Analog one as defult) |
|
Polarization |
TM |
|
Pointing Stability |
<0.05 mrad |
|
Beam Diameter(1/e2) |
<6*3mm |
|
Beam Divergence |
<1.5 mrad |
|
Power Stability |
<±3% per 4 hrs |
|
Temperature Stabilizing |
TEC |
|
Warm Up Time |
<1 minutes |
|
MTTF |
5,000 hrs |
|
Modulation |
0~30khz Analog or TTL |
|

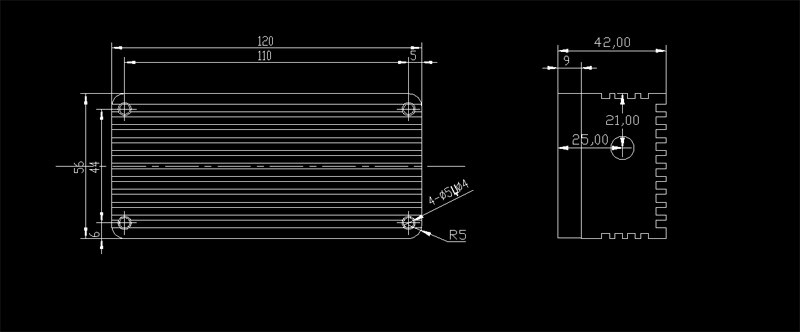

Dimensions |
135(L)x73(W)x50(H) mm |
|
Power Supply (Optional, note to us which one you need, choose B or C type for addtional cost as below. We will ship Power supply A type as default) |

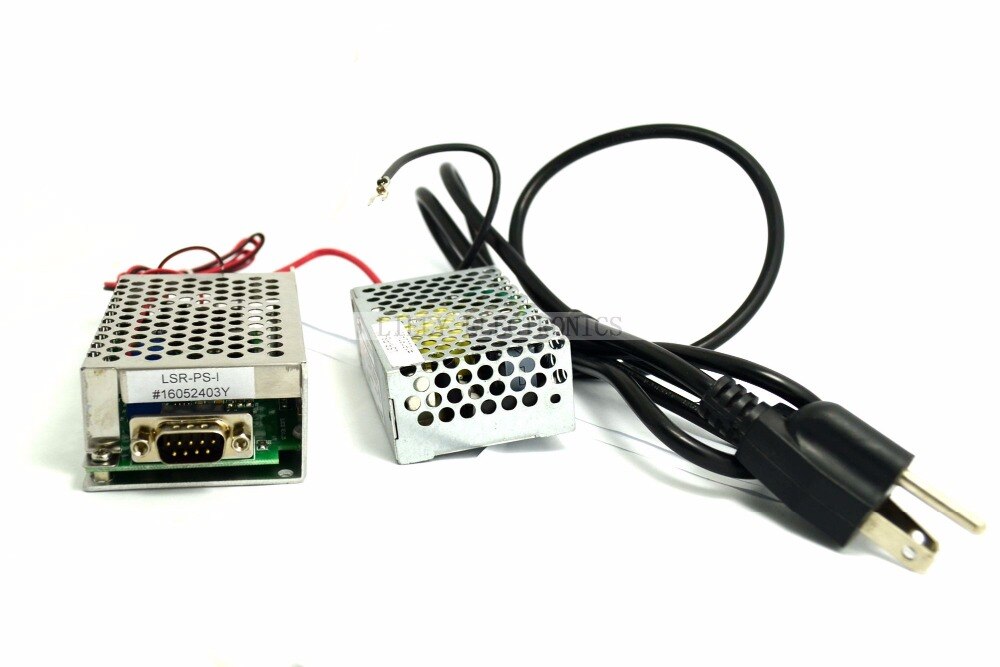

A. OEM type LSR-PS-I: 100(L)x58(W)x32(H)mm3 AC/DC PSU: 85~265V 50/60Hz input |
|

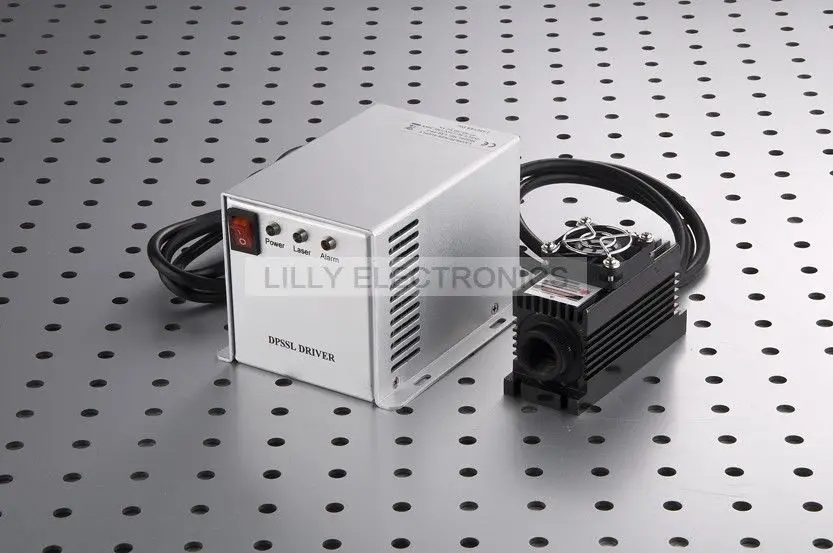

B. Lab type LSR-PS-II: 104(W)x128(D)x89(H)mm3 85~265V 50/60Hz input |
|
|
C. Lab Adjustable type LSR-PS-IIS: 179(W)x148(D)x56(H)mm3 85~265V 50/60Hz input |

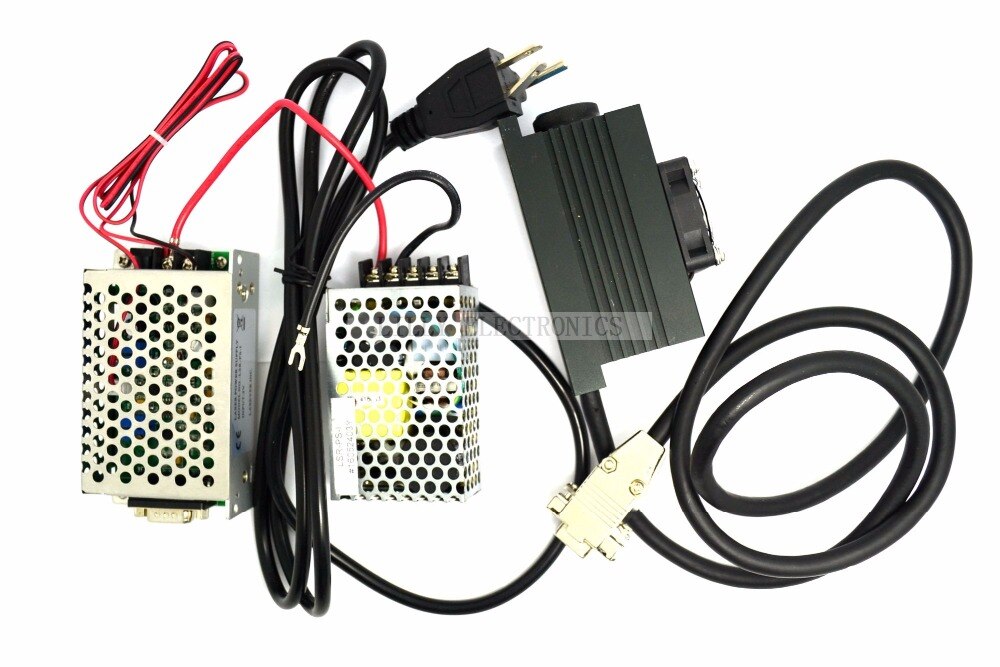

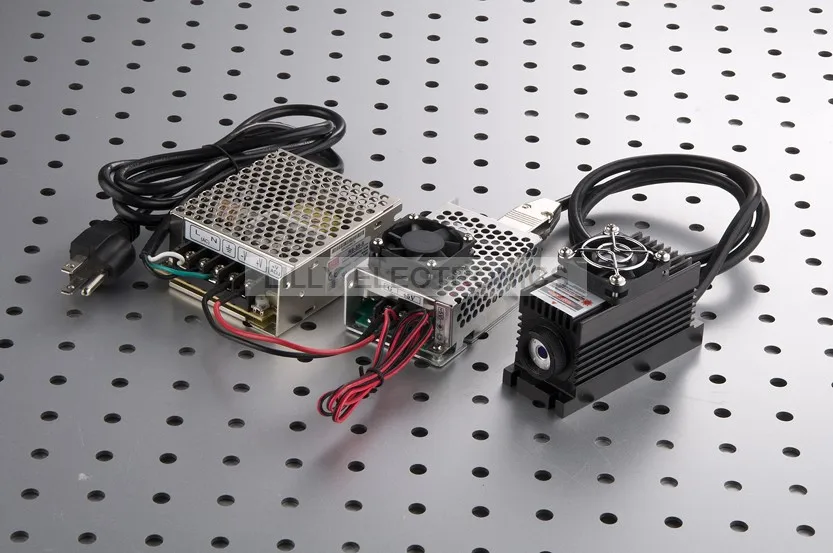

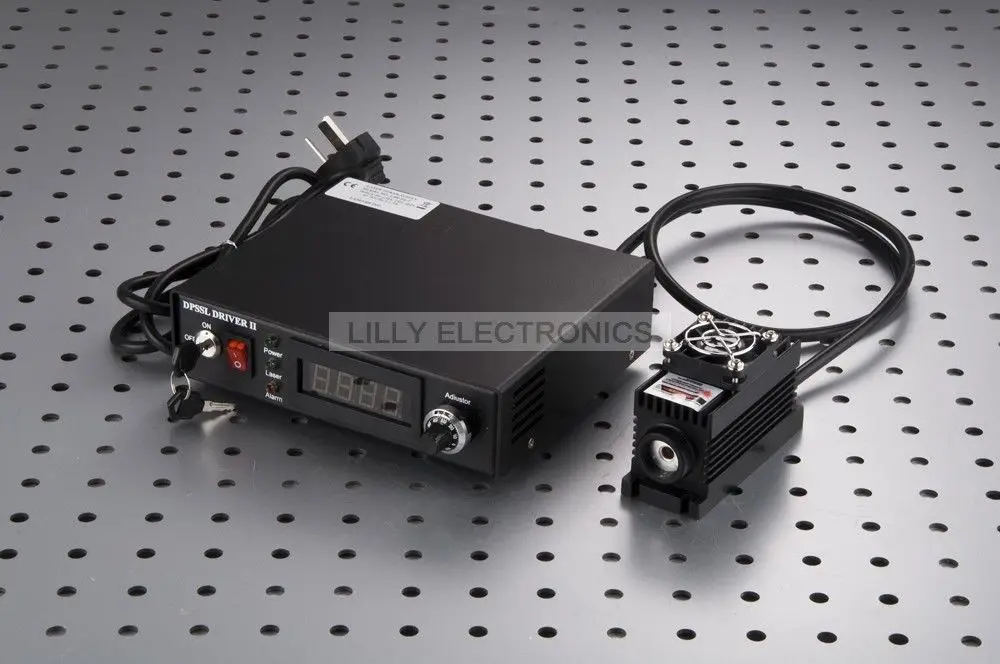

Pleae let us know which kind of power supply do you need, we have 3 different kinds of power supply with pictures shown as below, we will send you the power supply instruction manual.
