Description
- Brand Name: MS-moto
- Model Number: SD-AT312
- Wavelength: 940nm
- Diameter: 3mm
- Chip Size: 12mil
- LED type: Infrared emitter & receiver
- Current: 45mA
- Voltage: 1.2-1.3V
- Emitting Distance: 6-8M
- Reverse Voltage: 5V
- Emitter Diode Color: Water clear
- Receiver Diode Color: Black
- LED angle: 45 degree
- Use: Toy, security and protect, camera, remoter, military

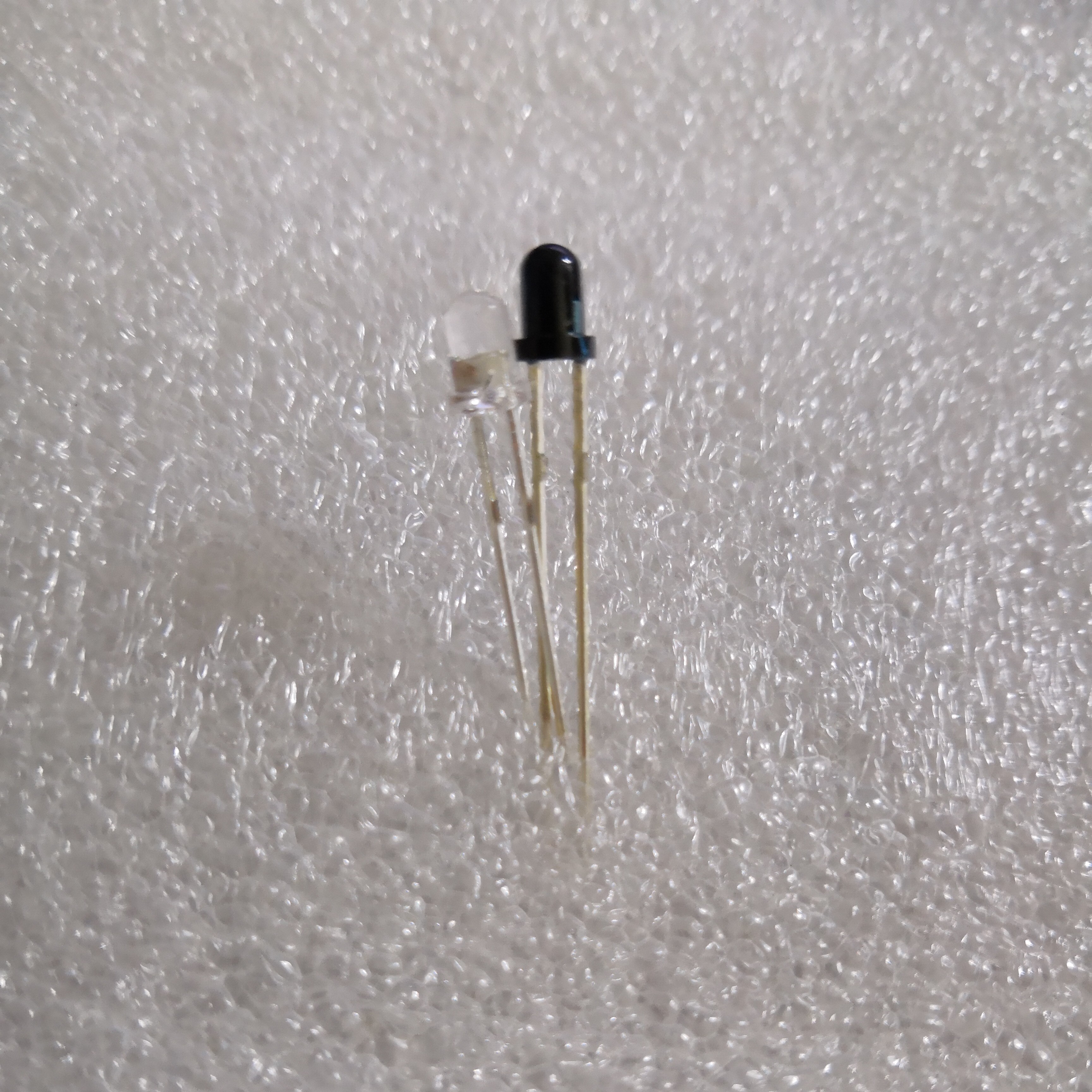

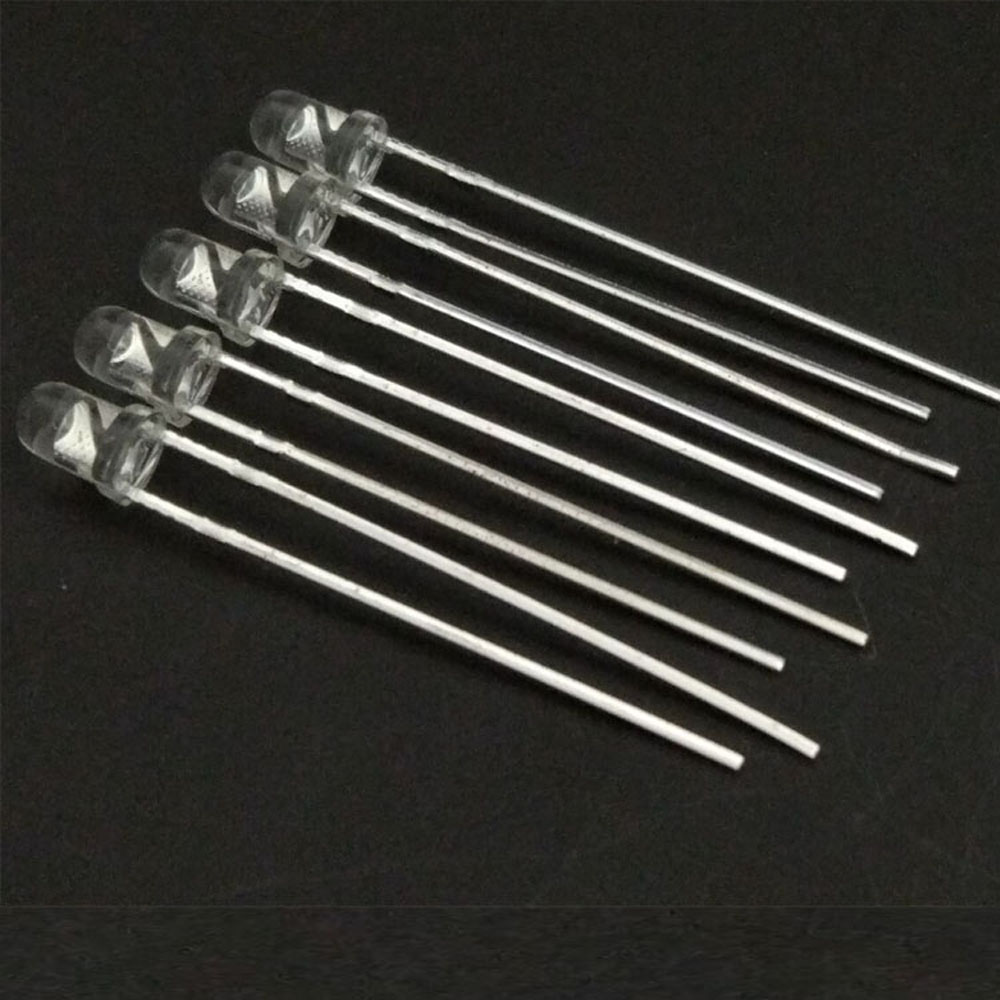

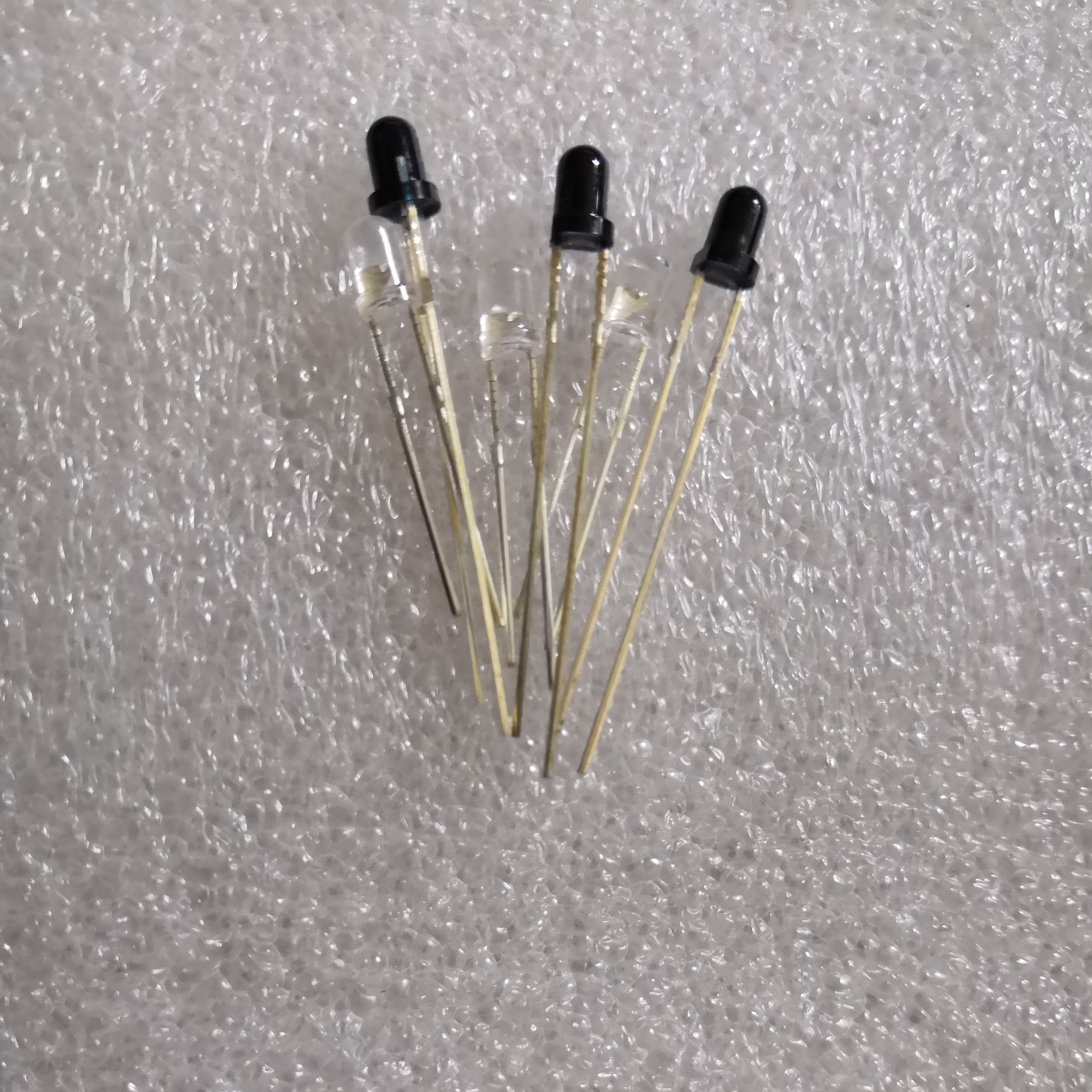

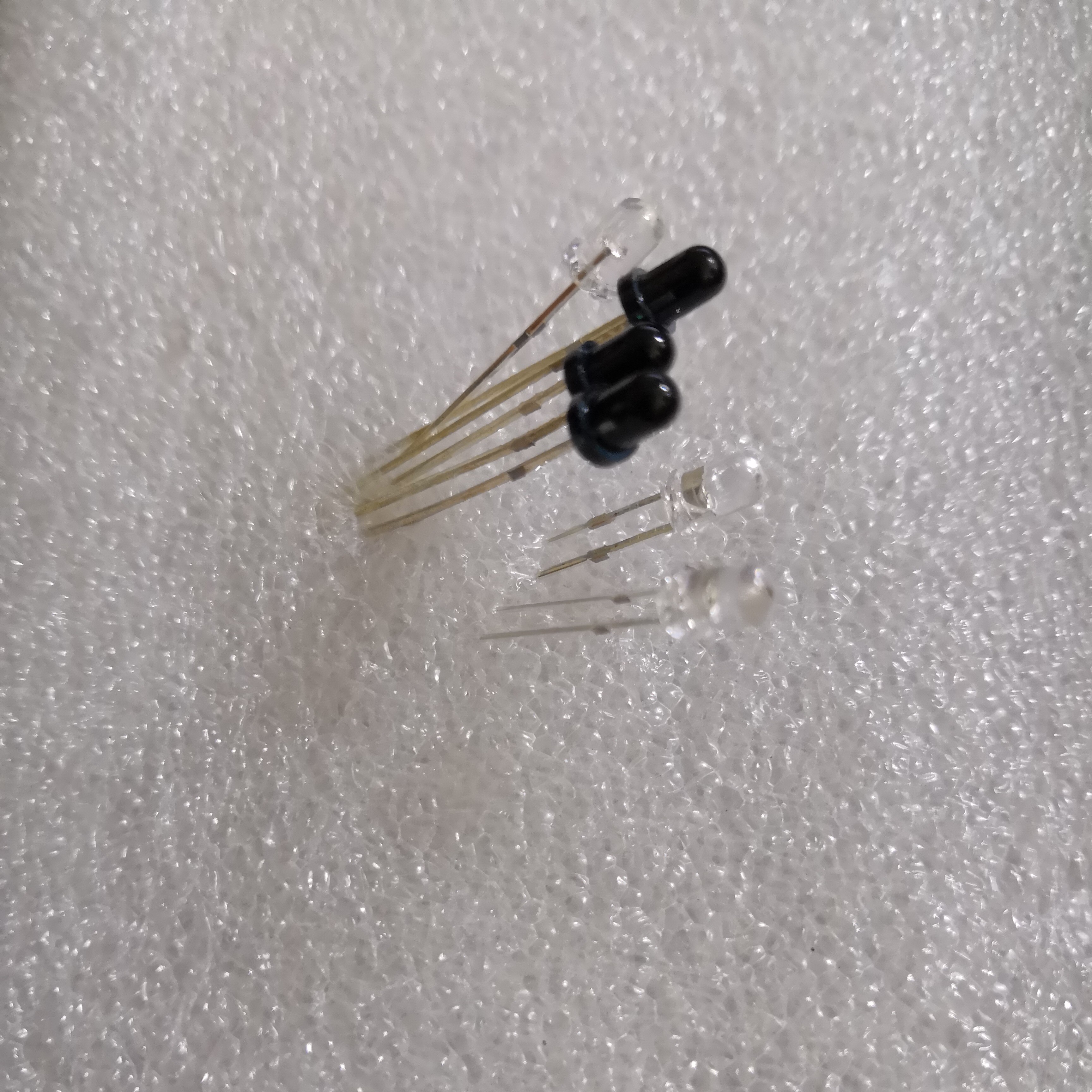

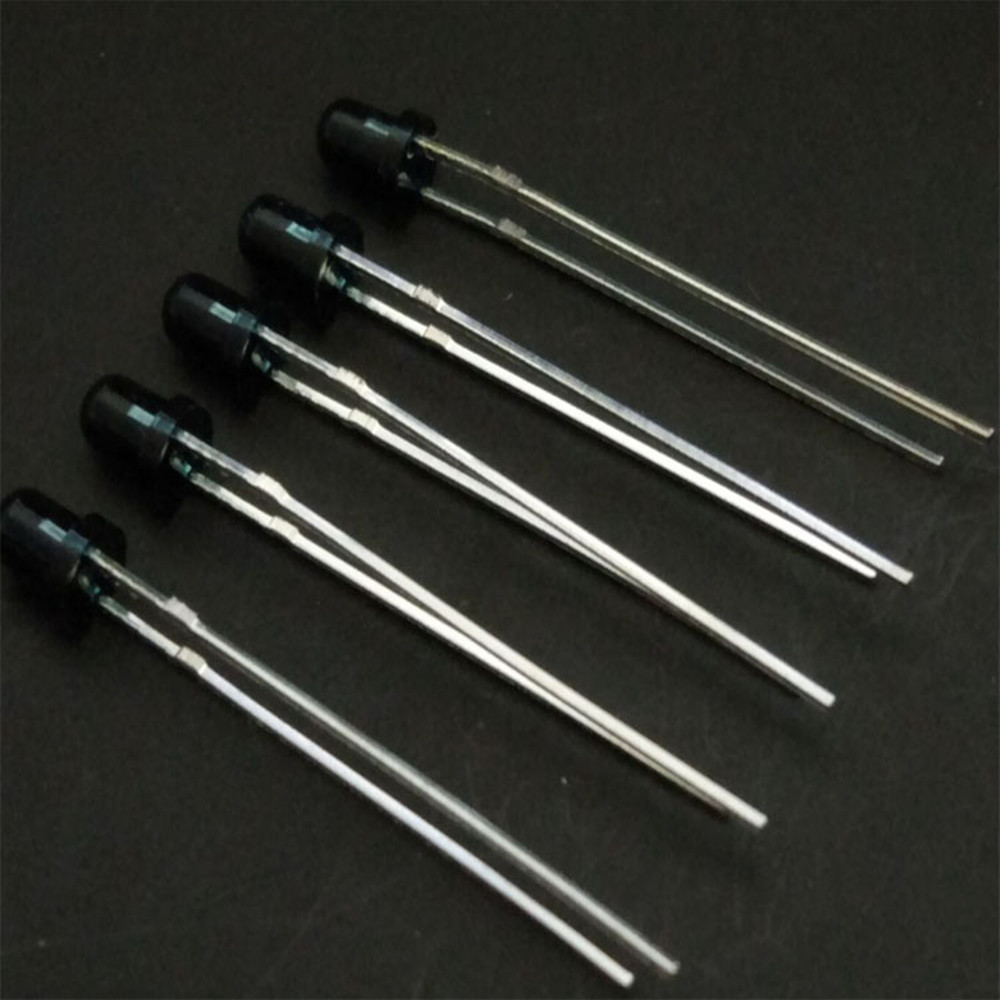

10Pair/lot 3mm 940nm Infrared IR LED Emitter and Receiver Assorted Led Light Diodes
Features:
Small and light appearance, it is convenient to carry.
Small volume, low power consumption, excellent directivity.
With IR function, it is easy to use.
It can be used in the field of monitoring, remote control, photoelectric control, target tracking etc.
Specifications:
Diameter: 3mm
Material: GaAsP
Forward voltage: 1.2–1.4V
Backward voltage: 5V
Forward current: 45mA
Wavelength: 940nm
Luminous power: 80mw
Frequency characteristic: Low frequency
Emitted color: Infrared
Package weight: 18g
Leg size: Long leg
