Description

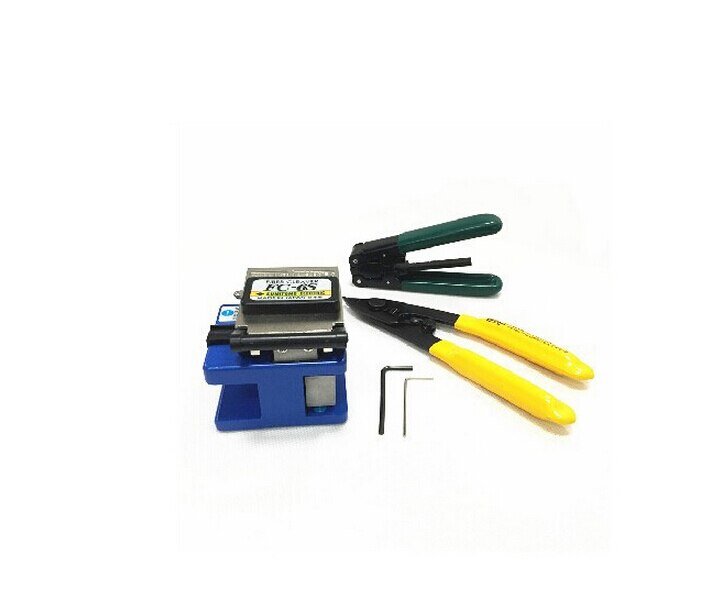

10 in 1 fiber optic FTTH tool kit with FC-6S Fiber Cleaver and optical power meter 1mW Visual Fault Locator Wire Stripper Free Shipping
Product attributes
X 1 optical power meter
1×1 mW Visual Fault Locator
1 x Fibre Cleaver FC-6S
1 x CLAUSS optical fiber stripper / model: cfs-2
X 1 optical fiber Stripping tool
1 x Black Carry Bag
1 x fc / universal 2.5mm adapter
1 x wire stripper
1x Bar Guide

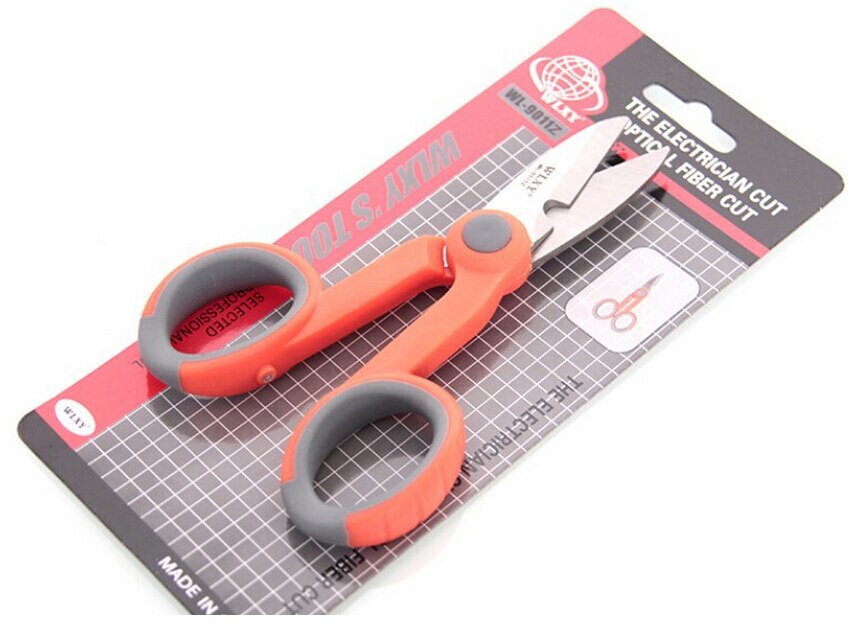

1x Kevlar scissors
Red Laser Fiber Optic Cable Tester
1, the technical indicators:
Source wavelength: 650 ± 10nm
Applicable fibers: sm, mm
Single-mode output power: 1mW
Power supply: two AA batteries
Continuous power working time: ≥ 20 M
Operating temperature: 10-60 (non-condensing)
Storage temperature: -40-85
Body material: aluminum
Dimensions: 170 * 24 mm (excluding interfaces)
Weight: 160 g (without batteries)
Optical power meter
Type: A, B
Wavelength range: 800-1700
Connector: fc / sc
Probe type: InGaAs
Power measuring range: -70 to + 3, -50 ~ + 26
Uncertainty: ± 5%
Standard wavelength (nm): 850 980, 1300.1310, 1490.1550
Screen resolution: linear display: 0.1% of viewfinder number: 0.01dBm
Operating temperature: -10 ~ + 60
Storage temperature: -25 ~ + 70
Sleep time (min): 10
Battery operating time (h): 240
Dimensions (mm) 172 × 82 × 33
Power: 5 batteries x2
Weight (g): 450 g
2.5mm Universal connector for 1.25mm connectors, FC (male) -lc (female) convertor can be provided on request.
It works on both CW and pulsed
Constant output power
Low Battery Warning
Long battery life (up to 60horas)
Shock-proof and dust-proof design for laser head
Laser case ground design prevents ESD damage
Burning T tests all this ensures reliability
Portable and rugged, easy to use
High reliability
Good performance cleavage
Maximum of 12 fiber Coun
36,000 Cleave by blad
