Description
- Brand Name: Broodio
- Accessory Type: Battery Accessories
- Model Number: BMS
- Feature: 3s bms
- Feature 1: bms 3s
- Feature 2: bms 4s
- Feature 3: bms 5s
- Feature 4: 4s bms
- Feature 5: bms 10s
- Feature 6: bms 6S
- Feature 7: bms 7s
- Feature 8: bms 8S
- Feature 9: bms 9S
- Feature 10: 10S bms
- Feature 11: bms 13S
- Feature 12: bms 14s
- Feature 13: bms 16S
- Feature 14: bms 17s
- Feature 15: 17s bms
- Feature 16: 13 bms
- Feature 17: 11 bms
Feature:

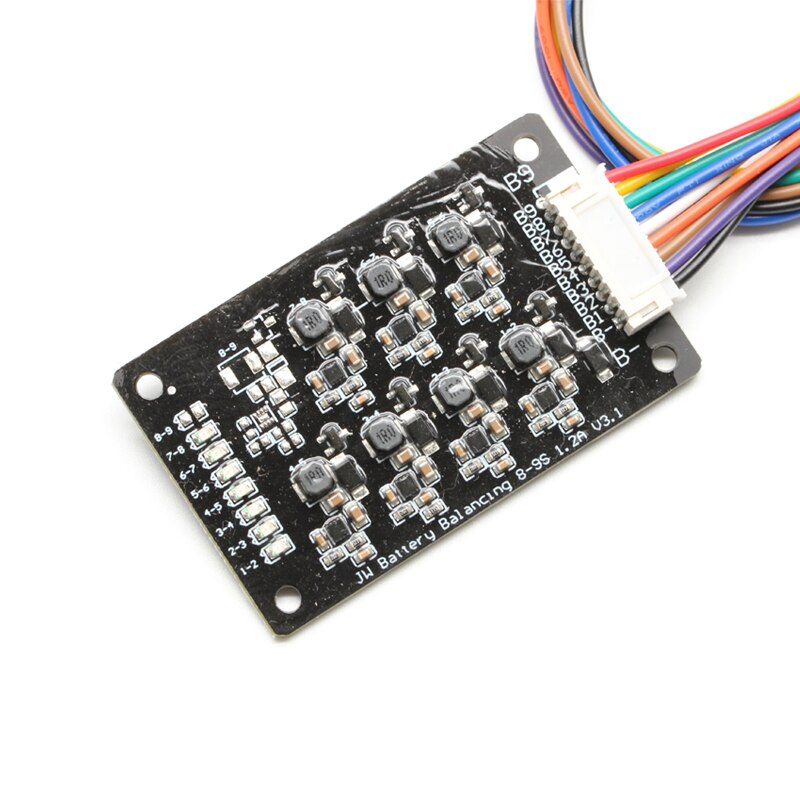

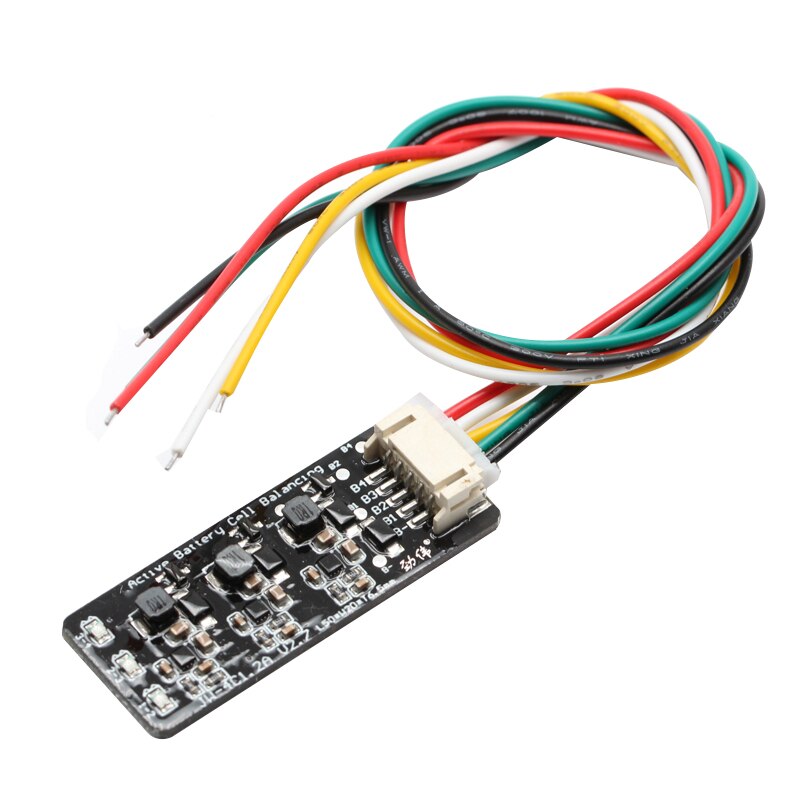

Lithium battery active balance energy transfer board Lithium battery active equalizer High efficiency energy transfer equalization
Inductive energy transfer equalization board (current 1.5A equalization current, slightly lower precision)
Technical Parameters :
Working voltage 2.2V-4.5V, Li-ion Lipo Lifepo4 LTO Lithium battery universal
Working principle, the inductor converts the transfer charge carrier. When the battery error voltage is above 0.1V, the balance work is started until the error is stopped at 30mv. The built-in improved ultra-low internal resistance MOS, the balance current is 0-1.2A, and the battery voltage difference is smaller. The smaller the current, the static power consumption does not exceed 20uA! With balance instructions!
Balanced voltage accuracy within 30mv!
Wiring line length 30cm pure copper 22awg terminal wire!
High-precision energy transfer balance, exclusive balanced IC!
Balance indication:
1. When the balance indicator is on, the balance work is turned on.
2. The balance indicator goes out, the balance circuit sleeps,
3. The balance indicator flashes, it drop cells, or the circuit is faulty.
Note:
10S The above version,Please insert the cable diagonally
Package Included:

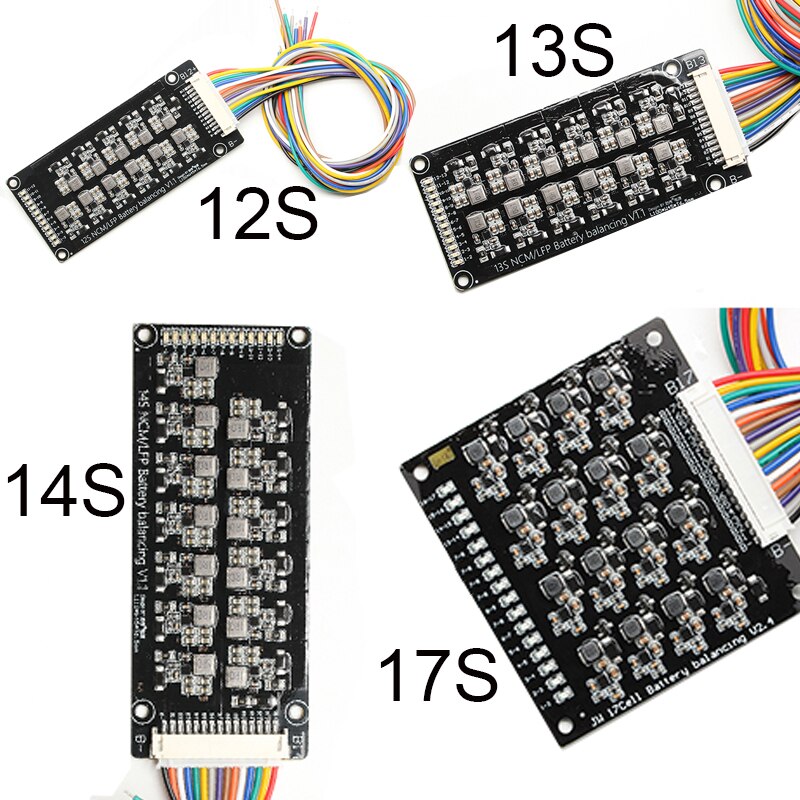

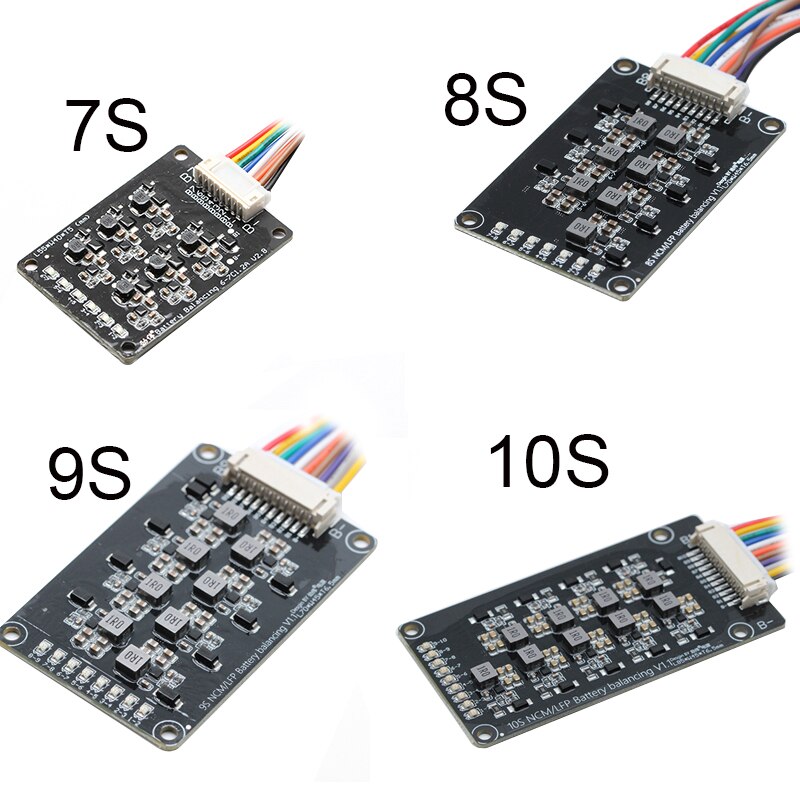

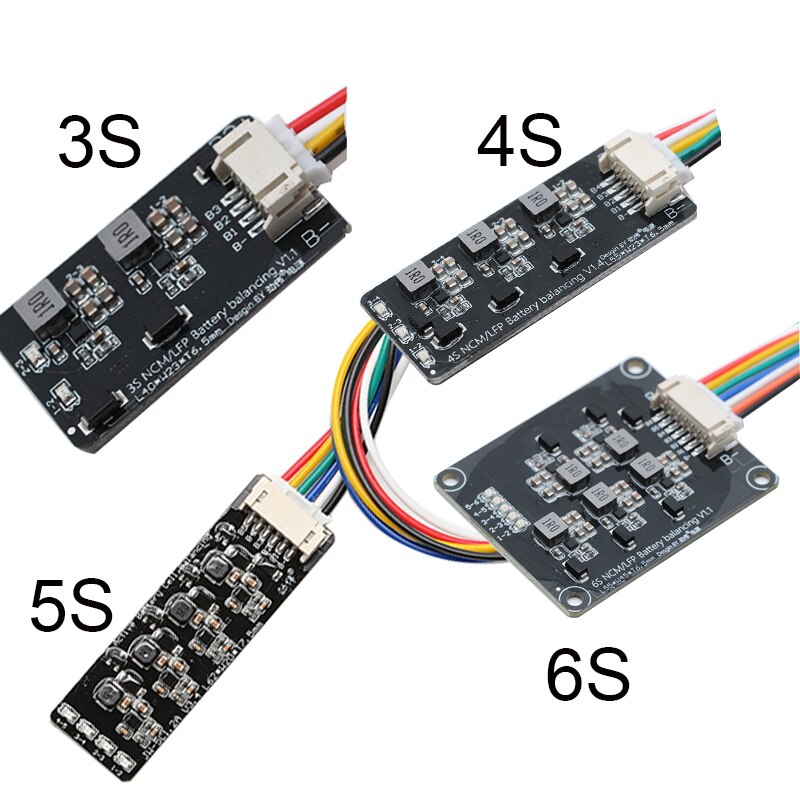

3S 4S 6S 7S 10S 12S 13S 14S 16S 17S BMS 1.2A Balance
3S 4S 6S 7S 10S 12S 13S 14S 16S 17S BMS 1.2A Balance
