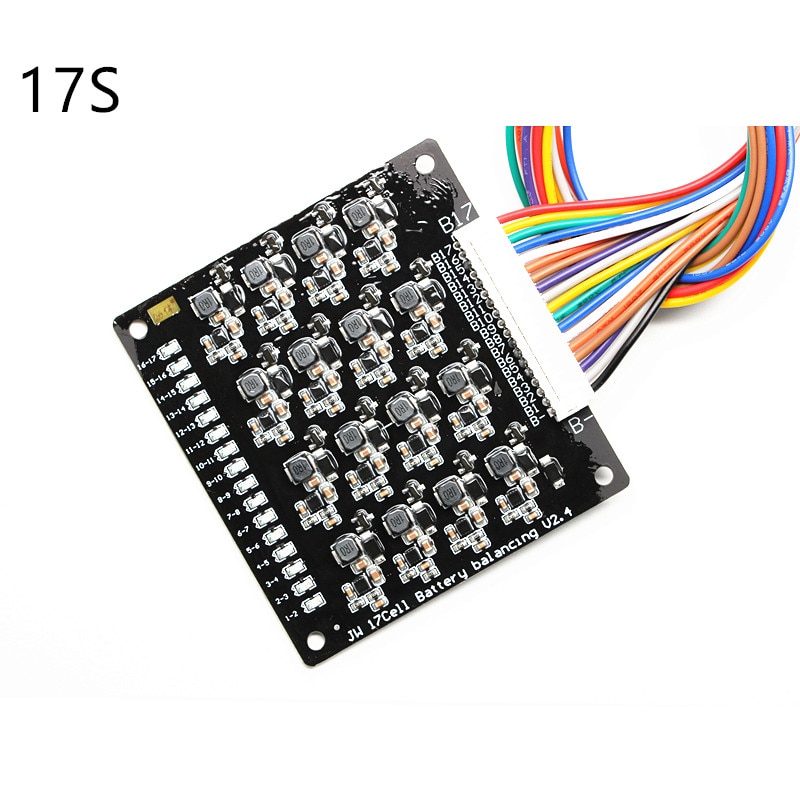

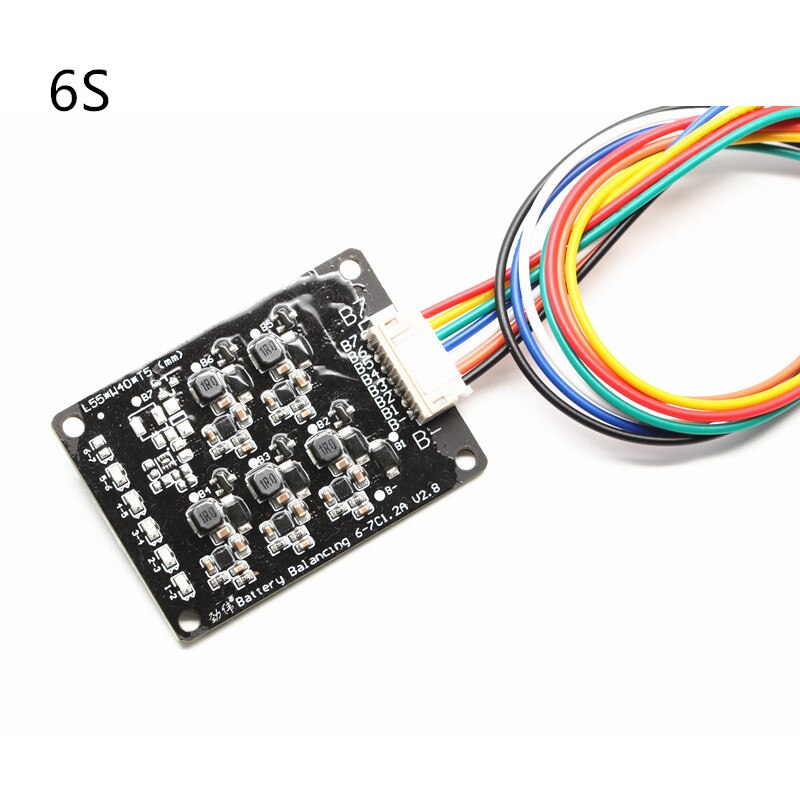

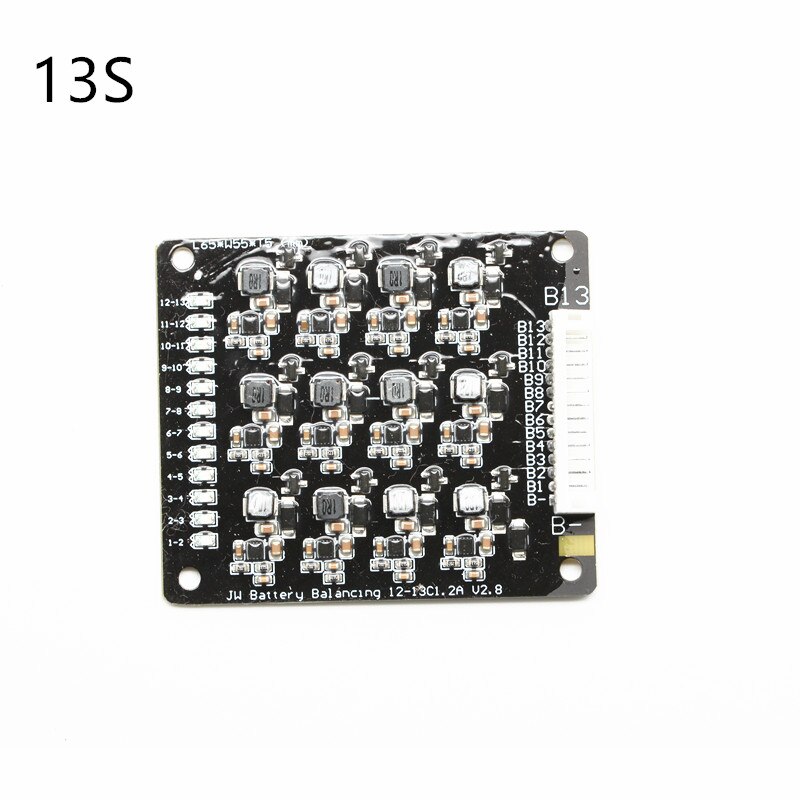

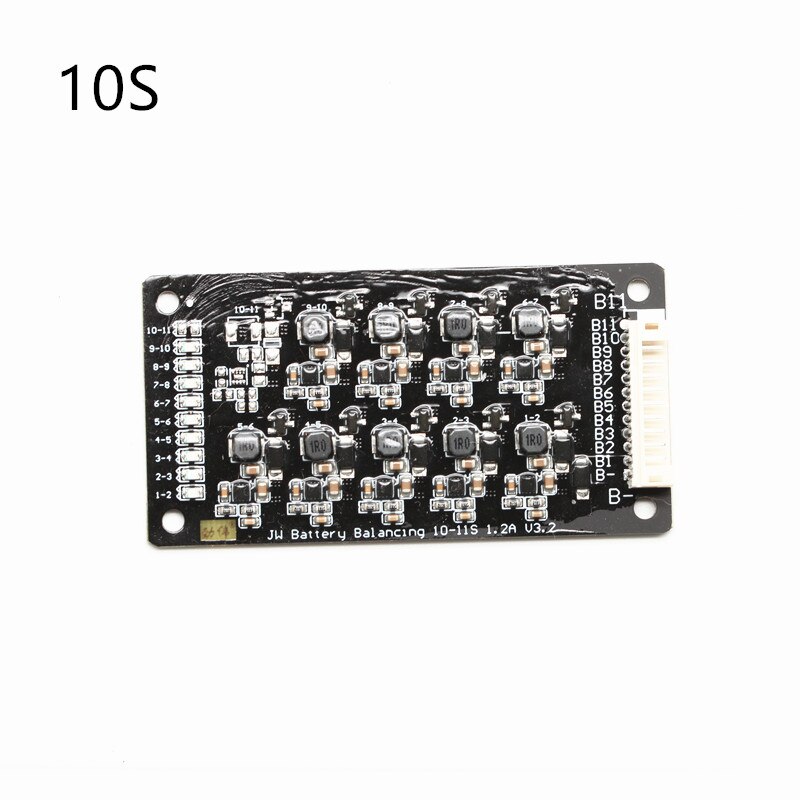

1.2A Balance Li-ion Lifepo4 Lithium Battery Active Equalizer Balancer Energy Transfer BMS 3S 4S 5S 6S 7S 8S 10S 13S 14S 16S 24S

$7.90$36.00

Clear
SKU: 4000790255916 Category:

Description

  • Brand Name: Heltecbms
  • Certification: CE
  • Accessory Type: Battery Accessories
  • Origin: CN(Origin)
  • Model Number: Battery Active Equalizer Balancer Energy Transfer Board

Note

This Link is Inductive Active Balancer :

Will only balance two nearby battery which voltage defference bigger than 0.2V

You can choose our capacitance active balancer which is Group balance in same time if you need better balancer,Click to check

Intruduction

Inductive energy transfer equalization board, high current 1.2A energy transfer battery voltage balancer, significantly balance battery voltage, improve the overall efficiency of the battery pack!

Balance indication:

1. When the equalization light is on, the equalization work is turned on.

2. The equalization light goes out, the equalization circuit sleeps,

3. The equalization light flashes, the string indication is lost, or the circuit is faulty.

Principle of equilibrium:

This module is adjacent to the differential pressure equalization, and the adjacent battery voltage difference reaches 0.1V or more. The internal trigger balance is working until the adjacent battery voltage difference stops within 0.03V. There is an adjacent differential pressure when charging and discharging on the battery pack. Trigger equalization, the battery pack voltage error will be pulled back to the ideal value, reducing battery maintenance costs.

Technical Parameters:

Working voltage is 2.0V-4.5V, ternary iron lithium battery is common, lithium cobalt oxide battery is not applicable.

Equilibrium current:

Adjacent pressure difference is 0.1V or more (current is about 0.5-0.7A);

Adjacent pressure difference is above 0.2V (maximum equalization current is 1.2A);

The smaller the differential pressure, the smaller the equalization current.

Wiring definition:

B-, the total negative pole of the battery pack (the negative pole of the first battery)

B1, the positive electrode of the first battery

B2, the positive electrode of the second battery

B3……. and so on.

Connection

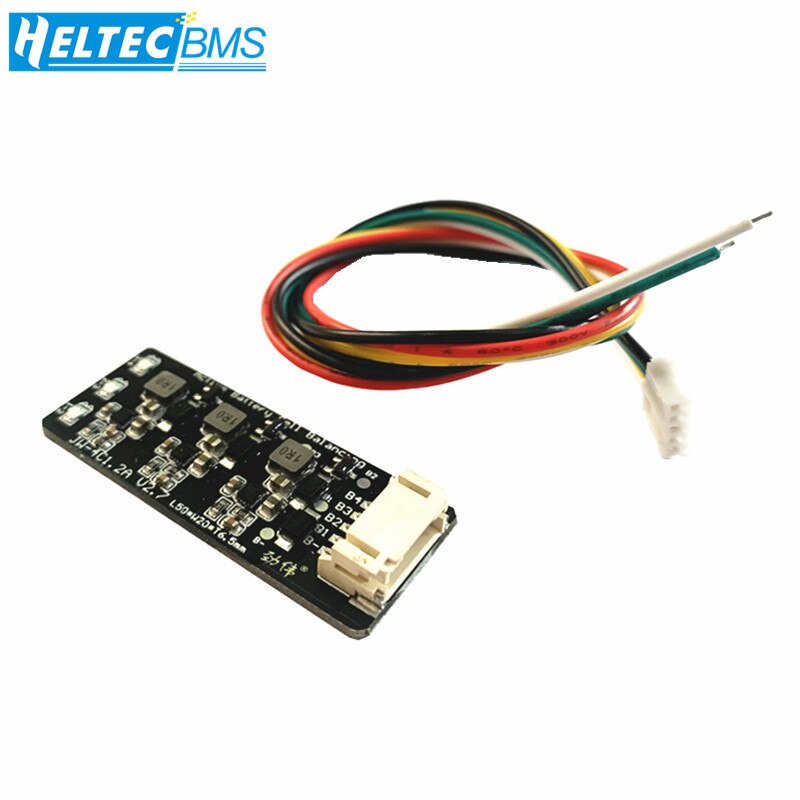

The four-string wiring diagram is as follows, and the other serial numbers are like this!

Note (13 or more string plugs need to be inserted obliquely, first touch the B-pins and insert them obliquely upwards, otherwise it may cause the board to burn out)
