Description

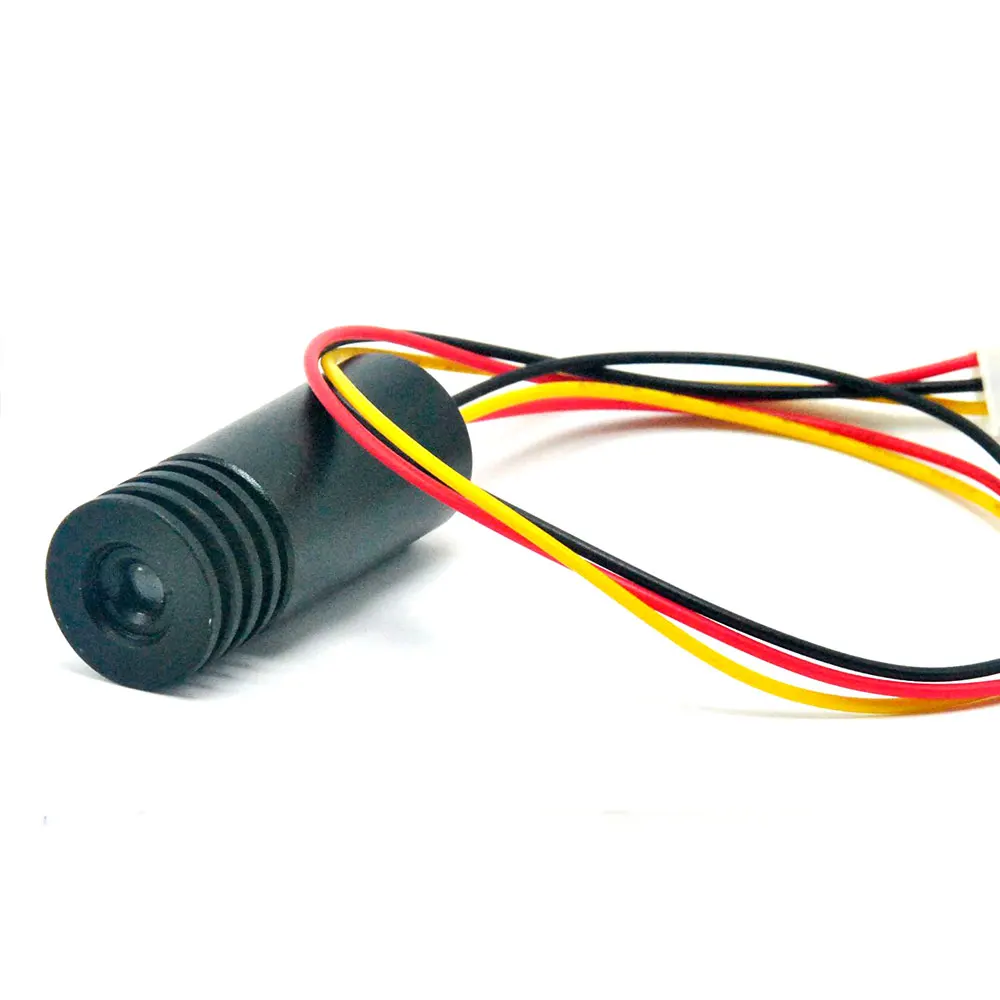

5VDC 980nm 30mW Infrared IR Laser Dot Module w/TTL 0-15KHz 18x45mm

Parameter:
Wavelength:980nm
Output Power:30mw
Working Voltage:DC5V
Working Current:I <100mA
Working Temperature:＋15 ℃~＋35 ℃
Laser Shape:Dot
Focusable:yes
Material:Metal
Duty Cycle:5 minutes on,1 minute off
TTL frequency:0-15KHz
TTL modulation Voltage:0-5V Off low, high open, normal status open
Dimension:18X45mm


Detail:
Three-wire input, the red line is positive, black line is negative, TTL signal yellow line is positive, If you only connect its black wire and red wire, the laser would not work, you also need to connect its yellow wire (TTL+ ) to 5v+.
This is a 980nm IR Infrared Laser. It can not be seen by the naked eye. Please use a Night Observation Device, for example, a phone with Infrared function. Thanks!

Package:
1pc 980nm 30mW Infrared IR Laser Dot Module w/TTL 0-15KHz
