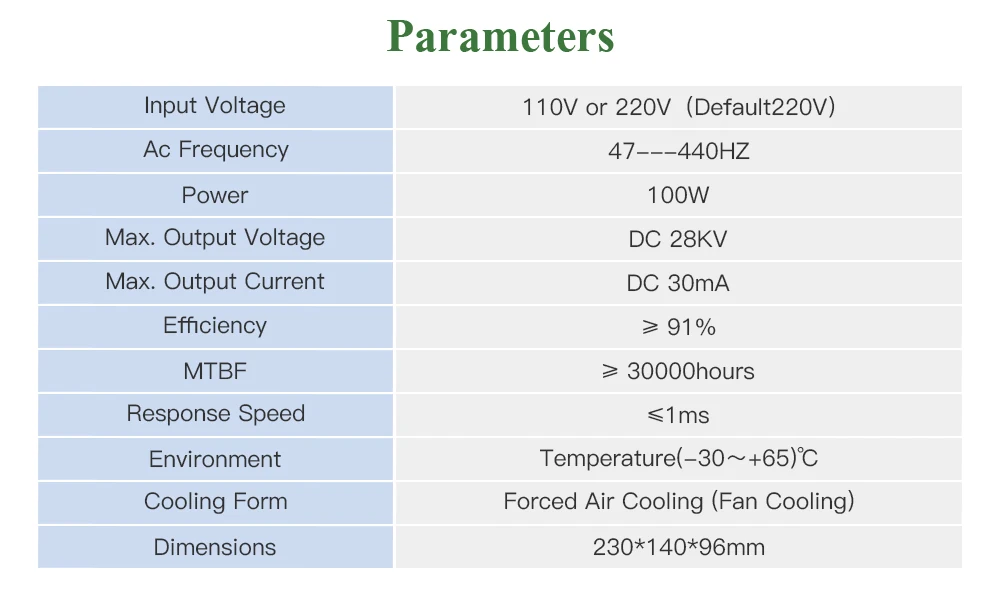

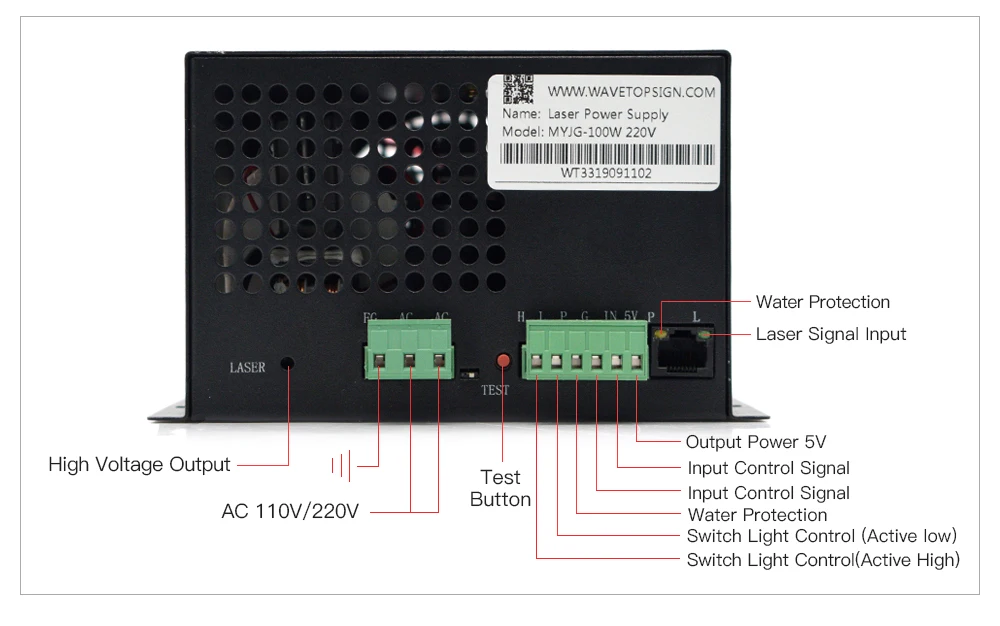

Features:

1. Input voltage: AC 220V, AC110V

2. Response speed: ≤ 1mS.

3. Zero-current half-bridge soft-switching circuit. High efficiency and fast response. Match various manufacturers of laser tubes.

4. TTL level switch control: the active level can be high or low.

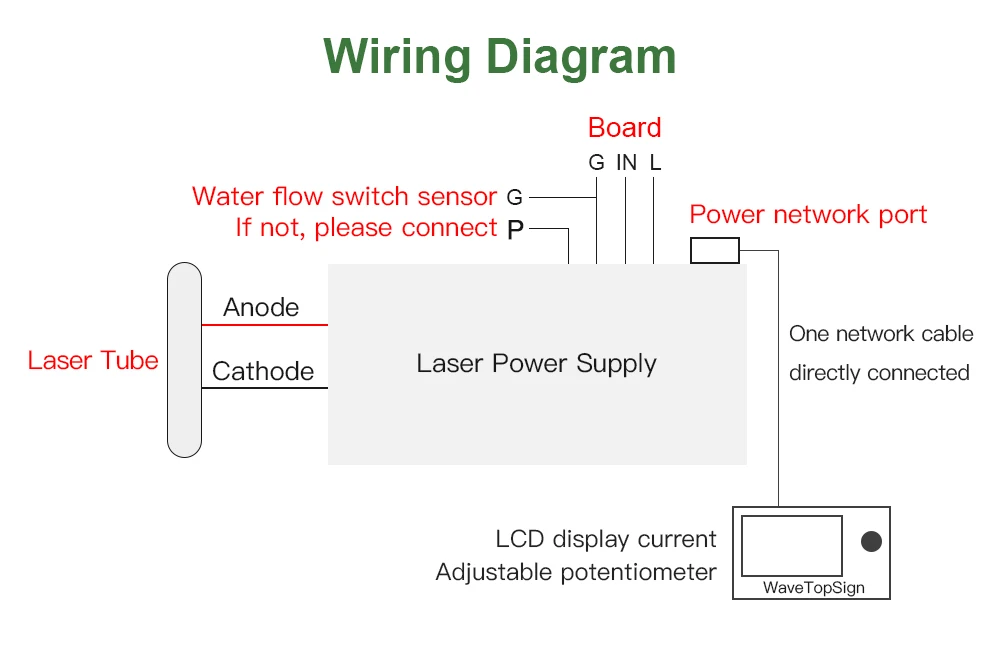

5. Protection switch: can be used for the detection of waterway, protect the laser

6. Laser power regulation:

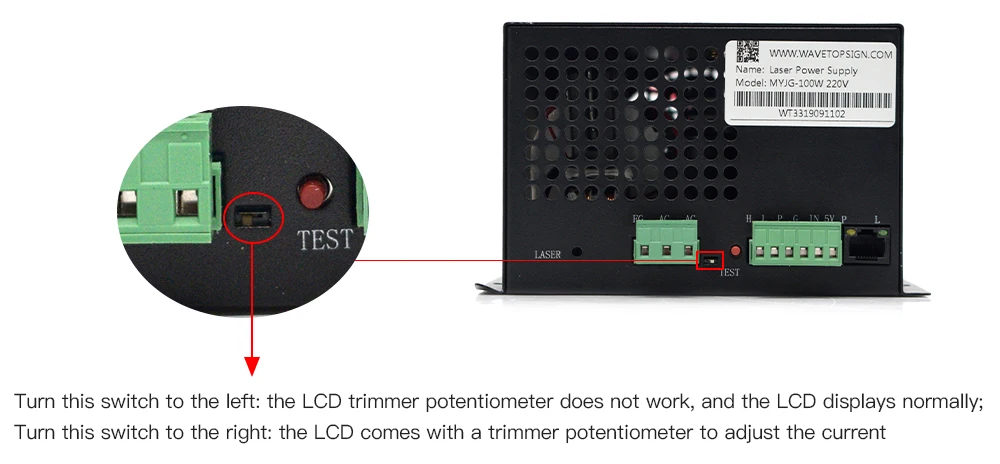

    (1) The output current of the laser power source is adjusted by a potentiometer.

    (2) Controlled by PWM (amplitude is TTL level).

7. Open Circuit Protection Function: avoid the damageto laser power supply due to laser tube burst.

8. Operating environment: temperature (-10~40) °C, humidity: ≤85%.
