Description
Tunable Laser Optical Sub-Assembly
Key Features
● Up to 40 channels at 100 GHz spacing or up to 80 channels at 50GHz spacing
● C- or L-band
● Simple tuning algorithm
● 2.5-10Gbps direct modulation
● Small package size
Applications
● WDM-PON
● Colorless ONU
● Optical interconnects
● DWDM sparing
● Dynamic wavelength provisioning
● Wavelength routing
Widely wavelength tunable semiconductor lasers are key components for next-generation optical networks. Conventional tunable lasers require complex fabrication processes such as non-uniform gratings and multiple epitaxial growths, and need multiple electrodes with complex control algorithms for wavelength tuning. As the dense wavelength division multiplexing (DWDM) technology extends towards access and data center networks, the cost reduction and operational simplicity have become more and more important.
Lightip has developed a simple and compact tunable laser based on patented proprietary technologies. It consists of a half-wave coupled V-cavity laser with only three electrodes: one for gain and direct modulation, one for channel selection corresponding to the ITU grid, and the third for fine tuning when needed. The laser structure does not involve any grating or epitaxial regrowth, and has a size of only about 500μm × 300μm. The advantages of compactness, fabrication simplicity and easy wavelength control offer cost-effective tunable laser solutions for many applications in access and data center networks, and beyond.
The TLDX155 series Transmitter Optical Sub-Assembly (TOSA) integrates a V-cavity edge-emitting tunable laser, a power monitoring photodiode, an isolator, and a TEC controller. The connector type can be chosen from LC, SC or fiber-pigtail with FC/PC or FC/APC connector. It can provide up to 40 channels at 100GHz spacing or 80 channels at 50GHz spacing in C- or L- band (other wavelength bands available on request). The size of the 9-pin TOSA is only a small fraction of that of the conventional butterfly package

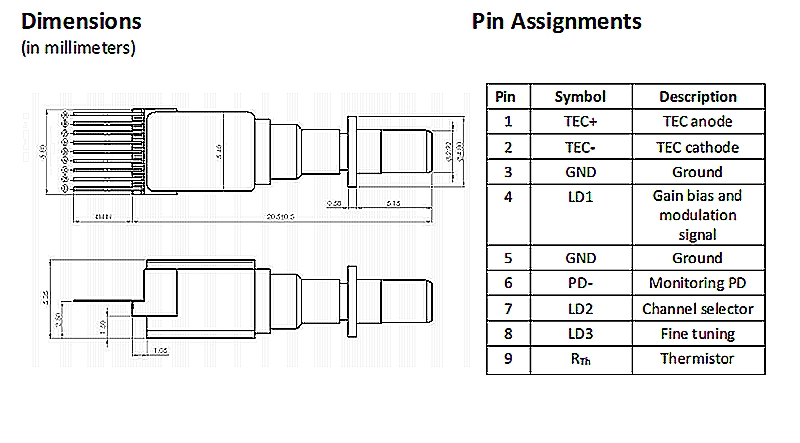

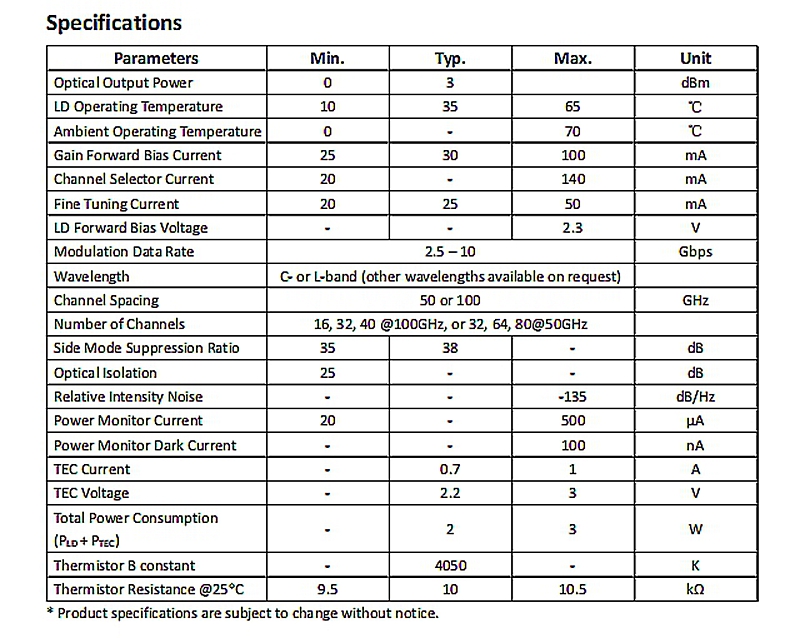

LD Operating Temperature: 65C
Ambient Operating Temperature: 70C
Gain Forward Bias Current: mA
Channel Selector Current: 140 mA
Fine Tuning Current: 50mA
LD Forward Bias Voltage: 2.3V
Modulation Data Rate: 2.5-10 Gbps
Relative Intensity Noise: -135 dB/Hz
Power Monitor Current: 500 uA
Power Monitor Dark Current: 100 nA
TEC Current: 1A
TEC Voltage: 3V
Total Power Consumption: 3W
Thermistor Resistance @25C: 10.5K
