Description
Super-Luminescent Light Emitting Diode
Key Features
. Wide Optical Bandwidth
. Low Spectral Ripple
. High Output Power in SMF or PM Fiber
Applications
. Broadband Light Source
. Distributed Fiber Optic Sensor
. Biomedical Imaging
. OCT Diagnostic System

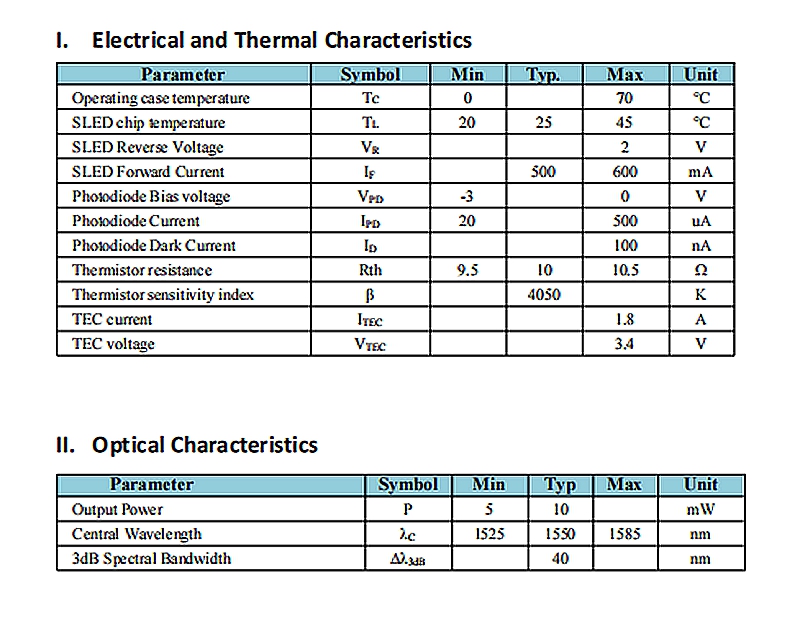

Electrical and Thermal Characteristics
Operating case temperature: Max 70C
SLED chip temperature: Typ. 25C, Max 45C
SLED Reverse Voltage: Max 2
SLED Forward Current: Typ. 500, Max 600
Photodiode Bias voltage: Max 0
Photodiode Current: Max 500
Photodiode Dark Current: Max 100
Thermistor resistance: Typ. 10, Max 10.5
Thermistor Sensitivity index: Typ. 4050
TEC current: Max 1.8
TEC Voltage: Max 3.4
Optical Characteristics
Output Power: Typ. 10
Central Wavelength: Typ 1550, Max 1585
3DB Spectral Bandwidth: Typ 40
Spectral Ripple: Typ 0.3, Max 0.5
1525nm-1585nm 1550nm SLED Wide Optical Bandwidth (Super-Luminescent Light Emitting Diode)
