Description

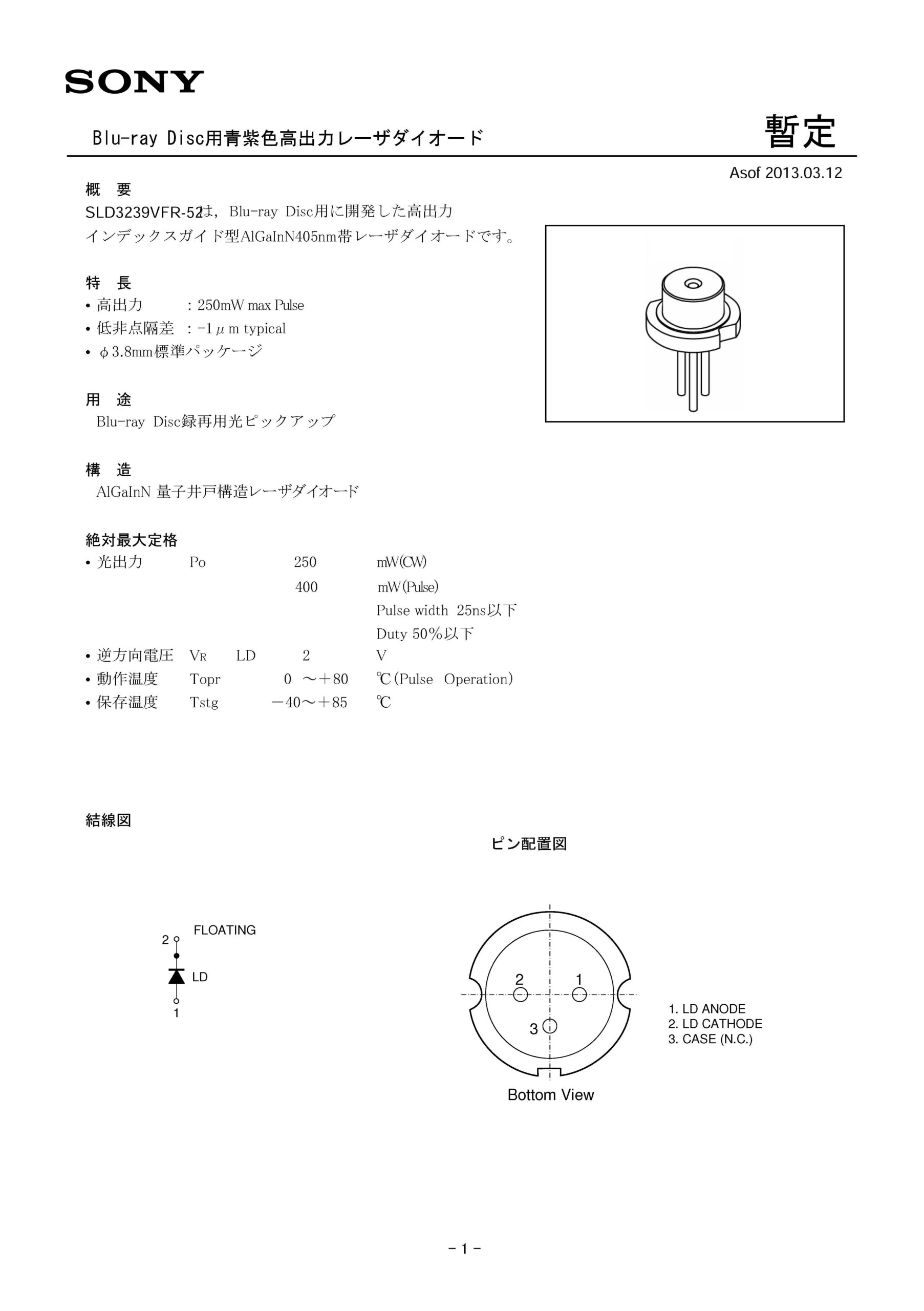

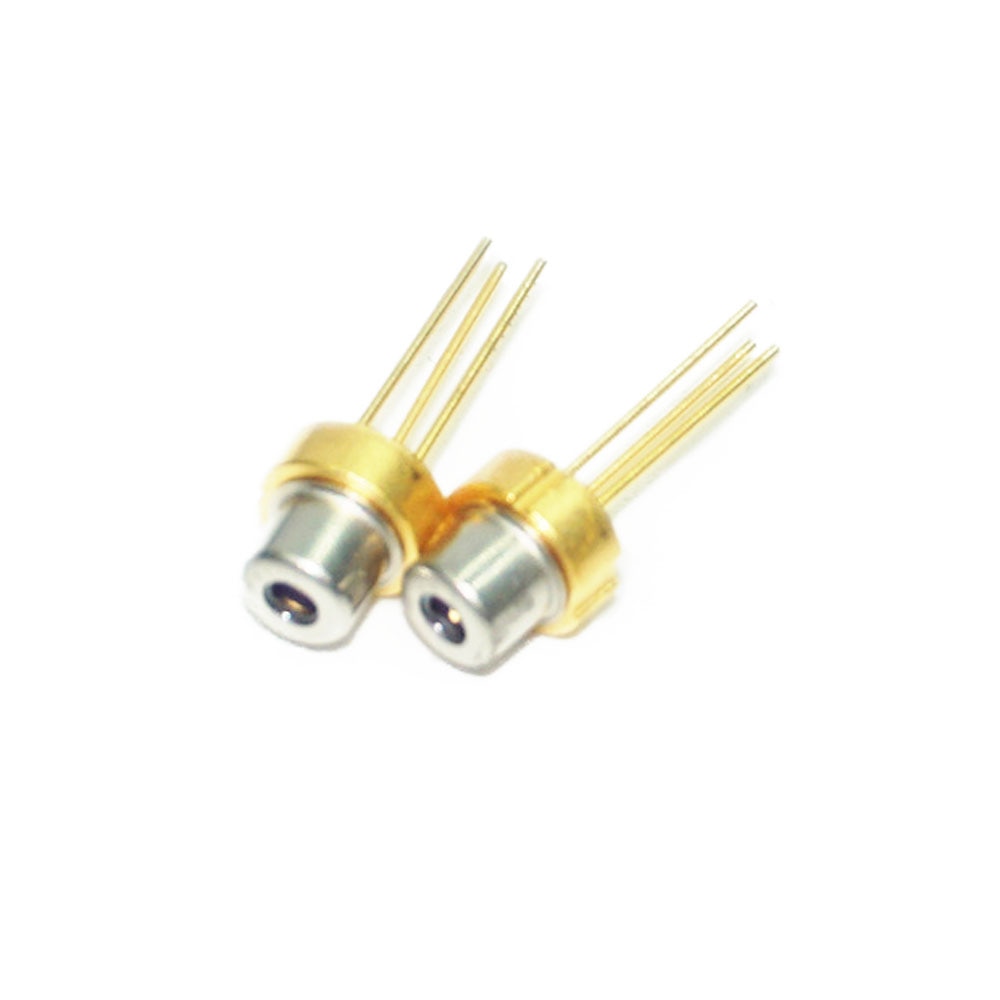

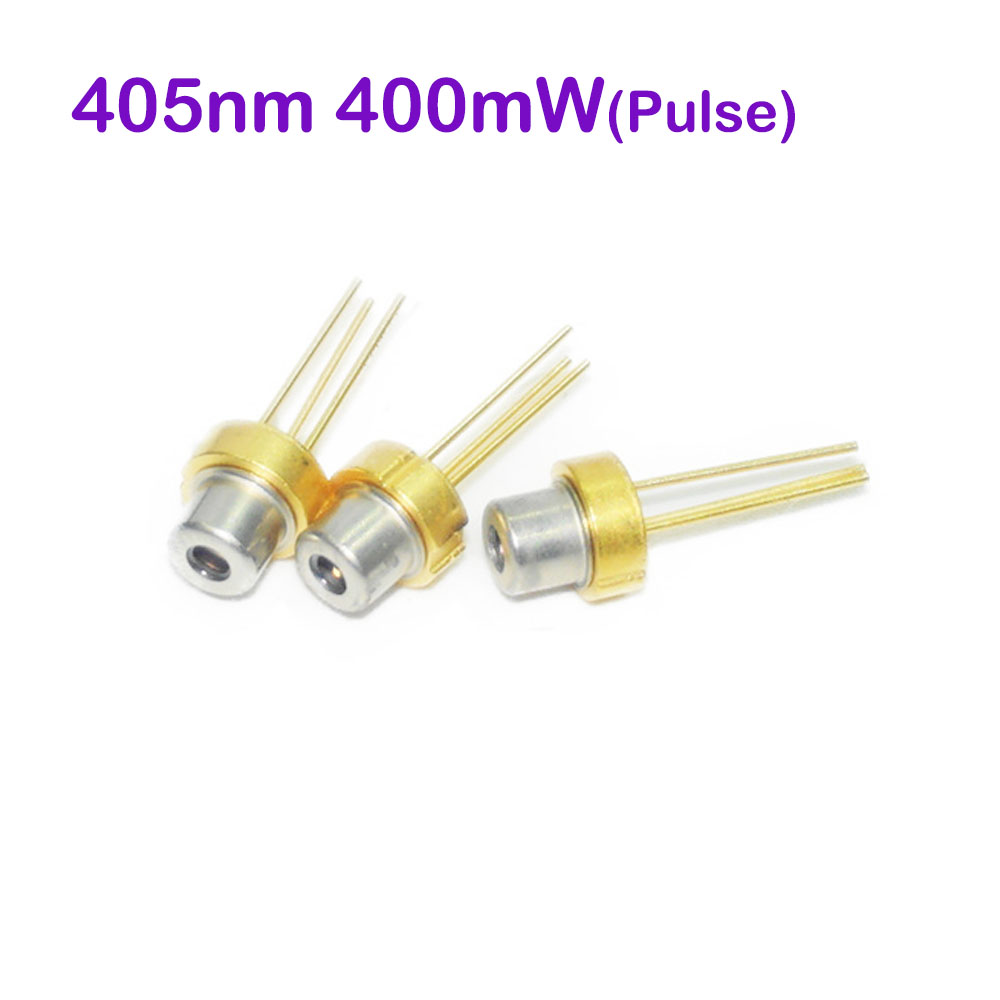

Sony SLD3239VFR 405nm 200mw-250mw Blue Violet laser diode 3.8mm diameter
SLD3239VFR 405nm 200mw 250mw Blue Violet laser diode 405nm 200mw 3.8mm 250mw LD semiconductor laser unit
Absolute maximum ratings:250mW (CW) 500mW(Pulse)

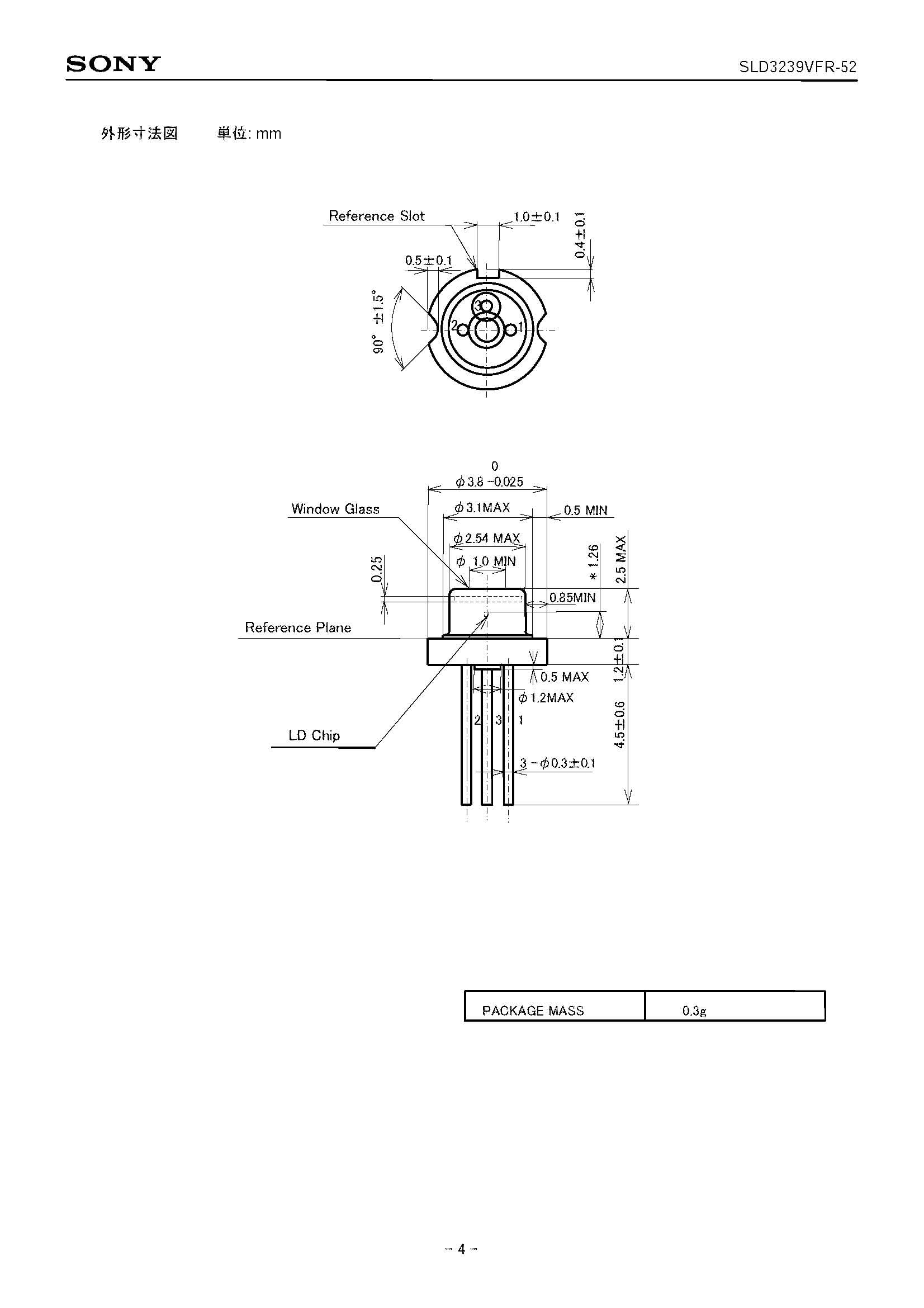

Φ3.8mm packaged

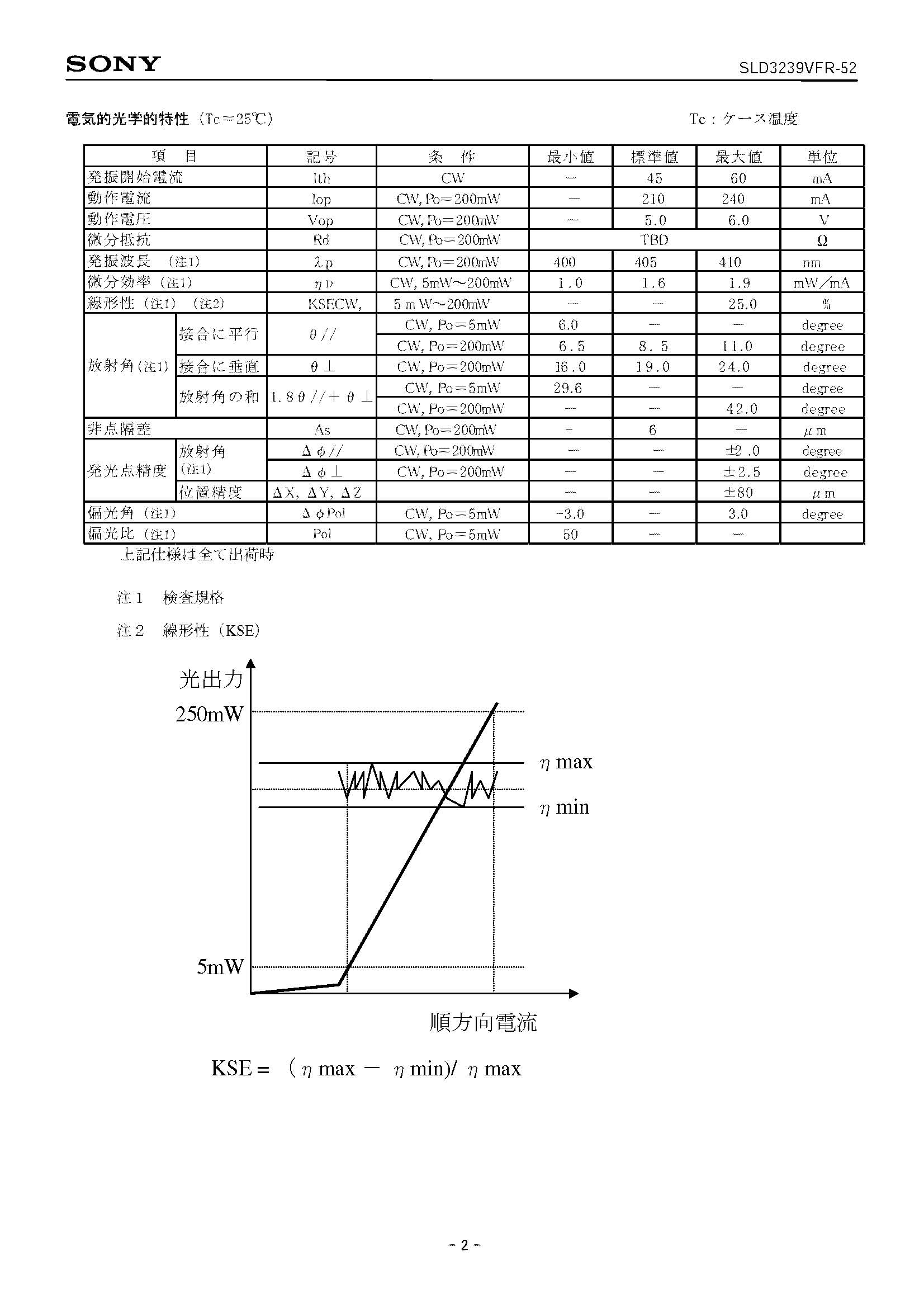

Electrical and Optical Characteristics(Tc=25℃)
Lasing Wavelength:405nm
Optical Output:200mW
Threshold Current:45mA
Operating Current:210mA
Operating Voltage:5.0V
Operating Temperature:0 to +80℃
Beam Divergence(FWHM)
Parallel:8.5deg
Perpendicular:19deg
