Description
Brand : Ronan
Model Name : 3.0 inch Bi-LED Projector Lens
Inpute Voltage : DC10-16V
Low Beam Wattage : 34W
High Beam Wattage : 38W
Low Beam Lumen : 3200LM
High Beam Lumen : 4800LN
Product Include
2pcs LED Porjector Lens ( Built-in Driver )
Product Detials
This LED lens fit universal car , please check your car headlight space , if enough , that fit .

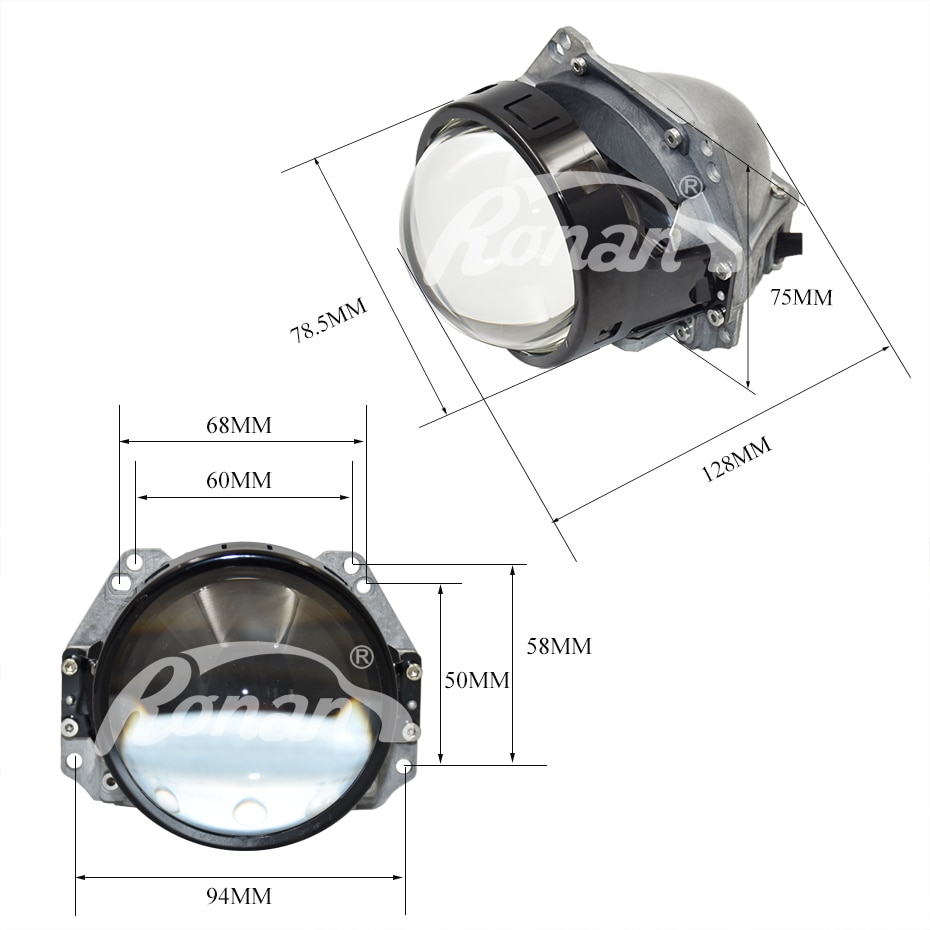

( The measure will be have 1~2mm error )

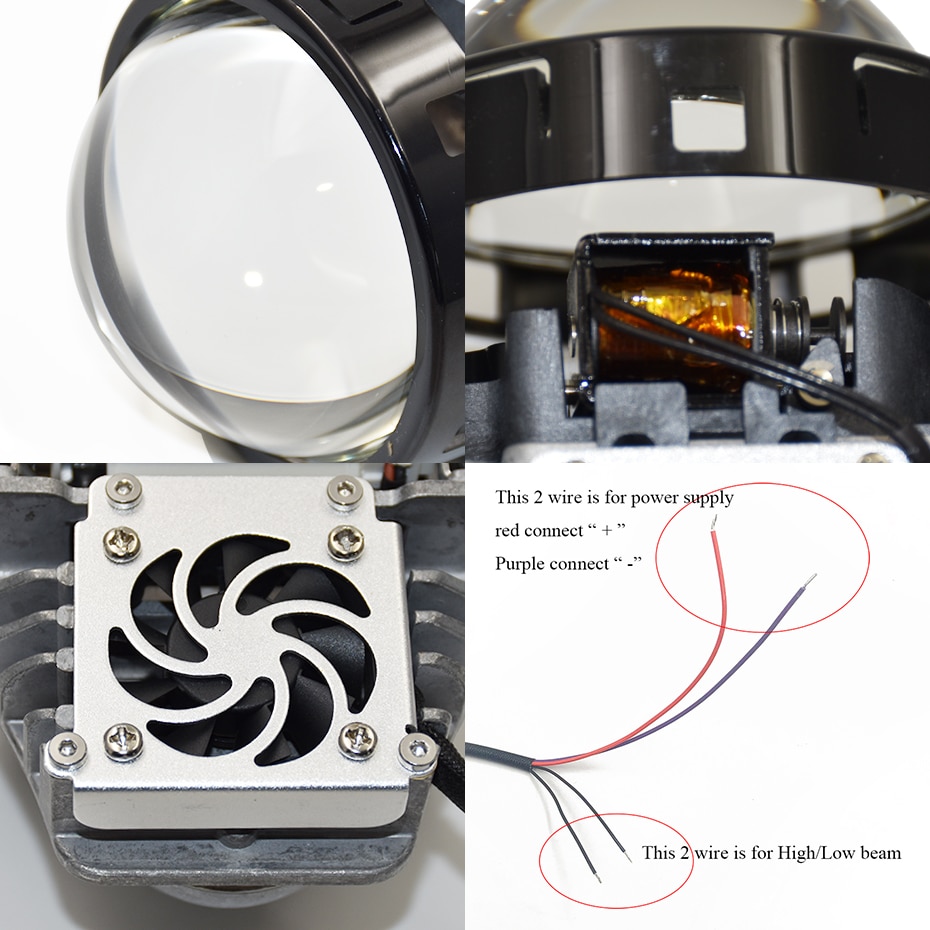

Wire Connection
Red 1 connect low beam “ + ”
Red 2 connect high beam “ + ”
Black and Purple together connect low beam “-”

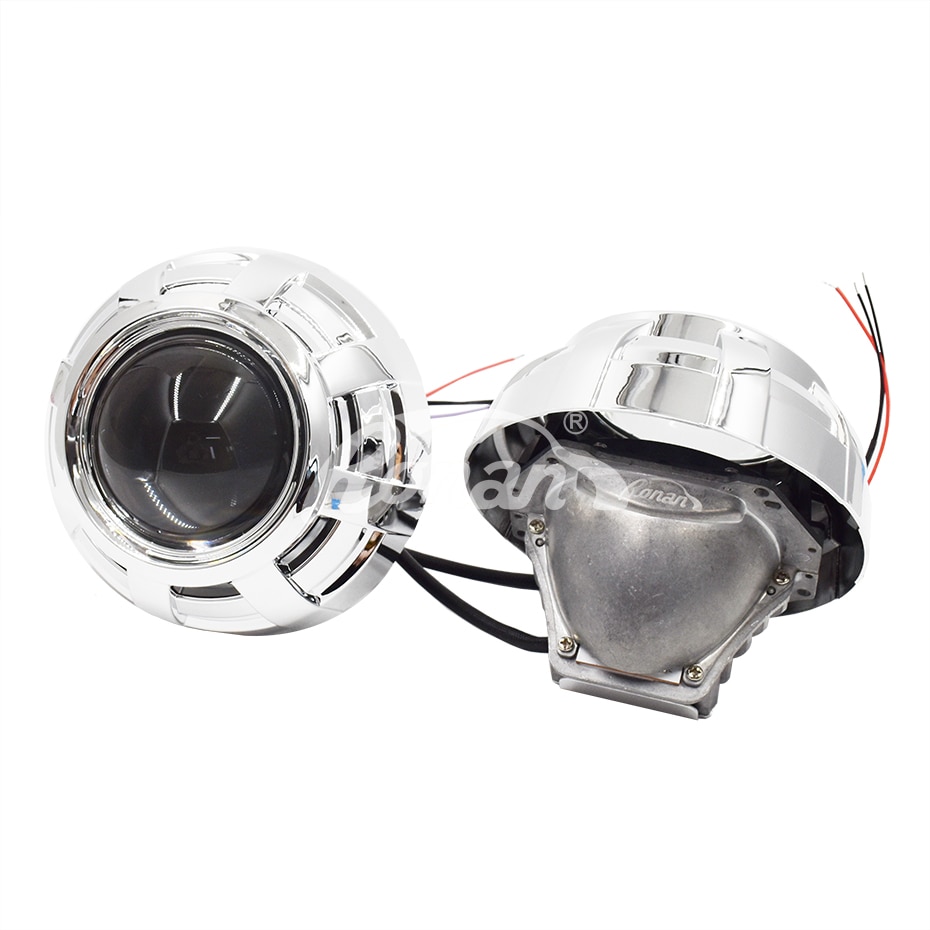

Product Display
Installation
There have 2 type installaltion
1.Install with Modify : if your car headlight housing is only have reflector bowl , just need have enough space , use the screw fixed with your headligh reflector bowl
2. Frame Installation : if your car not have reflector bowl , you should remove your car original lens , use your car model frame connect the lens with your car, install before , you still need confirm installation space enough
( Notice : the picture only show for hella hole , not same product )
