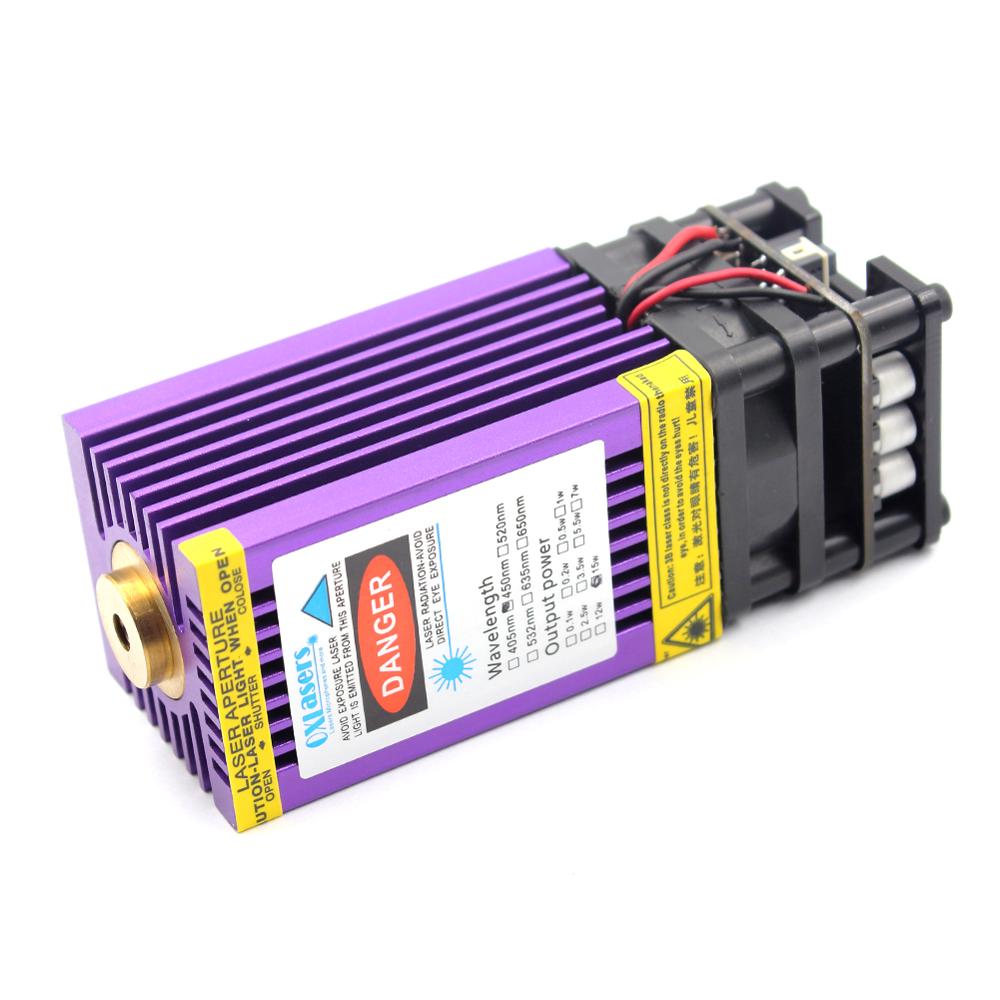

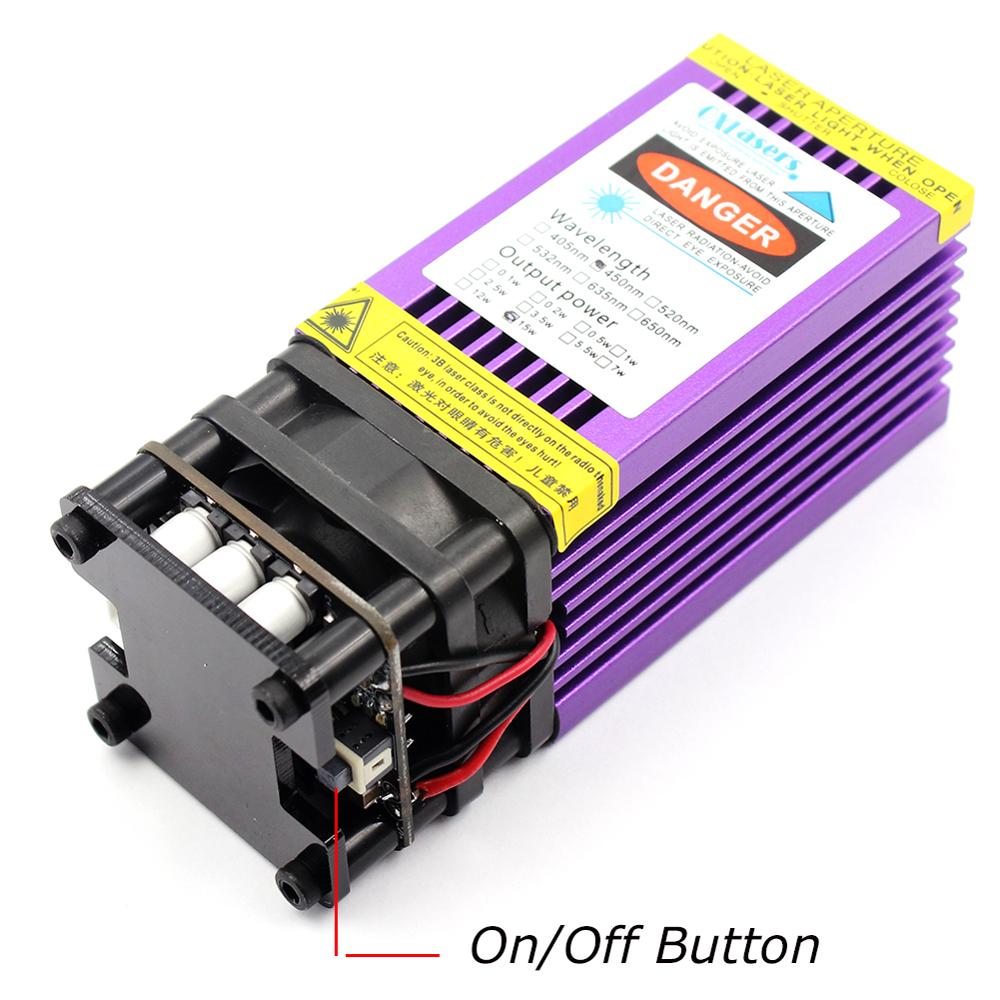

Oxlasers 15w DIY Blue Laser Module for CNC Laser Engraving and Cutting 15000mw 12v Fixed Focus Laser Head with Pwm

Description

Oxlasers fixed-focus 15W blue laser module 450nm 15000mW CNC DIY engraving laser head for cutting 3-pin 12V PWM plywood

Technical Specifications:

Laser Wavelength: 445nm-450nm Blue Laser

Spot Type: Complex Angle Spot (Fixed Focus, Non-Focusing)

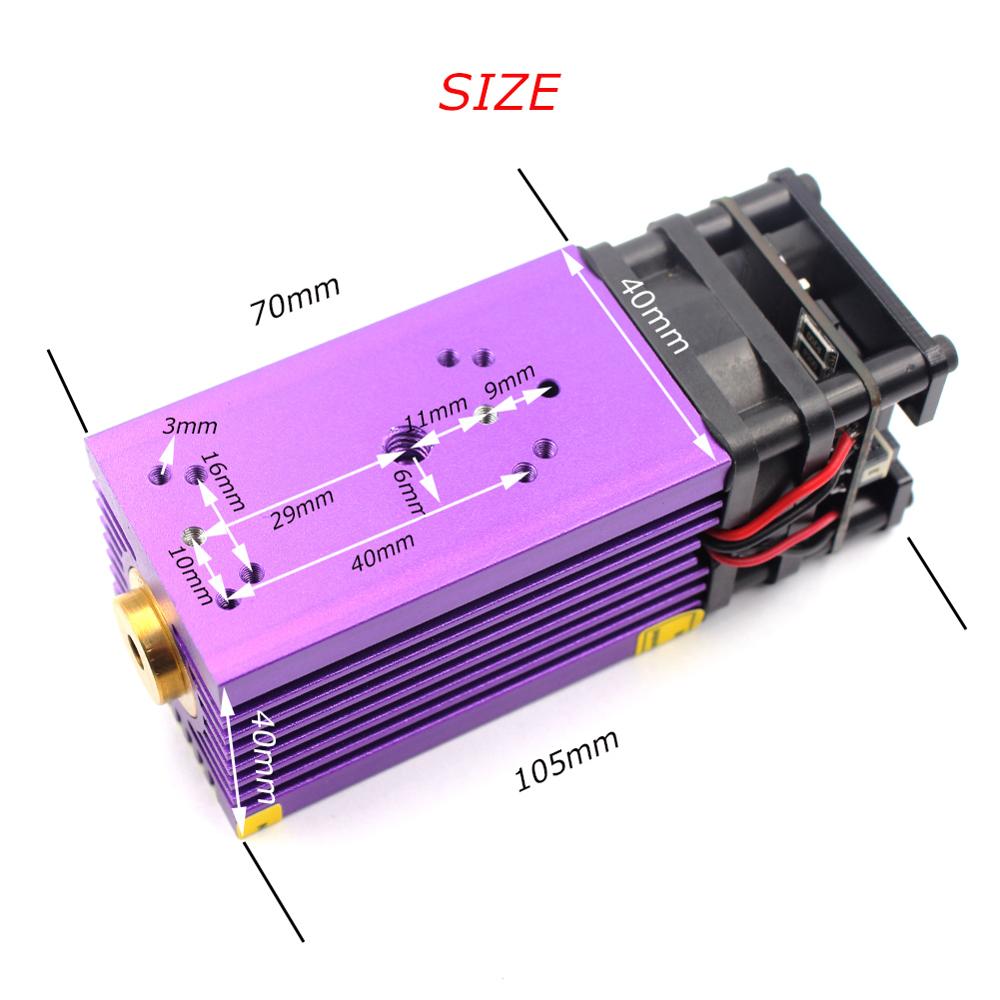

Size: 40 * 70mm

Drive Mode: External ACC Constant Current Drive

Cooling Method: Forced Air Cooling

Operating Voltage: 12V DC

Control Interface: 3-Pin (Pulse Width Modulation 0-5V)

Housing Material: Aluminum, Anodized Surface

Collimating Lens: Optical Glass Coating

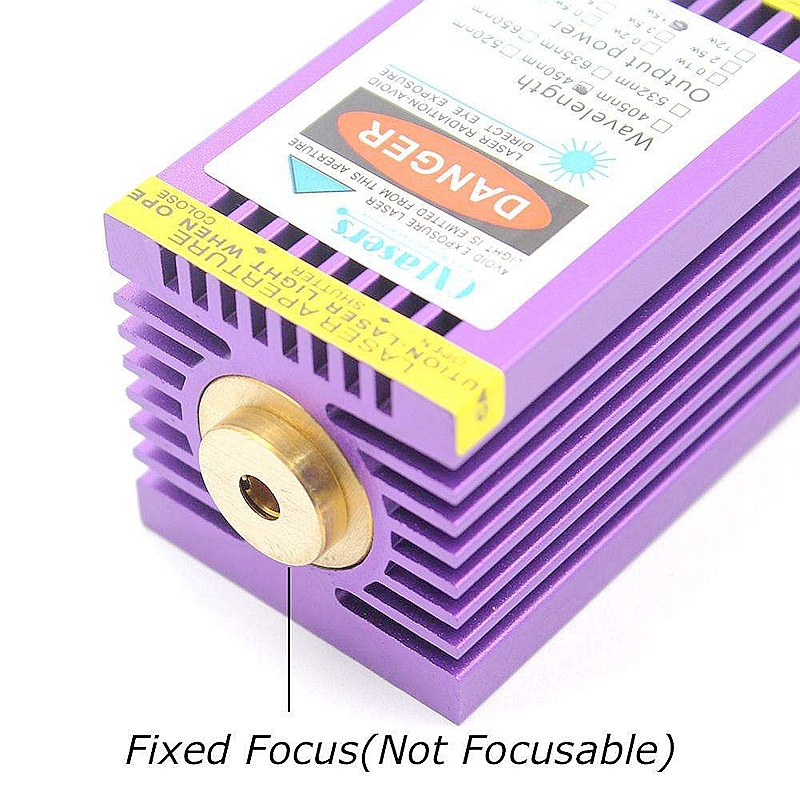

This is not a focusing laser; it is only for use with CNC laser engraving machines or laser cutting machines!! This laser power is sufficient to cut 3mm plywood (100-150mm/min, 1-2 cuts) and stainless steel (100-150mm/min).

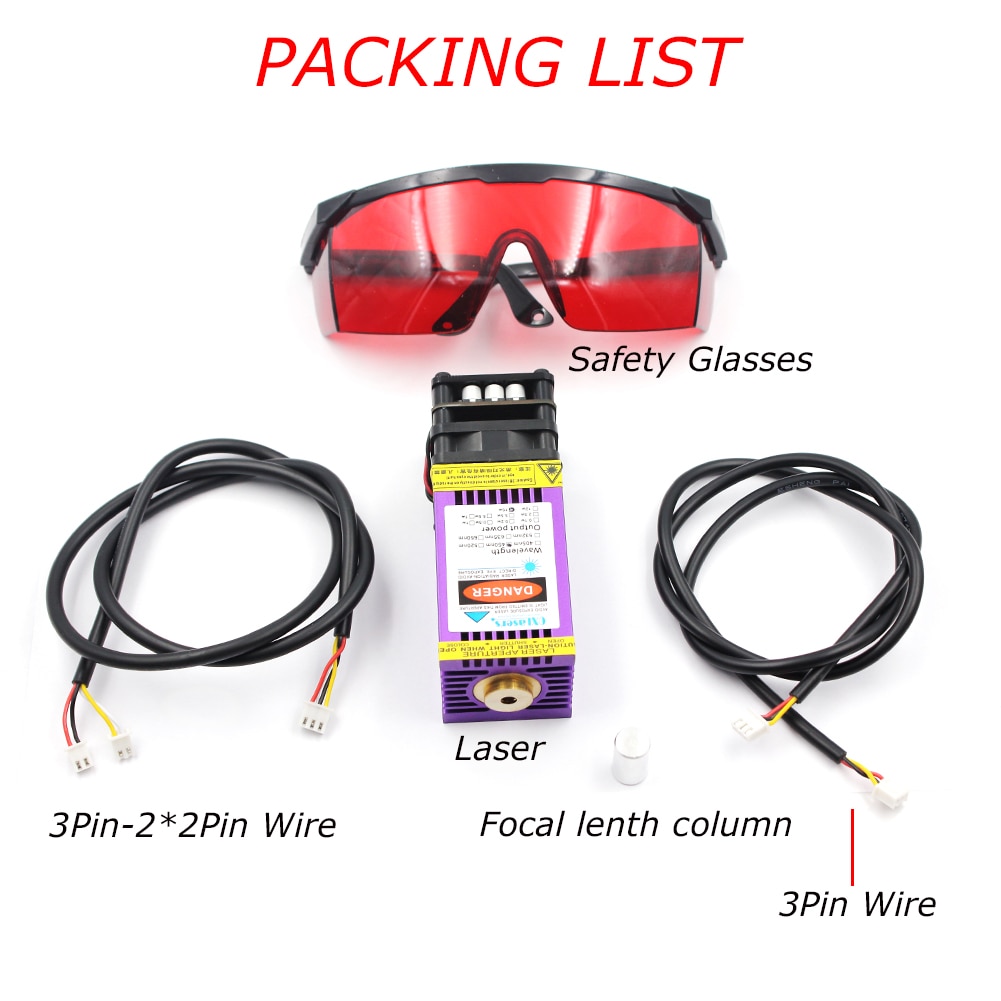

Packing List:

Laser * 1

3-Pin Cable * 1

3-Pin to 4-Pin Cable * 1

Safety Glasses * 1

Buyer Must Read:

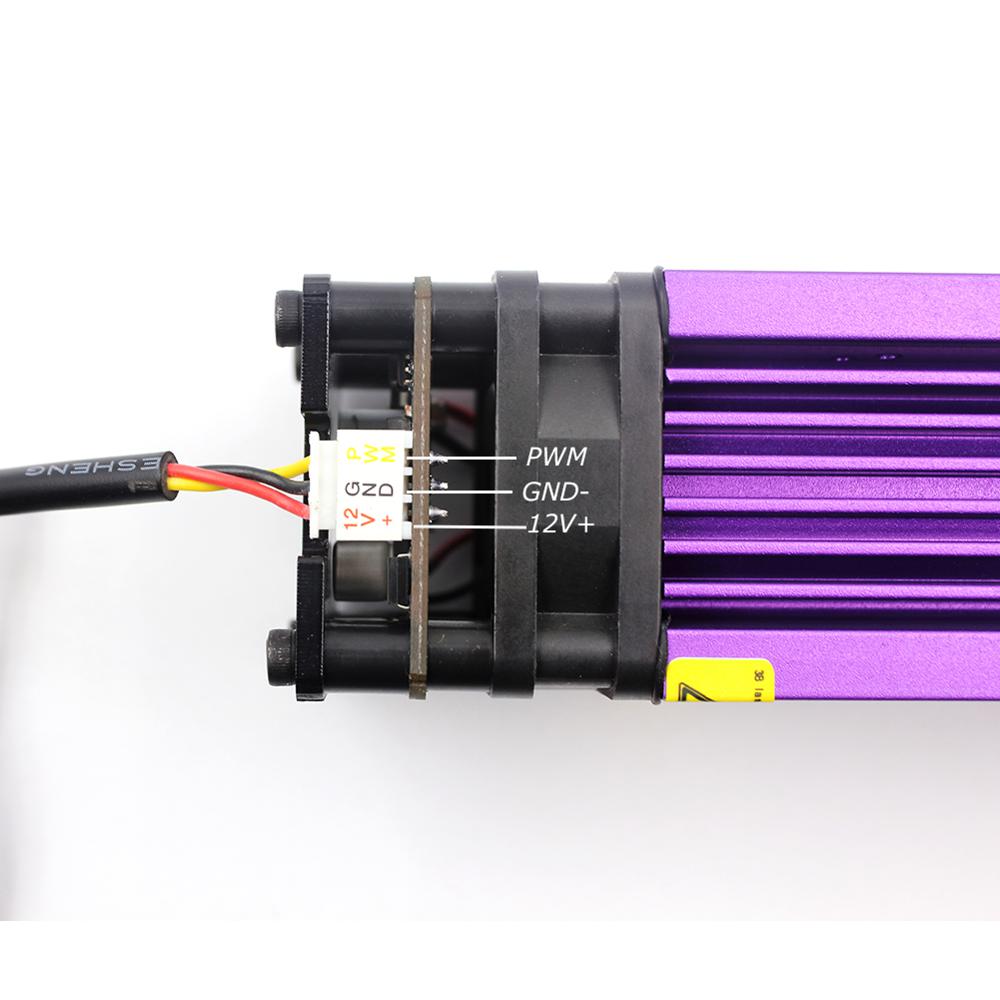

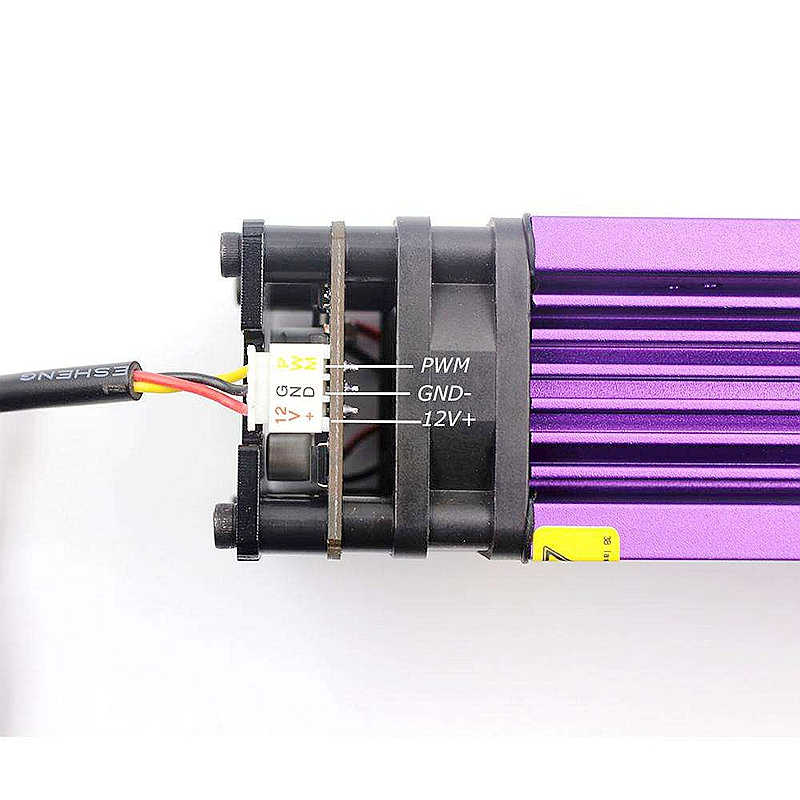

When connecting the laser to the controller board, please note the pin positions for 12V +, GND -, and PWM/TTL. Red wire = 12V +, Black wire = GND -. Yellow wire = PWM +, White wire = PWM – (3-4 pin wire). Therefore, the red wire must be connected to the 12V + pin on the controller board interface, the black wire must be connected to the GND pin, and the yellow wire must be connected to the PWM/TTL pin. If using a 3-4 pin, the white wire should be connected to the PWM pin. Pulse Width Modulation = 0-5V

If the laser interface pins on your controller board are in different positions, please change the wire positions to match the -PWM position of the interface. Incorrect wire connections will damage the diodes and driver board.

Please add a fan during engraving or cutting to prevent smoke from blurring and damaging the lens.

Technical Specifications:
Laser Wavelength: 445nm-450nm blue laser
Spot Type: Complex angle spot (fixed focus, non-focusable)

Size: 40 * 70 mm

Drive Mode: External ACC constant current drive

Cooling Method: Forced air cooling

Operating Voltage: 12V DC

Control Interface: 3-pin (Pulse width modulation 0-5V)

Housing Material: Aluminum, anodized surface

Collimating Lens: Optical glass coating

This is not a focusable laser; this laser is only for CNC laser engraving machines or laser cutting machines!! This laser power is sufficient to cut 3mm plywood (100-150mm/min, 1-2 cuts) and stainless steel (100-150mm/min).

Packing List:

Laser * 1

3-Pin Cable * 1

3-Pin to 4-Pin Cable * 1

Safety Glasses * 1

Buyer Must Read:

When connecting the laser to the controller board, please note the pin positions for 12V +, GND -, and PWM/TTL. Red wire = 12V +, Black wire = GND -. Yellow wire = PWM +, White wire = PWM – (3-4 pin wire). Therefore, the red wire must be connected to the 12V + pin on the controller board interface, the black wire must be connected to the GND pin, and the yellow wire must be connected to the PWM/TTL pin. If using a 3-4 pin, the white wire should be connected to the PWM pin. Pulse Width Modulation = 0-5V
