Oil Rust paint laser cleaning Removal machine for stone wood metal

$12,900.00 $9,900.00

SKU: 4000739778704 Category:

Description

Oil Rust paint laser cleaning Removal machine for stone wood metal

  • Condition: New
  • Product name: Laser Cleaning Machine
  • Laser wavelength: 1064nm
  • Laser Source Brand: MAX/RAYCUS/IPG/JPT
  • Certification: ce, BV, GS, FDA, ISO 9001:2000
  • Applicable Material: Stainless Steel, Carbon Steel, Aluminum, Metal
  • Dimension(L*W*H): 650*550*250mm
  • Brand Name: LXSHOW
  • Scan width: 10-60mm

Oil rust paint laser cleaning machine for stone wood metal



Contact Maggie

Whatsapp:008613156182712

Skype:export04_6

E-mail: export01@unichcnc.com

50W portable fiber Laser Rust Cleaning Removal Machine for metal steel rust painting oxide removal

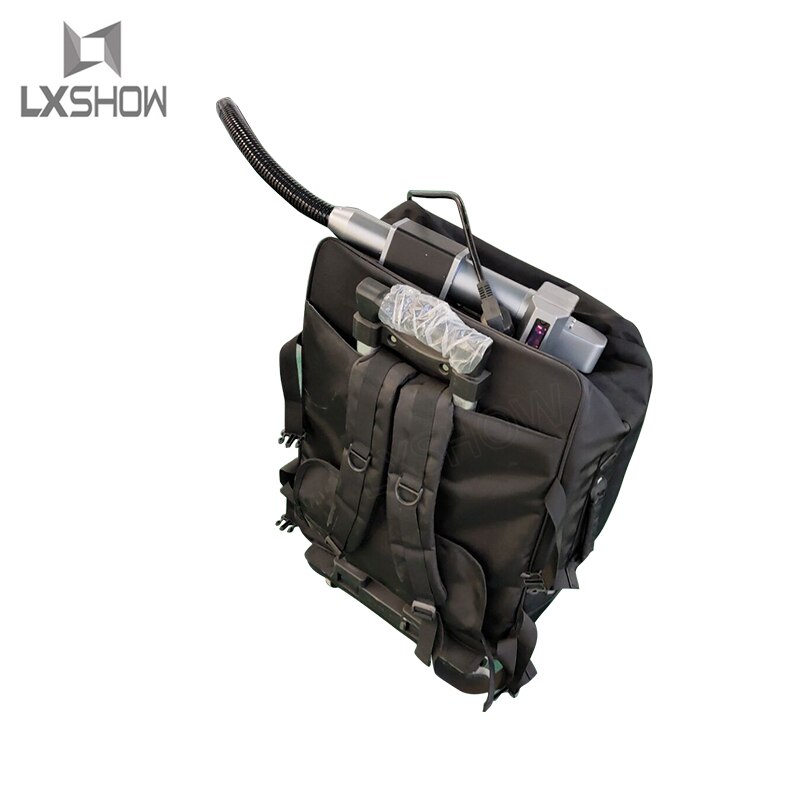

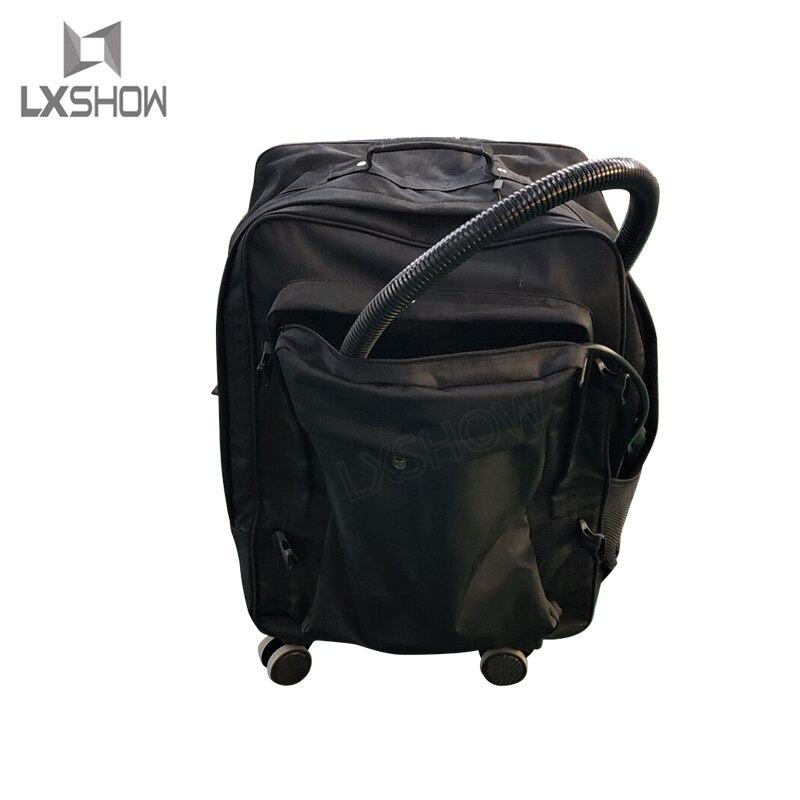

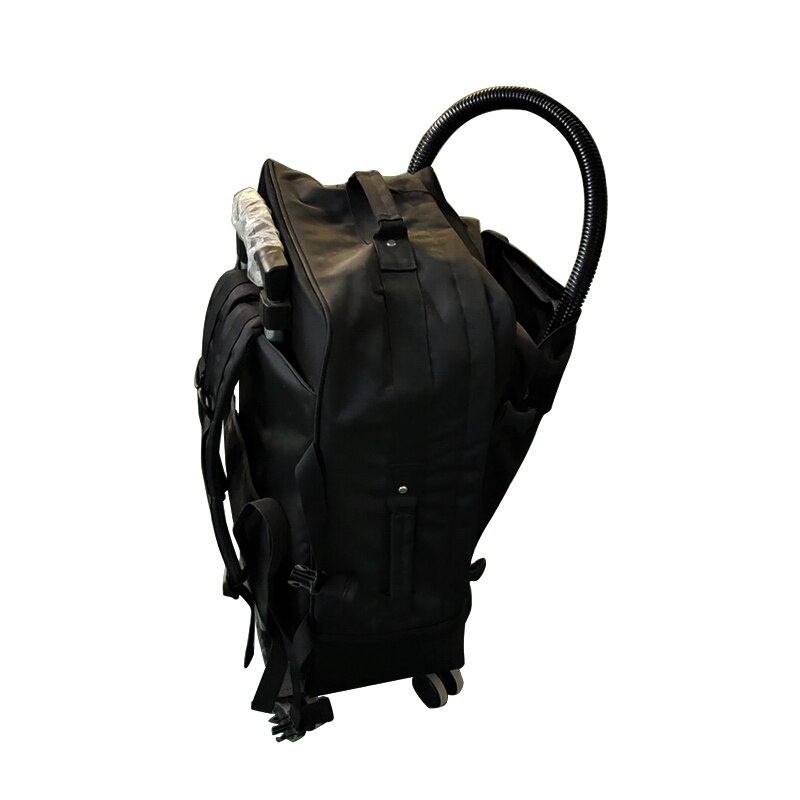

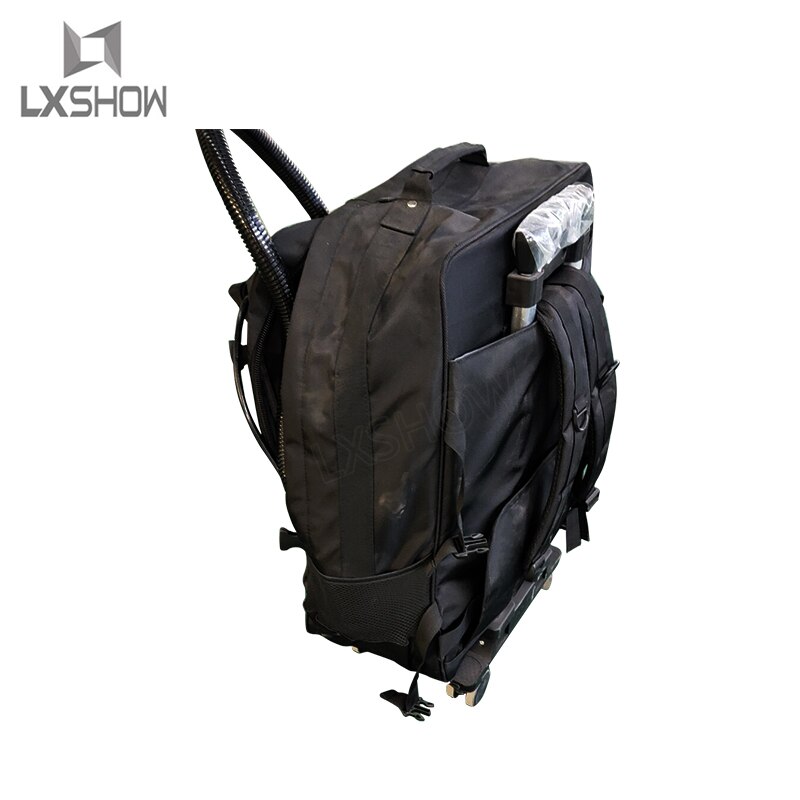

Machine pictures:

TIM图片20191115150600

TIM图片20191115150546

50W portable fiber Laser Rust Cleaning Removal Machine for metal steel rust painting oxide removal

Technology Parameter

Equipment model

LXC-50W

LXC-100W

LXC-200W

LXC-500W

LXC-1000W

Laser working medium

                                     Yb-doped fiber

Laser power

50W

100W

200W

500W

1000W

Laser wavelength

1064nm

Pulse frequency

20-100KHz

20-100KHz

20-200KHz

20-50KHz

20-50KHz

Cooling method

Air cooling

Air cooling

Water cooling

Water cooling

Water cooling

Dimension

     760mmX780X790mm

1100x950x700mm

Total Weight

30kg

60kg

65kg

130kg(Including Water tank)

140kg

Total power

350W

600W

1000W

1800W

2000W

Scan width

10-60mm

Optional

 Hand/automatic
 Working temperature

5-40℃

Application

 It is suitable for the cleaning of the rust layer, thick-layer paint, deep oil stain, rough surface and weld cleaning, which will affect the surface of the substrate. The efficiency is very high.

Application

Rust Removal

Oxide Removal

Molding Cleaning

Surface Preparation

Coatings Removal

Weld Pre-treatment

Gluing Pre-treatment

Removal of Oil and Grease

Paint Removal

Surface Cleaning

Stain Removal

Surface Roughening

Tool Cleaning

Historic Restoration

Selective Paint Removal

Precise Cleaning

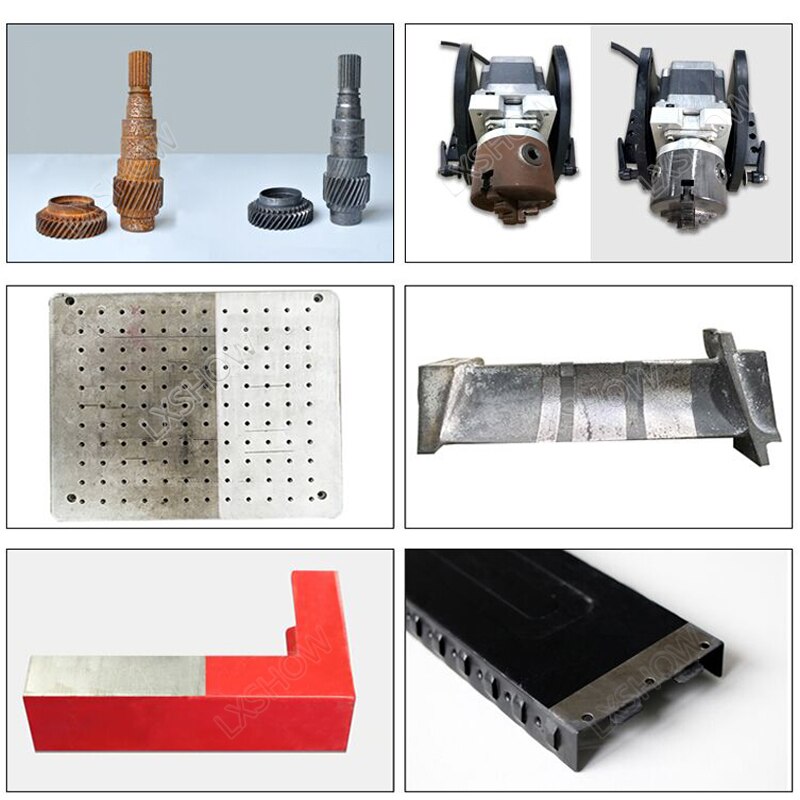

Samples

50W portable fiber Laser Rust Cleaning Removal Machine for metal steel rust painting oxide removal

Characture

1).Powerful, short pulses, fast moving laser pulses act on the surface of the target, producing tiny plasma ruptures, shock waves, thermal stress, etc., causing surface materials to sublimate and evaporate.

2).The focused laser beam is capable of accurately evaporating surface objects or dirt.

3).Laser cleaning is suitable for metal surfaces. The treated and optimized laser beam does not alter metal properties or damage those laser treated surfaces. The precisely tuned laser beam acts only on the coating, residual residue or oxide, and does not harm the underlying parent metal surface.

4).By adjusting other parameters, the laser beam is able to achieve the desired cleaning effect accurately and easily.

Configuration

50W portable fiber Laser Rust Cleaning Removal Machine for metal steel rust painting oxide removal

 FAQ

Q1 :How about warranty?

A1:2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.

Q2:I don’t know which one is suitable for me ?

A2:Please tell me

1). your materials.

2). what kind impurity.

3). the thickness of your impurity.

Q3:Payment terms?

A3:Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.

Q4:Do you have CE document and other documents for customs clearance?

A4:Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.

Q5:I don’t know how to use after i receive or i have problem during use,how to do?

A5:

1). We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine.

2). If have any problem during use,you need our technician to judge The problem elsewhere will be solved by us. We can provide team viewer /Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
