Description

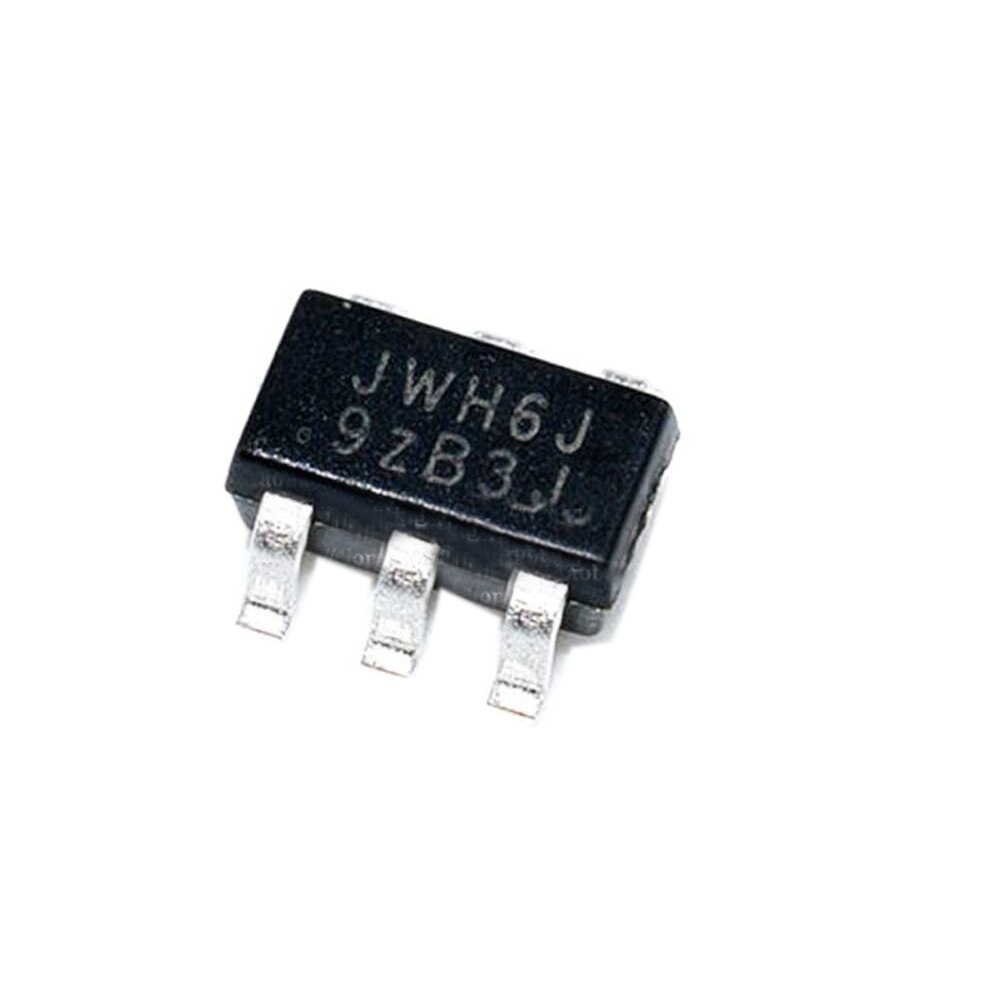

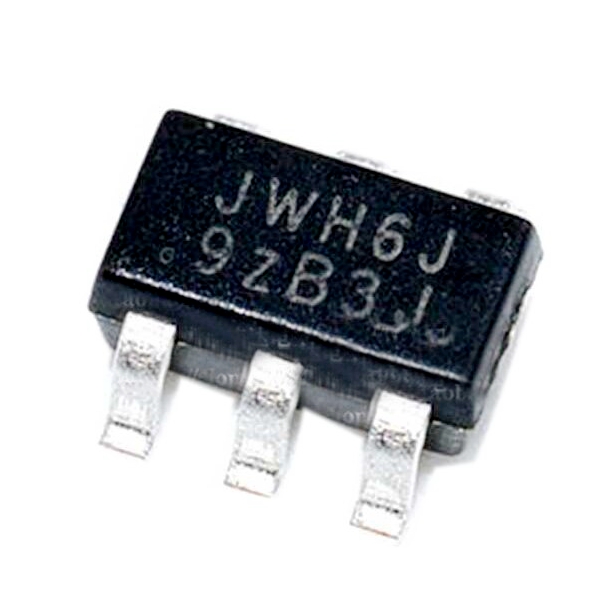

JW5052C marking:JWH6J JW5052 SOT23-6 DC-DC chip.
jwh6j datasheet

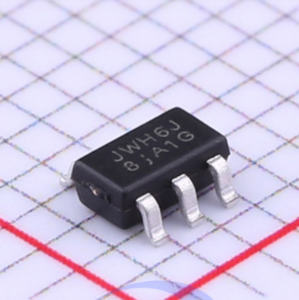

Generic JW5052C Marking JWH6J JW5052 SOT23 6 DC-DC chip
The JW5052C is a current mode monolithic buck voltage converter. Operating with an input range of 4.5V-18V, the JW5052C delivers 2A of continuous output current with two integrated N-Channel MOSFETs. At light loads, regulators operate in low frequency to maintain high efficiency and low output ripple.The JW5052C guarantees robustness with short circuit protection, thermal protection, current run-away protection, and input under voltage lockout.The JW5052C is available in a 6-pin SOT23-6 package, which provides a compact solution with minimal external components.
Buck 550kHz~850kHz 2A Adjustable 1 SOT-23-6 Voltage Regulators – DC DC Switching Regulators RoHS
Category：Integrated Circuits (ICs)/Power Management (PMIC)/Voltage Regulators – DC DC Switching Regulators
Manufacturer：JoulWatt Tech
Package：SOT-23-6
Synchronous Rectifier Yes
Operating Temperature -40℃~+150℃@(TJ)
Function Buck
Frequency – Switching 550kHz~850kHz
Output Current 2A
Topology Buck
Output Type Adjustable
Output Voltage –
Quiescent Current 100uA
Operating Voltage 4.5V~18V
Switch tube (built-in/external) Built-In
Number of Channels 1
Generic JW5052C Marking:JWH6J JW5052 SOT23-6 DC-DC chip
