Description
Laser Rangefinder
From MUFASHA
Product Specifications and Function
Model: LM600/LM900/LM1200/LM1500;
Measuring Range: 5-600m/5-900m/5-1200m/5-1500m
Functions: Distance Measure Mode, Speed Measure Mode, Fog Mode, Pin seeker mode;
Model: LM900H/LM1500H;
Measuring Range: 5-900m(Height-Measurement)/5-1500m(Height-Measurement)
Functions: Distance Measure Mode;Speed Measure Mode, Fog Mode, Height Measurement Mode, Angle measurement mode;
Buttons
1 Mode Button/Unit Switch
2 Power Butoon
Product Structure
1 Laser Emmitting
2 Laser Receiving Lens
3 6x Monocular Eyepiece
4 Focusing Rigng/7x Magnifying
6 Size: 82mm*42mm*106mm (3.22 inch*1.65inch*4.17 inch)
Measurement Mode
Distance Measurement Mode
Switch to the ranging mode, short press the power button for a single measurement, long press the power button for continuous measurement.
Height Measurement Mode
Press the mode button to switch to the altimetry mode(Only 900H 1500H Mode can do it), Press the measurement button shortly, and the value switches between distance and horizontal height.
Speed Measurement Mode
Press the mode button to switch to the speed measurement mode. short press the measurement button to aim the object to move, long press the mode button to switch the unit.
Angle measurement mode(Only 900H and 1500H)
Press the mode button to switch to the angle measurement mode(Only 900H 1500H Mode can do it), Press the measurement button shortly, and the value switch between distance and angle.
Flagpole Lock Mode
Press the mode button to switch to the flagpole lock mode (normal mode). Press the measurement button shortly to display the measured value, press and hold the measurement button to move around the flagpole, and the instrument performs continuous measurement until the measured value is no longer flashing. this value is the distance to the flagpole
Fog Measurement Mode
Press the mode button to switch to foggy mode, short press the power button to measure
LCD Display
1.“Hgt” Height finder mode
2.“Scan” Continuously measuring mode
3.“Fog” Fog mode
4“speed” Speed finder mode
5“ Flag + Scan” Pin seeker mode
6.“Battery” low battery indication
7.“Aim” Target center
8.“8888” Display numerical value, four dashes “—-” will appear without numerical value.
9.“Y KM/HS” It shows “M” or “Y” in the distance measuring mode and height finder mode, it shows “KM/h” or “M/S” in the speed finder mode
10.“Angle” Angle mark is displayed in the Angle finder mode.

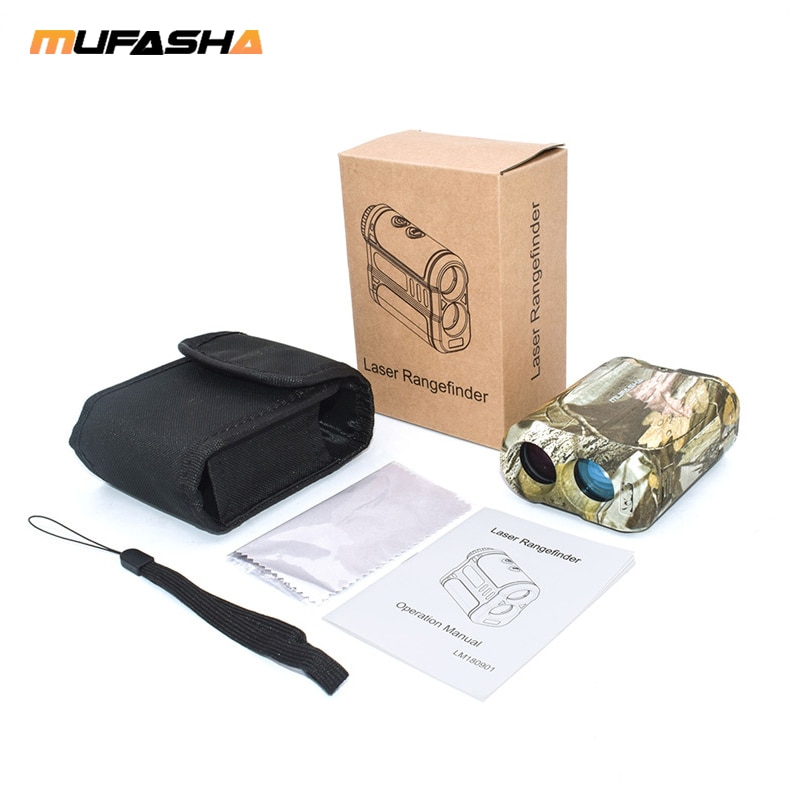

Package
Laser Rangefinder*1
Hand Rope*1
Bag*1
Instructions*1
Box*1
