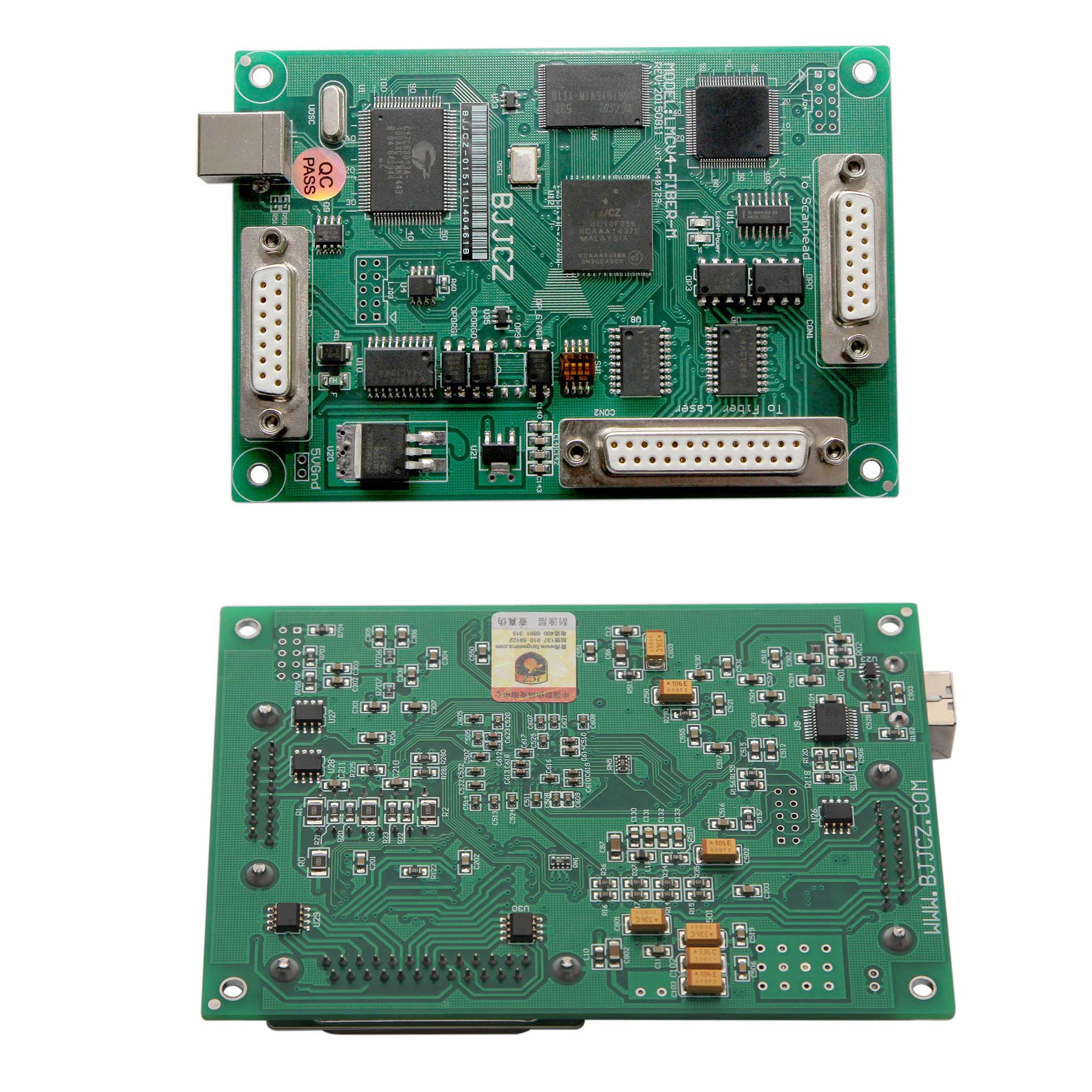

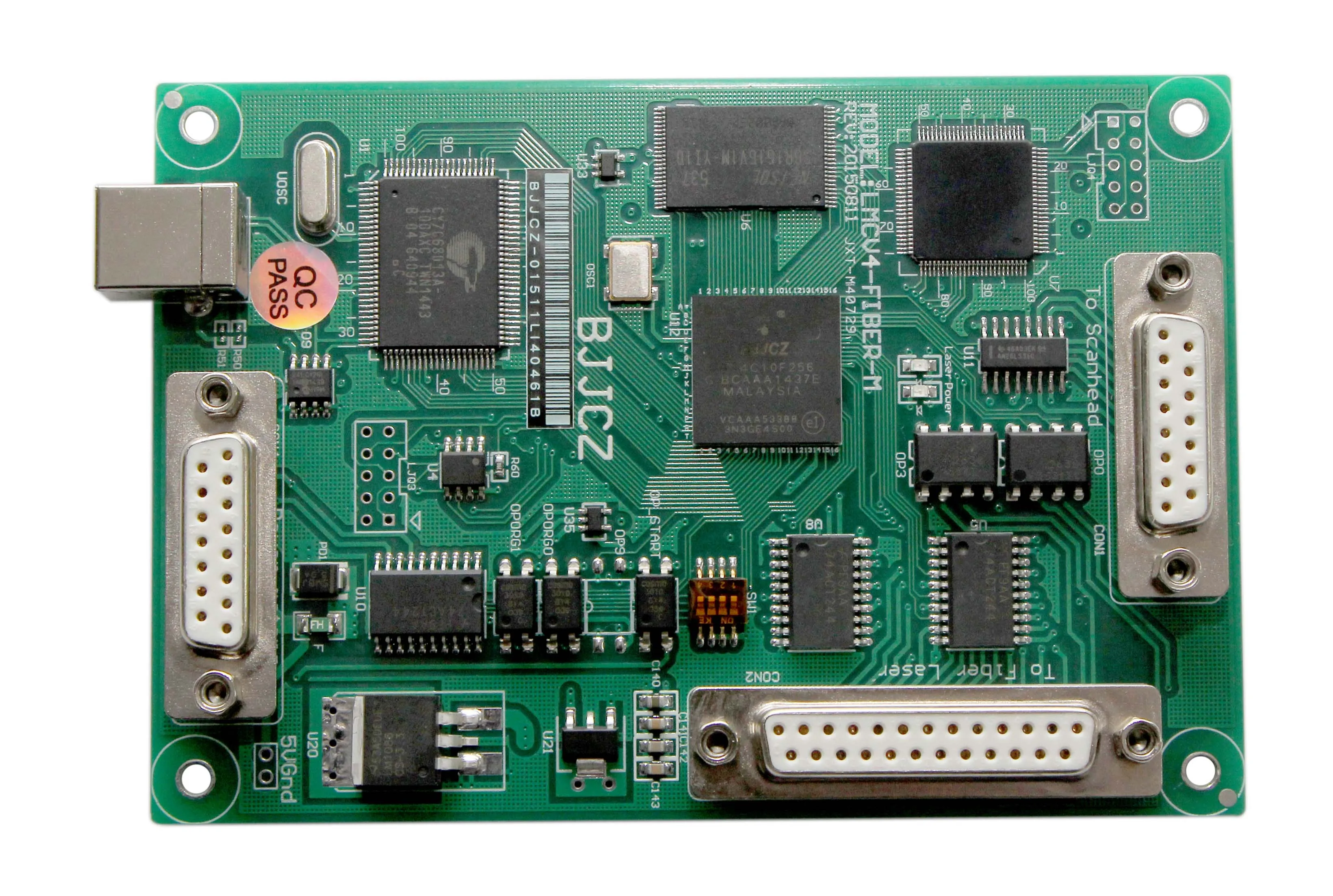

MASTER LASER JCZ BJJCZ LMCV4-FIBER-M Fiber DPSS EzCAD2 Laser Marking Card

$290.00 $275.00

SKU: 32839198338 Categories: ,

Description

MASTER LASER JCZ BJJCZ LMCV4-FIBER-M Fiber DPSS EzCAD2 Laser Marking Card

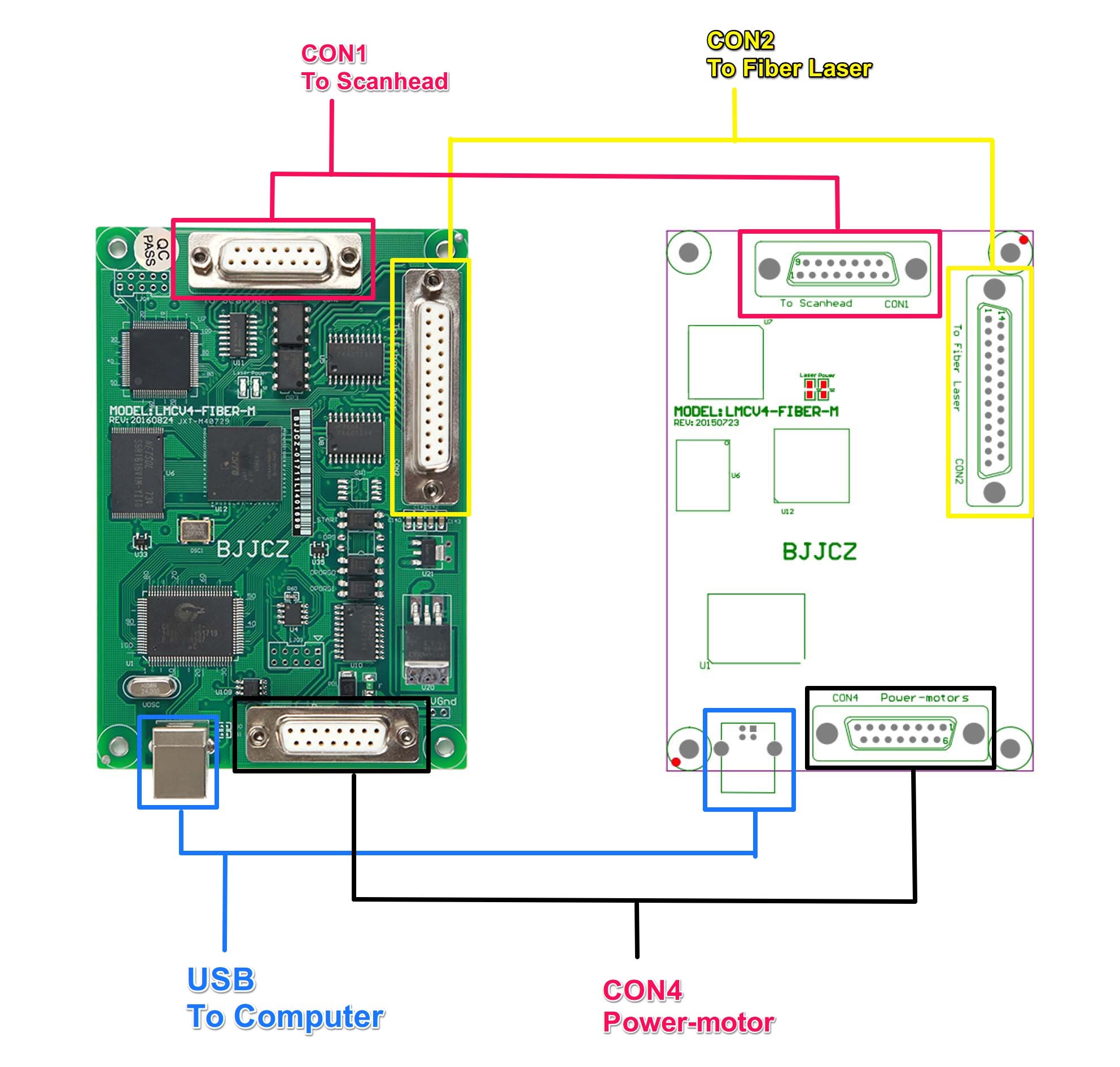

Standard DB25 connector, can be wire to IPG laser directly.
Galvo control signal is digital, which can be connect to most scanhead directly.
On-the-fly marking feature. A encoder can be used to surveillance the pipeline speed
real-timely.
Multiple boards on 1 computer: One computer can control up to 8 control board to mark
different pattern simultaneously.
Extension axis(step motor or sever motor): two set of direction/pulse signal can be used
to control 2 step(server) motors.
16 general input signals(TTL campatible): Ino-In13, XORGO(IN14), YORGO (IN15).
8 general output signals(TTL campatible): OutO-7 coming out of Con5. Outo – 3 are
TTL outputs. Out4-7 can be configured as OC outputs or TTL outputs.
LaserErr signal: this signal will be activated when there is an error occurs in the laser,
OC output. Remark function: this function is used to remark what ever is in the memory of the
board, especially convenient for high speed marking of a same pattern.
Compatible with USB2.0 specifications.
Check the datasheet here.
