Description
- Brand Name: QDHWOEL
- Motor Type: Stepper Motor
- Power Supply: DC
- Model Number: DM442
- Phase: 2 Phases
- DC: 40 VDC
- Output current programmable: 0.5A to 4.2A
- Feature1: Extra-low motor noise offers excellent quietness
- Feature2: Anti-Resonance, provides optimum torque and nulls mid-range instabilit
- Feature3: Supports PUL/DIR and CW/CCW modes
- Feature4: Automatic idle-current reduction
- Pulse input frequency: up to 200 KHz
- Warranty: 1 Year
- Companion Motor: 57HS09,57HS13,57HS22,35HS01,39HS02,42HS02,42HS03

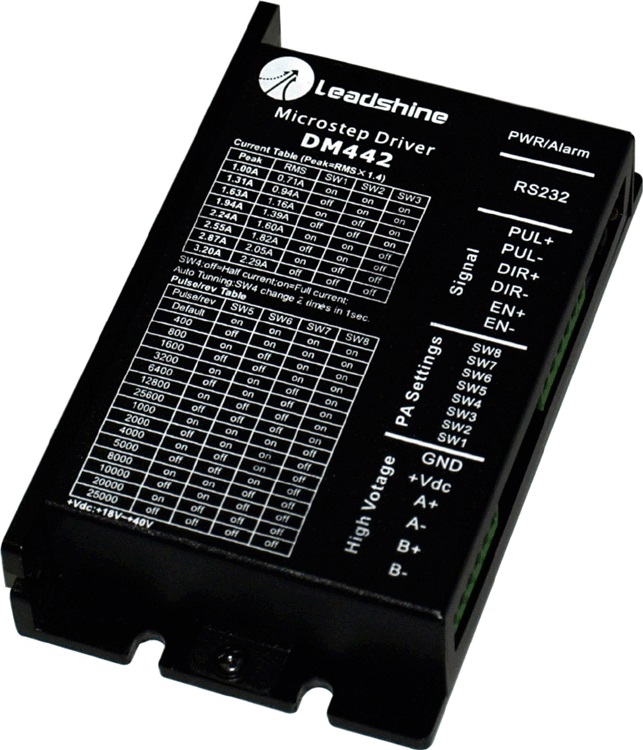

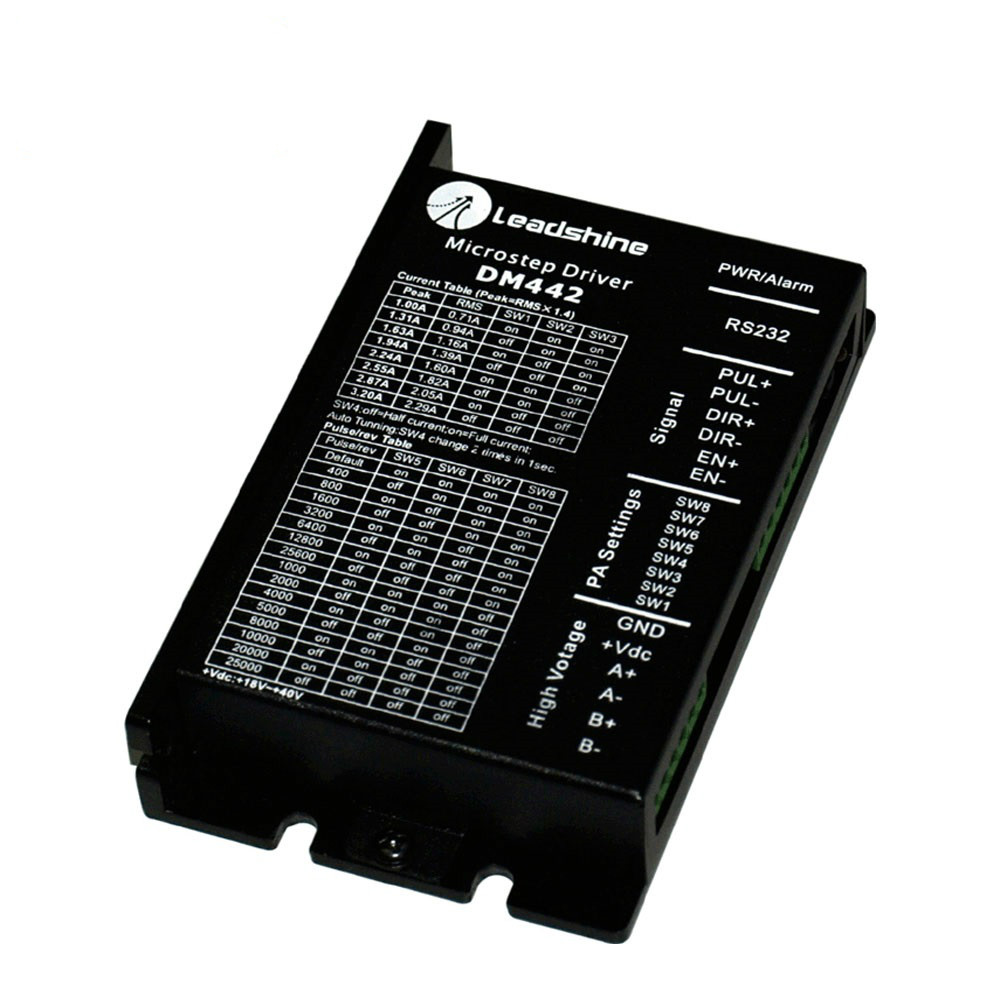

Leadshine 2 Phase Stepper Driver DM442 for Digital Stepping Motor 57HS09
The DM442 is a versatility fully digital stepping drive based on a DSP with advanced control algorithm. It brings a unique level of system smoothness, providing optimum torque and nulls mid-range instability. The self-test and auto-configuration technology offers optimum responses with different motors and easy-to-use. The driven motors can run with much smaller noise, lower heating, smoother movement than most of the drives on the markets. Its unique features make the DM442 an ideal solution for applications that require low-speed smoothness.
Compared to the DM432C, DM442 can output more current. What’s more, owing to its higher performance DSP, driven motors can achieve much higher speed than that of the DM432C, offering servo-like performances.
* Pb-Free or CE/UL approved versions optional. Contact Leadshine or see more information in its hardware manual please.
Features:
Extra-low motor noise offers excellent quietness
Anti-Resonance, provides optimum torque and nulls mid-range instability
Self-test and Auto-configuration technology, offers optimum responses with different motors
Microstep resolutions programmable, from full-step to 102,400 steps/rev
Supply voltage up to +40 VDC
Output current programmable, from 0.5A to 4.2A
Pulse input frequency up to 200 KHz
Automatic idle-current reduction
Supports PUL/DIR and CW/CCW modes
Extra-low motor noise offers excellent quietness
Anti-Resonance, provides optimum torque and nulls mid-range instability
Self-test and Auto-configuration technology, offers optimum responses with different motors
Microstep resolutions programmable, from full-step to 102,400 steps/rev
Supply voltage up to +40 VDC
Output current programmable, from 0.5A to 4.2A
Pulse input frequency up to 200 KHz
Automatic idle-current reduction
Supports PUL/DIR and CW/CCW modes
Specification:
