Description

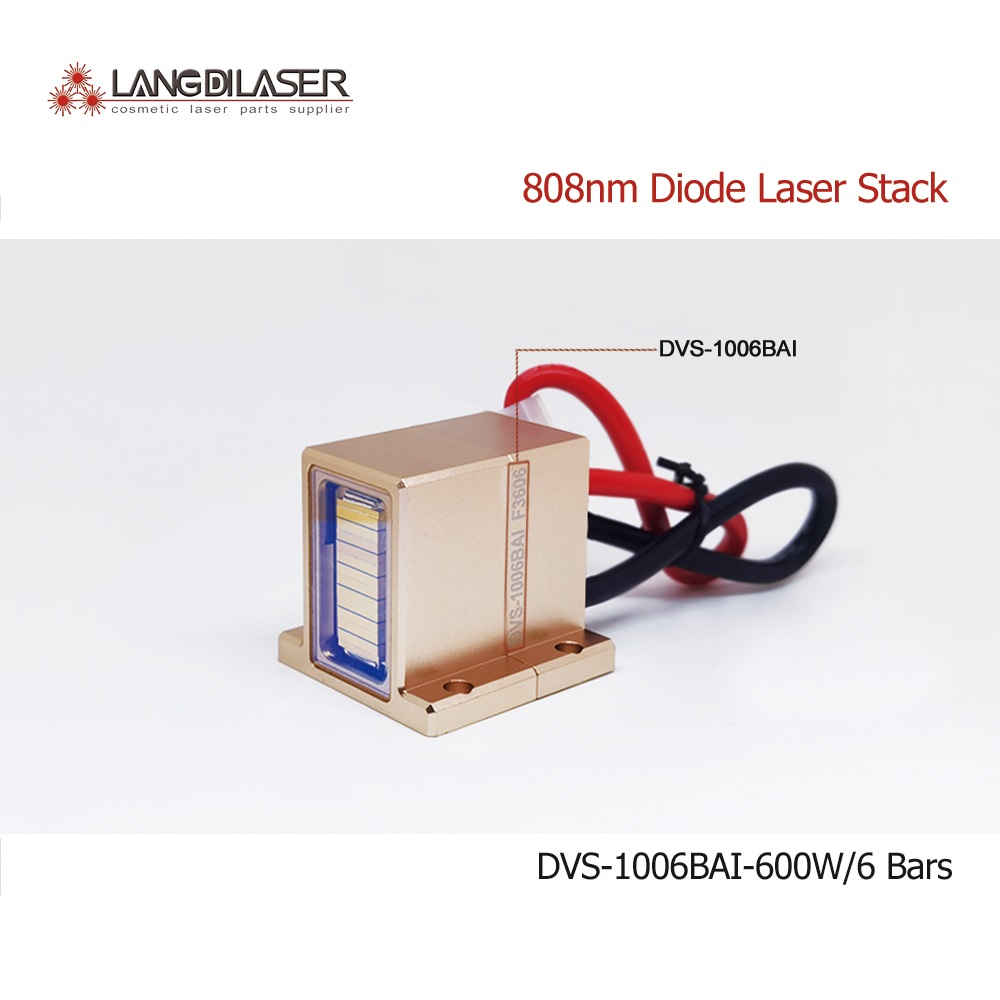

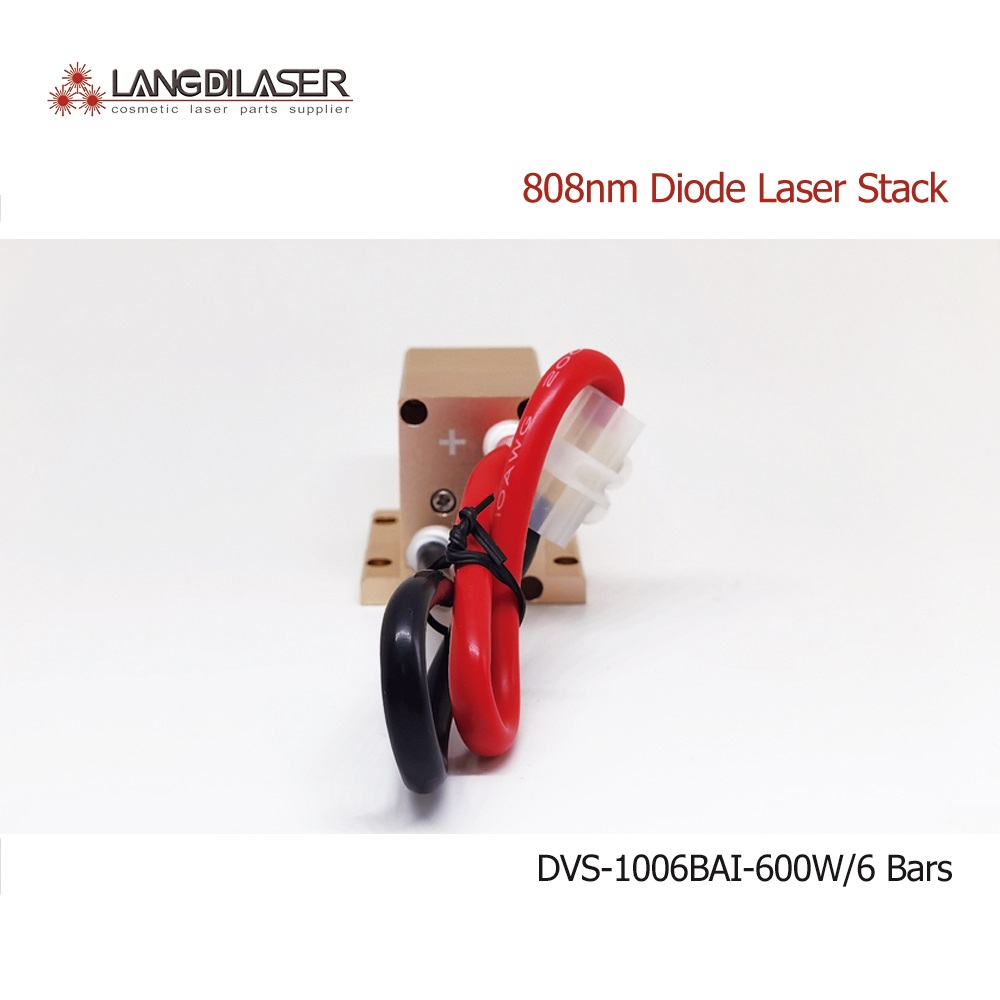

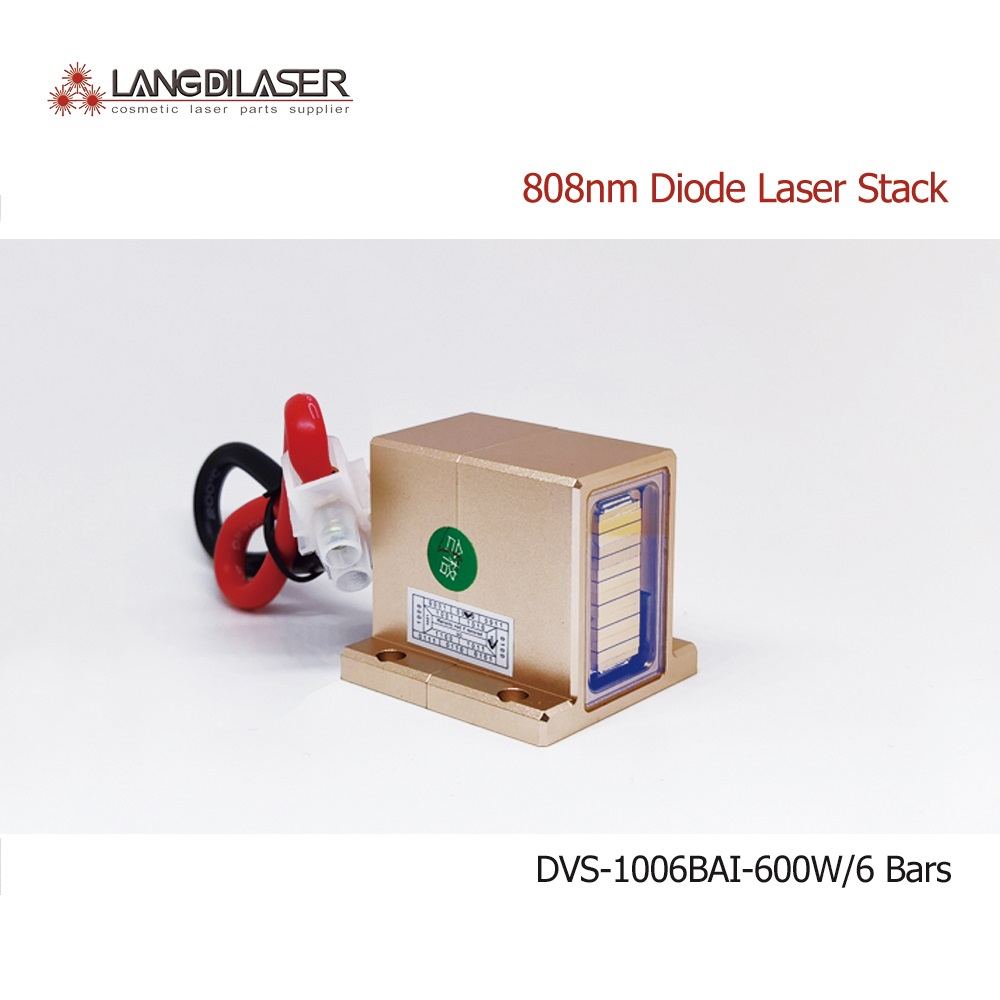

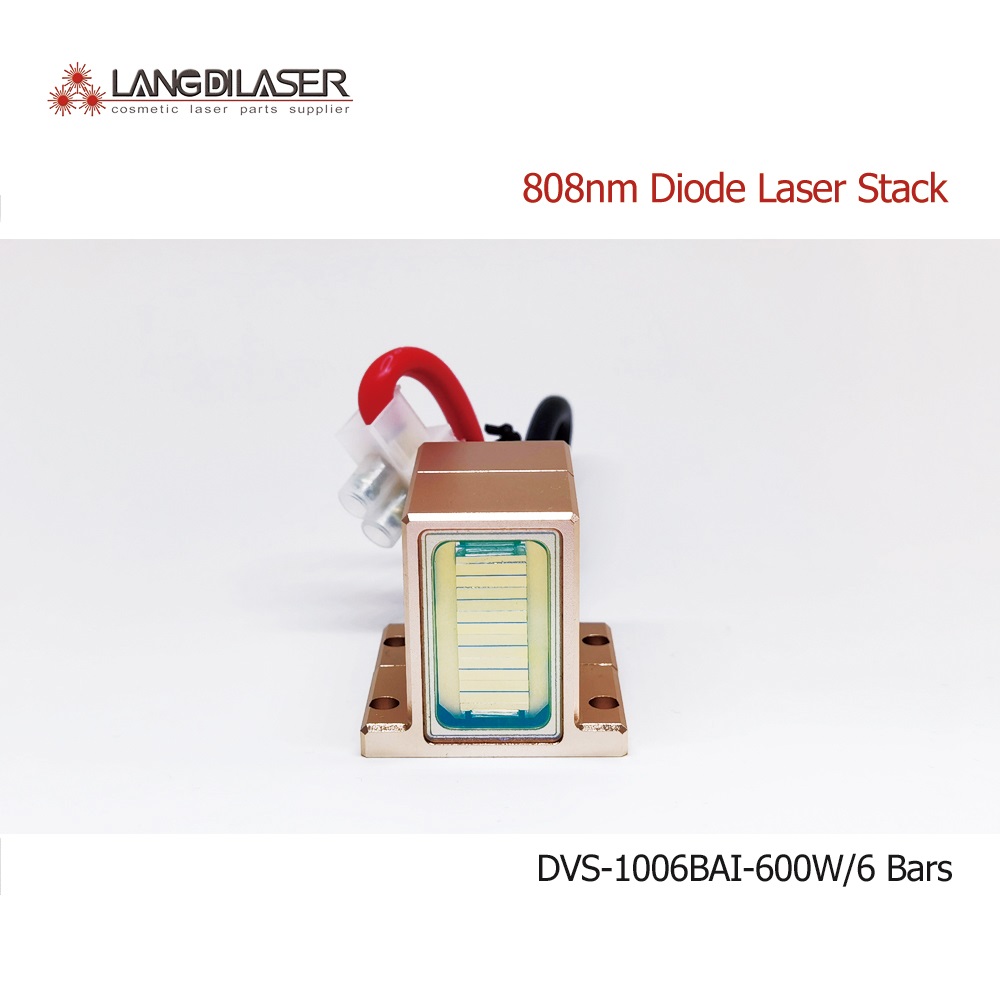

DVS-1006BAI 6 bar 100W 808nm American coherent rod diode laser mobile phone macro channel diode laser stack laser diode rod and stack
The OE macrochannel laser model is defined as follows:

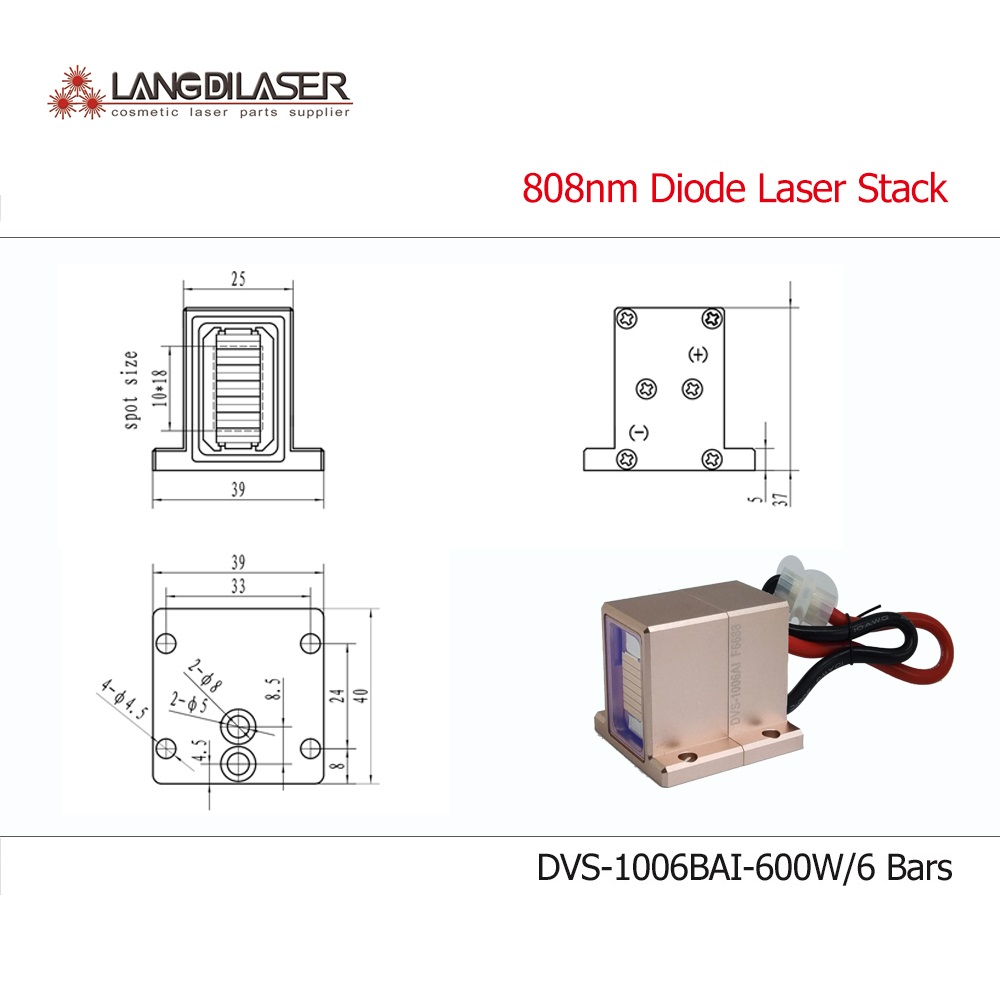

1. DVS represents a standard structure. This bar is a coherent bar imported from the US, with a width of 40 and a height of 37 in the laser-facing direction. DVS-L represents a high-end mechanical structure, with a width of 40 and a height of 53.
2. Lasers prefixed with LST represent Chinese-made bars used in the laser. These are also divided into LST and lst-l. Their dimensions are consistent with DVS and DVS-L.
3. DVS-MS indicates a mechanical structure similar to FLT., with a width of 20 and a height of 26. A 100W single bar can hold up to 6 bars.
4. DVS-ML indicates a mechanical structure with a height of MS, a width of 20, and a height of 48.9. A 100W single bar is expected to hold 12 bars.

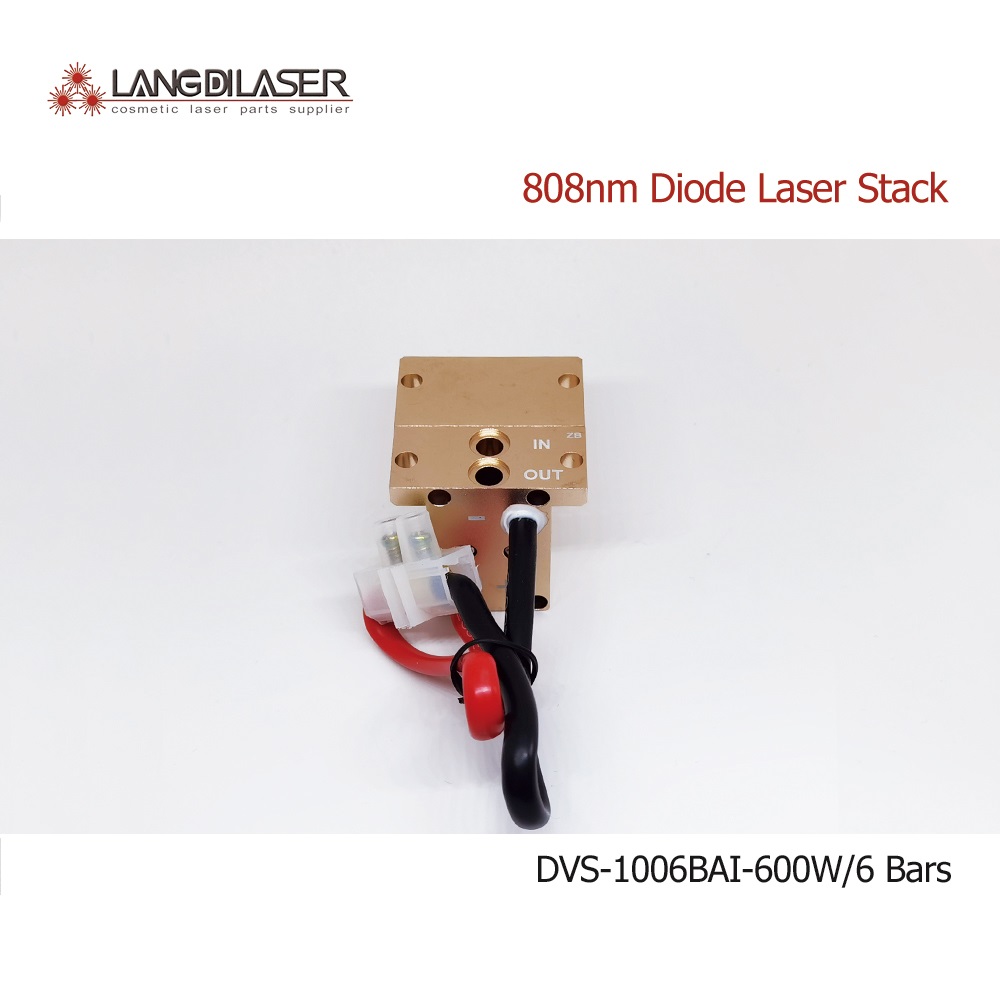

5. The DVS structure also has a water-passing structure. In this case, an “H” is added before AI to replace it.
6. 3222 indicates wavelength allocation, in the order of 1064 800 808 (pseudo-triple wave).
7. B in BAS indicates the wavelength is 100W. If B is the default value, it means the wavelength is 50W.
8. Represents a triple suffix.
9. AI represents a single-wavelength 808 suffix.
10. AI represents a single-wavelength 808 suffix, C represents a domestically produced wavelength.

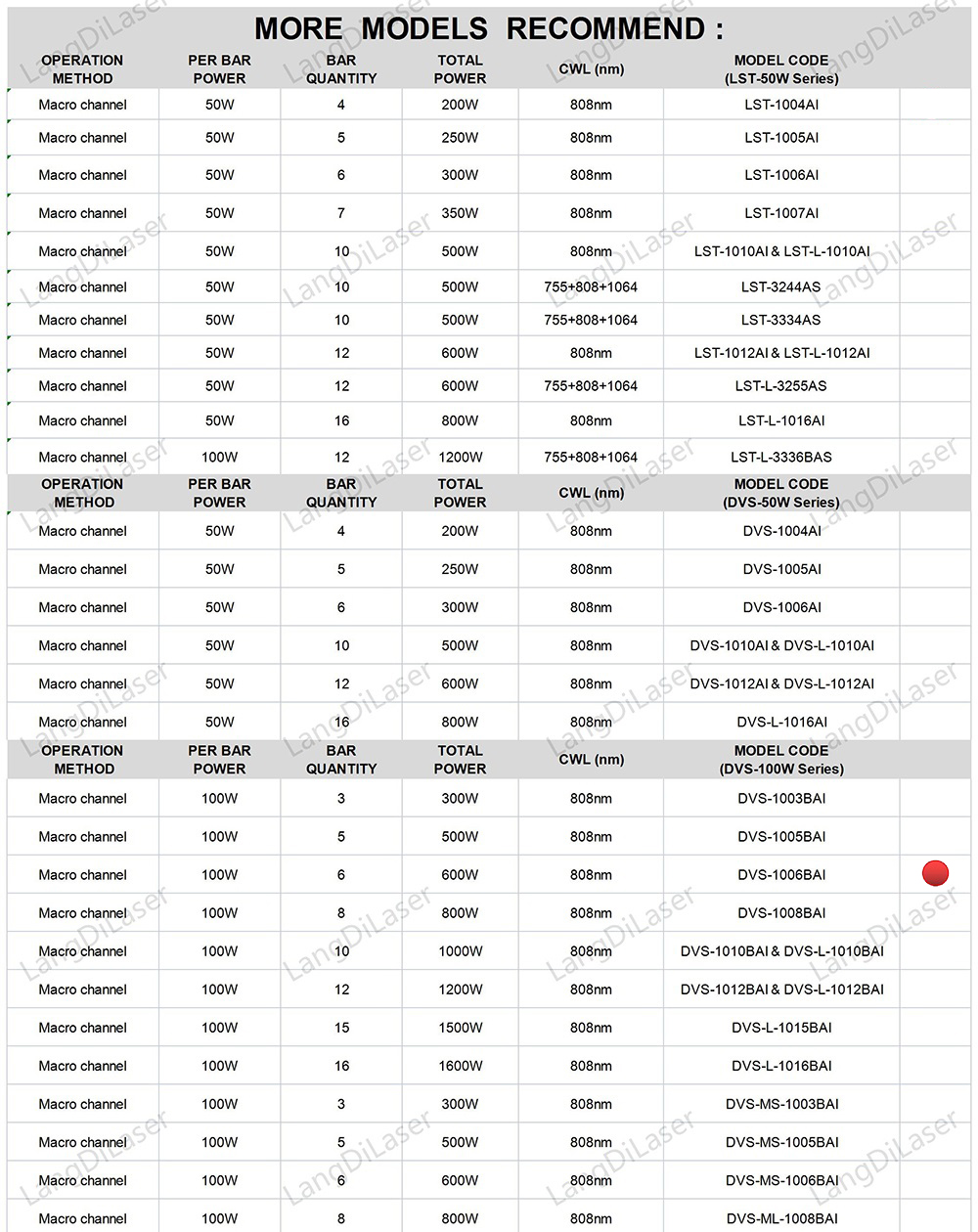

11. There are many lasers with different shapes customized by OE, and the models listed here are not complete. If you encounter a model not listed in the table, you can consult an experienced salesperson for purchase advice.
12. Early OE lasers did not have a true 755nm wavelength, so 790nm was often used instead. However, if customers can distinguish between genuine and fake 755nm wavelengths by color recognition, they can request a genuine 755nm wavelength when purchasing. In this case, the selling price will be calculated according to the following description.
