Direct Sales Laser Rust Cleaning Machine

$9,900.00 $8,900.00

SKU: 1005001489901888 Category:

Description

  • Certification: CE
  • Condition: New
  • Model Number: LXC-100W
  • CNC or Not: CNC
  • Product name: Laser Rust Cleaning Machine
  • Laser power: 100W (50W 200W 500w OPTIONAL)
  • Laser wavelength: 1064nm
  • Pulse frequency: 20-100KHz
  • Cooling method: Air cooling
  • Scan width: 10-60mm
  • Optional: Hand/automatic
  • Working temperature: 5-40degree
  • Key word: Key word
  • Machine Type: Other

          Direct Sales Laser Rust Cleaning Machine

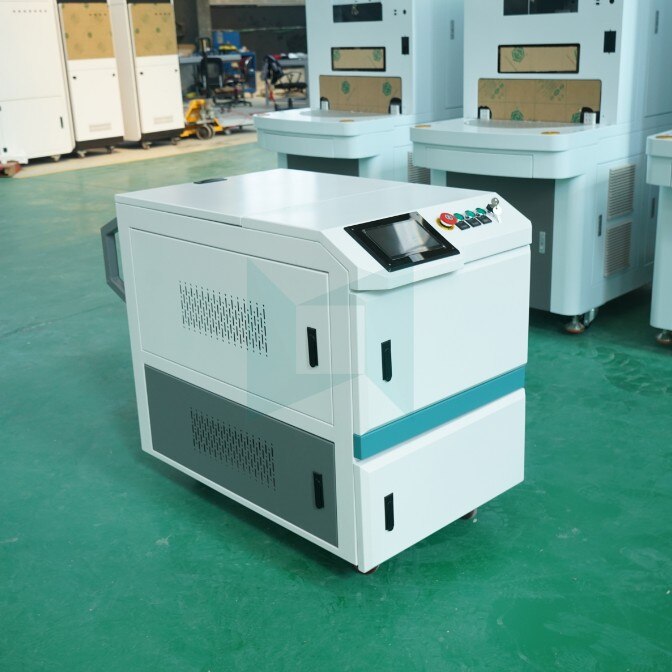

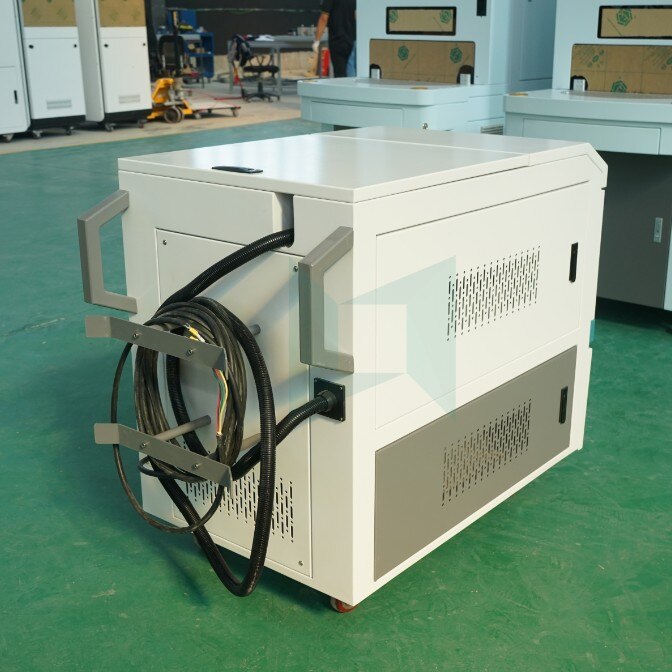

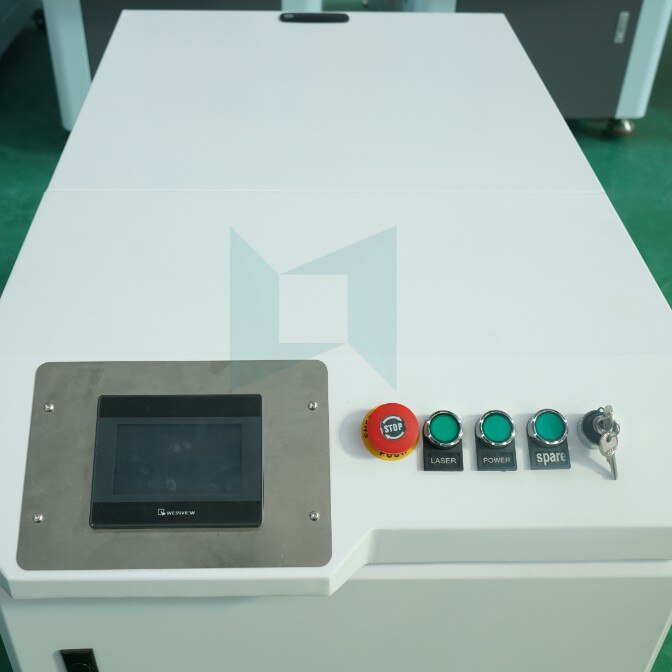

Machine in Factory:

3.1 3.2

3.6 3.3

Machine Parameters

Equipment model LXC-50 LXC-100 LXC-200 LXC-500 LXC-1000
Laser working medium Yb-doped fiber
Laser power 50W 100W 200W 500W 1000W
Laser wavelength 1064nm
Pulse frequency 20-100KHz 20-100KHz 20-200KHz 20-50KHz 20-50KHz
Cooling method Air cooling Air cooling Water cooling Water cooling Water cooling
Dimension 760mmX780X790mm     1100x950x700mm
Total Weight 56kg 60kg 65kg 130kg(Including Water tank) 140kg
Total power 350W 600W 1000W 1800W 2000W
Scan width 10-60mm
Optional Hand/automatic
Working temperature 5-40℃

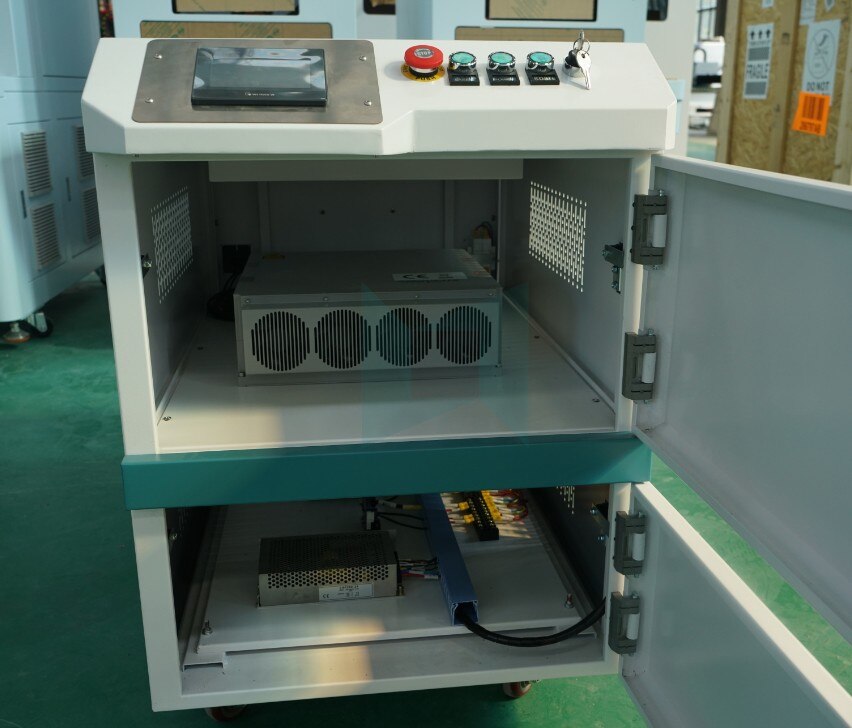

Machine Main parts

photobank (8)

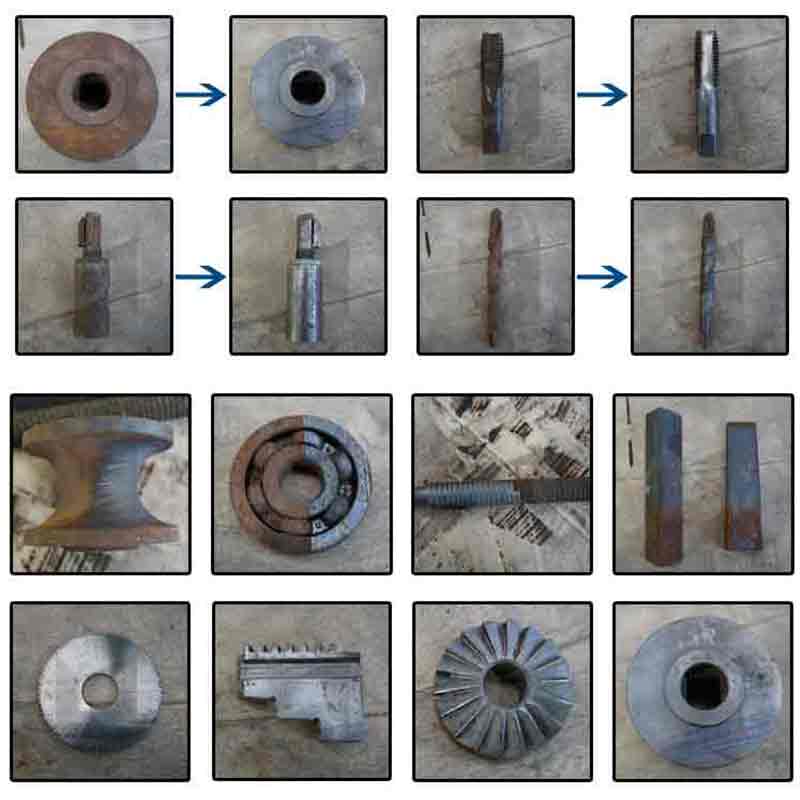

Application and Samples

Application

Rust Removal

Oxide Removal

Molding Cleaning

Surface Preparation

Coatings Removal

Weld Pre-treatment

Gluing Pre-treatment

Removal of Oil and Grease

Paint Removal

Surface Cleaning

Stain Removal

Surface Roughening

Tool Cleaning

Historic Restoration

Selective Paint Removal

Precise Cleaning

4.1  4.2

4.3  4.4

4.5  4.6

FAQ

Q1 :How about warranty?

A1: 2 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge(some parts will be maintained) when if any problem during the warranty period.

Q2:2 I don’t know which one is suitable for me ?

A2:Please tell me

1). Your materials.

2). Max size of your material.

3). Max cleaning thickness.

4). Popular cleaning thickness.



Q3:Payment terms?

A3:  Alibaba trade assurance/TT/West Union/Payple/LC/Cash and so on.

Q4:Do you have CE document and other documents for customs clearance?

A4: Yes,we have Original. At first we will show you and And after shipment we will give you CE/Packing list/Commercial Invoice/Sales contract for customs clearance.

Q5:I don’t know how to use after i receive Or i have problem during use,how to

do?

A5:

1).  We have detailed user manual with pictures and CD,you can learn step by step.And our user manual update every month for your easy learning if there is any update on machine.

2).  If have any problem during use,you need our technician to judge The problem elsewhere will be solved by us. We can provide team viewer

/Whatsapp/Email/Phone/Skype with cam till all of your problems finished.We can also provide Door service if you need.
