Description

976nm 15W Semiconductor Laser Multi-Function Detachable Diode Laser

Features：
15W output power
976nm wavelength
Standard fiber coupling for 200μm/
0.22NA
Customer options：
Red aiming beam
Power PD
Thermistor

Applications：
Medical use
Material processing

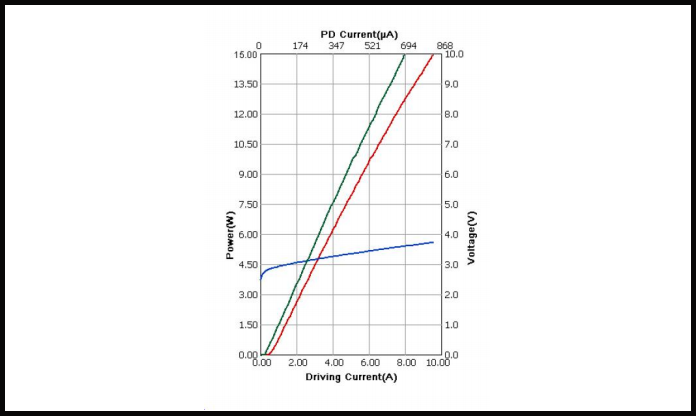

Parameter:

CW Output Power: 15w

Threshold current: 1.0A

Operating current: 11A

Operating voltage: 4V

Reverse Voltage: 5V

Slope Efficiency: 1.6W/A

Electrical-to-Optical Efficiency: 40%

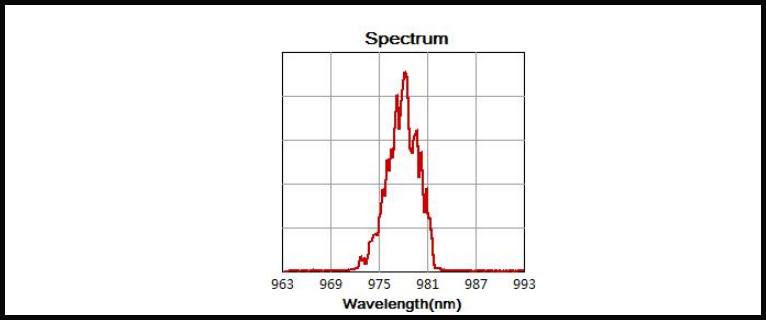

Center wavelength:966~986nm

Spectral width(FWHM):6nm

Wavelength Shift with Temperature: 0.3nm/℃

Fiber Data:

Buffer diameter: 400μm

Cladding diameter: 220μm

Core diameter: 200μm

Numeric aperture: 0.22

Others:

ESD:  500V

Storage Temperature（Non-operating）: -20~70

Lead Soldering Temp: 260℃

Lead Soldering Time: 10sec

Operating Case Temperature: 15~35℃

Relative Humidity: 15~75%

PD Data:

Current：200~2000

Thermistor：

10±3%/3477 (K Ω)/β(25℃)

Aiming Beam Data：

Output Power：2mW

Wavelength : 630~643nm

Voltage;  2.2V

Current: 45~65mA

Please kindly check the datasheet:

976nm 15W Semiconductor Laser Multi-Function Detachable Diode Laser
