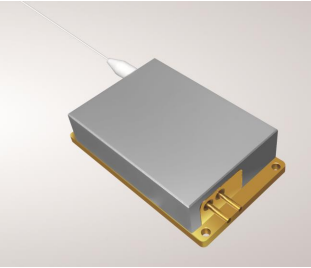

878.6nm 65W High Power Wavelength-Stabilized Fiber Coupled Diode Laser

Description

Features：
878.6nm Wavelength-Stabilized
65W output power
200μm fiber core diameter
0.22 N.A.
Applications：
Solid-state laser pumping

Parameter:

Center wavelength:877.6~879.6nm

CW Output Power: 65W

Threshold current: 1.2A

Operating current: 9~10A

Operating voltage: 17~19V

Slope Efficiency: 7W/A

Electrical-to-Optical Efficiency: 43%

Spectral width(FWHM):0.5nm

Back reflection wavelength Range: 1040~1200nm

Back reflection isolation: 30dB

Core diameter:200μm

Cladding diameter:220μm

Numeric aperture: 0.22NA

Fiber length: 2m

Connector:SMA905

Wavelength Shift with Temperature: 0.3nm/℃

Minimum Static Bending Radius: 66mm

Others:

ESD: 500V

Storage Temperature（Non-operating）: -20~70

Lead Soldering Temp: 260℃

Lead Soldering Time: 10sec

Operating Case Temperature: 15~35℃

Relative Humidity: 15~75%

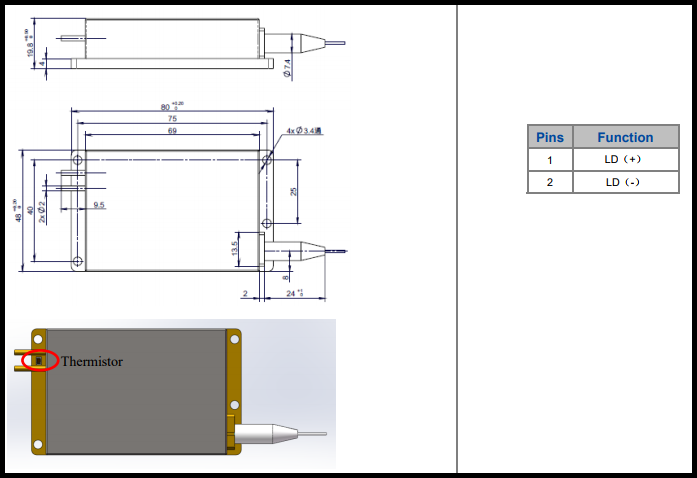

Please kindly check the datasheet:
