830nm 1W 1000mW Laser Diode LD

$199.00

Category:

Description

830nm 1W 1000mW Laser Diode LD

High quality 830nm 1000mW laser diode (laserdiode, laser ld, laser led). There are three pins, but in many application, you need to cut one pin off, then you get a 2-pins 830nm laser diode like this.  Download the 830nm 1W LD spec here.

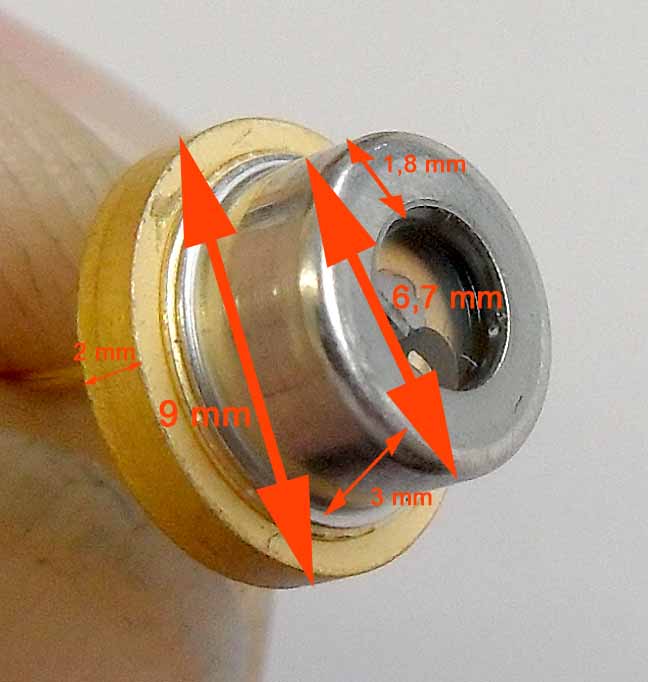

Package Type:  TO-5(Φ9.0mm)
Wavelength@25℃: 820nm;830nm;840;
Spectral width: 2.5nm
Output power: 1W;1.2W
Emitter area: 50
Beam divergence(FWHM):
Temperature coefficient of wavelength: 1.2/A
Threshold current(Typ.): 1.2A
Operating voltage: 1.8V
Recommended Operation Temperature: 25℃
This laser diode will be needed for a Screen CTP Plate Belichter.
