Description
12 bars Jenoptiks 808nm laser diode stack repairing service for Alma Soprano ICE / XL / XLi laser hair removal handle piece

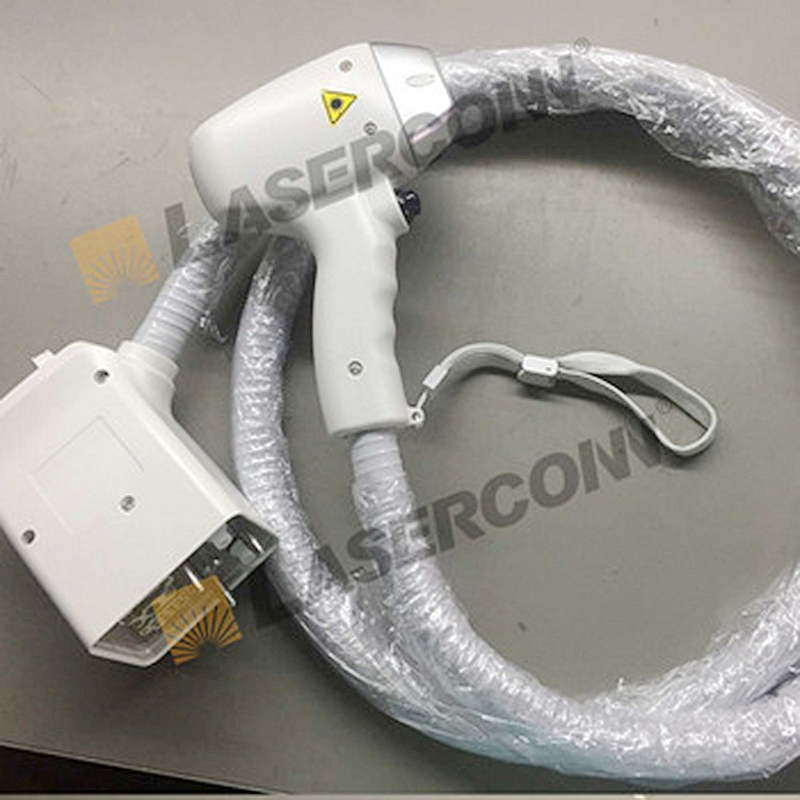

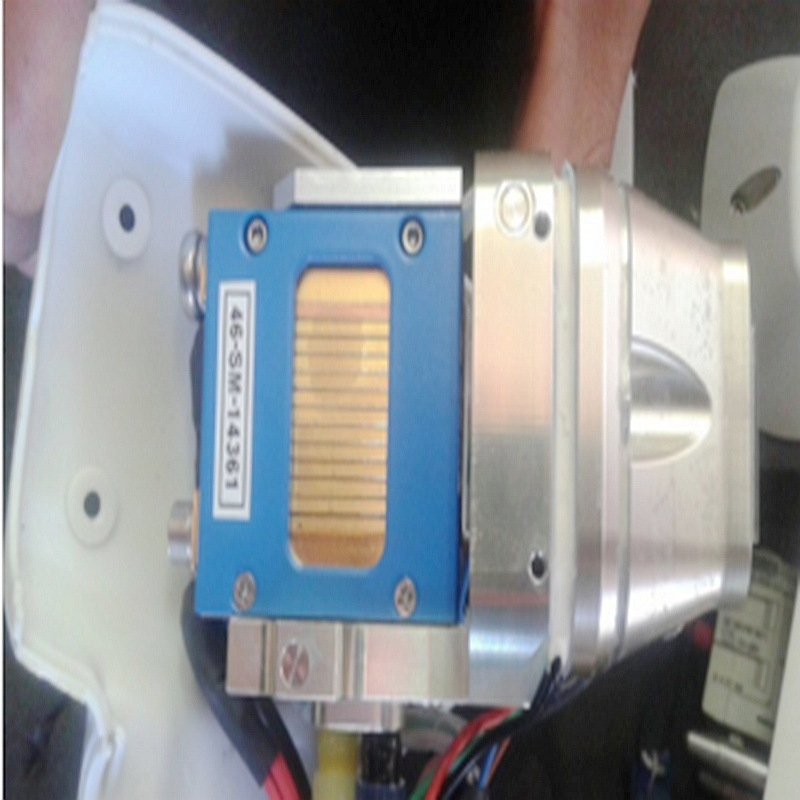

1. Customer’s old (repaired) products
2.Specifictations
| Model NO. | VS-MI-808-100-12-Alma |
| Application | Alma soprano handle piece repair and replacement |
| Function | Hair removal, Skin rejuvenation |
| Central wavelength | 808±5nm |
| Laser bar | Germany Jenoptik bar |
| Laser stack type | Micro channel cooled vertical diode laser stack |
| Operation mode | CW |
| Laser power | 1200W |
| Per bar power | 100W |
| Bars number | 12 pieces |
| Maximum operating voltage | 24V |
| Fast axis divergence (FWHM) | No |
| Slow axis divergence (FWHM) | No |
| Typical pitch per bar | 1.8mm |
| Expected lifetime | >10000 hours |
| Cooling system | Micro channel cooler + Water + TEC |
| Water cooling condition | 1.Flow rate: 0.3L/min ±10% / bar |
| 2.water temperature: 15~25℃ | |
| 3.Water quality: Deionized 2-10 µs/cm, mixed bed ion exchanger,particle filter<25µm | |
| 4.Cooling: Don’t use any material that combined with copper, that would form galvanic elements |
3.Dimention

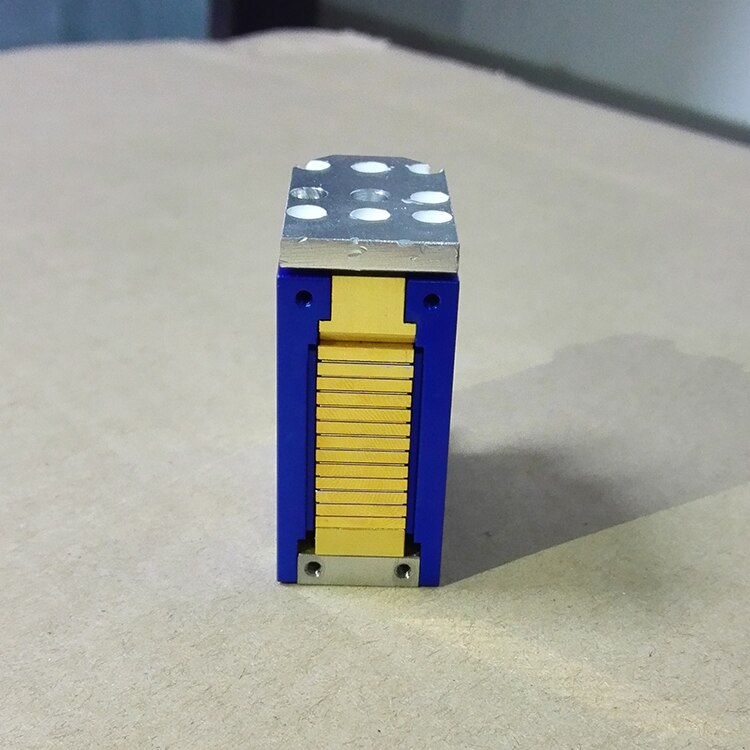

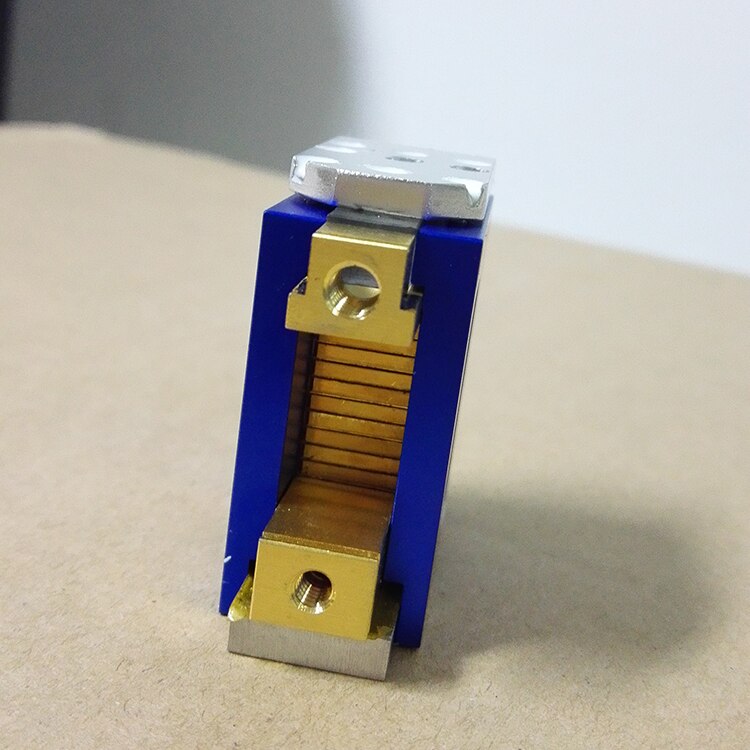

4.After produce new diode laser stack / update / repair
5.Production test display
6 .Product Description

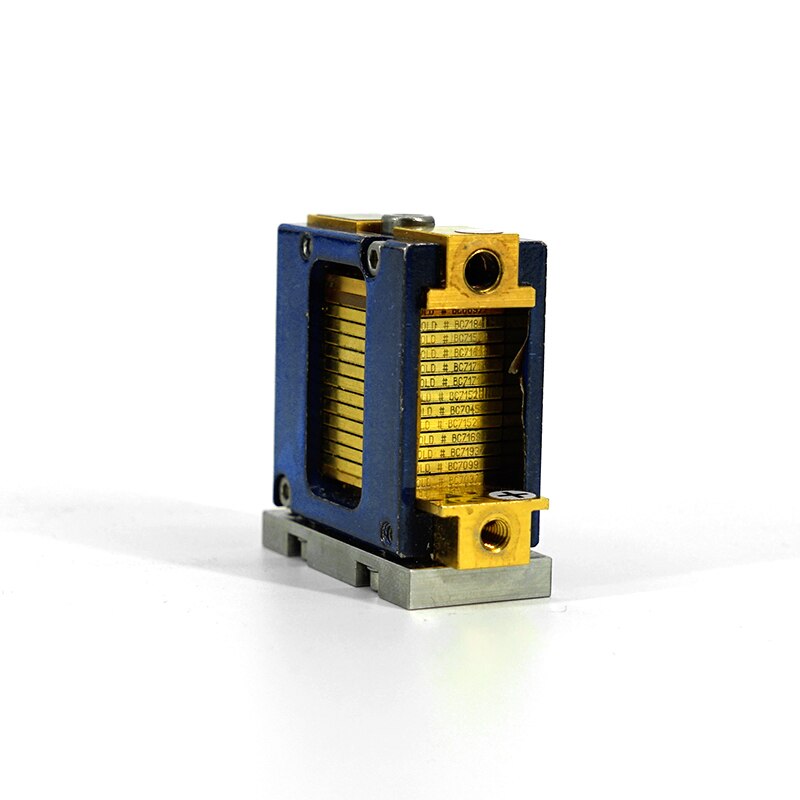

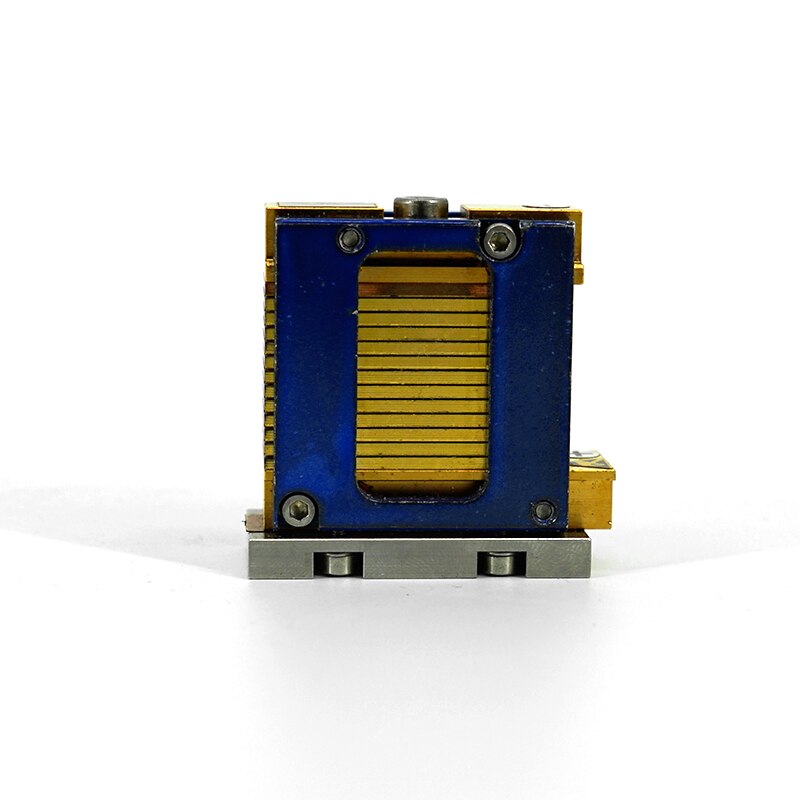

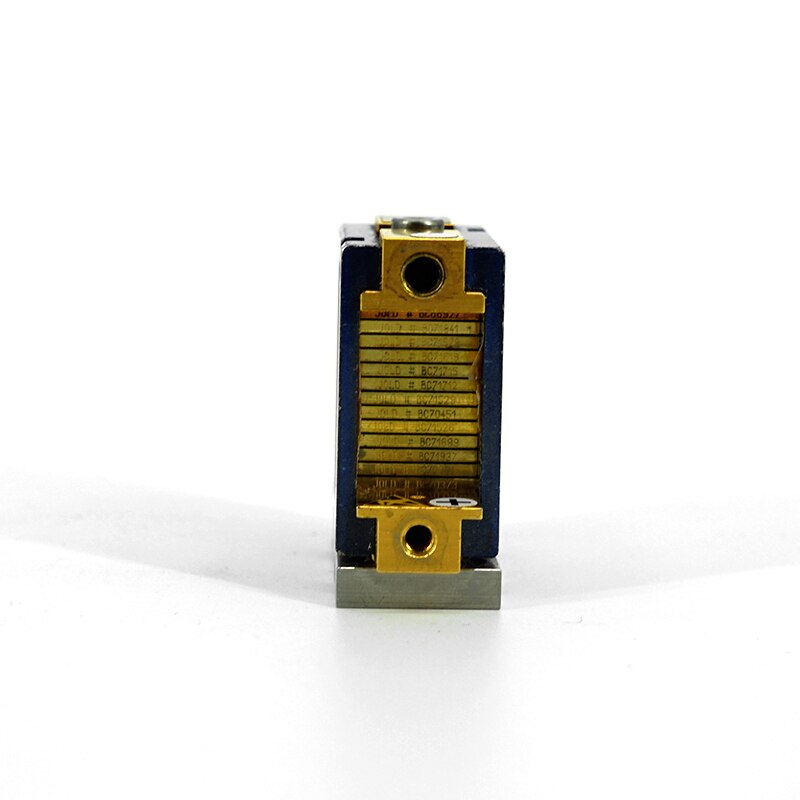

This diode stack is Alma Soprano 12 bar diode stack.It is used for Alma Soprano handle piece repairing and replacement.Oriental-laser focused on diode laser bar assembling for more than 16 years and we have seen various alma soprano diode laser stacks.Also we can use the same Jenoptik bar like Alma used to recondition the power the laser soprano power.
(1)Features
>Diode laser bar from Jenoptik
>Micro channel cooler Germany imported >lifetime: over 10000 hours
>Special design for Alma Soprano diode laser machine
(2)Advantages
1.Oriental-laser with more than 16 years diode laser bar mounting experience
2.Unique gold coating technology with high reliability and stability
3.Customized mechanical part size, dimensions,optional output power and wavelength
4.Refurbishment and repair service for any other diode laser brand Syneron,Dilas etc.
(3)Application
Specially design for repairing alma soprano XL handle or replacement of the same series handle
